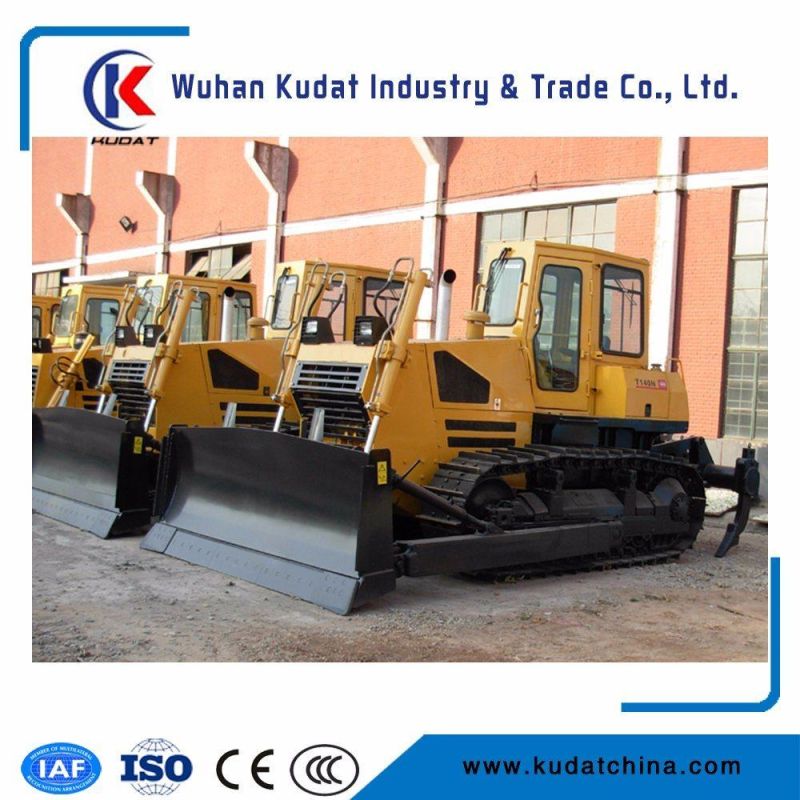

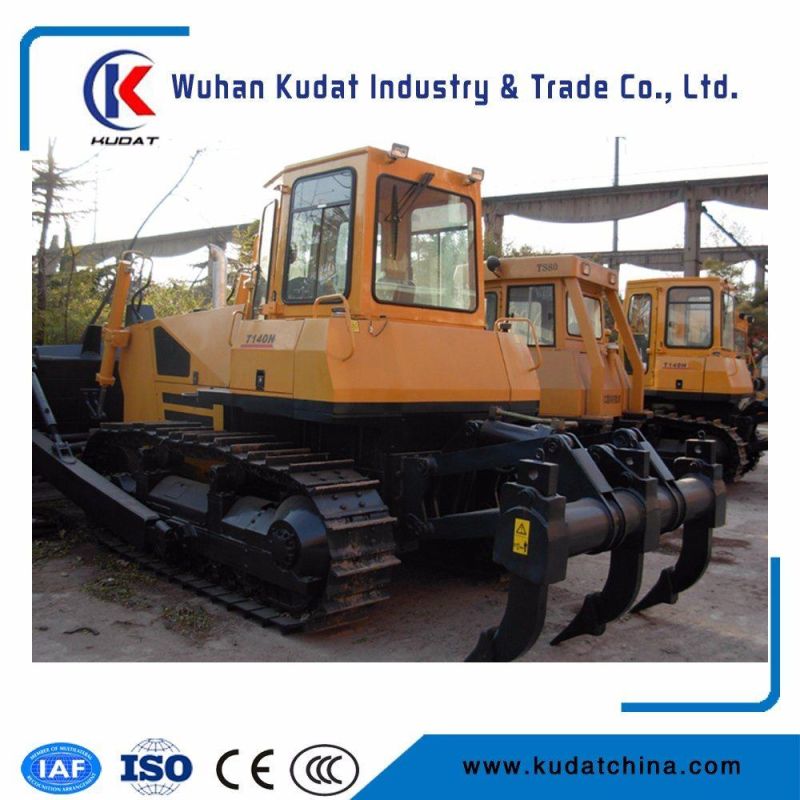

140HP Compact Crawler Bulldozer T140
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic - Mechanical Transmission
- Walking Mode：Crawler
- Load and Unload Method：Dozer
- Engine Power：74~147kw
- Certification：ISO9001: 2000
Base Info
- Model NO.：T140-1
- Condition：New
- Color：Yellow
- Operating Weight：16500 Kg
- Power：140HP
- Ground Pressure：65.0 Kpa
- Min. Ground Clearance：400 mm
- Gradient Longitudinal：30
- Transverse：25
- Engine Model：Wd10g156e26
- Transport Package：Bulk
- Specification：SGS
- Trademark：KUDAT
- Origin：China
- Production Capacity：500PCS,Year
Description
SpecificationDozer Angle Tilt Operation weight kg 16600 16500 Ground pressure kpa 63.3 62.9 Track gauge mm 1880 1880 Min. Ground clearance mm 400 400 Gradient º 30/25 30/25 Dozing capacity m3 4 4.5 Blade width mm 3762 3297 Max.digging depth mm 400 400 Overall dimensions mm 5486X3762X2842 5336X3297X2842
