High Quality 4ton Powerful Performance Wheel Loader

XIAMEN LTMG CO., LTD.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Load：4t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：LT946
  • Type：Medium-sized Loader
  • Engine：Deutz
  • Bucket Capacity：2.5 M3
  • Wheelbase：2845mm
  • Color：Yellow
  • Engine Power：129kw
  • Tire：20.5-25
  • Fuel Tank：120L
  • Wheel Base：2845mm
  • Min. Ground Clearance：380mm
  • Cycle Time：10s
  • Product Name：High Quality 4ton Powerful Performance Wheel Loade
  • Product Type：Wheel Loader
  • Certificate：Ce,ISO
  • Transport Package：Container or by Bulk
  • Specification：6910mm*2510mm*3300mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：800sets,Year

Description

The specification of 4 ton wheel loaderRated load4000kgOverall weight12360kgRated capacity2.5 m3Max. Tractive force100KNMax. Breakout force≥120KNMax. Grade ability30°Max. Dumping height3250mmMax. Dumping reach1100mmOverall dimension L x W x H6910x2510x3300mmMin. Turning radius5160mmModelDeutzTypeTurbocharged  water & air collingNo. of cylinder-bore/stoke6-102x120mmRated power129kw-2200r/minMax. torque670N.mMin. Fuel-consume ratio≤205g/kw.hModelYD13 electronic control gearboxGear shift4 forward, 3 reverse.
Electronic control gear shiftMax. speed36km/hMain reducing spiralBevel gear grade 1 reductionDecelerating modePlanetary reduction, grade 1.Wheel base2845mmWheel tread1865mmMin. ground clearance380mmSystem working pressure18MPaBoom lifting time5.5+0.2sTotal time10+0.5sFuel tank capacity120LLeveling automaticallyYesService brakeAir over hydraulic disc brake on 4 wheelsParking brakeAir break controlType 20.5-25Front tyre pressure0.35MpaRear tyre pressure0.2Mpa

Product Features

1.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety. And the dust-proof layer make the axle more durable.

2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.

3.Novel appearance and humanized design:
Cabin with broad view. double-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
High Quality 4ton Powerful Performance Wheel Loader

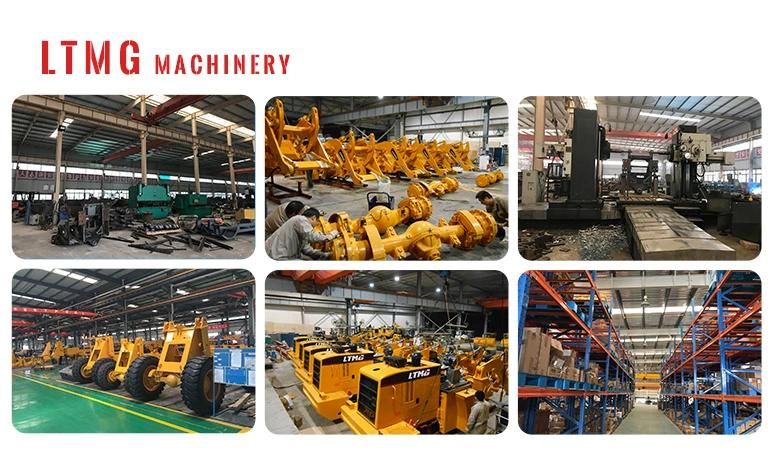

Our factory
High Quality 4ton Powerful Performance Wheel Loader

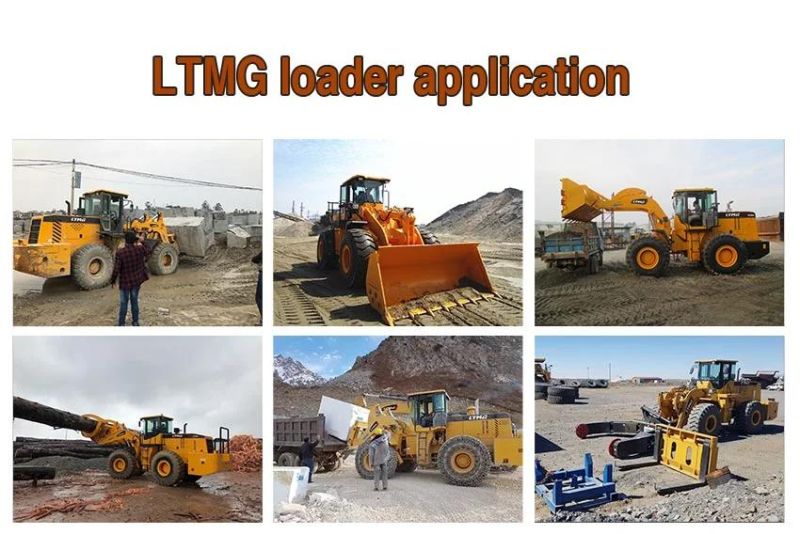

LTMG Machines Application
High Quality 4ton Powerful Performance Wheel Loader

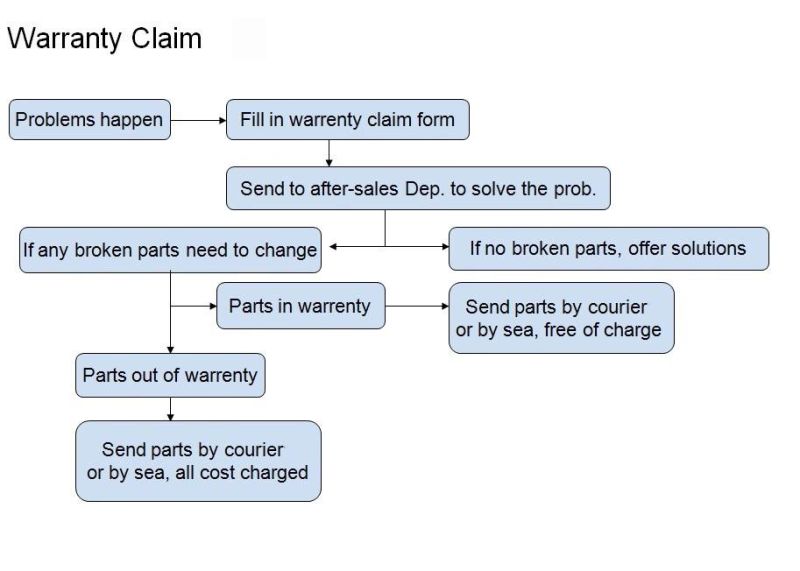

After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


High Quality 4ton Powerful Performance Wheel Loader



FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
