• Model NO.：LT936
• Type：Small Loader
• Color：Yellow and Black
• Engine：Deutz
• Rated Power：92kw
• Bucket Capacity：1.7 M3
• Operating Weight：10, 100 Kg
• Tire Type：17.5-25
• Max.Dumping Height：3400mm
• Overall Length：7200mm
• Wheel Base：2850mm
• Maximum Torque：500n.M
• Transport Package：Nude Packing, Fixed in Container
• Specification：7200mm*2350mm*3200mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：500sets,Year

ModelLT936Operating  weight10,100 kgRated load3,000 kgBucket capacity1.7m³Engine modelDeutz WP6G125E22Rated engine power92kwRated rotate speed2200r/minMaximum torque500N.mBreakout force98KNForward 10-8km/hForward 20-13.5km/hForward 30-25km/hForward 40-36km/hReverse 10-9.5km/hReverse 20-30km/hGrade ability28°Overall length7200mmOverall width2350mmOverall height3200mmWheel base2850mmTrack base1800mmMinimum ground clearance450mmMaximum dumping height3400mmMaximum dumping reach1290mmRaise time≤6.8sTotal≤12.5sFuel Tank180LTyre type17.5-25

Product Features

1.Efficient working
The maximum dumping height is 3400mm. Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.
The single rocker arm Z-form reversal mechanism working device has large breakout force due to the optimization design.

2.Powerful engine
Weichai-Deutz WP6G125E22 92KW Engine, low RPM speed Engine, strong power, energy conservation and environmental protection. DF-Cummins engine, Steyr engine, Shangchai engine is optional.

3.Comfortable to drive:
Cab with broad view, noise-isolation and vibration absorber meets all kinds of operation,which can bedismantled for Large space. Radio with MP3 function and speaker,thejoystick control system(Optional) ensure easy operation and more comfortable.

4.Safe operation
Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation. ROPS/FOPS cab is optional.

5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

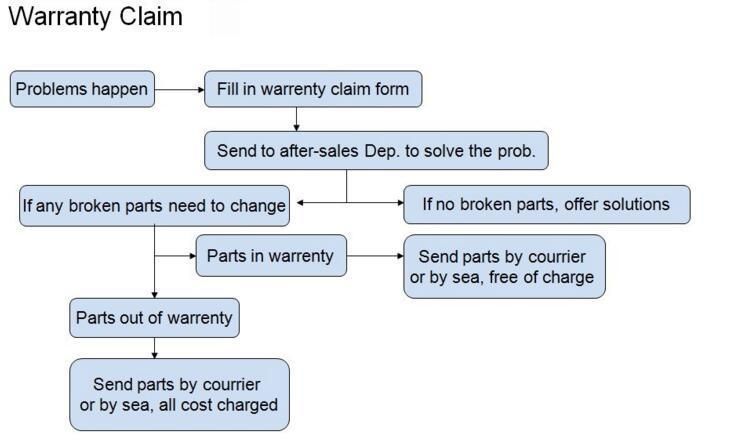

After sales service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.



Shipping & Package

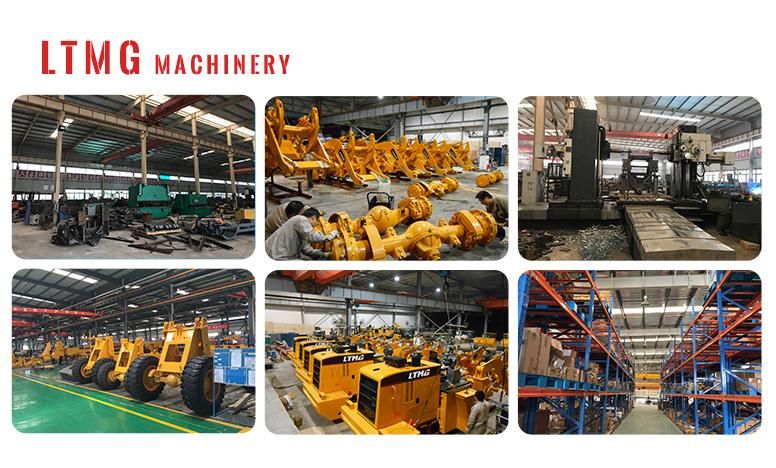

Company
