• Model NO.：LT966
• Bucket Capacity：3.5 M3
• Operating Weight：19.5t
• Engine Model：Weichai Wd10g270e201
• Rated Engine Power：199kw
• Max.Dumping Height：3300mm
• Tyre Type：26.5-25
• Overall Length：8380mm
• Raise Time：6.8s
• Engine Power：199kw
• Color：Could Be Decided by Buyer
• Transport Package：Fixed in Container or Nude Packing
• Specification：8380mm*3100mm*3560mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：800sets,Year

The specification of Construction Machinery 6 ton wheel loaderModelLT966Operating  weight19.5TRated load 6,000 kgBucket capacity 3.5 m³Engine model WEICHAI WD10G270E201Rated engine power199KWRated rotate speed2200 r/minMax.torque 920N.mMax. traction force≥185KNBreakout force ≥200KNDriving speed  Forward I0-8.5km/hForward II0-16.5km/hForward III0-25km/hForward IV0-42km/hReverse I0-8.5km/hReverse II0-16km/hGrade ability28°Overall length8380mmOverall width3100mmOverall height3560mmBucket width3170mmWheel base3350mmTrack base2360mmMin.ground clearance470mmMax.dumping height 3300mmMax.dumping reach 1290mmTransmissioncountershaftFuel tank230LHydraulic tank270LRaise time≤6.8sTotal≤12.5sTyre type26.5-25

Product Features

1.Exclusive patent: 6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.
2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

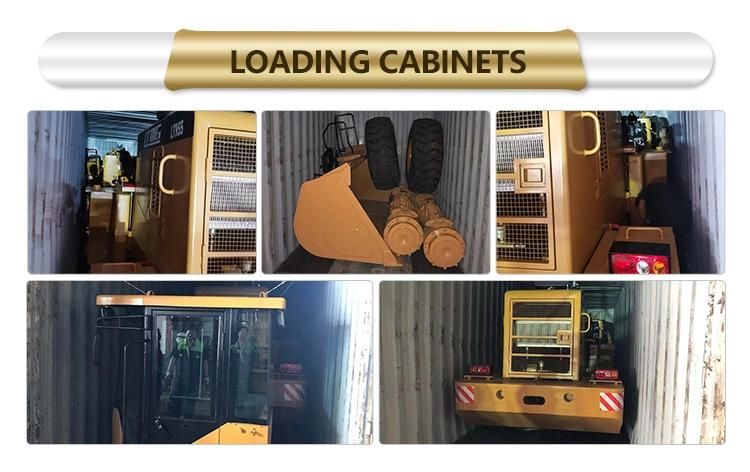

Shipping & Delivering




Our Factory




Exhibition and Customers

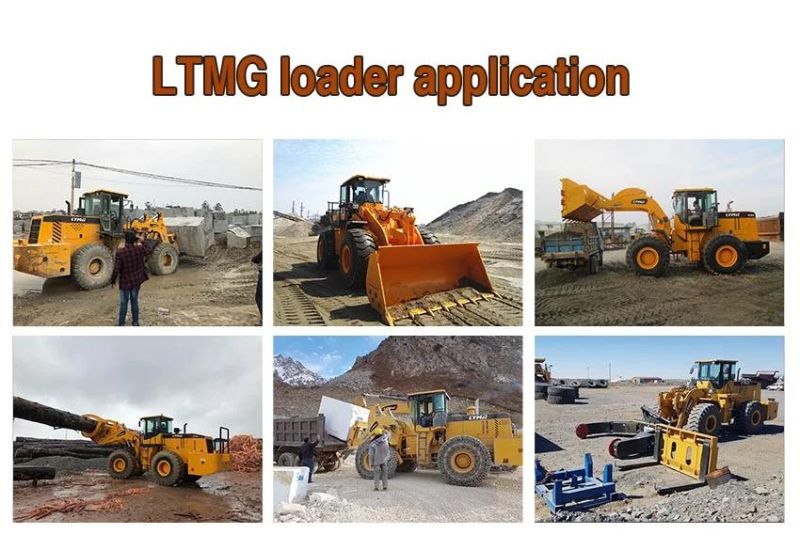

LTMG Machinery Application






After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
