• Model NO.：PY160
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Overall Weight：12.5 Ton
• Lxwxh：9000X2450X3350mm

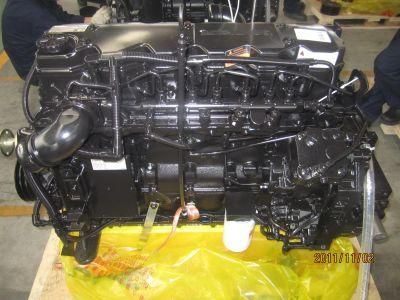

• Engine Type：Cummins 6BTA5.9-C165
• Rated Power：123kw
• Gears：Four Forwardfour Reverse
• Tyre Type：17.5-25
• Length of Blade：3962X600mm
• Transport Package：Nude
• Specification：9000x2450x3350mm
• Trademark：Strongbull
• Origin：China
• HS Code：8429209000
• Production Capacity：5000 Sets,Year

General SpecificationOverall weight12500 kgLxWxH9000x2450x3350 mmEngine Cummins 6BTA5.9-C165Rated power123 kwTypeInline,water-cooled,four-stroke,direct injectionDetail SpecificationMin.ground clearance of front axle560 mmMin.ground clearance of rear axle500 mmWheel tread1685 mmWheelbase(front/rear)6840 mmWheelbase of rear axles1650 mmMax. swing angle of front axle±12°Max. steering angle of front wheel±45°Steering angle of articulated frame±25°Blade InformationBlade size (LxHxT)3962x600x20 mmBlade plate diameter1610 mmSteering angle of blade360°Groud clearance of blade450 mmCutting depth of blade360 mmInclination angle of bladeForward 23° backward 10°Sliding range of bladeLeft 600mm right 600mmTransmission SystemMax. speed (Forward/reverse)44km/h   33km/hGearbox typeFixed shaft power stageTorque converterSingle-stage single-phase three-elementGearsForward 4 reverse 4Tire type17.5-25Hydraulic systemOpen type systemPressure16MpaFuel capacity125LHydraulic oil capacity190L

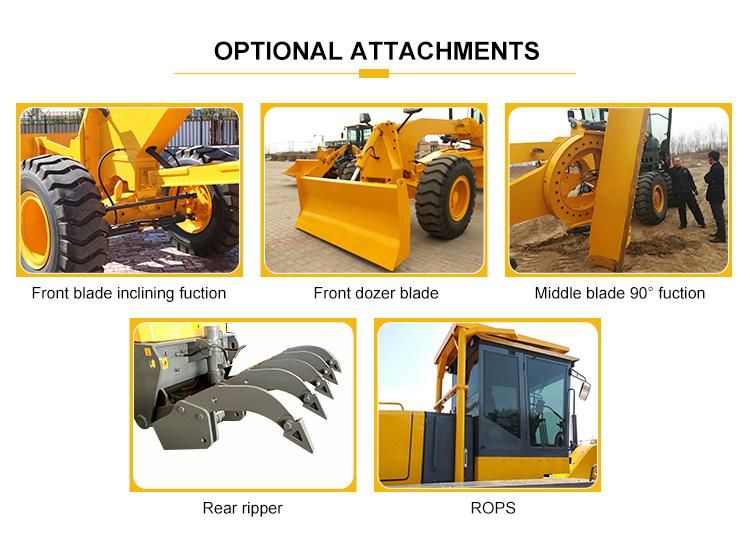

DETAILS INTRODUCTION

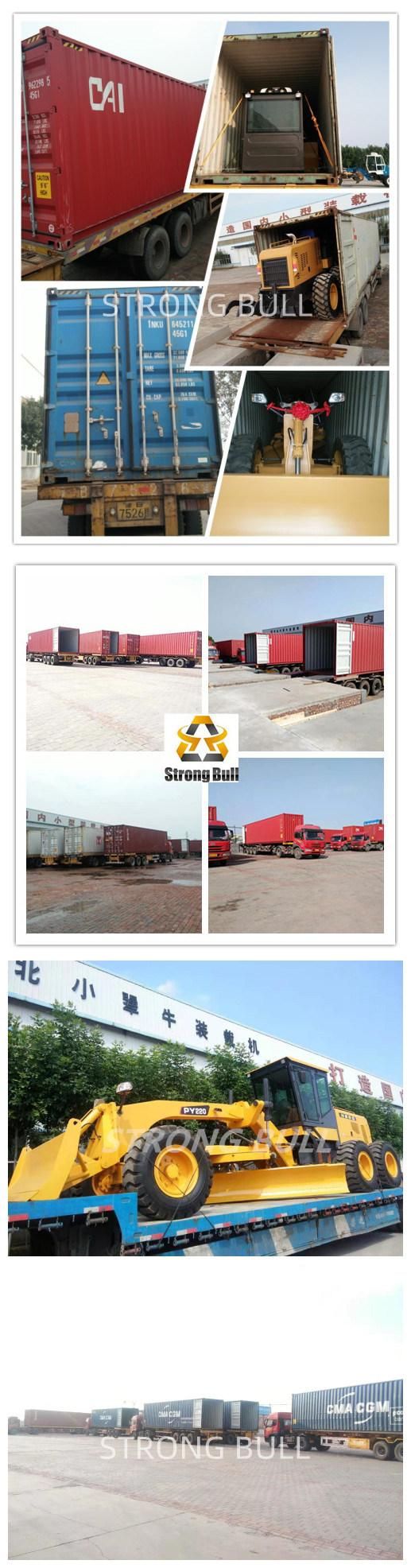

SHIPMENT&DELIVERY

40HC container can load 1 set PY160 motor garder with the cabin taken off.
Delivery in 20 days after pay deposit

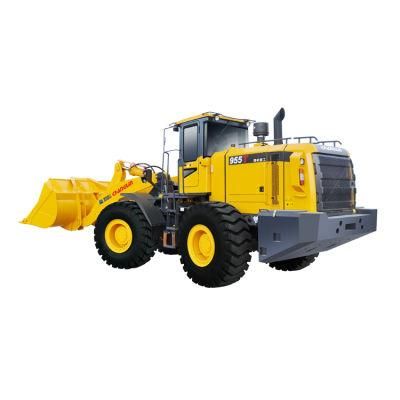

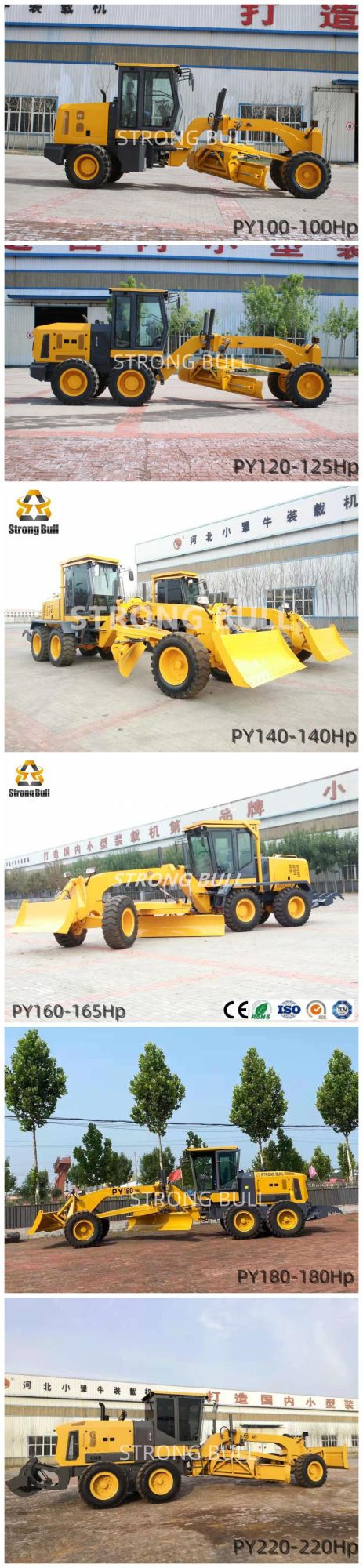

                                     OTHER MODELS MOTOR GRADER

HOT SALE ALL OVER THE WORLD!

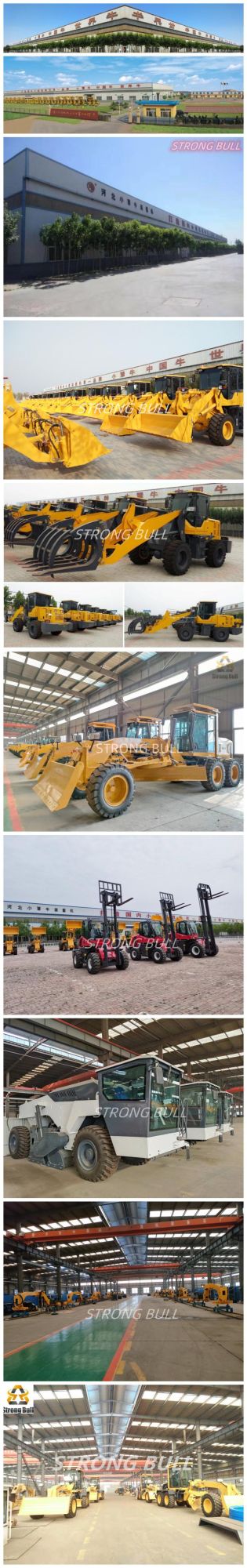

FACTORY SHOW

Hebei Xiaojiangniu Engineering machinery Co.,Ltd is a professional manufacture of road construction machines. We manufacture motor garder from 80HP to 220HP, wheel loader from 800kg to 3000kg, all-terrain forklift 3 ton to 5 ton and road recycling mixer.
We have two registered brands STRONG BULL and CGMG, our products are very popular selling all over the world with good quality, competitive price and good after-sale service.
Sincerely hope we can cooperate and welcome to visit our factory!!
