• Model NO.：L918
• Type：Small Loader
• Product Name：Mini Payloader Wheel Loader (L918)
• Engine Model：Yunnei Yn4EL089-33
• Operating Weight：6800kg
• Bucket Capacity：1.0(1.0-1.4) Cbm
• Max.Dumping Height：2510mm
• Dumping Distance：920mm
• Transport Package：Nude Package
• Specification：5790*2140*2920 mm
• Trademark：SDXG
• Origin：China
• HS Code：8429510000
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. L918 Type Small Loader Product Name Mini Payloader Wheel Loader (L918) Engine Model Yunnei Yn4EL089-33 Operating Weight 6800kg Bucket Capacity 1.0(1.0-1.4) Cbm Max.Dumping Height 2510mm Dumping Distance 920mm Transport Package Nude Package Specification 5790*2140*2920 mm Trademark SDXG Origin China HS Code 8429510000 Production Capacity 1000pieces/Year

Product Description

 Mini Payloader Wheel Loader (L918)1. Product Features

*Reliable
Yunnei YN4EL089-33 three-stage engine; Aluminum single-row radiator; filler filter with lock, round vernier;
DB55 axis-fixed transmission gearbox, Reinforced A513 driving axle;
Optimized high-efficient hydraulic system, operated with single handle; load sensing all hydraulic steering;
Double brake pedal, gas-cap oil-clamp disk service brake; mechanical internal expanding shoe drum parking brake

*Energy-saving
Yunnei YN4EL089-33 three-stage engine, integrated three power curves, multi-level gas-saving mode

*Comfortable
Luxury cab in humanized design; stepping instrument; adjustable steering wheel;
Automatic leveling of the bucket with boom lifting limit;

*Convenient
The filters are in centralized layout; the transmission oil filter is arranged externally; the air conditioning evaporator is provided with internal and external circulating filters;
Standard equipped triple valve and the third connector;
Non-slip step ladder adopted;

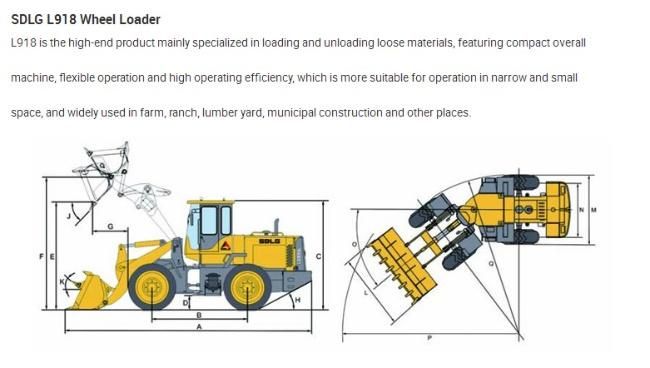

2. Product Parameters

Operating weight	Bucket capacity	Rated load	Max.breakout force	Max.dumping height	Dumping distance
6800 kg	1.0(1.0-1.4) m³	1800kg	≥58kN	2510mm	920mm
Length×Width×Height	Max.tractive force	Total time	Steering angel	Tipping load	Rated power
5790×2140×2920 mm	≥56kN	≤9.1s	35°	36KN	65.5 kW

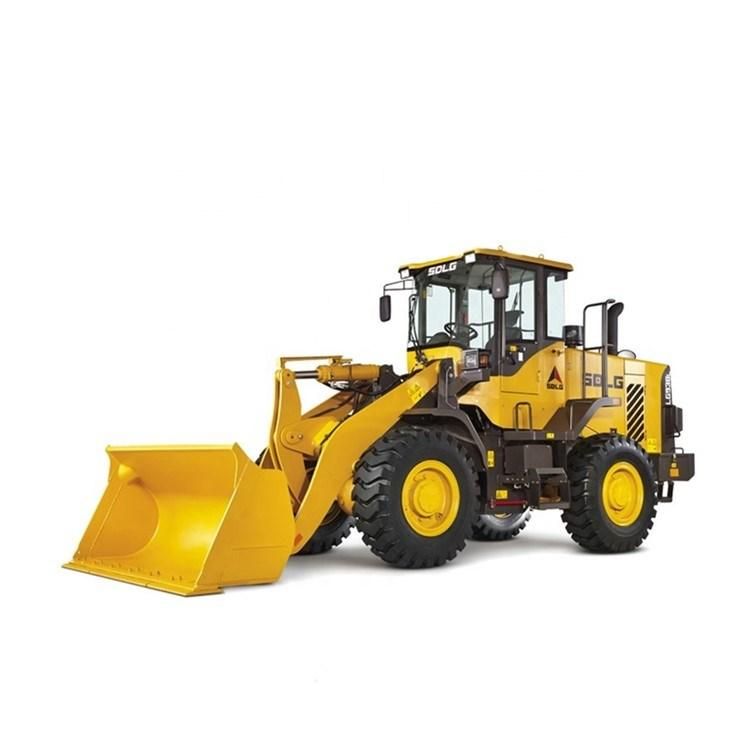

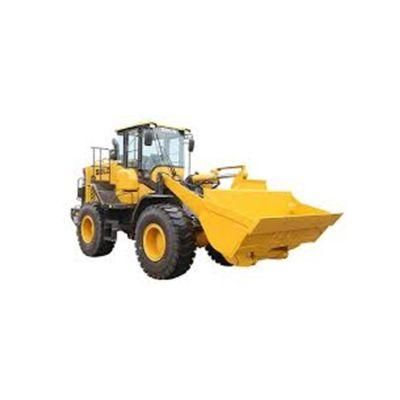

3. Product Pictures
