• Model NO.：XE15U
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.04m³, 0.04cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：1795kg
• Model：Xe15u
• Output Power：9.8,2300kw,Rpm
• Displacement：0.778L
• Travel Speed(H/L)：4.3,2.2km,H
• Gradeability：30
• Overall Length：3560mm
• Overall Width：1240mm
• Transport Package：Nude Package
• Specification：3560x1240x2348mm
• Trademark：MAXIZM
• Origin：Jiangsu, China
• HS Code：8429521200
• Production Capacity：1000,Momth

Overview Product Description

Product Parameters



DescriptionUnitParameter valueOperating weightKg1795Bucket capacitym³0.04EngineModel/D782-E3B-CBH-1No. of cylinders/3Output powerkw/rpm9.8/2300torque/speedN.m44.5/1800DisplacementL0.778Hydraulic systemTravel speed(H/L)km/h4.3/2.2Gradeability°30°Pressure of prime valveMPa22Pressure of travel systemMPa22Pressure of swing systemMPa11Pressure of pilot systemMPa3.9Oil CapacityFuel tank capacityL18Hydraulic tank capacityL17Engine oil capacityL3.8Appearance sizeOverall lengthmm3560Overall widthmm1240Overall heightmm2348Width of platformmm990Overall width of chassismm990/1240Width of crawlermm230Track length on groundmm1270Crawler gaugemm760/1010Clearance under counterweightmm450Min. ground clearancemm145Working scopeMin. tail swing radiusmm620Max. digging heightmm3475Max. dumping heightmm2415Max. digging depthmm2290Max. vertical wall digging depthmm1750Max. digging reachmm3900Min. swing radiusmm1530StandardLength of boommm1690Length of armmm1100Bucket capacitym³0.04

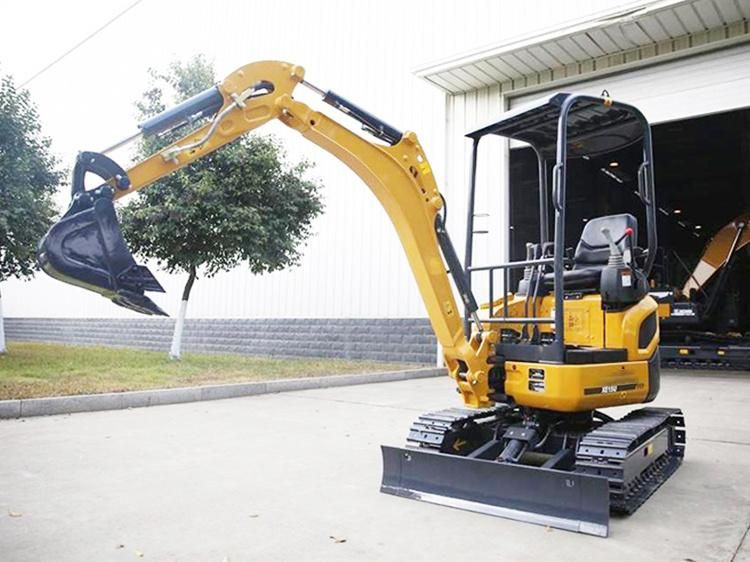

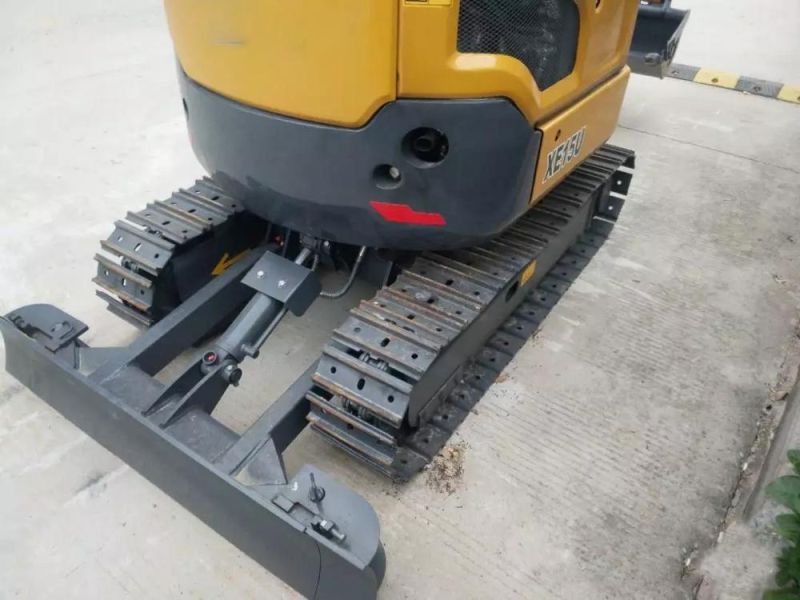

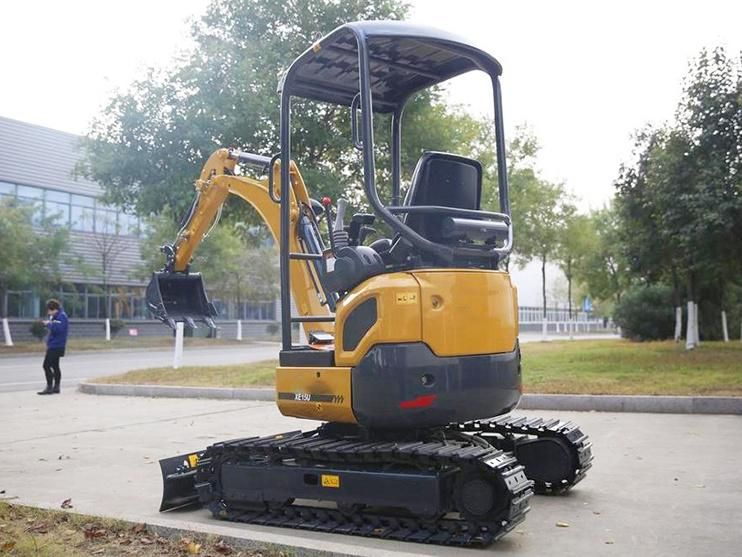

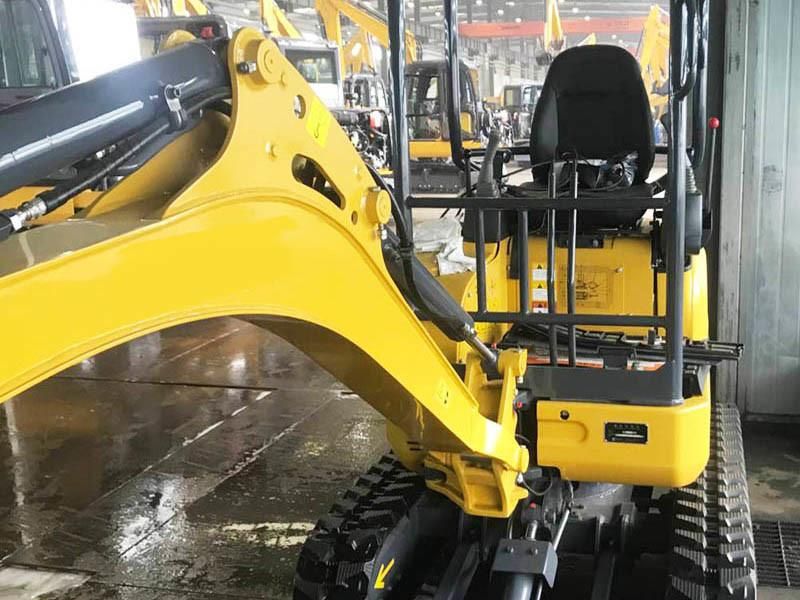

 Detailed Photos
