• Model NO.：XE75D
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³, 0.3cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：7460kg
• Model：Xe75D
• Output Power：43,2000kw,Rpm
• Displacement：2.615L
• Travel Speed(H/L)：5.4,2.9km,H
• Gradeability：35
• Overall Length：6150mm
• Overall Width：2230mm
• Transport Package：Nude Package
• Specification：6150*2230*2685mm
• Trademark：MAXIZM
• Origin：Jiangsu, China
• HS Code：8429521200
• Production Capacity：1000,Momth

Overview Product Description

Product Parameters



DescriptionUnitParameter valueOperating weightKg7460Bucket capacitym³0.3EngineModel/V2607-DI-TE3BStyleDirect injection/√Four strokes/√Water cooling/√Turbo-charging/√No. of cylinders/4Output powerkw/rpm43/2000torque/speedN.m225.8/1400-1800DisplacementL2.615Main performanceTravel speed(H/L)km/h5.4/2.9Rotating speedr/min10Gradeability°35Ground pressurekPa33.5Bucket digging forcekN57Arm crowd forcekN38Maximum tractionkN68.3Hydraulic systemMain pump//Rated flow of main pumpL/min160Pressure of prime valveMPa28Pressure of travel systemMPa27.4Pressure of swing systemMPa20.6Pressure of pilot systemMPa3.5Oil CapacityFuel tank capacityL130Hydraulic tank capacityL76Engine oil capacityL10Appearance sizeOverall lengthmm6150Overall widthmm2230Overall heightmm2685Width of platformmm2070Length of crawlermm2200Overall width of chassismm450Width of crawlermm2195Length of wheelmm1750Crawler gaugemm6150Clearance under counterweightmm815Min. ground clearancemm380Dozer blade width/heightmm2200/396Working scopeMax. digging heightmm7085Max. dumping heightmm5160Max. digging depthmm4020Max. vertical wall digging depthmm2920Max. digging reachmm6260Min. swing radiusmm1818Min. tail swing radiusmm1800Max.dozer blade hoist heightmm363Max. dozer blade digging depthmm346WorkerStandardLength of boommm3720Length of armmm1622Bucket capacitym³0.3OptionalBucket capacitym³0.18

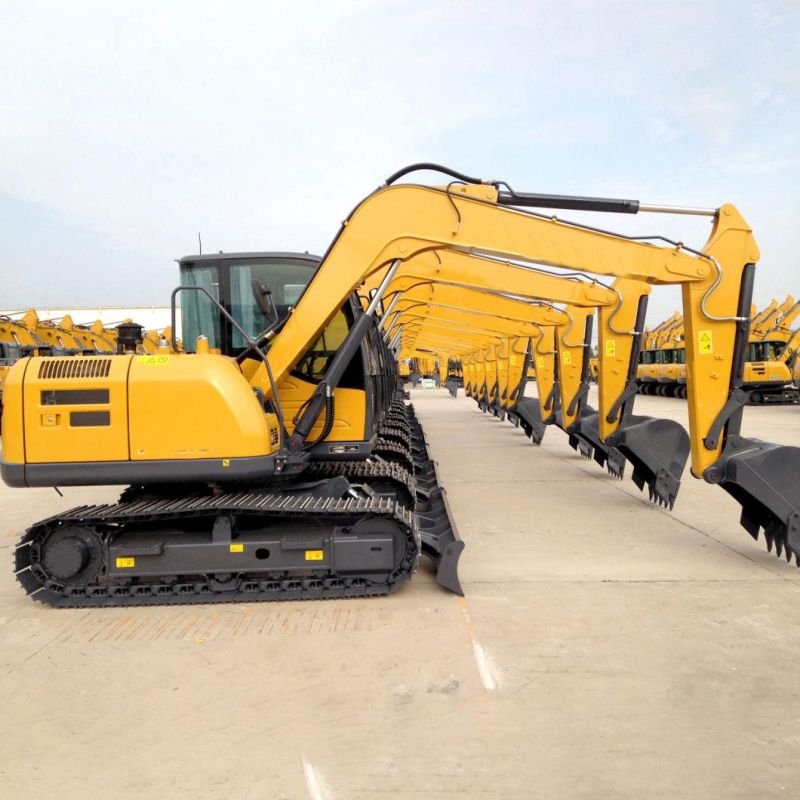

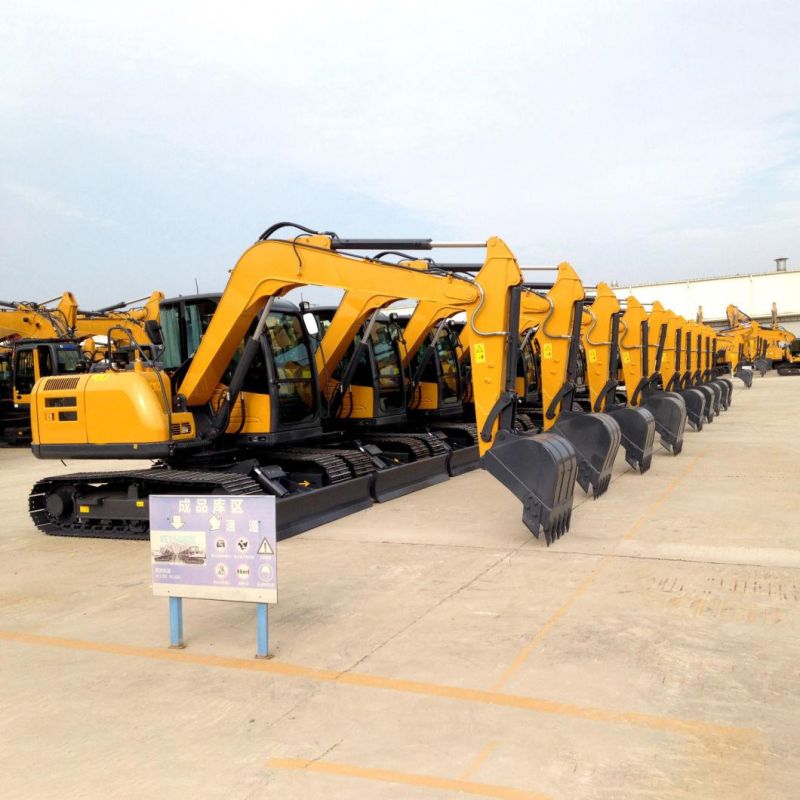

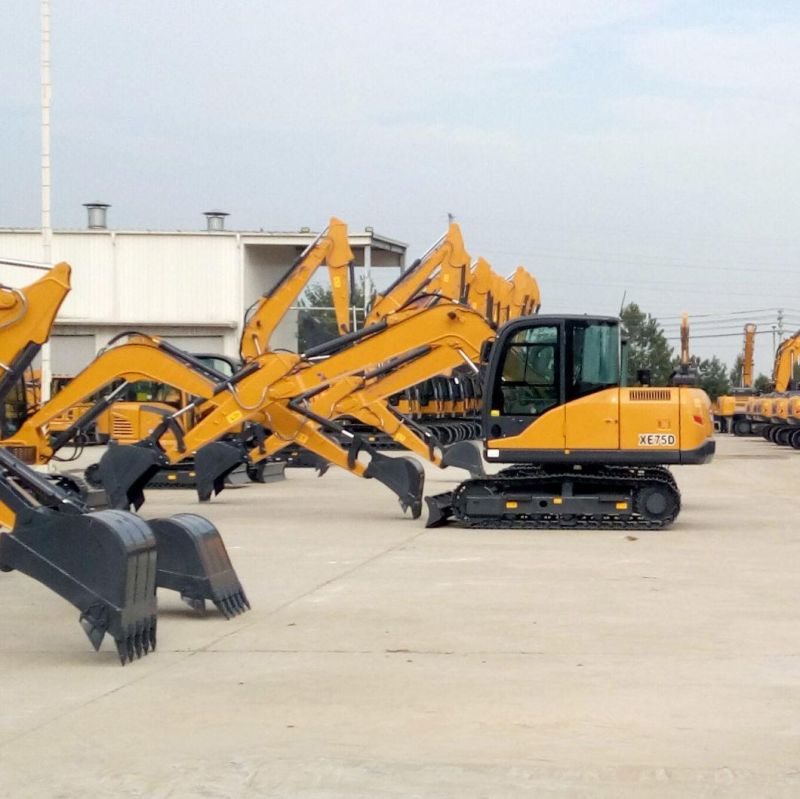

 Detailed Photos



 Company Profile
