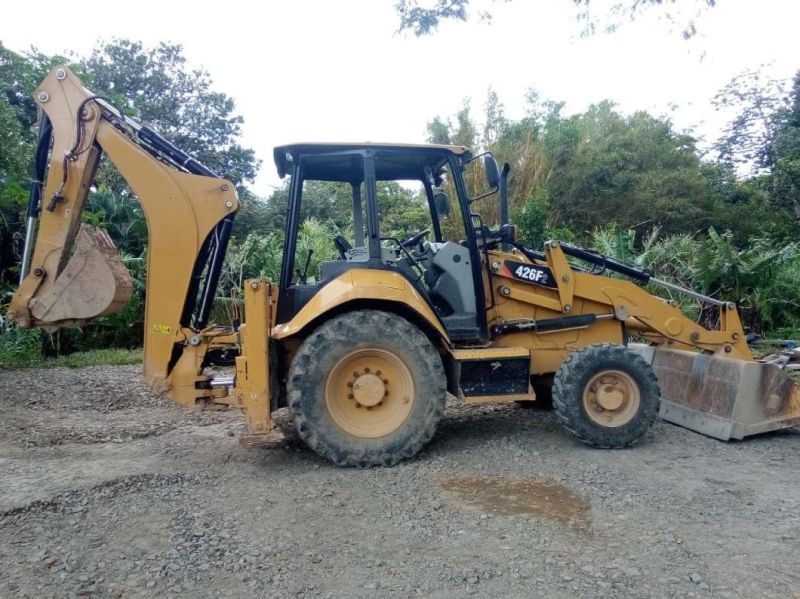

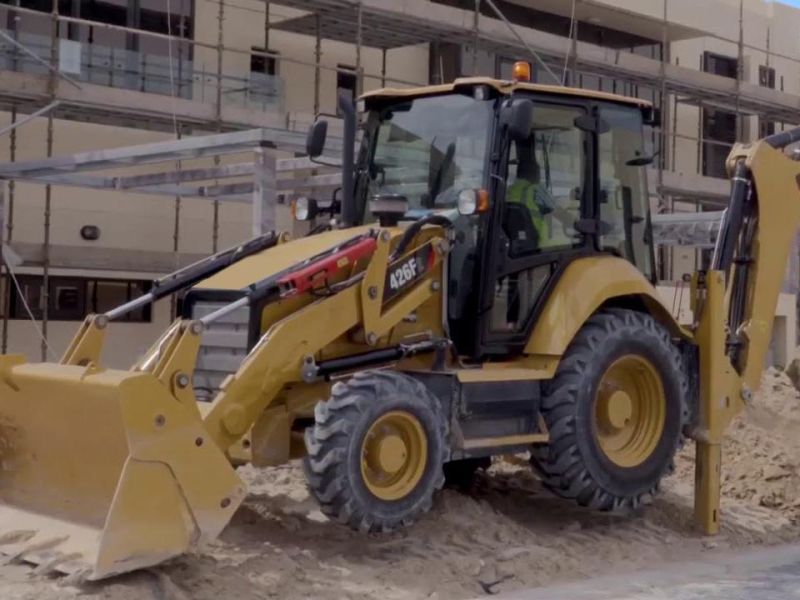

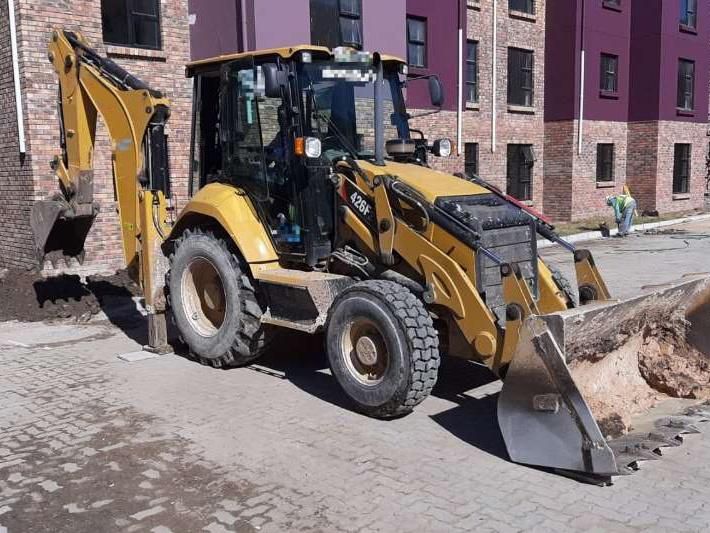

• Model NO.：426F2
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Machine Weight：7990 Kg
• Power：68.5kw
• Displacement：4.4 L
• Net Power：66 Kw
• Bore：105 mm
• Working Weight-Nominal：7990 Kg
• System Pressure-Loader：250 Bar
• Maximum Pump Displacement：132 L,Min
• Load Extension Distance：1477mm
• Bucket Digging Force：57.22 Kn
• Stick Digging Force：35.29 Kn
• Digging Depth：147mm
• Unloading Distance at Maximum Angle：825mm
• Unloading Height at Maximum Angle：2764mm
• Maximum Hinge Pin Height：3447mm
• Transport Package：Nude Packing
• Specification：8000*2200*3350mm
• Trademark：backhoe loader
• Origin：Jiangsu, China
• HS Code：8429590000
• Production Capacity：1000 Unit,Units Per Month

Rated power at 2200 rpm (standard): total power - ISO 14396

68.5 kW

Net power-2200 rpm-ISO 9249

66 kW

Net Peak Power-2000 rpm-SAE J1349

65 kW

Net peak power-2000 rpm-ISO 9249

65 kW

Net peak power-2000 rpm-EEC 80/1269

65 kW

Torque reserve-1200 rpm-net

38%

Maximum torque-1400 rpm

394 Nm

Bore

105 mm

stroke

127 mm

Displacement

4.4 L

Working weight-nominal

7990 kg

Working weight-maximum

8760 kg

Hydraulic system type

Closed heart

Pump type

Variable flow axial piston pump

Maximum pump displacement

132 L/min

System pressure-backhoe

250 bar

System Pressure-Loader

250 bar

Power shift transmission-standard: forward-1st gear

5.5 km/h

Power shift transmission-standard: forward-2nd gear

9 km/h

Power shift transmission-standard: forward-3rd gear

20.7 km/h

Power shift transmission-standard: forward-4th gear

40 km/h

Power shift transmission-standard: reverse-1st gear

5.5 km/h

Power shift transmission-standard: reverse-2nd gear

9 km/h

Power shift transmission-standard: reverse-3rd gear

20.7 km/h

Power shift transmission-standard: reverse-4th gear

40 km/h

cooling system

22 L

Front axle (all-wheel drive)

11 L

Front axle (all-wheel drive)-planetary gear

0.7 L

Fuel tank

160 L

Engine oil-with filter

8.8 L

Transmission-Power Shift-AWD

15 L
