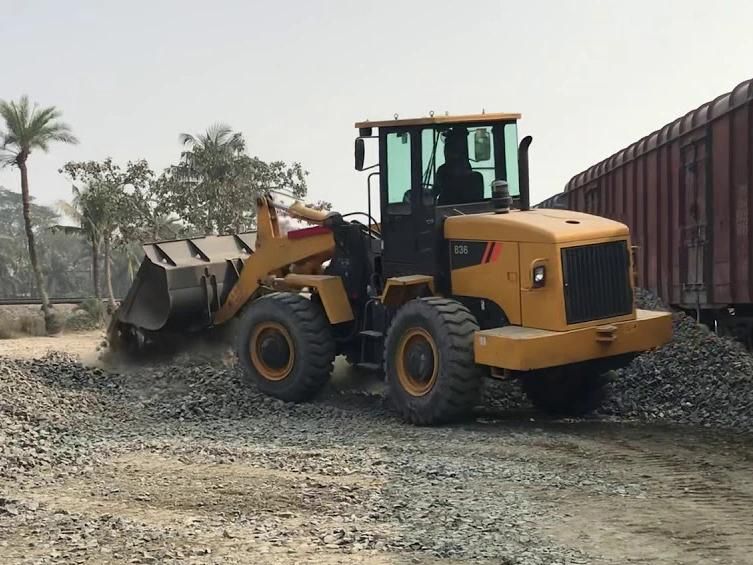

• Model NO.：CLG836
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Operatiing Weight：10900kg
• Bucket Capacity：1.7cbm
• Gross Power：92 Kw (125 HP) @ 2000 Rpm
• Net Power：85 Kw (116 HP) @ 2000 Rpm
• Total Cycle Time：9.2 S
• Tipping Load-Full Turn：105 Kn
• Bucket Breakout Force：788 mm
• Emissions：EPA Tier 2 , EU Stage II
• Cooling System：Charge Air Cooling
• Length with Bucket Down：7010 mm
• Width Over Tires：2300 mm
• Cab Height：3232 mm
• Turning Radius：5090 mm
• General Purpose：1.5-3.0 Cbm
• Light Material：2.5, 3.0 Cbm
• Transport Package：Nude Packing
• Specification：7900*2745*3450mm
• Trademark：wheel loader
• Origin：Jiangsu, China
• HS Code：8429510000
• Production Capacity：1000 Unit,Units Per Month

Rated power

92KW

Bucket capacity

1.7 M3

Rated load

3000kg

Operating weight

10900kg

Dump height

2911mm

Max. Digging force

93.5KN

Max. Traction force

100KN

Min. Operating radius (outside bucket)

5676mm

Min. Operating radius (outside the machine)

5140mm

Hydraulic torque converter

Double turbine

Tune pressure with hydraulic

system safety valve

16Mpa

Steering Angle (Left/Right)

40 degree

Fuel tank capacity

150L

Cooling system

35L

Crankcase of diesel engine

15L

Torque converter & gear box system

45L

Main transmission (front axle/rear axle)

18L/18L

Hydraulic system capacity

150L

Tires

17.5-25

Dimension(mm) L*W*H

6760*2500*3300

Transmission

Planetary type,clutch with multiple disc,full power shift,

force

Service brakes

Capliper discs,air hydraulic actuated on all four wheel

Parking brakes

Shoe-brake applies by manunlly control

Emergency brakes

Using parking brake,the brake will automatically /

manually apply.Equipped with braking low-pressure

Fuel Tank

150L

Hydraulic tank

150L

Crankcase

15L

Transmission

45L

Different&final drivers-front

18L

Different&final drivers-rear

18L
