• Model NO.：UCMHD120
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：Used
• Working Hours：Small
• Transport Package：Bulk Package
• Specification：sgs
• Trademark：ucm
• Origin：China
• HS Code：3111968887
• Production Capacity：100units,Year

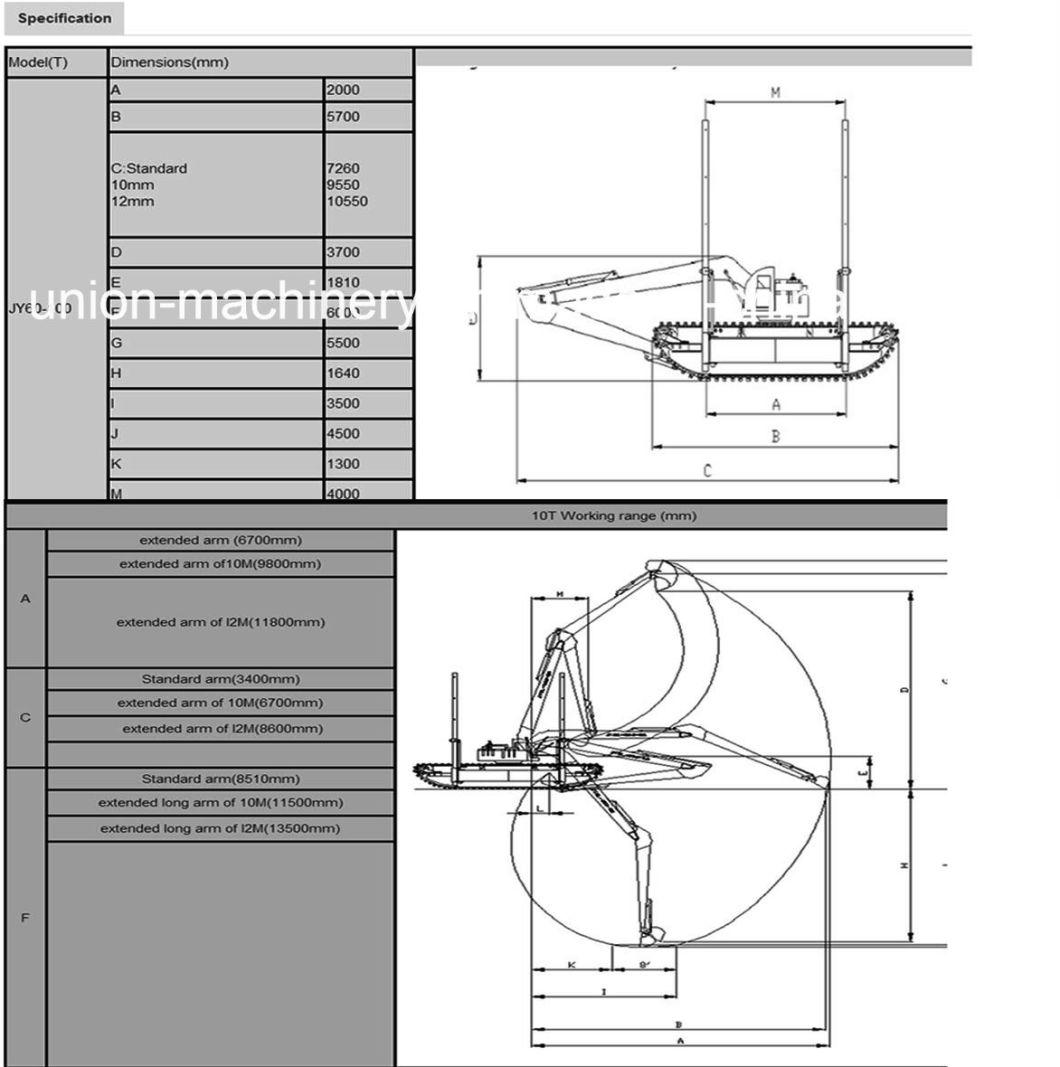

ENGINEModelISUZU 4BG1TypeTurbo-chargedNumber of cylinder4Max. power/rpm86.5KW/2200rpmMax. torque420N.M at 1600 rpmDisplacement3.91LHYDRAULIC SYSTEMMain pumps TypeVariable displacement axial piston pumpsMax. displacement2 × 63cm 3 /rWorking pressure30MpaHydraulic motor SlewFixed displacement axial piston motorTravelVariable displacement axial piston motorsPerformance Slew speed13.6pmMin. back slew radius2468mmMax. travel speed high/low3/2.1km/hGrade ability30 °traction force157.5knMax. digging force of bucket72knMax. digging force arm51knGroud pressure0.13kg/cm 3Tank capacity Fuel tank capacity217LHydraulic tank capacity217L










Application&Features

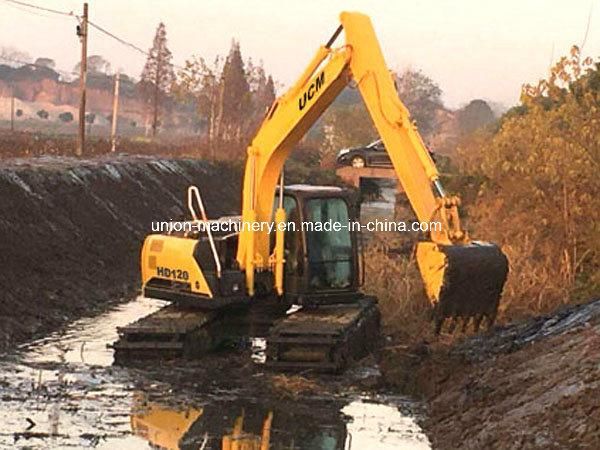

amphibious mini excavator Application:
1.Deepening of canal, river channel and river mouth
2.Swamp land clearing at mining area, plantation and forest
3.Building bund for flood prevention and land reclamation
4.Building bund wall for fish and shrimp ponds and salt making industry
5.Sludge clearing of lakes, ponds and water reservoir
6.Digging trenches for oil and gas piping installation
7.Transporting and clearing landslide and flood hit area
8.Swamps and wetlands construction
9.Road construction through wetlands.
Features:

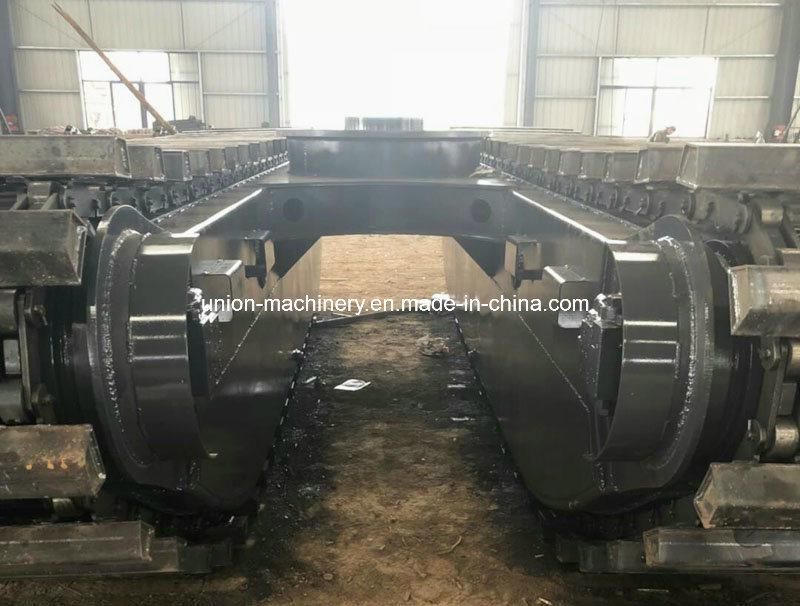

1.Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas, it can also be towed to move forward on water.
 2.Big torque travelling devices ensure strong driving force when turning and climbing.
 3.Big circular arc structure on both ends of pontoon reduces traveling resistance.
 4.High capacity of fuel tank greatly increases time interval of fueling.
 5.It takes less than one hour to assemble and dismantle the machine; it is easy to be transported.

About UNION
Company information

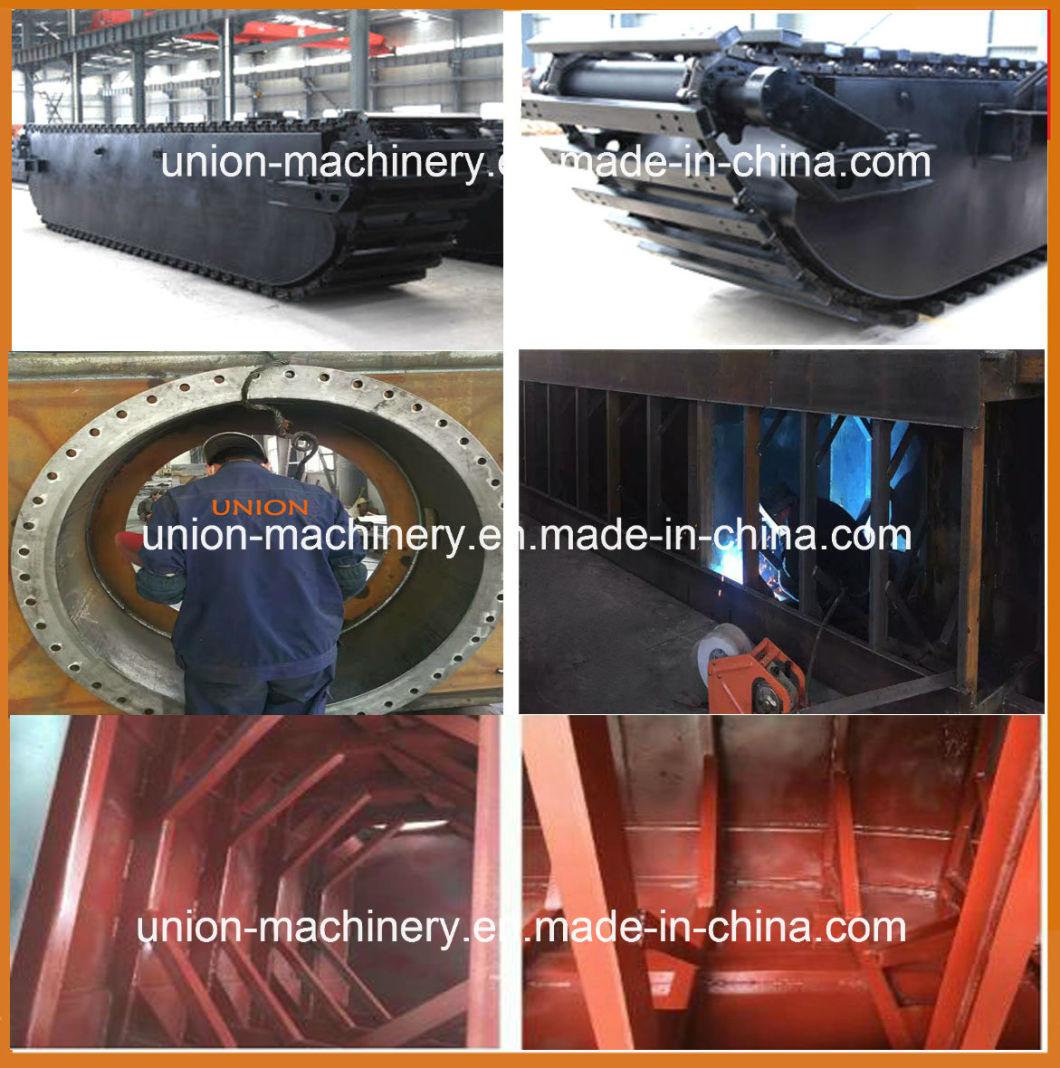

UNION quipment, with the registered capital of RMB50 million, is China's leading and largest producer of Amphibious Undercarriages for land excavator ranging from 5 to 50 ton. We specialize in designing and custom made the Amphibious Undercarriage for all major brands of excavators, so far, we have acquired 30 patents in this industry and with more still pending as we keep on investing in research and development.

Business model
Complete set of new amphibious excavator

If customer is ordering a complete set of new amphibious excavator, please tell us the desired Brand and model of the upper excavator body, we will purchase it from supplier and manufacture the matching turntable (X-frame) to connect to the Pontoon undercarriage.
Please note that we have long term cooperation with all major brands of excavator manufacturers (including DOOSAN, HITACHI, CAT,KOMATSU,SUMITTOMO, HYUNDAI and all;

Modify land excavator into amphibious
 If customer is modifying his existing land excavator to an amphibious one, please provide us the brand and model or ideally the drawing or picture and dimension of the ring gear/slewing ring of the excavator upper body, we can design and manufacture the matching turntable (X-frame) to connect to our Pontoaon undercarriage;

Information required for Pontoon design & manufacture:
- the purpose and expected working condition;
- maximum water depth for excavator to work;
- maximum water depth for excavator to travel;
so we will see the necessity of adding the optional spuds and secondary pontoons;
