• Model NO.：YN958G
• Dumping Height：3100 mm
• Dumping Reach：1280 mm
• Max. Breakout Force：170 Kn
• Max. Drawing Force：150 Kn
• Max. Grade Ability：30°
• Rated Power：162kw,2200rpm
• Overall Dimensions：7960*3070*3400 mm
• Operating Weight：17000 Kg
• Load and Unload Method：Front Discharge
• Transport Package：Naked
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：84295100
• Production Capacity：50PCS,Week

Basic Info.

Model NO. YN958G Dumping Height 3100 mm Dumping Reach 1280 mm Max. Breakout Force 170 Kn Max. Drawing Force 150 Kn Max. Grade Ability 30° Rated Power 162kw/2200rpm Overall Dimensions 7960*3070*3400 mm Operating Weight 17000 Kg Load and Unload Method Front Discharge Transport Package Naked Trademark YINENG Origin Taian City, Shandong Province, China HS Code 84295100 Production Capacity 50PCS/Week

Product Description

5 Ton 3 CBM Front Loader For Construction Work

3 M3, 5 Ton Front Wheel Loader, with ISO9001: 2000 & 2008.

*Caterpillar Technology Shangchai Engine Is Adopted, with Large Torque Backup and Strong Power.

*Hangzhou Advance Gear Group Wg180 Torque Converter and Fix-Shaft Gearbox, with Zf Technology.

*Electro-Hydraulic Control, 4 Forward and 3 Reverse,

* Heavy chassis makes our YN959 more reliable and steady.

*Single Lever Pilot Control System Makes Operation Easy and Comfortable.

*Strengthened Axles Owns Large Bearing Capacities and High Reliability.

*Twin Pump Merging Hydraulic System Makes Lower Consumption and Excellent Performance.

*The Coaxes Flow-Amplified, Hydraulic Compensated Steering Makes Operation Easy and Performace Reliable.

*Both Travel System and Working Hydraulic System Are Forced-Cooled, Improving The Efficiency Obviously.

*Air Over Hydraulic Brake System; Eight Caliper Disc Brakes.

*Air Break Control, Expand Hoof Type Parking Brake and Emergency Brake.

*Large Space Articulated Frame Makes Operation and Traveling Stable.

*Working Device with Automatically Levelling Ability at High Position.

*Main Articulated Points Take Sealed, Lubricated, Dust-Proof Layers, Which Owns Good Durability.

*Integral, Luxury Instrument Board.

*New, Luxury Cabin.


Optionals:
(1) Dongfeng Cummins 6CTA8.3-C215
(2) A/C
(3) Quick Hitch
(4) Fork
(5) Rops Cab




Item	Specification	Item	Specification
Bucket capacity	3 m 3	Min. turning radius (outside of rear wheels)	6630 mm
Rated load	5000 kg	steering angle	38º
Dumping height	3100 mm	Min. ground clearance	500 mm
Dumping reach	1280 mm	Wheel base	3200 mm
Boom lifting time	6 S	Tread	2250 mm
Total cycling time	12 S	Engine model	C6121ZG50
Max. speed	38 km/h	Rated power	162kW/2200rpm
Max. breakout force	180 kN	Tyre	23.5-25
Max. drawing force	152 kN	Overall dimensions	7960*3070*3400 mm
Max. grade ability	30°	Operating weight	17000 kg

 Company Profile

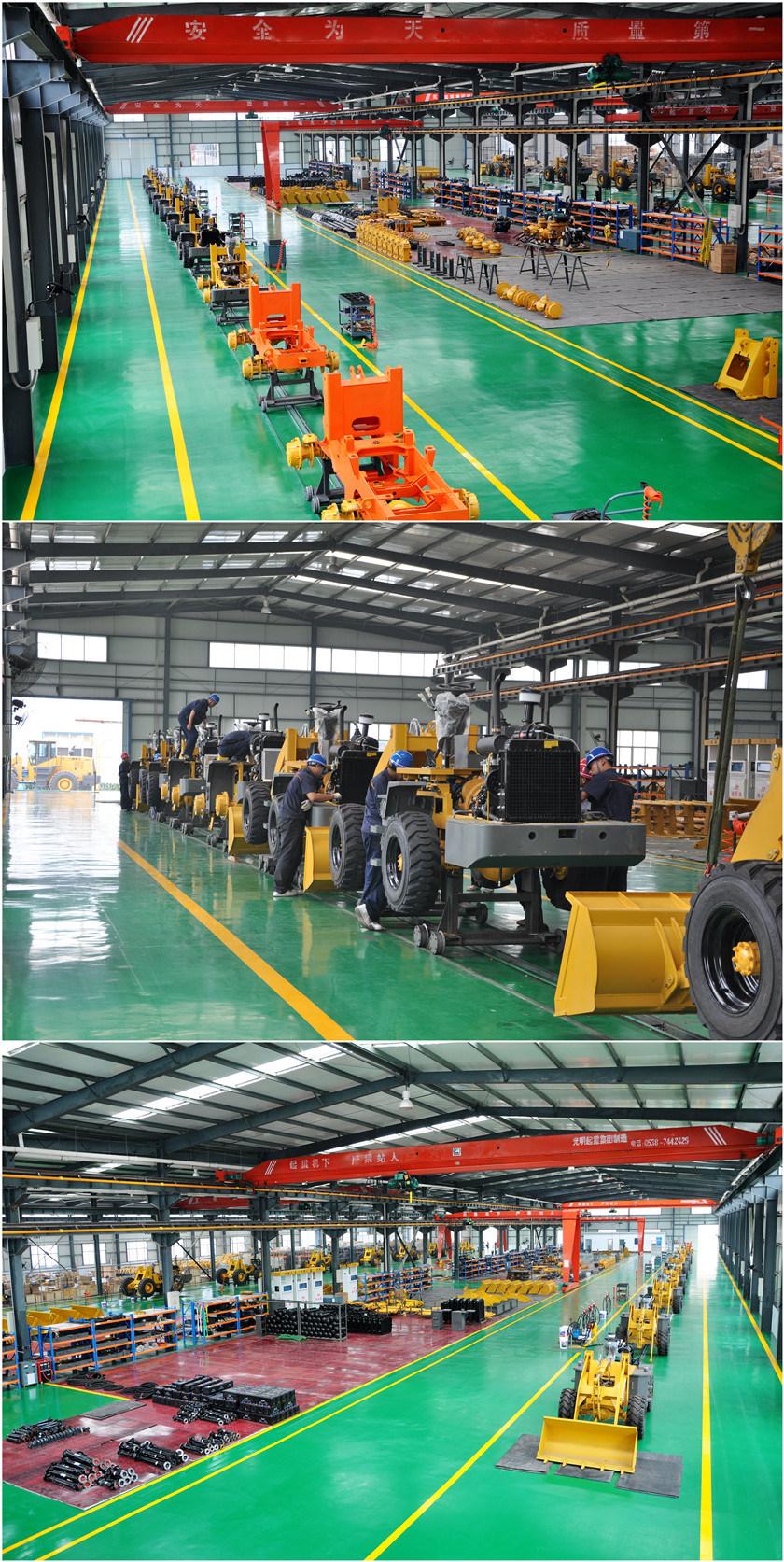

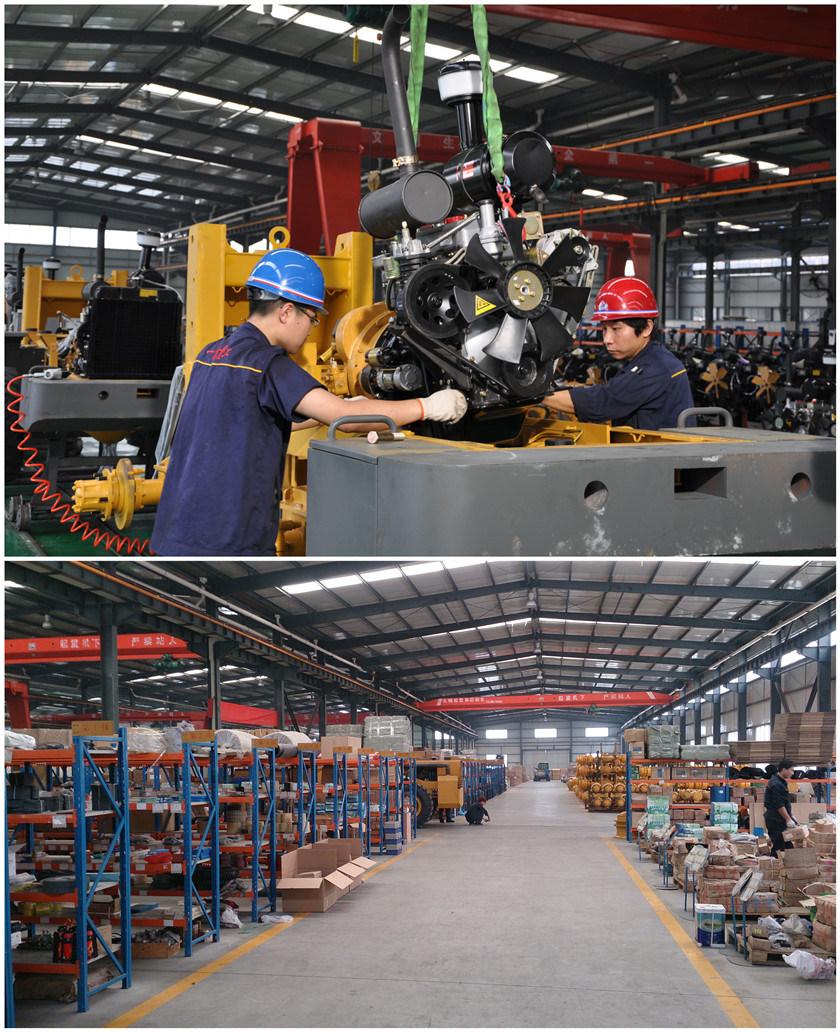

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
