High Quality Ground Screw Hydraulic Press Pile Driver Machine for Sale
Jining Bafang Mining Machinery Group Co., Ltd.- Type：Pressure Pile Driver
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：55kw
- Noise：With Noise
Base Info
- Model NO.：TZ-260
- Certification：CS, CE, RoHS, ISO 9001:2008
- Condition：New
- Transport Package：Nude Packing
- Specification：2800*2250*2300(folded)*3700
- Trademark：Bafang
- Origin：China
- HS Code：8430100000
- Production Capacity：1000,Year
Description
Basic Info.
Model NO. TZ-260 Certification CS, CE, RoHS, ISO 9001:2008 Condition New Transport Package Nude Packing Specification 2800*2250*2300(folded)*3700 Trademark Bafang Origin China HS Code 8430100000 Production Capacity 1000/YearProduct Description

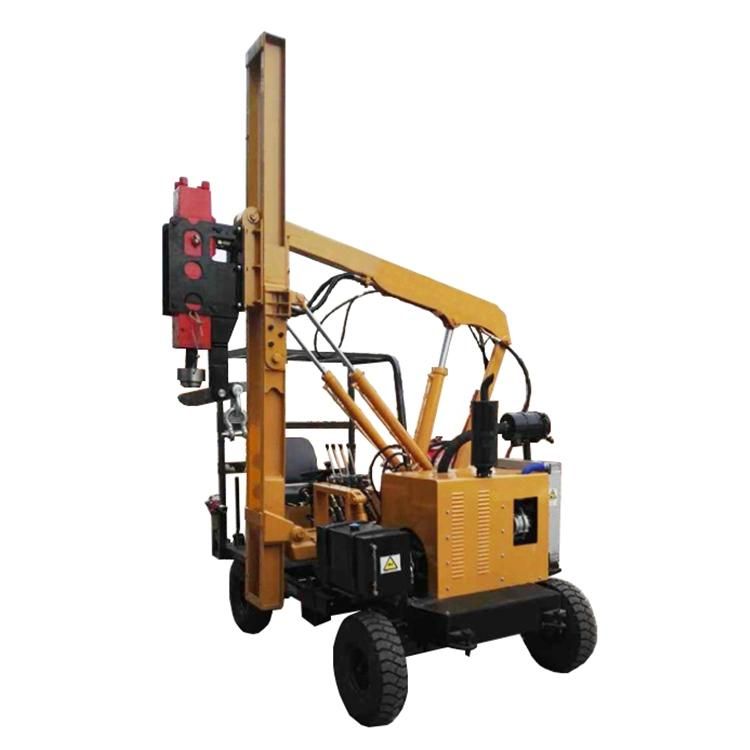

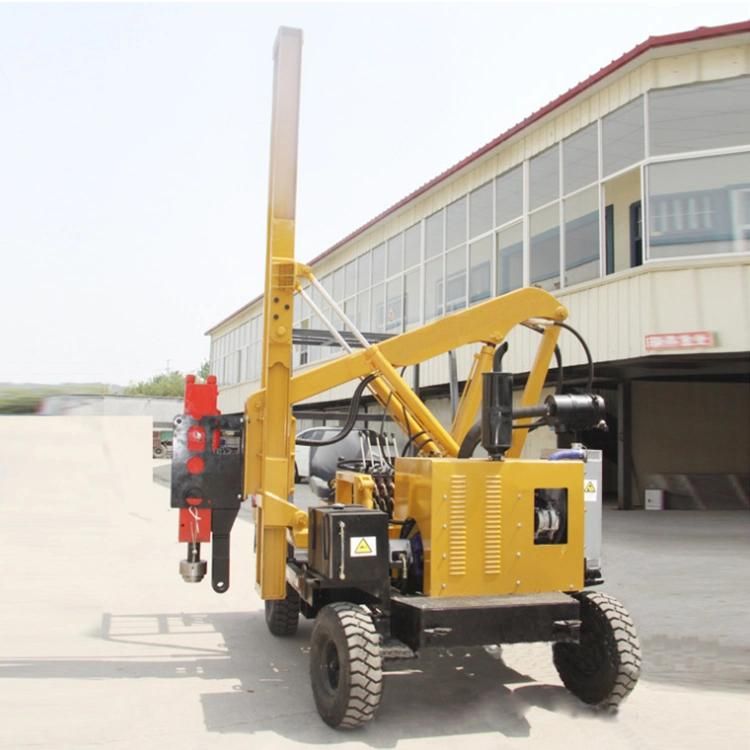

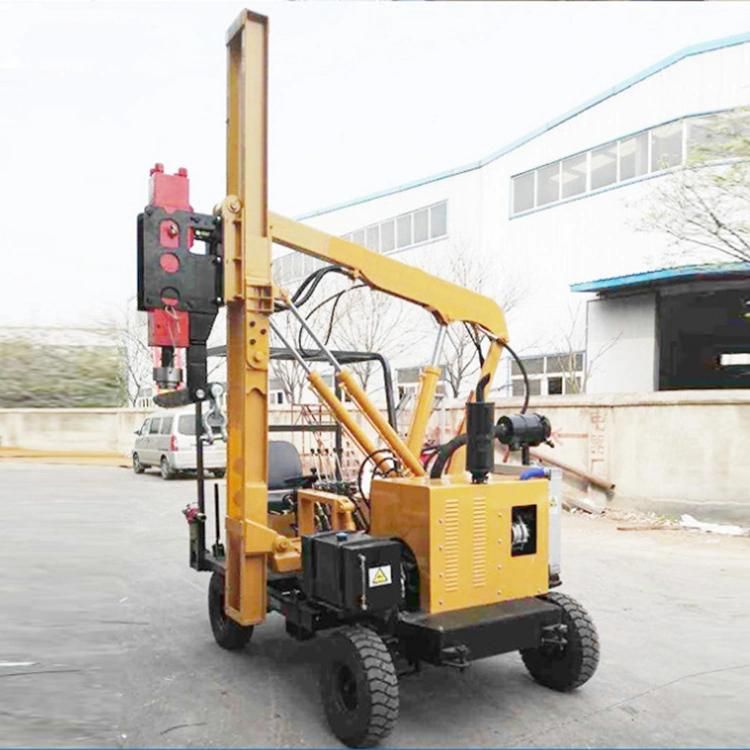

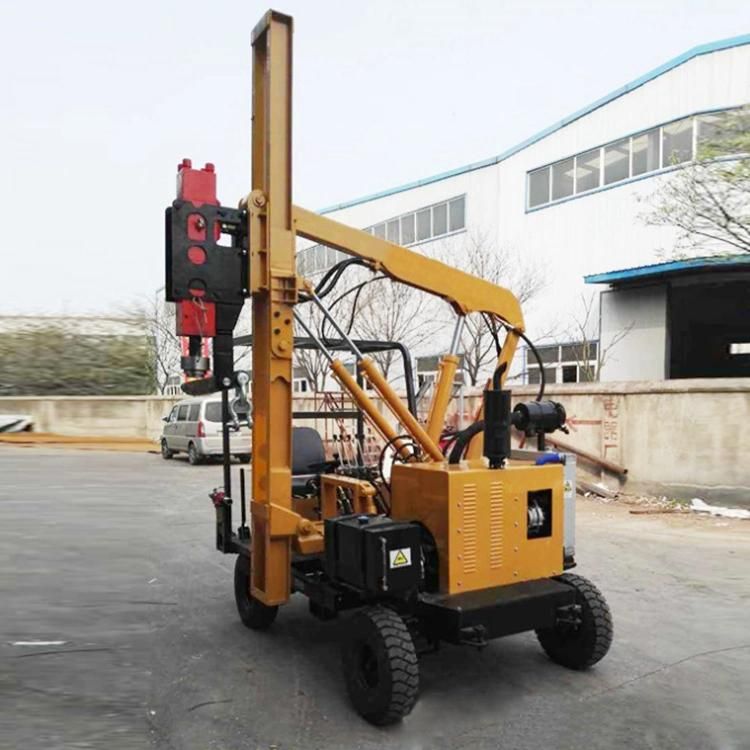

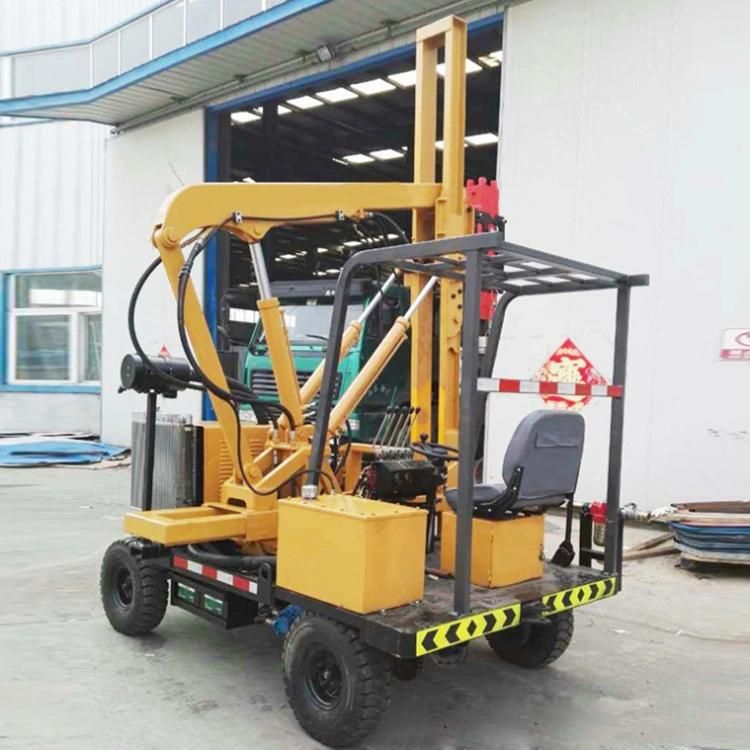

High quality Ground Screw Hydraulic Press Pile Driver machine for saleBF series self-propelled hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Features
1. It is suitable for building foundation construction, easy to learn, it can move forward and back in fixed position when operate , rotate 270 , hydraulic walking.
2. Use mud pump, drill out of dirt, form the pile hole, then put steel reinforcement cage down, pouring concrete.
3. The driver be made up of pile hammer, pile frame and accessory equipment, etc. Pile frame for a steel structure tower, there is a hoist back of machine, for lifting pile and pile hammer.
| Number | Specification | Unit | YDBZ-23 |
| 1 | Hydraulic hammer model | 230 | |
| 2 | Drill rod diameter | mm | 68 |
| 3 | Engine power | kw | Single Cylinder 23kw |
| 4 | Hydraulic system pressure | mpa | 16-20 |
| 5 | The hydraulic system flow rate | ml/r | 40-50 |
| 6 | Nitrogen gas pressure range | Mpa | 1±0.1 |
| 7 | Hydraulic hammer impact frequency | bpm | 500-900 |
| 8 | Hydraulic hammer work flow | l/min | 40-70 |
| 9 | Working pressure of hydraulic hammer | Mpa | 9-11 |
| 10 | Working stroke of hydraulic hammer | mm | 450-2800 |
| 11 | Piling efficiency | mm/min | 2100 |
| 12 | Net weight | kg | about 2000 |
| 13 | Steel post diameter | mm | 90mm-500mm |
| 14 | Maximum ramming depth | mm | 2000 |
| 15 | Maximum post length | mm | 2600 |
| 16 | Drilling diameter | mm | 120,150,160,180,200 |
| 17 | Drilling depth | mm | 1700 |
| 18 | Maximum traction speed | km/h | ≤30 |
| 19 | Traveling Speed | km/h | 8-12 |
| 20 | Hydraulic tank volume | L | 80 |
| 21 | Dimension(L*W*H) | mm | 2800*2250*2300(folded)*3700 |
