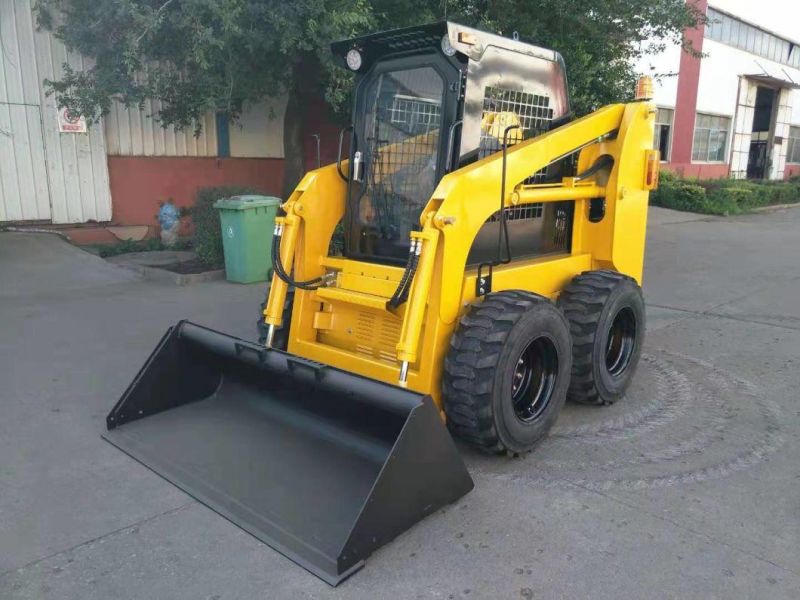

CE Official Super Monkey Earthmoving Machine 50HP Skid Steer Loader Jc45 with Rated Load 700kg for Sale
Taian Luyue Modern Agricultural Equipment Co., Ltd.- After-sales Service：Provide Spare Parts and Technology Service
- Warranty：One Year
- Certification：ISO, CE
- Condition：New
- Rated Load：700kgs
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：JC45
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Product Name：Skid Steer Loader
- Rated Horsepower：37kw

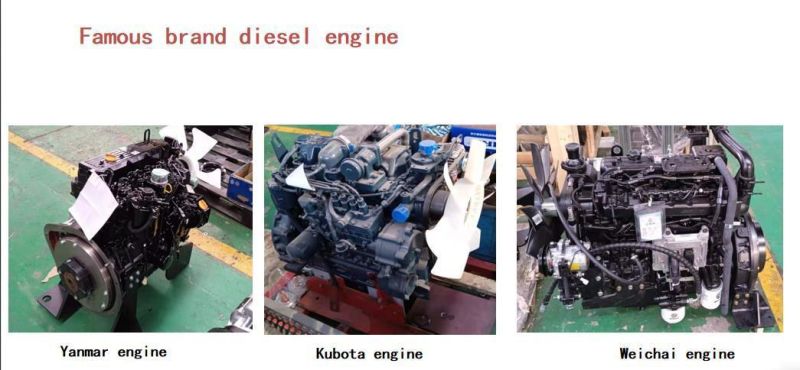

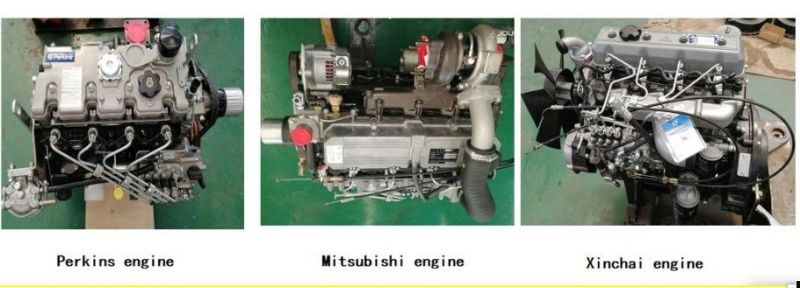

- Engine Brand：Xinchai,Yanmar,Perkins
- Tandem Pump：Italy,Eton
- Hydraulic Motor：American Eton
- Multi-Way Valve：Italy
- Bucket Capacity：0.4cbm
- Tire Model：10-16.5
- Overall Weight：3100kgs
- Max Speed：12km,H
- Transport Package：Nude Packing
- Specification：LxWxH: 3420x1740x2140mm
- Trademark：Luyue brand
- Origin：Made in China
- HS Code：84295100
- Production Capacity：600units,Year
Description
Basic Info.
Model NO. JC45 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Product Name Skid Steer Loader Rated Horsepower 37kw Engine Brand Xinchai/Yanmar/Perkins Tandem Pump Italy/Eton Hydraulic Motor American Eton Multi-Way Valve Italy Bucket Capacity 0.4cbm Tire Model 10-16.5 Overall Weight 3100kgs Max Speed 12km/H Transport Package Nude Packing Specification LxWxH: 3420x1740x2140mm Trademark Luyue brand Origin Made in China HS Code 84295100 Production Capacity 600units/YearProduct Description
Standard configuration of JC45G skid steer loader
Chinese xinchai brand diesel engine C490BPG

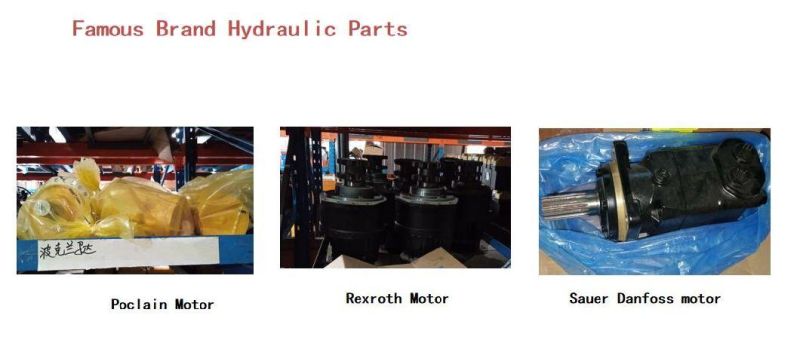

- America Sauer danfoss brand hydraulic pump
- America Eaton brand hydraulic motor
- open cabin with mechanical control system
- Auto-levelling system
- Hydraulic brake
- Bobcat type quick hitch and coupler
- Standard bucket
Item Description Item description Rated operating capacity(kg) 700 Hinge pin height (mm) 3080 Tipping load (kg) 1400 Total height (mm) 2050 Bucket capacity(m3) 0.4 Length with bucket (mm) 3420 Hydraulic pump flow (L/min) 75 Length without bucket(mm) 2640 Engine power (hp) 50 Width with bucket (mm) 1740 Weight(kg) 3100 Track width (mm) 1450 Max travel speed (km/h) 12 Wheelbase (mm) 991 Grade ability 20 Ground clearance (mm) 185 Tire 10-16.5 Dumping angle 40 Fuel/hyd oil capacity (L) 65/65 Dumping height (mm) 2380 Height at maximum extension 3980 Maximum reach (mm) 750

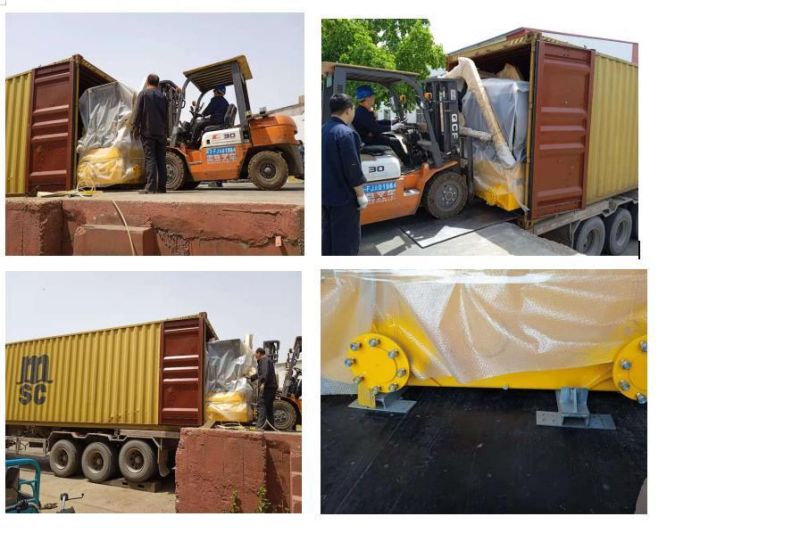

Shippment and Delivery
Qulification honor

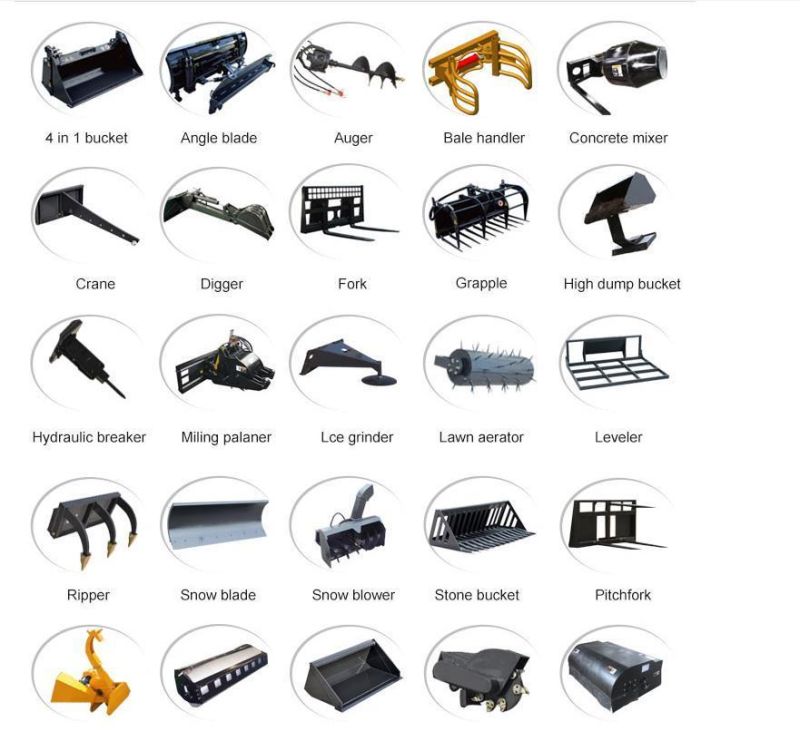

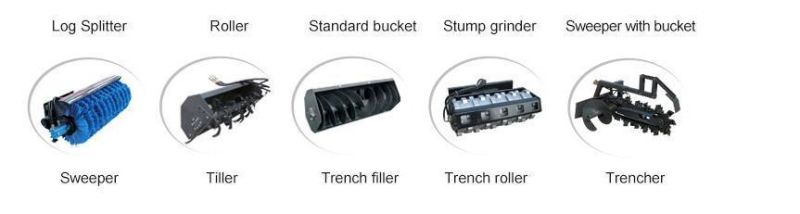

Various Attachments
