• Model NO.：KD30
• Trademark：konodeere
• Origin：China

Basic Info.

Model NO. KD30 Trademark konodeere Origin China

Product Description

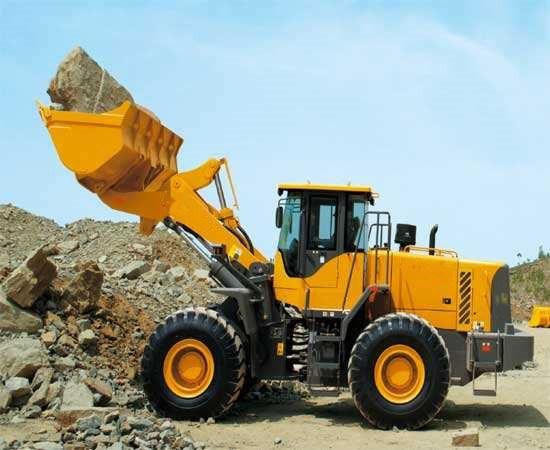

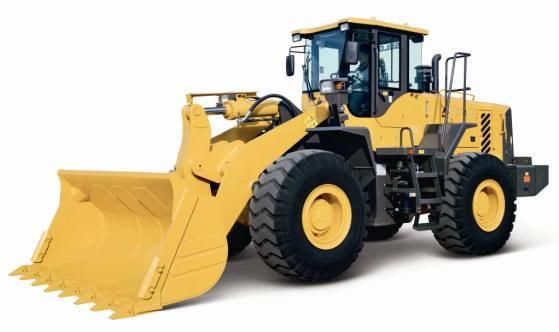

KD30 wheel loader price

1.Heavy load for the rocky condition, the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

2.The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation.

3.The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

4.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm.
The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

5.Large distance between up and down articulated boards, and large maintenance space.
Resolve the load horizontally and vertically efficiently. Easier to access, the machine has more carrying capacity and larger opening space.

6.Each part passes the scientific analysis with professional stress analysis software to ensure that the reliability and carrying capacity of the structural parts could reach the design standard and meet the requirement of the tough condition.

Bucket capacity:	1.7m³
Rated loading weight:	3000kg
Maximum dump height:	2993mm
Engine power:	92kw
Engine :	Deutz (weichai)
Engine model:	WP6G125E22
Maximum torque:	515N.m
Fuel tank capacity:	137L
Operation weight:	9700kg
Maximum dump reach:	1007mm
Maximum breakout force :	127kN
Maximum traction force:	97kN
Bucket capacity range:	1.4 - 2.5m³
Steering angle:	36°
Wheel base:	2630mm
Tire size:	17.5-25
Grade ability:	48%
Minimum turning radius(Tire outside):	5097mm
Minimum turning radius(Bucket outside):	5901mm
Lifting time:	4.83s
Discharging time:	1.07s
Lowing time:	3.25s
Total time:	9.15s
Hydraulic oil tank capacity:	90L
Hydraulic system working pressure:	16.5Mpa
Overall size:	6890mm*2440mm*3080mm
