• Model NO.：SHANTUI
• Condition：New
• Color：Yellow
• Transport Package：Nude Packing

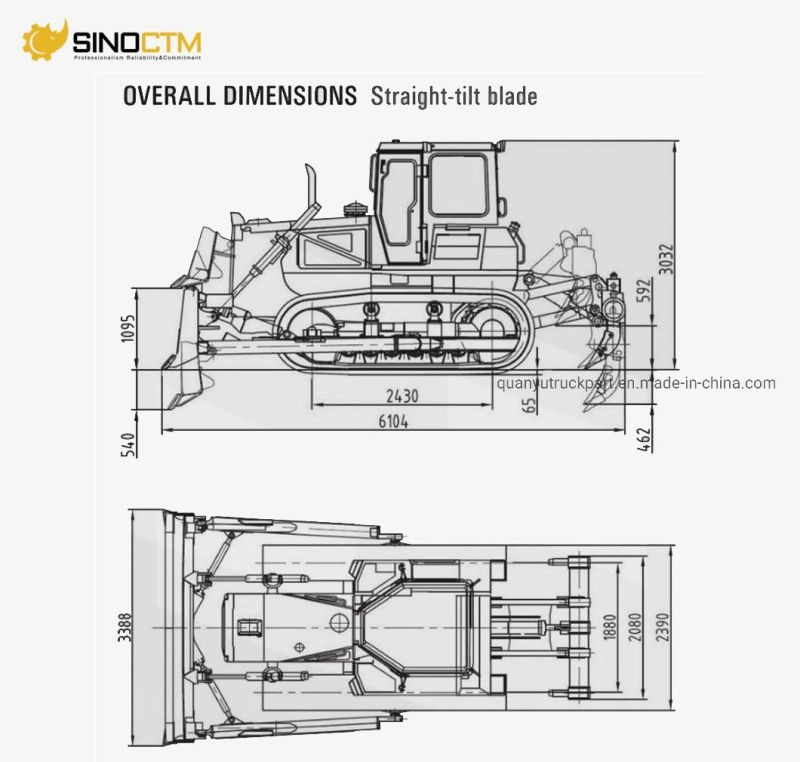

• Specification：6104*3388*3032mm
• Trademark：shantui
• Origin：China
• HS Code：84291190
• Production Capacity：5000pieces,Year

EngineModel & type

Shangchai SC11CB184G2B1/Weichai WD10G178E25;

water-cooled, in-line, 4-stroke injection direct

Horsepower

Gross power: 131/175/1850 kW/HP/rpm //

Net power: 120/160/1850 kW/HP/rpm

Number of cylinders 6-126 x 130 mm (bore x stroke)Piston displacement 9.726 LMin. fuel consumption 214 g/kW·hMaximum torque765 N·m@1300 rpm

Power

 transmission

 system

Torque converter 3-element, 1 stage, 1 phaseTransmission Planetary gear type, power-shift, forced lubricationMain drive

Spiral bevel gear, single-stage speed reduction,

splash lubrication

Steering clutch

Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake

Steering brake

Lubricated, floating band structure, foot brake

with hydraulic booster

Final drive2-stage speed reduction of spur gear, splash lubricationTravel speedGear 1st2nd 3rdForward0~3.29 km/h 0~5.82 km/h0~9.63 km/hReverse0~4.28 km/h0~7.59 km/h0~12.53 km/hUndercarriage
 systemTypeSprayed beam, suspended structure of equalizerCarrier rollers2 each sideTrack rollers6 each sideTrack type Assembled, single-grouserWidth of track shoes 510 mmPitch 203.2 mmHydraulic
SystemMaximum pressure 14 MPaPump type Gear pumpDischarge 243 L/min

Bore of

working cylinder × no.

110 mm × 2BladeBlade TypeStraight-tiltAngleU- BladeDozing capacity 4.5 m 3 4.4 m 35.0 m 3

Efficiency

(Theoretical value 40 m)

225 m 3 /h225 m 3 /h250 m 3 /hBlade width3388 mm3970 mm 3556 mmBlade height1149 mm 1040 mm1120 mm

Maximum drop

below ground

540 mm530 mm540 mmLifting height of blade1095 mm 1110 mm 1095 mmRiipper
(Optional)

Maximum digging depth

of 3-shank ripper

572 mm

Maximum lift

above ground

592 mmWeight of 3-shank ripper 1667 kg

Our company
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.

Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise.

Six Free Services

Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)

If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Certificates

Packing and shipping

Our Customers

FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.

What is the proportion of your products exported?

75% of our products are exported to all over the world.

What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?

A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

B. Term: FOB,CIF, DAP, to door service, etc.
