Integrated Heavy-Duty Open Loading Bellows for Aggregate and Clinker
SHANGHAI EBO M&E EQUIP. CO., LTD.- Warranty：1year
- Applicable Industries：Manufacturing Plant, Food Factory
- Output：500-600t
- Feeding Caliber：400mm
- Connection Type：Flange with Dust Collection
- Lifting Stroke：3300mm
Base Info
- Model NO.：HLB4002I3300QNTDONPB
- Control Panel：PLC
- Power：2.2kw
- Voltage：380V51Hz
- Weight：1600kg
- Length：2636mm
- Width：1620mm
- Height：2733-6033mm
- Packaging Type：Wood
- Application Material：Aggregate and Clinker
- Transport Package：Wood
- Specification：Can be customized
- Trademark：SEBO
- Origin：Shanghai, China
- HS Code：8422302900
- Production Capacity：50sets,Month
Description
High-Efficient and Dust-Free Loading bellows(Basic)Type Filling Machine Applicable Industries Manufacturing Plant, Food Factory Output 500-600t Feeding Caliber 400mm Connection Type Flange with Dust Collection Lifting Stroke 3300mm Control Panel PLC Power 2.2kw Voltage 380V51Hz Weight 1600kg Length 2636mm Width 1620mm Height 2733-6033mm Packaging Type Wood Application Material Aggregate and Clinker Warranty 1Year Quantity(Sets) >1 Est.time(days) To be negotiated
Application
Safety, environment-friendly, efficient and reliable operation are the real customer requirement about modern bulk and powder loading. Shanghai EBO has been developing serialization products of loading bellows to meet these requirements through adequately understanding the working condition about different loading process.
Our loading bellows are applied in the storage and distribution of bulk and power such as cement and clinker, mineral powder, pulverized coal ash(PCA), powder additives, dry powder mortar, coal powder, chemical powder, bulk grain and powder etc.
Our loading bellows are your smart choice because of
ΔReliable operation, easy to meet dust-free loading into tanker, trucks and bulk cargo ships, or open yard.
ΔMolar structure and serialization products may meet the most requirements about bulk and powder loading.
ΔThe whole assembly and fine factory inspection and test can make the field installation more convenient.
ΔFreely providing the high performance methods of bulk loading and dust collecting with reasonable cost based on customer's need and field condition.

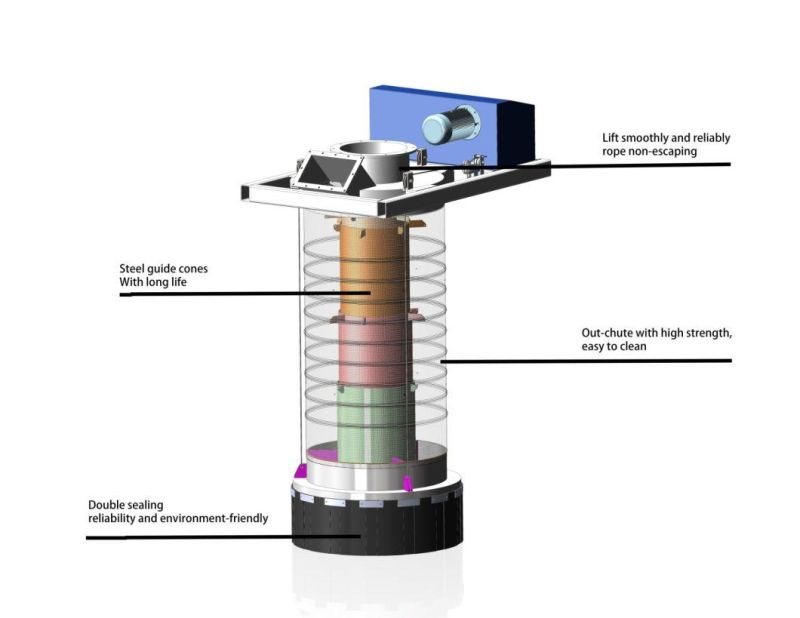

Features
ΔSteel guide cones with long life
ΔDouble sealing,reliability and environment-friendly
ΔLift smoothly and reliably rope non-escaping
ΔOut-chute with high strength easy to clean
Functions
1. Upper material from the loading chute discharging to the charging car, could prevent the dust leakage.
2. The air flow and the material discharging dust separation out access
3. To reduce the material crushing, environmental protection, with high efficiency
4. Free expansion, contraction ratio, small installing space.
5. Simple operation, convenient for shipment
6. Intelligent material level detection, automatic tracking of material surface, automatic promotion
7. Manual-auto running mode
8. High reliable control system
9. Provide electrical interlock control signal / running state signal interface, easy for networking control
10. Both ordinary type and explosion-proof products are available

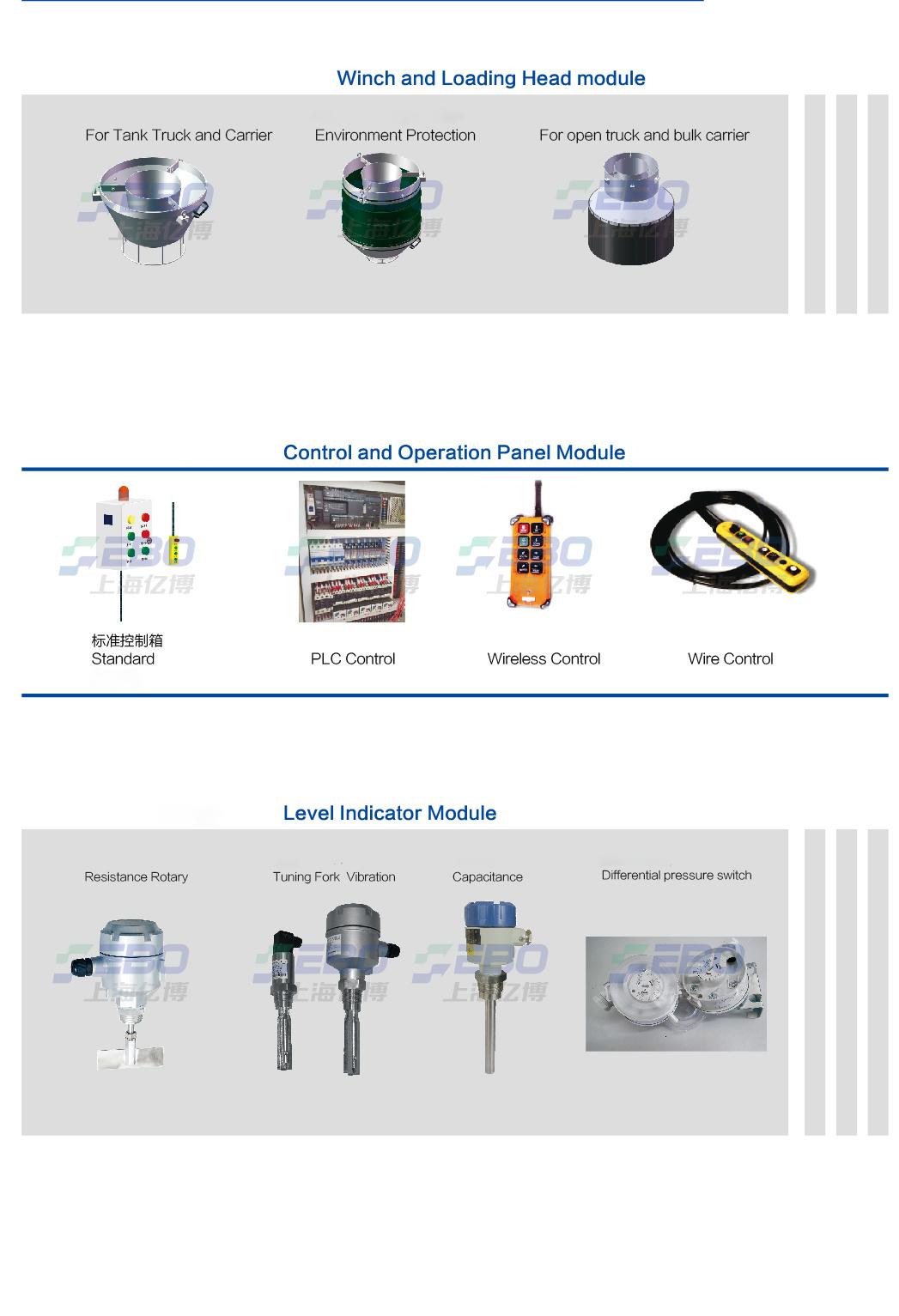

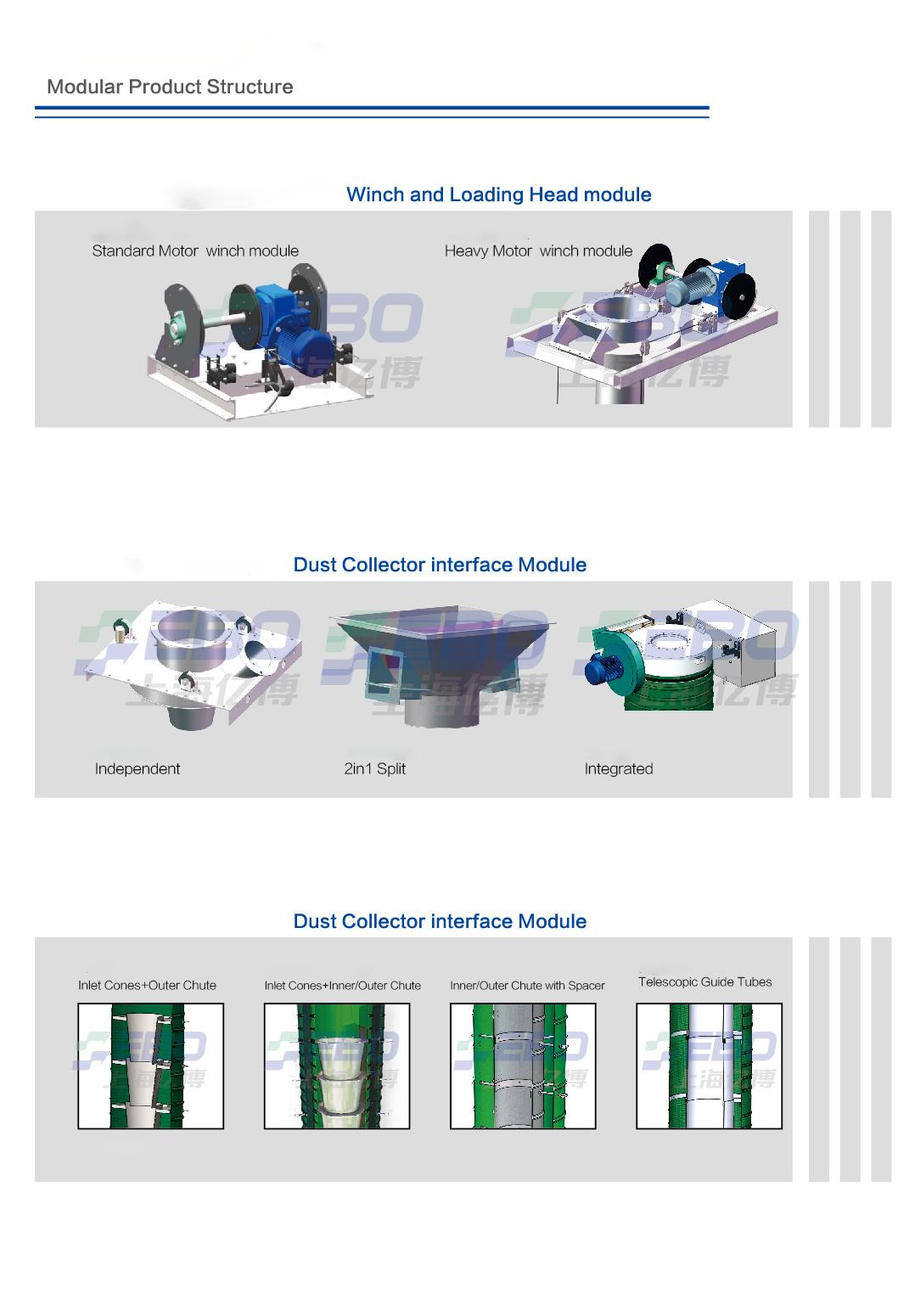

Modular Product Structure

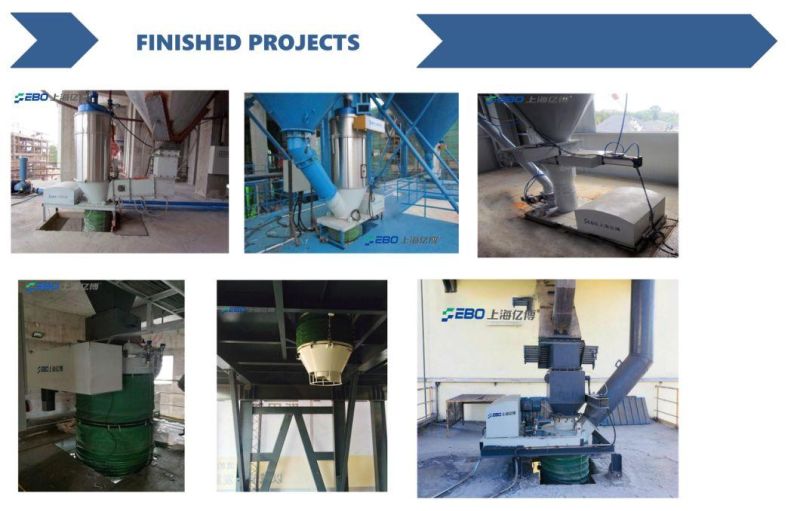

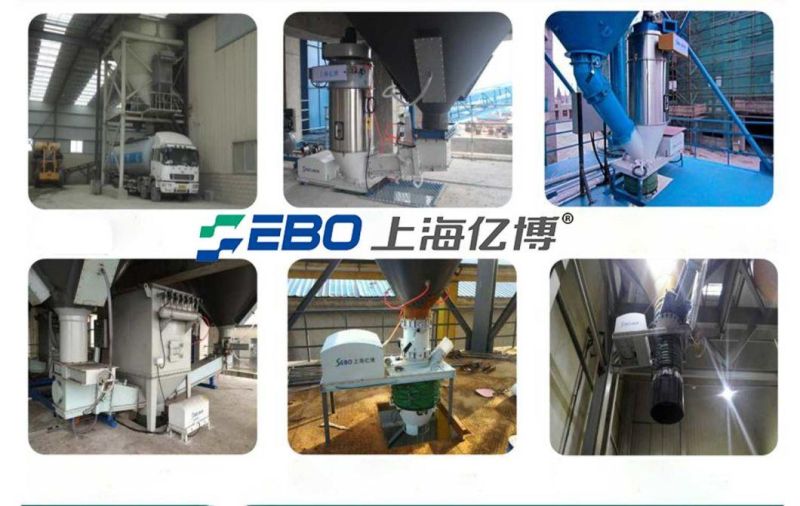

Project Display

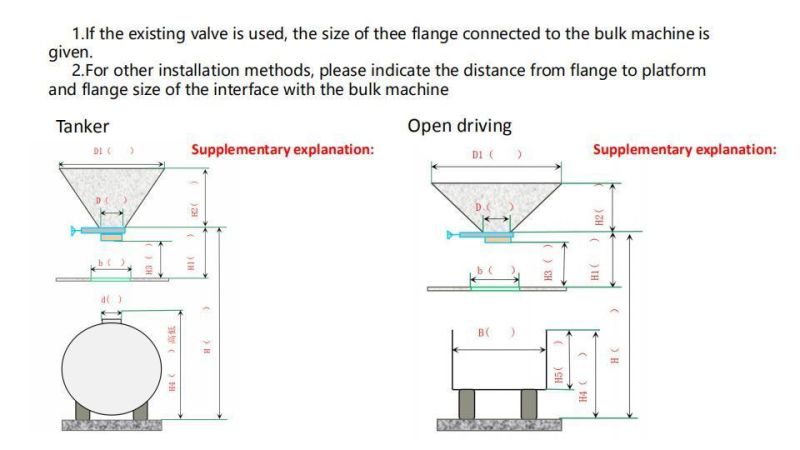

Information By Customer
Package and delivery
Company profile
Sebo on exhibition
