Hbxg 13 Ton 3.1m3 Capacity Mini Crawler Bulldozer SD5K
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Warranty：1 Year
- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：97kw
Base Info
- Model NO.：SD5K
- Certification：ISO9001: 2000
- Condition：New
- Color：Orange
- Engine Model：Weichai Wp6g125e332
- Max. Torque：570,1450nm,Rpm
- Limbing Abilitydeg;/25°%：30% 25%
- Rated Revelution：22200rmp
- Operation Weight(Kg)：13100
- Rated Power(Kw)：97
- Transport Package：Node Package
- Specification：4922*3060*2999mm
- Trademark：XUANGGONG
- Origin：China Hebei
- HS Code：8401200000
- Production Capacity：1000
Description
Model
SD5K(130HP)
Dozer
Power-Angle-Tilting blade
Operation weight(kg)
13100
Ground pressure(kpa)
45
Track gauge(mm)
1790
Min.ground clearance(mm)
315
Gradient
30°/25°
Dozing capacity(m³ )
3.1
Blade width(mm)
3060
Max.digging depth(mm)
460
Overall dimensions(mm)
4922×3060×2999
Engine Type
WEICHAI WP6G125E332
Rated revolution(rpm)
2200
Rated power(kw)
97
Max.torque(N.m/rpm)
570/1450
Rated fuel consumption(g/kw.h)
190
Undercarriage system
track-type hydrostatic bulldozer with semi-rigid suspended
Number of track rollers(each side)
7
Number of carrier rollers(each side)
2
Pitch(mm)
190
Width of shoe(mm)
510
Gear
Forward km/h
0-10.5
Backward km/h.
0-10.5

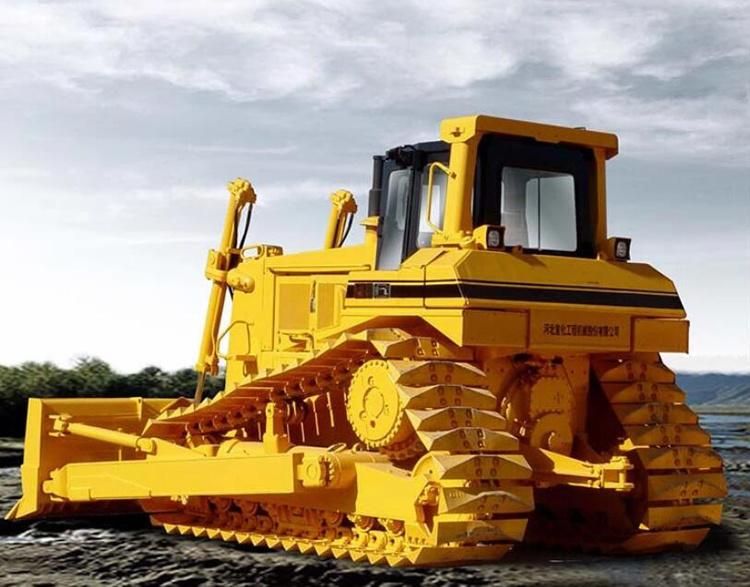

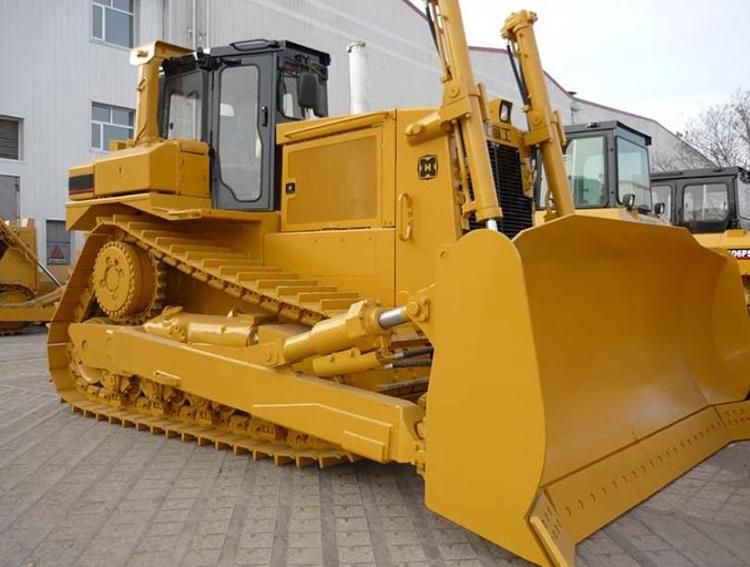

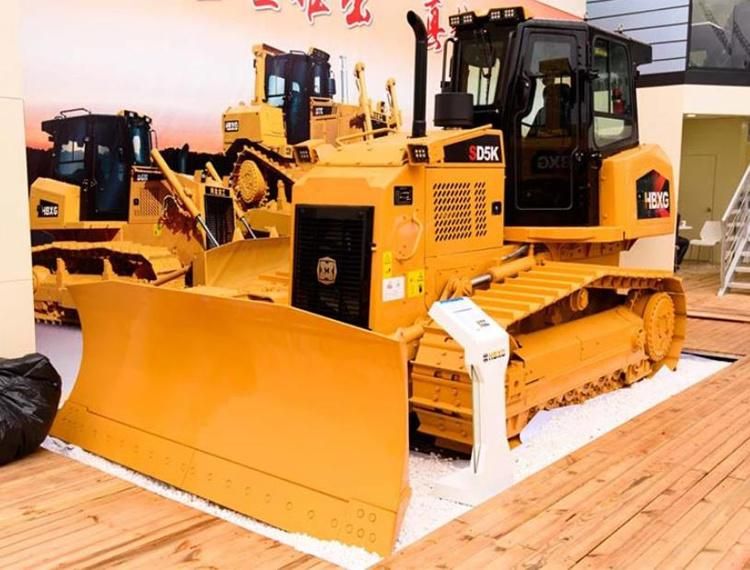

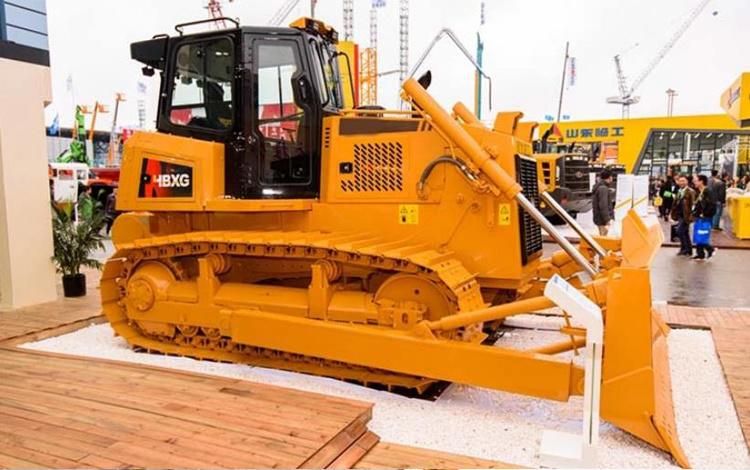

3. Product Pictures
