• Model NO.：L958F
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Name：China Newest 5t Wheel Loader Good Stability Strong
• Rated Operating Load：5000kg
• Keyword：Front Loader Tractor
• Location：Shandong China
• Color：Yellow
• Rated Power：162 Kw
• Load Capacity：3.0m3
• Unique Selling Point：High Operating Efficiency
• Max.Dumping Height：3110 mm
• Machine Weight：17080 Kg
• Transport Package：Nude
• Specification：8230*3024*3450 mm
• Trademark：SD,LG
• Origin：China
• HS Code：84295100
• Production Capacity：500pices,Year

Basic Info.

Model NO. L958F Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Name China Newest 5t Wheel Loader Good Stability Strong Rated Operating Load 5000kg Keyword Front Loader Tractor Location Shandong China Color Yellow Rated Power 162 Kw Load Capacity 3.0m3 Unique Selling Point High Operating Efficiency Max.Dumping Height 3110 mm Machine Weight 17080 Kg Transport Package Nude Specification 8230*3024*3450 mm Trademark SD/LG Origin China HS Code 84295100 Production Capacity 500pices/Year

Product Description

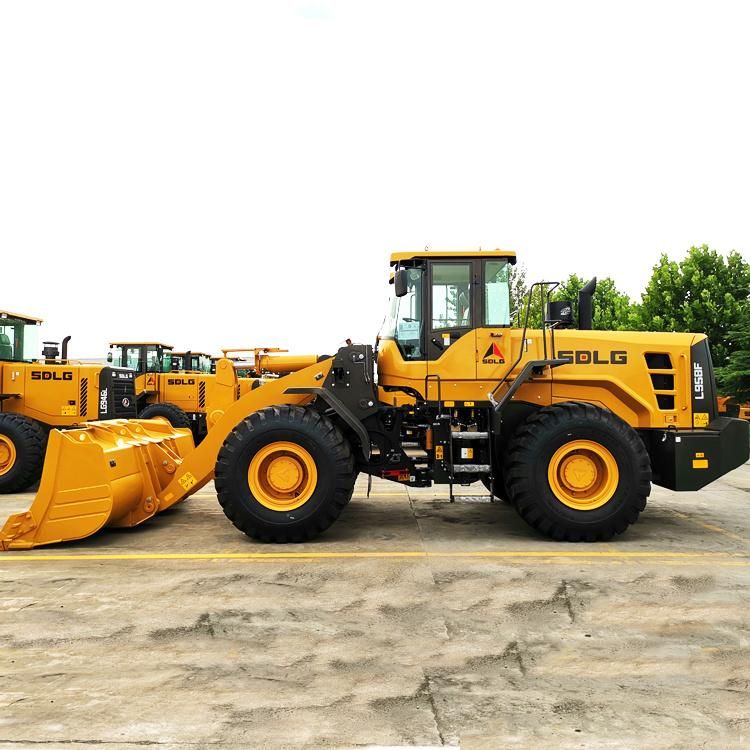

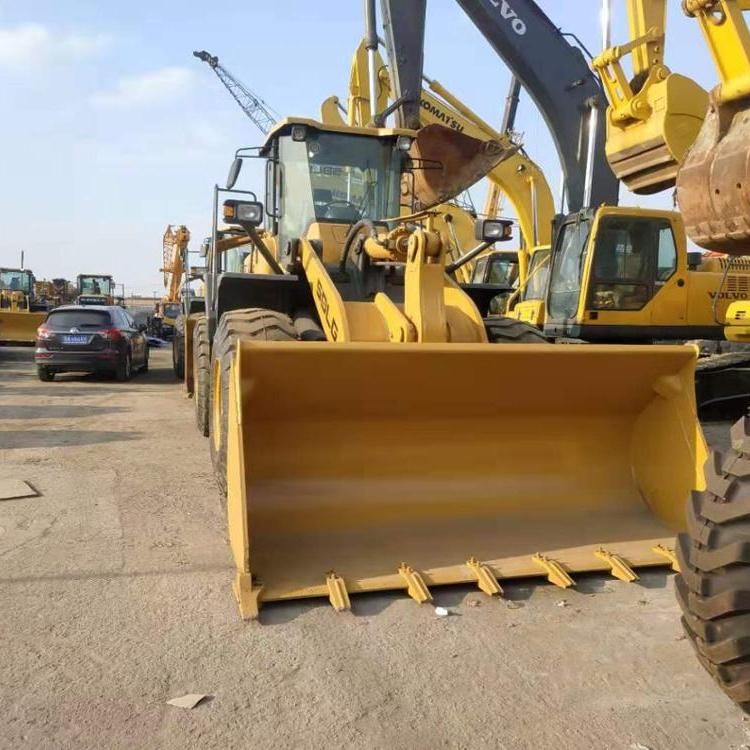

China Newest 5T Wheel Loader Good Stability Strong Durability  (L958F)

Technical Features

 L958F is the long wheelbase, energy-saving and high-end loader launched by , which has brand new appearance, high-end configuration, good stability and strong durability. This product has large breakout force and tipping load, featuring good stability, which is widely used in mining, heavy-load spading, stripping of original soil and other heavy-load conditions.

Reliable
    Wheel base is increased to 3300mm to make it suitable for operation under heavy industrial and mining environment such as mines.
    Weichai engine (two-stage) is adopted to realize large torque, strong power, low oil consumption, high quality and low emission.      Dalian Deutz BF6M series engines is optional.
    It is equipped with 93-type sand and dust filter with primary filtration accuracy up to over 93%; it is safe and reliable, and more suitable to sand and dust working condition.
    VRT200 gearbox is adopted with comprehensive efficiency increased by over 8% and front four and rear four electrohydraulic control shifts are employed with KD function and power cutoff and shift interlocking function, thus realizing high transmission efficiency, stable and easy operation.
    Reinforced drive axle with strengthened structure and rational load distribution are adopted to realize larger bearing capacity, high reliability, and prolonged service life, which has been proved by the market.
    The front transmission shaft is fitted with end face teeth and the cross axle diameter is increased to improve the overall strength and transmission torque, thus ensuring longer service life and higher reliability.
    Steel engine hood produced using automotive grade molds is adopted. It adopts the streamlined structure with surface welded points removed, making it look attractive and magnificent. The molded counterweight employs a more powerful shape to provide high reliability and strength.
    KM300 multiway valve is adopted to render more smooth and accurate composite actions, large flow, high pressure and high efficiency.

Energy efficient
    Intelligent control cooling system is adopted to reduce energy consumption and ensure optimal working temperature of the entire machine.

Comfortable
    Brand new appearance cab with wide view is adopted to provide a comfortable, highly efficient operation environment.
The concept of “visualization” and “maintenance on ground” is adhered to ensure it is easier to maintain the entire machine.
    Reinforced oil cylinder is adopted with increased piston rod diameter and imported seals to completely prevent external leakage. The design service life of the oil cylinder is increased to 4000h from the previous 2000h.
    Electric system adopts centralized control mode. It is fitted with fuel gauge and engine tachometer and fault information can be displayed on LCD screen.

Technical parameters

Operating weight	Bucket capacity	Rated load	Max.breakout force	Max.dumping height	Dumping distance
17080 kg	3.0m³	5400 kg	≥194kN	3110 mm	1100 mm
Length×Width×Height	Max.tractive force	Total time	Steering angel	Tipping load	Rated power
8230×3024×3450 mm	≥165 kN	≤10.0 s	40°	≥110 KN	162 kW

Detailed Images
