• Model NO.：YL60,65
• Color：Yellow or as Customer′s Request
• Brand：Pterosaur
• Product Name：Quick Coupler
• Pin to Pin Center Distance：380-420
• Retractable Distance of Oil Cylinder：340-486
• Weight：120-130
• Required Oil Flow：10.0-20.0
• Top to Bottom Pin Distance：220
• Transport Package：Standard Export Package
• Specification：material 20CrMo
• Trademark：PTEROSAUR
• Origin：Yantai China
• HS Code：8412210000
• Production Capacity：500sets,Month

Basic Info.

Model NO. YL60/65 Color Yellow or as Customer′s Request Brand Pterosaur Product Name Quick Coupler Pin to Pin Center Distance 380-420 Retractable Distance of Oil Cylinder 340-486 Weight 120-130 Required Oil Flow 10.0-20.0 Top to Bottom Pin Distance 220 Transport Package Standard Export Package Specification material 20CrMo Trademark PTEROSAUR Origin Yantai China HS Code 8412210000 Production Capacity 500sets/Month

Product Description

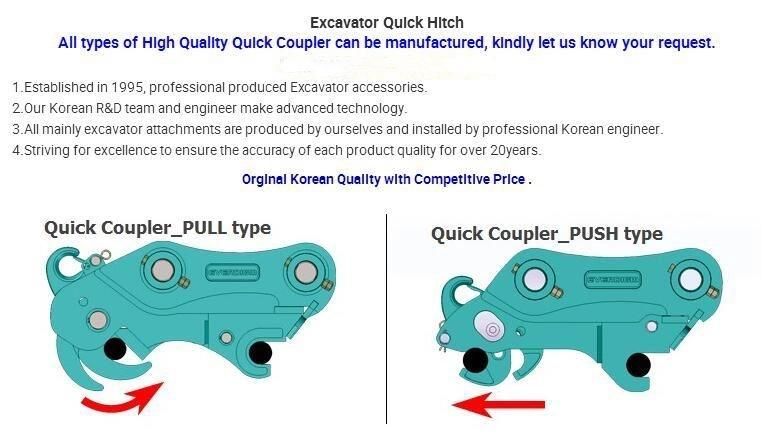

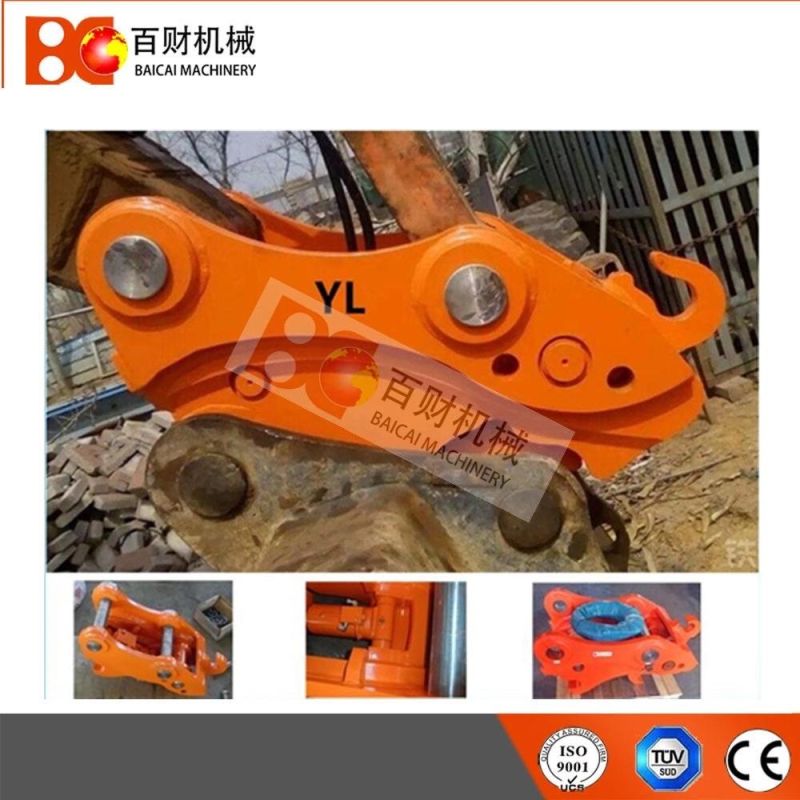

Quick Hitch Coupler Attachment Quick Hitch Coupler Excavator for Kinds of Excavators

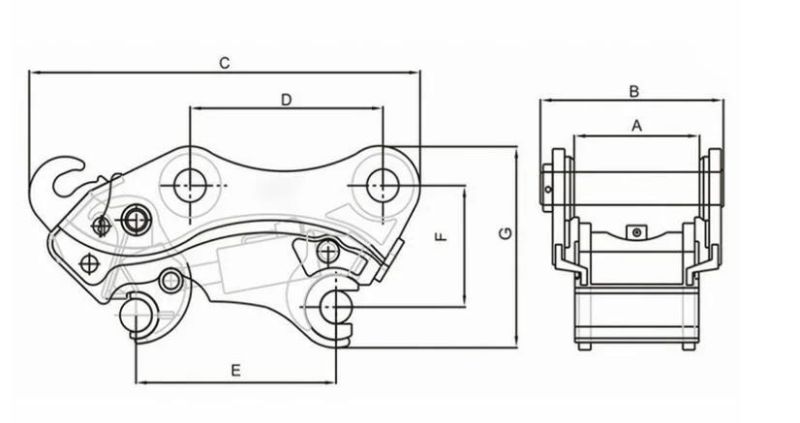

Specification

Model	Unit	YLMINI	YL45	YL50/55	YL60/65	YL70/80	YL90	YL100/110
Overall Length	mm	388	534-545	600	765	924-944	983-1050	1006-1173
Overall Height	mm	246	307	310	388	492	574	558-610
Overall Width	mm	175	258-263	270-280	353-436	449-483	543-568	606-663
Pin to Pin Center Distance	mm	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Forearm Open Width	mm	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Retractable Distance of Oil Cylinder	mm	170-206	205-275	340-450	340-486	256-390	413-590	520-590
Top to Bottom Pin Distance	mm	159	195	195	220	275	300	360
Pin Diameter	mm	25-40	45-50	50-55	60-70	70-80	80-90	90-120
Weight	KG	25	50-60	80	120-130	280-290	420-430	450-580
Working Pressure	Kg/cm²	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Required Oil Flow	L/min	10.0-20.0	10.0-20.0	10.0-20.0	10.0-20.0	10.0-20.0	10.0-20.0	10.0-20.0
Suitable Excavator	Ton	1.5-4	4.0-7.0	5.0-8.0	9.0-19.0	17.0-23.0	23.0-30.0	33.0-45.0

Why Choose Us ! ! !

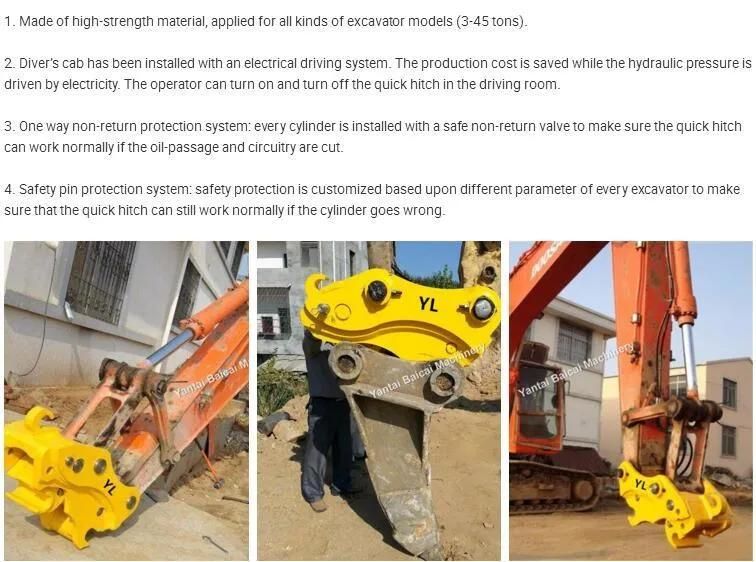

Quick coupler is an ideal tool to mount various attachments on the excavators with easy and speedy. thanks to the advanced safety technology and user- friendly mechanism, it allows you more convenient and reliable on work conditions.

Excavator quick coupler, also named as quick hitch coupler, quick hitch, bucket pin grabber can quickly connect various attachments (bucket, hydraulic breaker, plate compactor, log grapple, ripper, etc...) on excavators, which can expand the scope of use of excavators, and can save time and improve working efficiency.

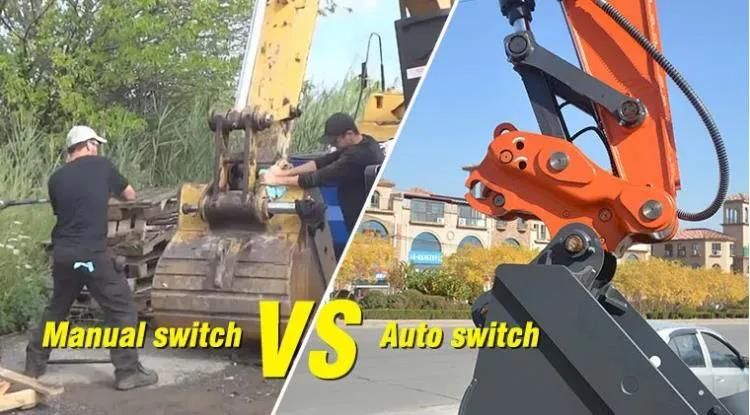

Why should you need a quick coupler?

l  Mainly used in the need to frequently replace the front end of the excavator working device in the work plan.

l  Ten seconds to complete the switch.

l  Time saving, labor saving, simple and convenient.

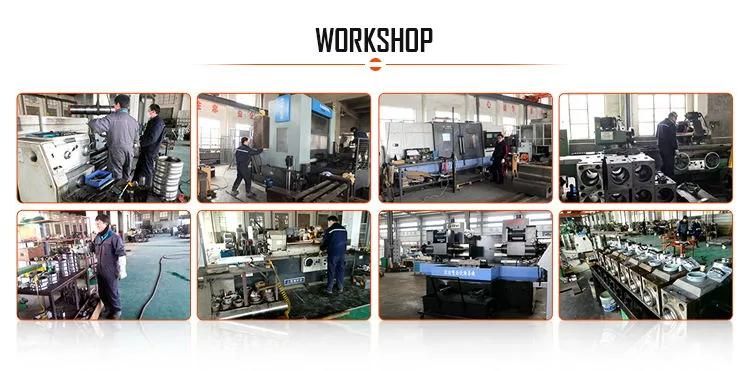

Our Company




Certification

Exhibition

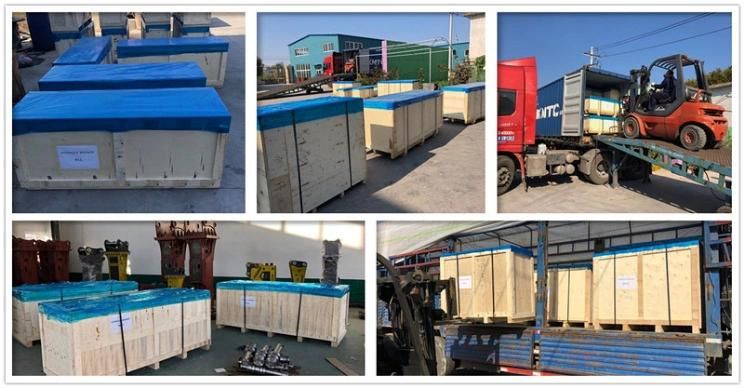

Package

Inner package hydraulic breakers were packed in stretch film

Outside package with export wooden case

Hydraulic breaker Package can be as per customer's request

Delivery

Delivery time: Usually 3-7days (1-5sets) after receiving the payment

We can arrange hydraulic breaker shipment by ocean or air transportation according to your request from any port of China.



Our Service

1. 7Days*24Hours after-sales service by email and phone

2. Your inquiry will be replied in 24 hours during working days

3. Our customer-oriented sales and technical team are always at your service

4. OEM Service available

5. Warranty: 12 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).

FAQ

1. Are you a manufacturer?
Yes, our factory was established in 2004

2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.

3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.

4. How about delivery time?
3-7 working days after receiving the payment.

5. After-sale Service
12months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.

6. Impact Test
Every hydraulic breaker will do impact test before shipment.
