• Model NO.：HGY32
• Structure：Floor Fixed Self Climbing
• Productivity：60m²,h
• Feeding Height：Zero
• Vibrating Amplitude：0.8mm
• Certification：ISO9001: 2000, CE

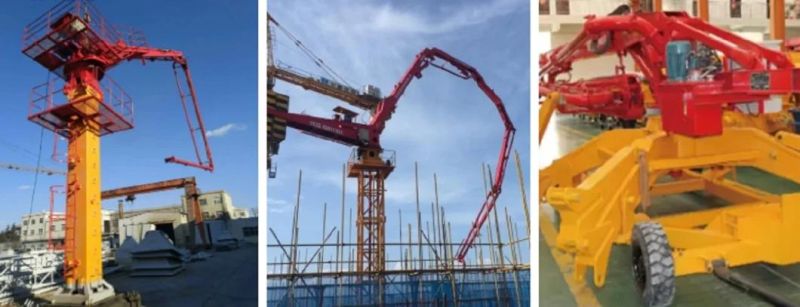

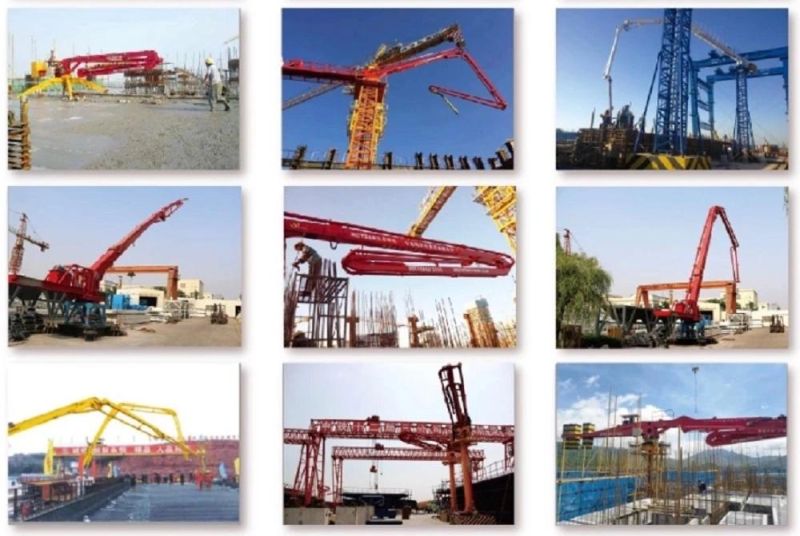

• Name：Hydraulic Concrete Placing Boom
• Drive Type：Hydraulic
• Boom Length：32m
• Boom Material：High Pressure Steel
• Control Type：Wireless Remote Control
• Model：Hgy32
• Working Type：Self Climbing
• Application：Pouring Concrete
• Using：High Building
• Brand：Zoomlion
• Transport Package：2*40hq
• Specification：Steel
• Trademark：Super above
• Origin：China
• HS Code：84134000
• Production Capacity：300sets,Year

ModelHGY32CPerformanceMax. Radius of Placing Boom(m)32Free Standing Height ( to the joint between the end
of the boom and swivel table(m)22.1slewing range( º  ) 400working temperature(ºC)0~60Total Weight(kg)20800Counter Weight(kg)2930Power (subject to customers requirement)380V/50HZ         MotorModel No.Y2 -200L-4Power(KW)18.5kwHydraulic SystemSystem Pressure (Mpa)32Flow(L/min)47Oil Tank capacity(L)280Type of Hydraulic OilOperating Ambient Temperature35ºC~50ºCL- HM68Operating Ambient Temperature5ºC~35ºCL- HM46Operating Ambient Temperature-15ºC~5ºCL- HM32Control ModeCable Remote controlWireless Remote Control Wired Remote ControlCleaning Mode for Delivery PipelineWater Wash/Dry CleaningSection of Tubular Column(m×m)0.75×0.75ARMBoom ModeFully HydraulicDelivery Pipeline DiameterDN125mmLength of End Hose(″× m)5"×31st SectionLength (m)11.3Articulation0°~ 90°2nd SectionLength (m)6.85Articulation0°~180°3nd SectionLength (m)6.95Articulation0°~180°4nd SectionLength (m)6.9Articulation0°~180°ClimbingClimbing TypeCylinder Jack LiftingInternal Climbing Step Distance(m)0.52Floor FrameHole Prepared in FloorShaft FrameSize of Climbing2.0m - 2.7mMin Space Between
Internal Climbing FramesClimbing(m)3.0Placing Concrete(m)6.0Rest(m)6.0

Advantages:
A.Boom
The arced boom structure is optimized by applying CPU design. The boom adopted high-strength steel plate for production with scientific process. It features beautiful appearance, superior rigidity and intensity,
ensuring excellent and reliable quality.
B. Hydraulic system
C  series products adopted Germany Rexroth solenoid directional control valve and balance valve
 with secondary overflow. It has effectively avoided the potential damages of boom
 which might be caused by over speed movement when the boom drops down, and sudden
increase of oil cylinder's pressure under external forces, thus the reliability of the boom
 has been increased.
C.Inner Hydraulic Oil Tank
Inner hydraulic oil tank renders a compact structure and free swivel. It gives big
convenient for installation, dismounting and maintenance, which ensure longer service
life and excellent performance.
D.Climbing Facility
As a rectangular frame structure, the climbing facility is flexible, reliable and convenient
for dismounting.
E.Slewing Mechanism and Reducer
Slewing reducer adopted products made by the world famous brand of Italy Comer, with
a great torsion. Being accompanied with the integrated slewing balance valve made by
Germany Hawei, it achieves smooth operation and reliable and stable performance.
F.Wireless Remote Controller
C series products adopt industry-exclusive analogue wireless remote controller made by Taiwan TELECRANE, which is easy and convenient to operate, highly resistant to
disturbance and reliable in performance.Each series are accompanied with wired remote controller for use in necessity.
G.Electric Control System
The electric control system adopted world famous brand of electric components, such
as Japanese Omron and French Schneider. The multi automatic protection is set up in
the control program, so as to avoid misoperation and ensure the system's reliability.
H.Column
The column is made of high-strength steel plate in square shape, with nice appearance,
rigidness and intensity, as well as high reliability.
