• Model NO.：CHHGC635
• Rated Power：35.7
• Bucket Capacity：1.8m3
• Rated Speed：2600r,Min
• Dumping Height：3110mm
• Overall Dimensions：7120*2500*3290
• Wheel Tread：1800+,-50 mm
• Drive Style：Four-Wheel Drive
• Certificated：Ce, ISO, SGS, EPA, GOST
• Tires：17.5-25
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Orange
• Transport Package：1 Unit Per 40hq Container
• Specification：CE, ISO
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84295100
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. CHHGC635 Rated Power 35.7 Bucket Capacity 1.8m3 Rated Speed 2600r/Min Dumping Height 3110mm Overall Dimensions 7120*2500*3290 Wheel Tread 1800+/-50 mm Drive Style Four-Wheel Drive Certificated Ce, ISO, SGS, EPA, GOST Tires 17.5-25 Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Orange Transport Package 1 Unit Per 40hq Container Specification CE, ISO Trademark CHHGC Origin Henan, China HS Code 84295100 Production Capacity 5000PCS/Year

Product Description

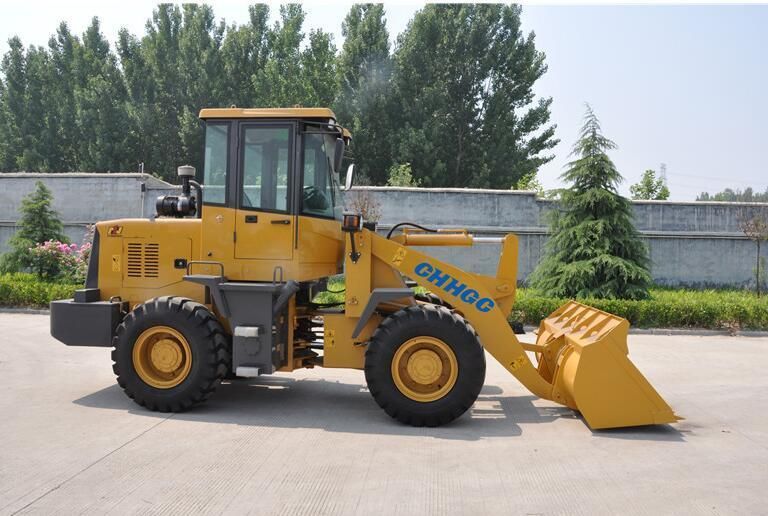

3 ton Hot Sale CE E3 Tier3 Engine Small Diesel Wheel Loader

Specifications:

1) Short delivery time
2) Fully Hydraulic Driving
3) CE , ISO, SGS, And EPA Certificated
4) We can provide technical support via mail, phone, video or sending engineers there.
5) English operation and maintenance manul and parts list are shipped with the loaders.
6) 3T Diesel Wheel Loader

Product Description:

1)Imported perkins engine
2)Hydraulic Quick Hitch
3)Joystick
4)Electric shift optional
5)Heating Cabin
6)Adjustable Steering Wheels
7)Comfortable Operator's seats
8)Supply all kinds of accessory
Standard configuration without prevent side turn frame
Optional:
Engine type
2) Germany Deutz
WP6G125E22  92KW
3) US Cummins
6BT5.9-C130  97kw
Technical Parameters


Item	CHHGC635
( scale type-specific Engine)	CHINA FAW  XICHAI 6110/125G5
(Rated power)	92kw
(Rated speed)	2200r/min
(Bucket capacity)	1.8 m³
(Rated load)	3000-3500kg
()(Lifting time)(Full load)	≤5.65s
(The sum of three items)	≤10s
(Unloading height)	3110mm
(Max. digging force)	≥120.6KN
(Correspondence unload distance)	1040mm
(Max. breakout force)	≥90KN
()(Overall length)	7120mm
()(Overall width)	2500 mm
(Overall height)	3290mm
/ (Min turning radius/bucket outside )	5650mm
(Articulation angle)	36±1°
(Wheelbase)	2630±50mm
(Wheel tread)	1800±50mm
( Tires)	17.5-25

Remarks:
1. The machines are new and unused on field test.
2. TT payment: at least 30% advance payment; 70% balance before shipment
3. Package: Nude, 1set/40GP or 2sest one 20GP+40HQ
4. Delivery: 25days after deposit
5. Warranty: One Year Or 2000 hrs.

Spare Parts For Option:

CHHGC635 Diesel Wheel Loader Design Details:

Why choose us ?

1) A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3) Unparalleled after sales service


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

e company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers.
Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.

Thanks for your reading. For More Information, Kindly "Send" your Inquirys.
