• Model NO.：953A
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Yellow
• Transport Package：Wood Frame
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：300 Per Month

Basic Info.

Model NO. 953A Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Yellow Transport Package Wood Frame Specification A Trademark CHHCC Origin Henan HS Code 84295100 Production Capacity 300 Per Month

Product Description

 Top Quality Loader, Powerful Wheel Loader, Loading Machine in Earth-moving Machine

Product Description

 Introduction:

 953A wheel loader is the third generation of loader product produced independently by our company by using the latest technology and modern design. It adopts China's common transmission system and reinforced frame and its excellent performance, high efficiency, low fuel consumption and reasonable economic cost have achieved the advanced level in the industry.





1. Strong power



Quick speed: lifting: 5.4 s;



sum time of three items( lifting, dumping and falling time) : 9.8s;



High flexibility: small turning radius, flexible steering;



Enough power: 162kW Weichai supercharged engine provides powerful power;



Full load: Extended bucket bottom, strong cut-in force, large bucket drawback angle and high full-load coefficient.



2. Excellent performance



Unloading height: the unloading height of the movable arm is 3400 mm, which can meet the demand of high-height unloading;



Strong force: 175kN breakout force and 150kN traction are applicable to the operating demands of various harsh working conditions;



Excellent wheelbase: wheelbase is short as 3000 mm, which makes the site applicability be optimal;



Good performance: optimized working device of single rocker arm, smooth motion and the bucket can lay flat automatically.



3. High reliability



Integral-type front frame, box beam rear frame and thickened plates, providing high strength;



Hinge point adopts double-row centering taper roller bearing, which makes the stress more reasonable and makes the steering more flexible.



4. Prolonged service life



Due to wear-resistant blades and bucket teeth, the service life of bucket becomes longer;



"C"-shaped protecting bush is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable.



Hydraulic joint adopts "Cone-O" double seal which is a kind of German technology, so the capacity of seepage-proofing and leakage-proof becomes better.



5. Driving becomes more comfortable



The cab, with large interior space and wide field of vision, makes driving become comfortable and safety;



Imported flexible shaft makes operation easy and flexible;



Air volume of the warm air blower is large. The warm air blower has functions of defrosting, so it makes the driving more comfortable;









Major technical parameters



Overall dimension (length x width x height)	mm	8400×3000×3480
Rated load	ton	5
Capacity of bucket	m3	2.7-4.2
Capacity of standard bucket	m3	2.7
Weight of complete machine	t	17.0-17.4
Unloading height	mm	3400
Unloading distance	mm	1160
Wheelbase	mm	3000
Wheel track	mm	2200
Maximum breakout force	kN	170
Maximum traction	kN	150
Steering angle	°	36
Maximum traveling speed	km/h	38
Minimum turning radius	°	6159
Maximum grade ability	°	28

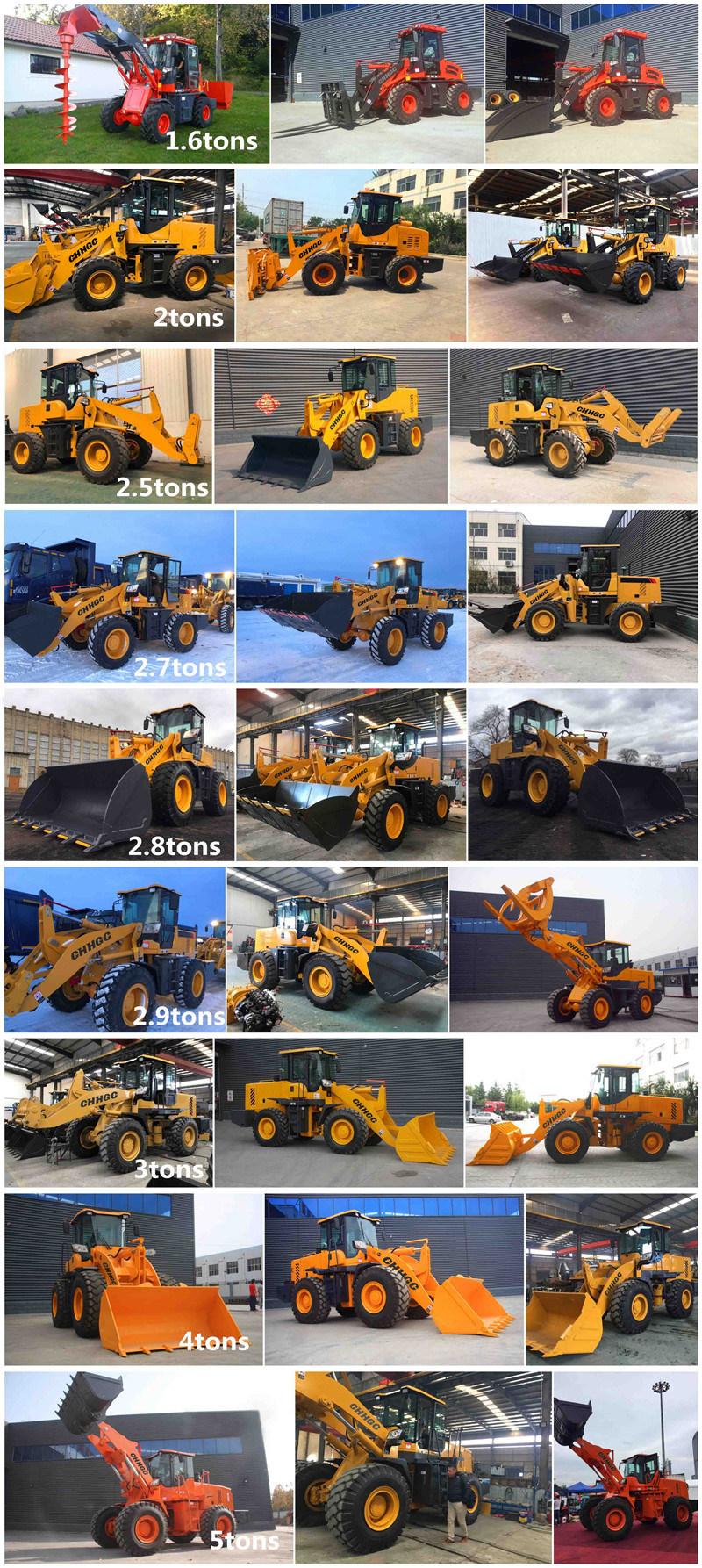

Products series

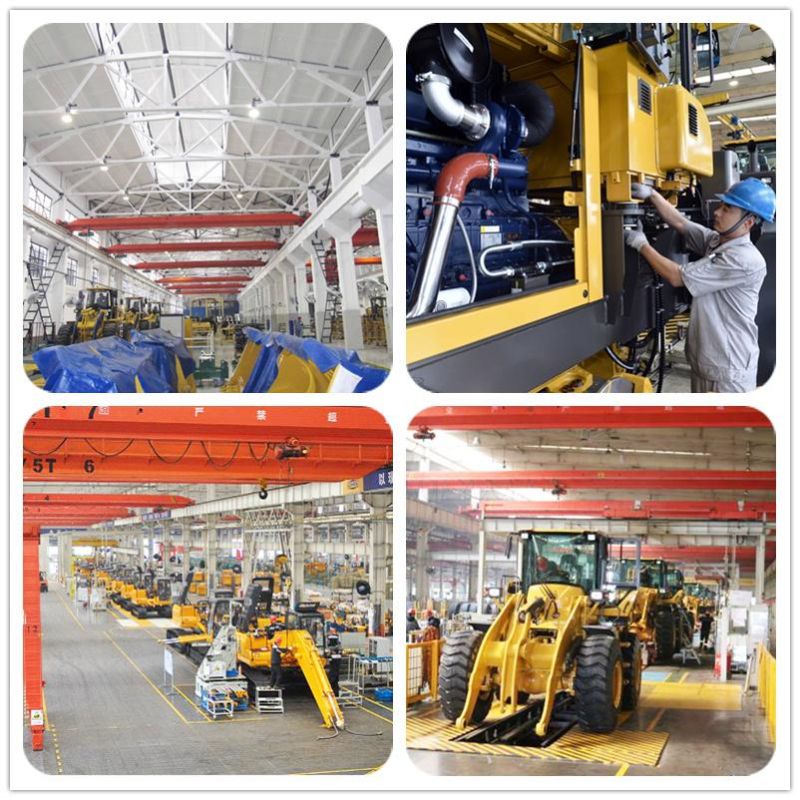

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
