• Model NO.：H12 H20 H30 H40 H50
• Productivity：75m²,h
• Feeding Height：1380mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Blue
• Transport Package：FCL
• Specification：1 party-4 party
• Trademark：LIFTOR
• Origin：Jiangsu, China
• HS Code：8705400000
• Production Capacity：300,Month

Basic Info.

Model NO. H12 H20 H30 H40 H50 Productivity 75m²/h Feeding Height 1380mm Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color Blue Transport Package FCL Specification 1 party-4 party Trademark LIFTOR Origin Jiangsu, China HS Code 8705400000 Production Capacity 300/Month

Product Description

profefessional self loading portable concrete and mixer self load cement mixer mini truck automatic cement mixer

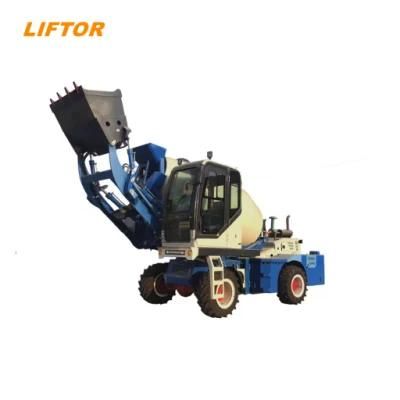

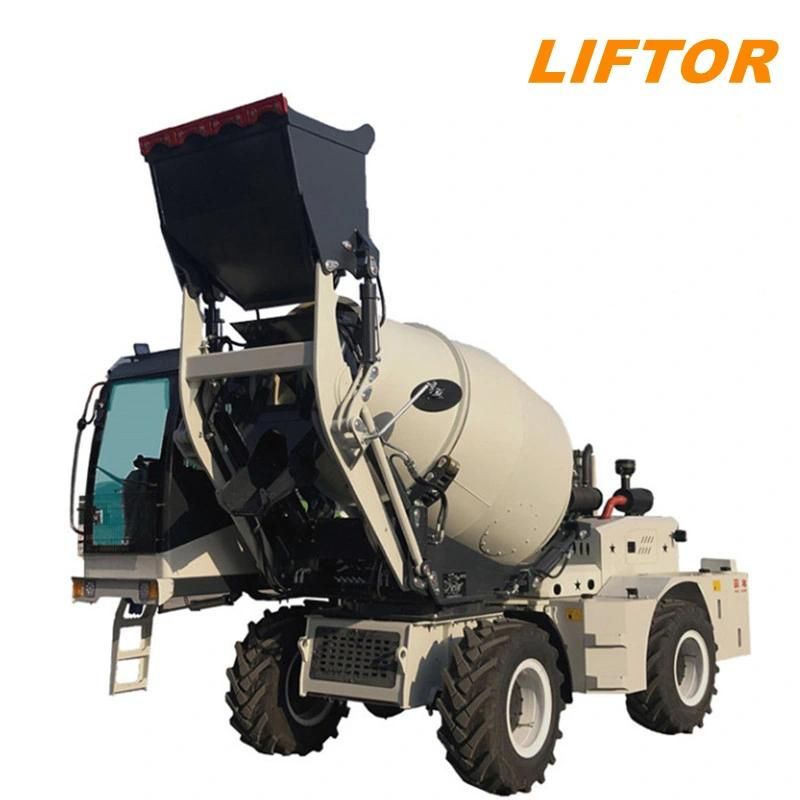

 LIFTOR Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

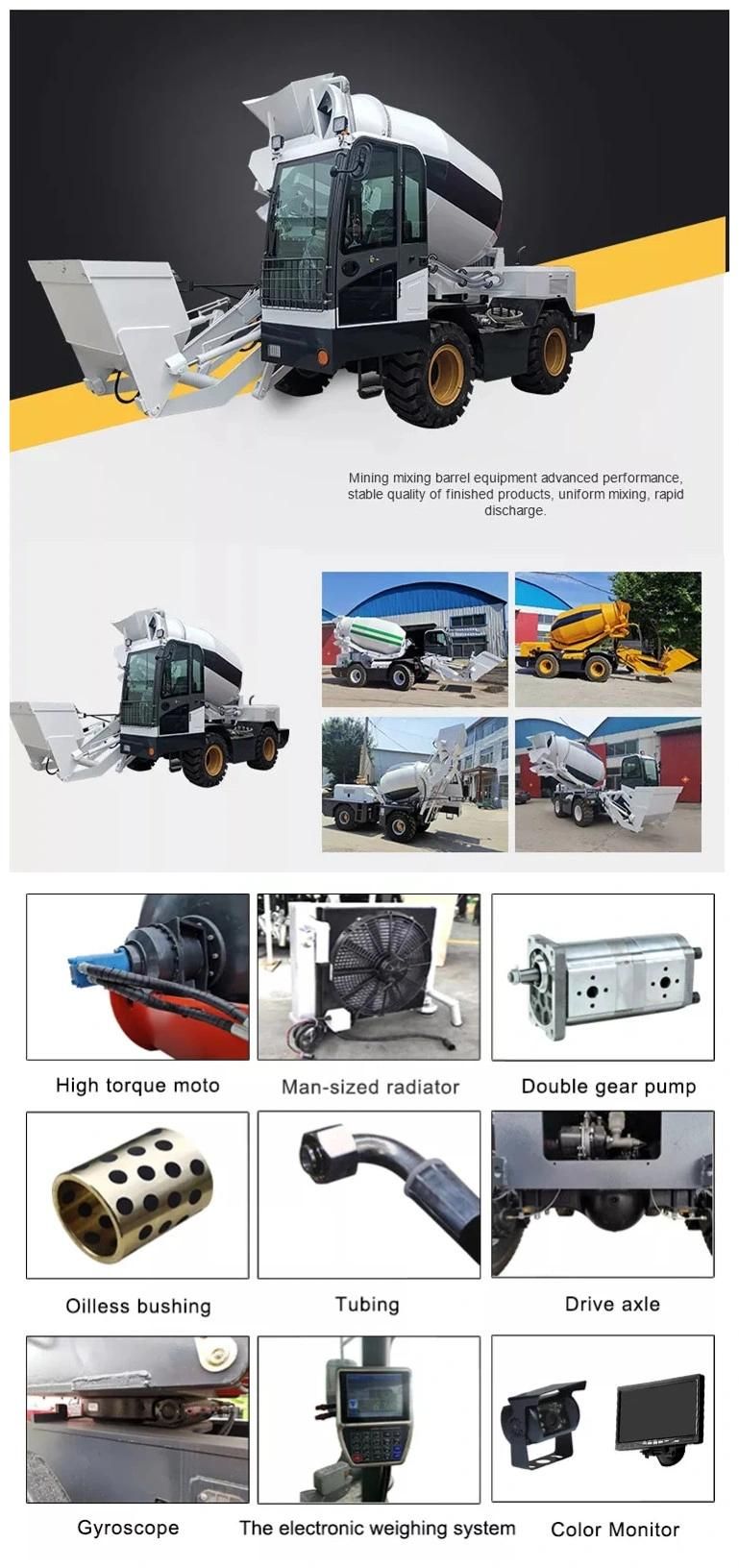

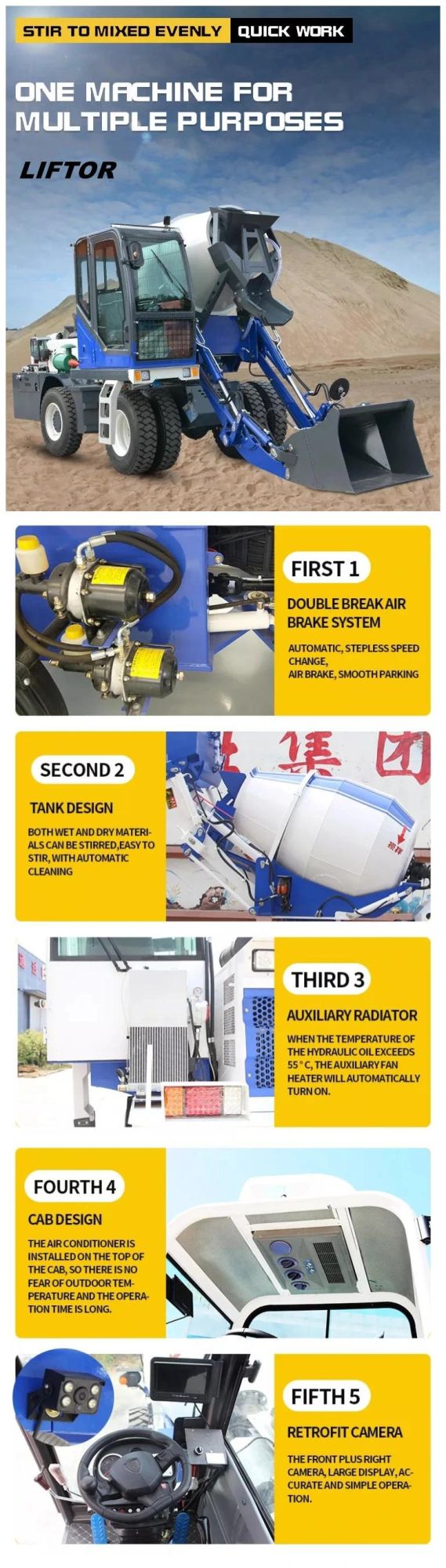

LIFTOR Concrete Mixer Features:

1. High torque motor

Adopting BM5 high torque motor, the reducer is a reasonable ratio of two-stage high torque and higher efficiency

2. Man-sized radiator

Independent cooling system to ensure the control of oil filtration quality and temperature.

3. Double gear pump

High pressure, not easy to wear, increase the oil inlet and outlet to ensure the flow of the whole machine

4. Oilless bushing

Use oilless bearings, only need to inject butter once a year,wear resistance is 100 times that of ordinary sleeves.

5. Tubing

The whole vehicle's oil pipe adopts the 24 °international standard H-type joint, which has no oil leakage and oil leakage, and has a large flow.

6. Drive axle

The driving shaft adopts medium and large wheel side bridge, which is stable Low operating noise.

7. Gyroscope

The slewing bearing has a five-year warranty and uses a well-known domestic gyrator (imported worm motor)

8. The electronic weighing system

The Load cells are acting on the drum and technical data are  displayed on the shovel loader weigher inside  the cab.Two sets of joystick control system are situated on the two sides of driver's seat.

9. Color Monitor

The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety.

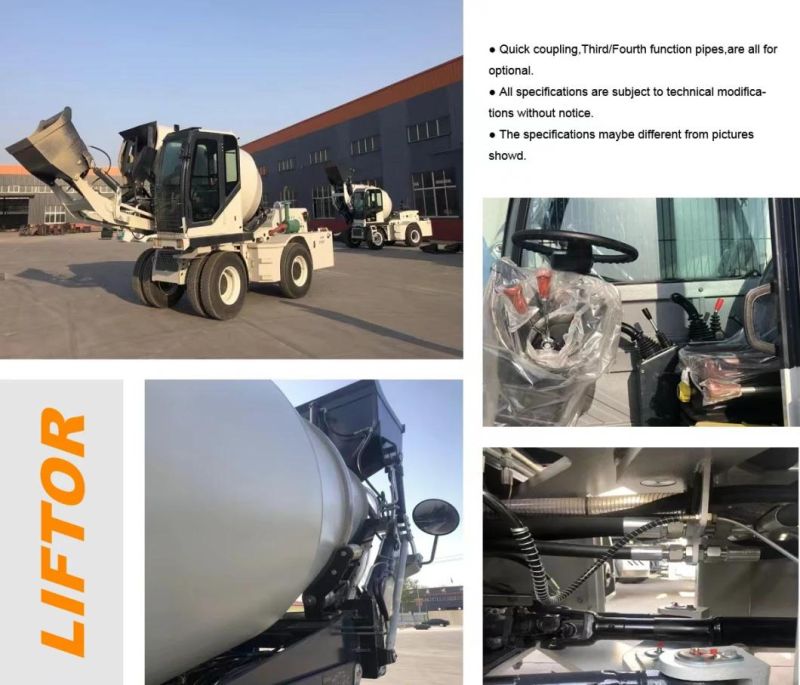

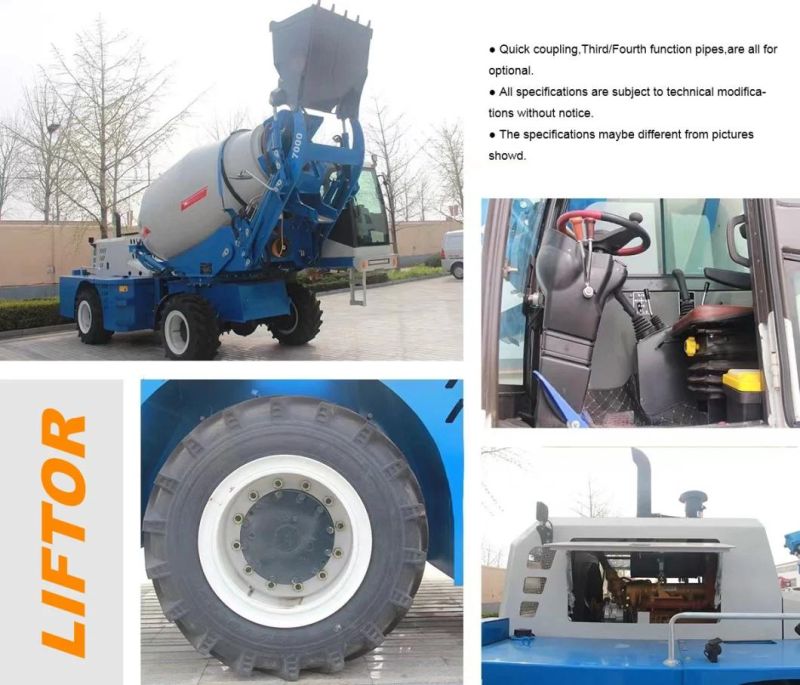

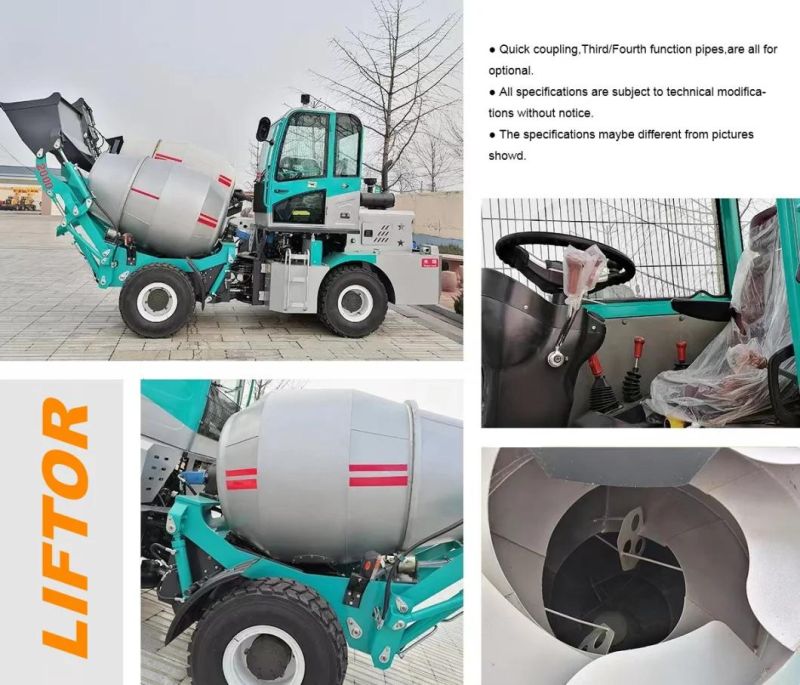

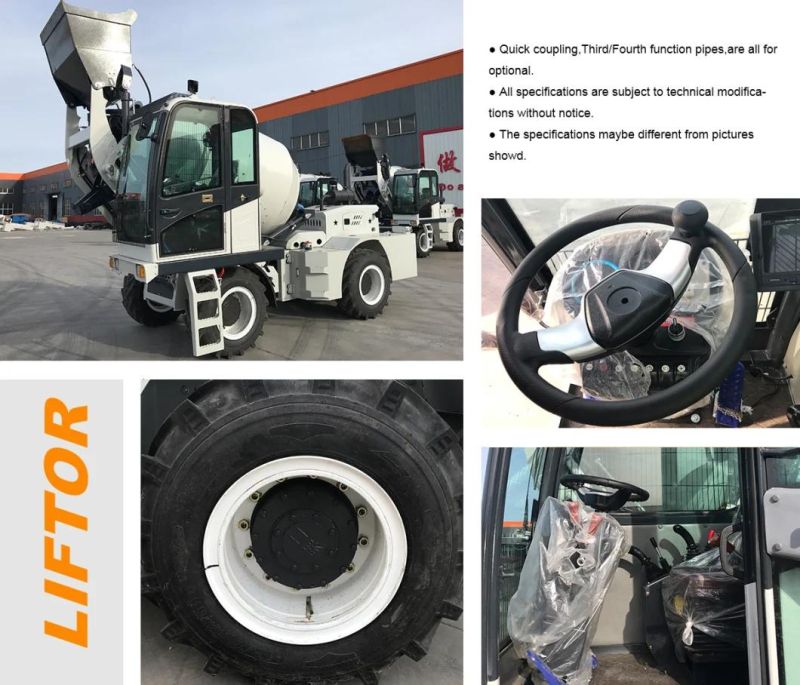

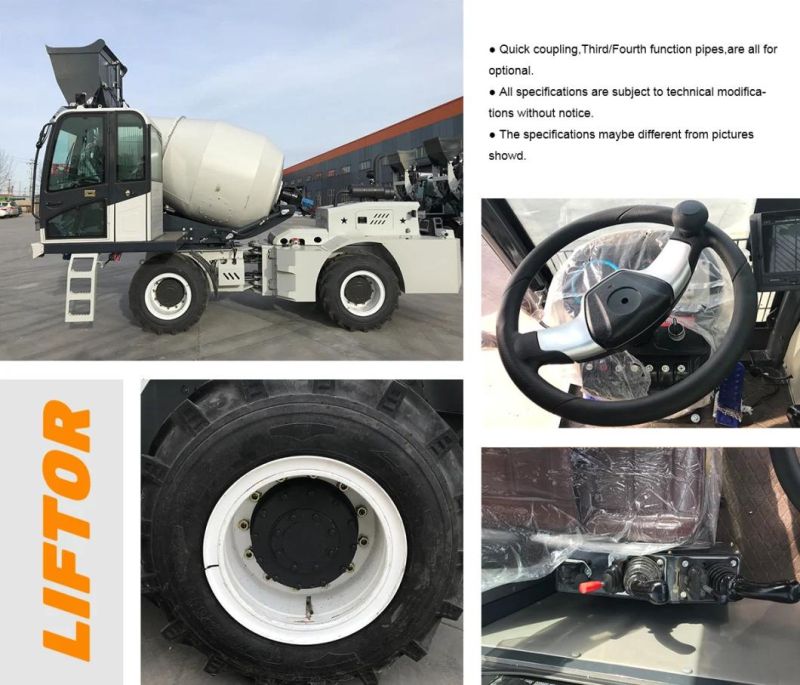

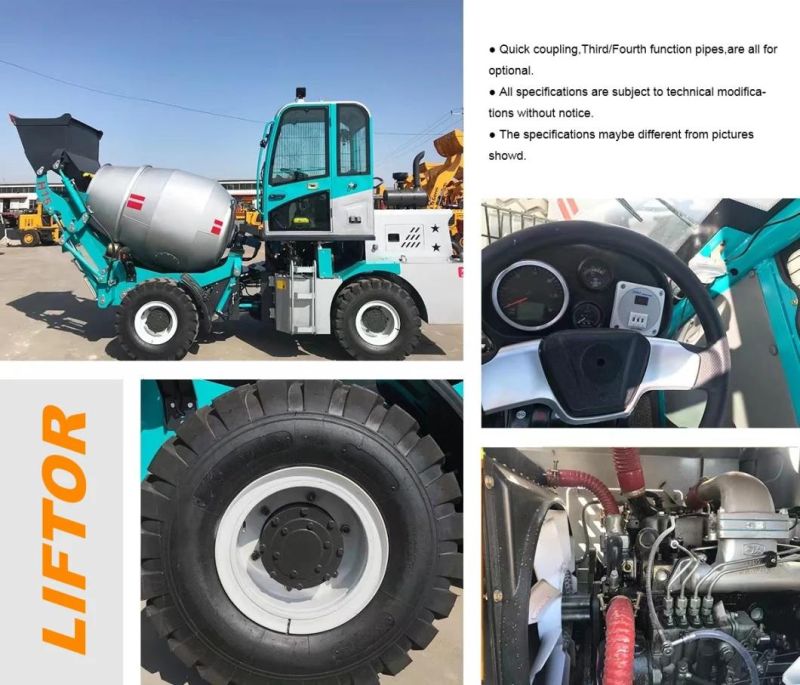

LIFTOR Concrete Mixer Details:

LIFTOR Concrete Mixer Model:

1.2M³ Concrete Mixer:

Item No.		H12
Engine Type		Yunnei490   Turbocharging
Engine power(KW)	KW	58
Drum Capacity(m³)	m³	2
Valid output(m³)	m³	1.5
Overall dimension Length*Width*Height(mm)	mm	5350*1800*2900
Axle base	mm	2450
Front wheel base	mm	1500
Rear wheel base	mm	1500
Dumping height	mm	1080
Minimum ground clearance(mm)	mm	270
Total weight(KGS)	KGS	4500
Fuel consumption (Theoretical)L/H	L/H	5.0-7.0
Maximum drive speed	KM/H	25
Tank rotation speed	Turn/minute	16

1.5M³ Concrete Mixer:

Item No.		H15
Engine Type		Yunnei490   Turbocharging
Engine power(KW)	KW	58
Drum Capacity(m³)	m³	2
Valid output(m³)	m³	1.5
Overall dimension Length*Width*Height(mm)	mm	5350*1800*2900
Axle base	mm	2450
Front wheel base	mm	1500
Rear wheel base	mm	1500
Dumping height	mm	1080
Minimum ground clearance(mm)	mm	270
Total weight(KGS)	KGS	4500
Fuel consumption (Theoretical)L/H	L/H	5.0-7.0
Maximum drive speed	KM/H	25
Tank rotation speed	Turn/minute	16

2.0M³ Concrete Mixer:

Item No.		H20
Engine Type		Yunnei 4102   Turbocharging
Engine power(KW)	KW	76
Drum Capacity(m³)	m³	3.5
Valid output(m³)	m³	2
Overall dimension Length*Width*Height(mm)	mm	5450*2450*2800
Axle base	mm	2400
Front wheel base	mm	1620
Rear wheel base	mm	1620
Dumping height	mm	1250
Minimum ground clearance(mm)	mm	280
Total weight(KGS)	KGS	6200
Fuel consumption (Theoretical)L/H	L/H	6.0-8.0
Maximum drive speed	KM/H	25
Tank rotation speed	Turn/minute	16
Tank rotation angle	°	180/270

3.0M³ Concrete Mixer:

Item No.		H30
Engine Type		Yuchai 4105  Turbocharging
Engine power(KW)	KW	85
Drum Capacity(m³)	m³	5
Valid output(m³)	m³	3
Overall dimension Length*Width*Height(mm)	mm	6150*2700*3350
Axle base	mm	2450
Front wheel base	mm	1680
Rear wheel base	mm	1680
Dumping height	mm	1400
Minimum ground clearance(mm)	mm	290
Total weight(KGS)	KGS	8000
Fuel consumption (Theoretical)L/H	L/H	8.0-10.0
Maximum drive speed	KM/H	25
Tank rotation speed	Turn/minute	18
Tank rotation angle	°	180/270

4.0M³ Concrete Mixer:

Item No.		H40
Engine Type		Weichai 6105 Turbocharging
Engine power(KW)	KW	92
Drum Capacity(m³)	m³	6.5
Valid output(m³)	m³	4
Overall dimension Length*Width*Height(mm)	mm	6650*2860*3350
Axle base	mm	3200
Front wheel base	mm	2000
Rear wheel base	mm	2000
Dumping height	mm	1500
Minimum ground clearance(mm)	mm	300
Total weight(KGS)	KGS	10500
Fuel consumption (Theoretical)L/H	L/H	10.0-12.0
Maximum drive speed	KM/H	30
Tank rotation speed	Turn/minute	20
Tank rotation angle	°	180/270

5.0M³ Concrete Mixer:

Item No.		H50
Engine Type		Weichai 6105 Turbocharging
Engine power(KW)	KW	92
Drum Capacity(m³)	m³	8
Valid output(m³)	m³	5
Overall dimension Length*Width*Height(mm)	mm	6750*2860*3650
Axle base	mm	3200
Front wheel base	mm
Rear wheel base	mm
Dumping height	mm	1500
Minimum ground clearance(mm)	mm	320
Total weight(KGS)	KGS	13000
Fuel consumption (Theoretical)L/H	L/H	10.0-12.0
Maximum drive speed	KM/H	30
Tank rotation speed	Turn/minute	20
Tank rotation angle	°	180/270

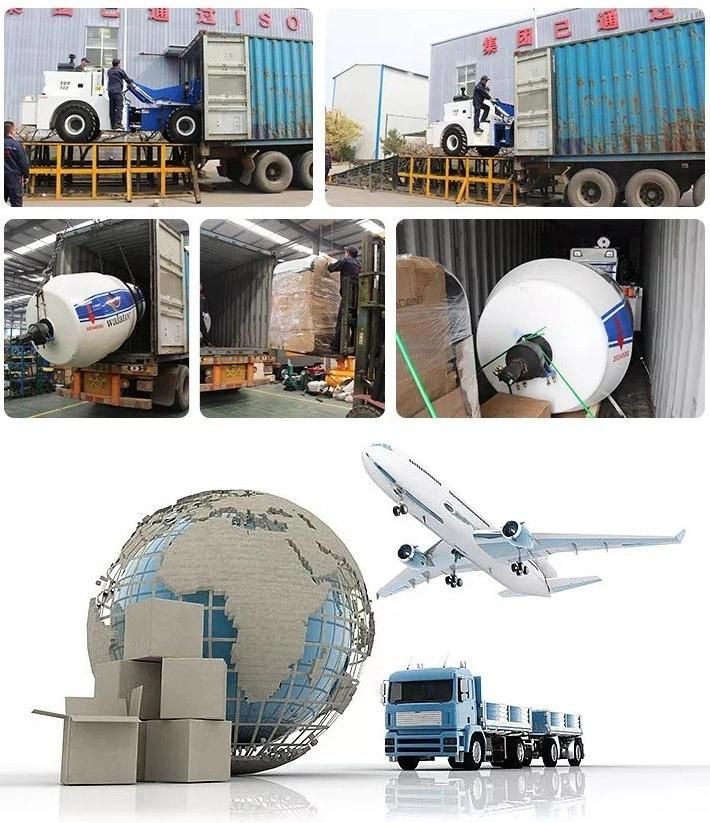

LIFTOR Concrete Mixer Delivery:


About US:

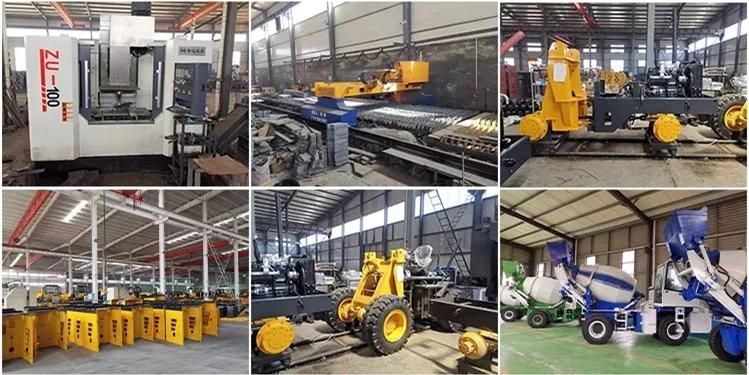

LIFTOR ENTERPRISES is a high-tech enterprise professionally specialized in R& D, production, sales, service of electric storage and construction machine. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.

LIFTOR has already passed the safety production standardization and the quality authentication of ISO9001: 2008 and European Union CE certification, fit-out national patent certificate.

Our main construction are self-load concrete mixer machine, wheel loader, excavator and so on. It is widely used in various places of construction.

Our brand LIFTOR is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R& D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.

LIFTOR will never stop being as an innovative manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.


FAQ:
1.Q: Are you a manufacturer?
A: Yes, we are a manufacturer located in Jiangsu province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.

2.Q: Why choose LIFTOR?
A:With our two factories and more than 300 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.

3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.

4.Q: How about your After-sales service
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
 5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days

6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
