• Model NO.：HBT60.13.90SC
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Orange
• Max. Theor. Concrete Output：79,46 M³,
• Theor. Max. Vertical Delivery Distance：270m
• Main Pump：Kawasaki
• Main Oil Pump Brand：Kawasaki
• Rated Power：90kw
• Transport Package：Nude
• Specification：6250*1950*2300
• Trademark：REALTOP
• Origin：China
• HS Code：8412400000
• Production Capacity：30 Units Per Month

Basic Info.

Model NO. HBT60.13.90SC Vibrating Amplitude 1.0mm Certification ISO9001: 2000 Condition New Color Orange Max. Theor. Concrete Output 79/46 M³/ Theor. Max. Vertical Delivery Distance 270m Main Pump Kawasaki Main Oil Pump Brand Kawasaki Rated Power 90kw Transport Package Nude Specification 6250*1950*2300 Trademark REALTOP Origin China HS Code 8412400000 Production Capacity 30 Units Per Month

Product Description

HBT series Trailer Mounted concrete pump

Models
Realtop offers  Stationary concrete pump model HBT30 to HBT80, with diesel engine or eletric motor, single/dual engine or motor, and Main oil pump, diesel engines, valves with famous brands worldwide.

Hydraulic System
-Hydraulic system with daul pump and daul open-circle ensure long-lifespan.
-Double filtration technology to ensure hydraulic elements high reliability.

Pumping System
-Imported oil pump, eg. Rexroth, Kawasaki, Handock, strong pumping ability high reliability.
-Hard alloy eye board and cutting ring.


Detail parameters

Models	Unit	HBT60.13.90SC
Max. Theor. Concrete Output	m³/h	67/40
Concrete Pressure	mpa	13/7.5
Theor. Max. Vertical Delivery Distance	m	270
Theor. Max. Horizontal Delivery Distance	m	1300
Allowable concrete slump	mm	100-230
Max. Grain Diameter	mm	Pebble:50 /Crushed Stone:40
Hopper Capacity	Lm³	0.74
Hopper Height	mm	1400
Main Pump		REXROTH
Concrete Cylinder Bore  × Stroke	mm	φ200×1600
Cylinder Diameter/Rod D × Stroke	mm	Φ125/80×1600
Diesel Engine Brand		Motor
Engine Model		Y280M-4
Rated Power	kw	90
Hydraulic Circuit Form		Opened-circuit
Delivery Valves Style		S-valve
Main oil pump brand		Kawasaki
Main oil pump displacement	ml/r	224
Hydraulic Oil Tank Capacity	L	500
Radiator flow	L/min	250
Concrete delivery pipe diameter	mm	Φ150/ Φ125
Out Dimension	mm	6250×1950×2300
Total Weight	kg	5800

Detail pictures

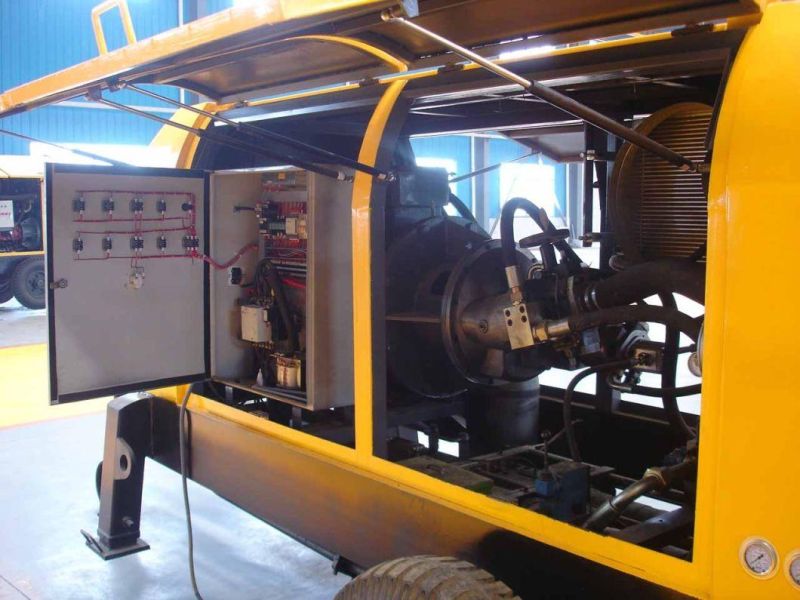

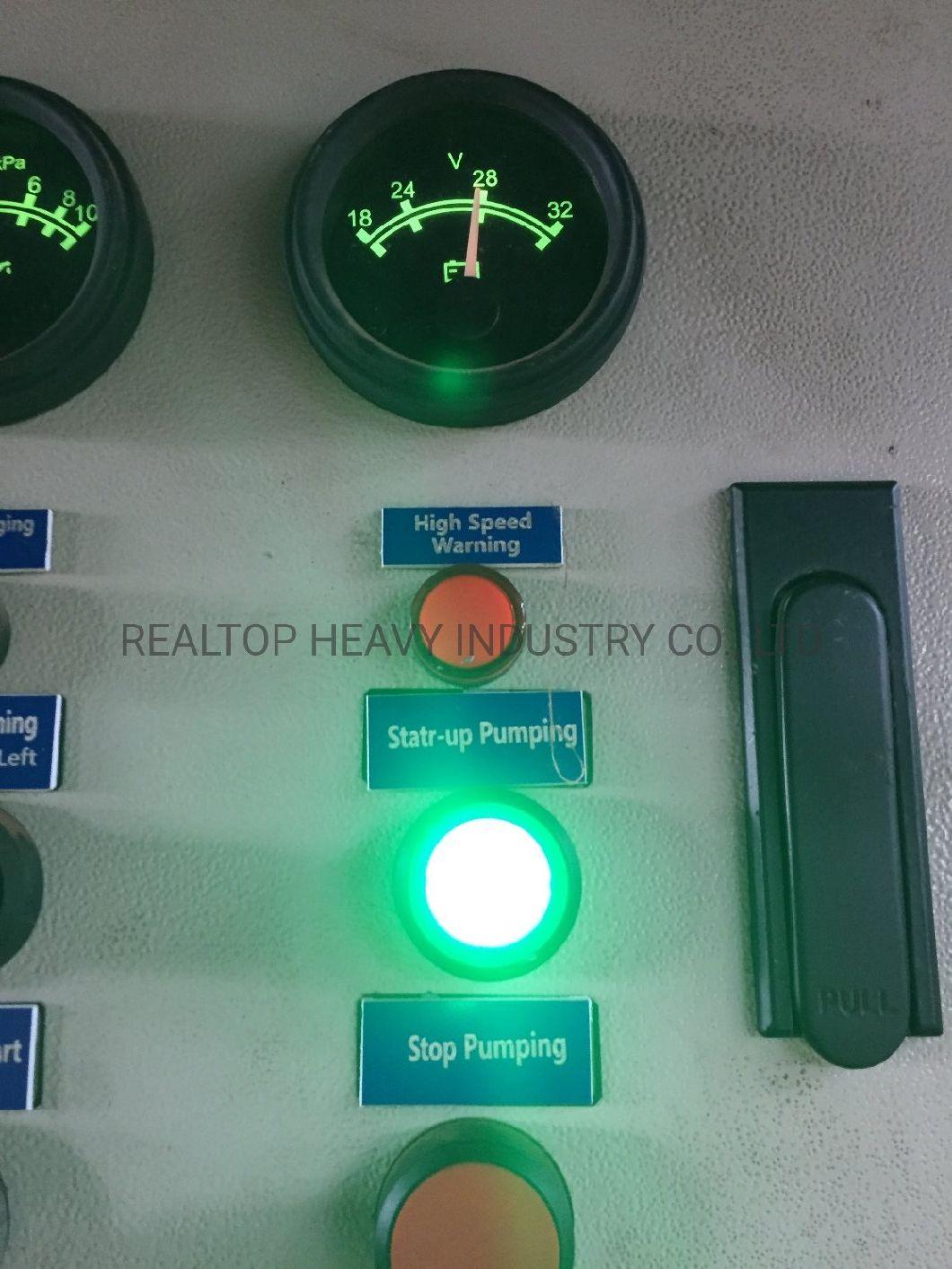

Eletric system
-Imported eletric elements (eg. Mitsubishi) to ensure high reliablity & low failure.
-Low voltage start, multi-protection for short circuit, overloading, failure warning.
-Automatic-controlling technology for engine throttle.

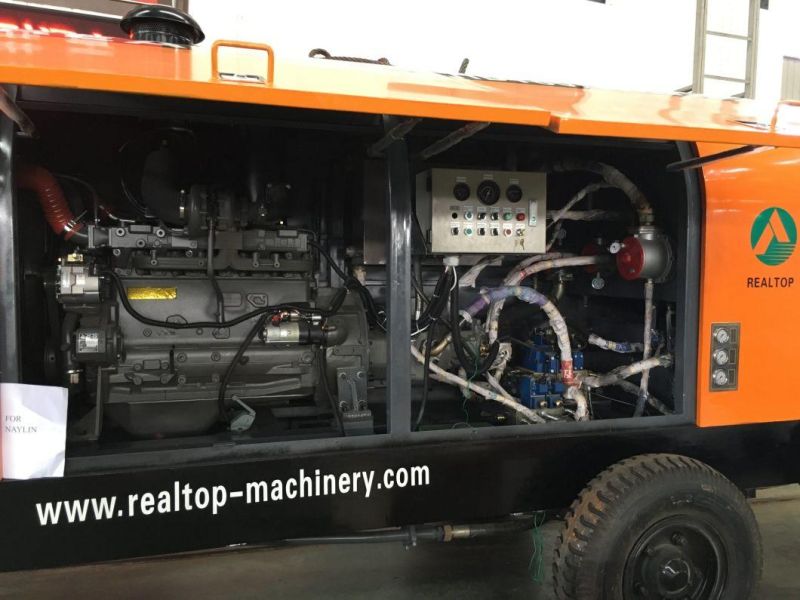

Driven System
Diesel engines, under famous brand Germany Deutz, Weichai Deutz, Weichai Style.

Lubrication System
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

Cooling System
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60ºC,that ensures the whole hydraulic system works at normal status.

Cleaning Device
Customers can choose to equip water pump to make the cleaning and maintaining an easy job.

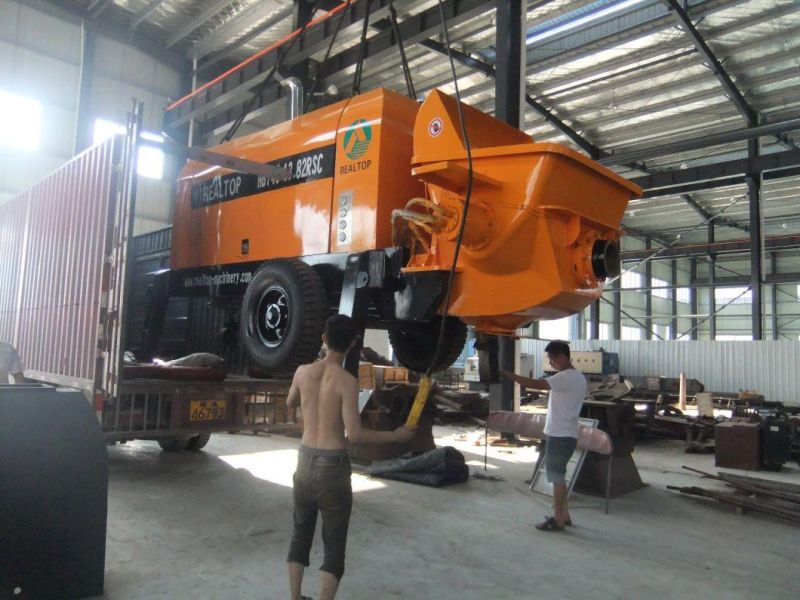

Shipping and delivery
