• Type 3：Box Type
• Colour：OEM
• Transport Package：Wooden Cases
• Specification：2000*1000*1000mm
• Trademark：megacryst
• Origin：China
• HS Code：84122100
• Production Capacity：50000PCS Per Year

Basic Info.

Type 3 Box Type Colour OEM Transport Package Wooden Cases Specification 2000*1000*1000mm Trademark megacryst Origin China HS Code 84122100 Production Capacity 50000PCS Per Year

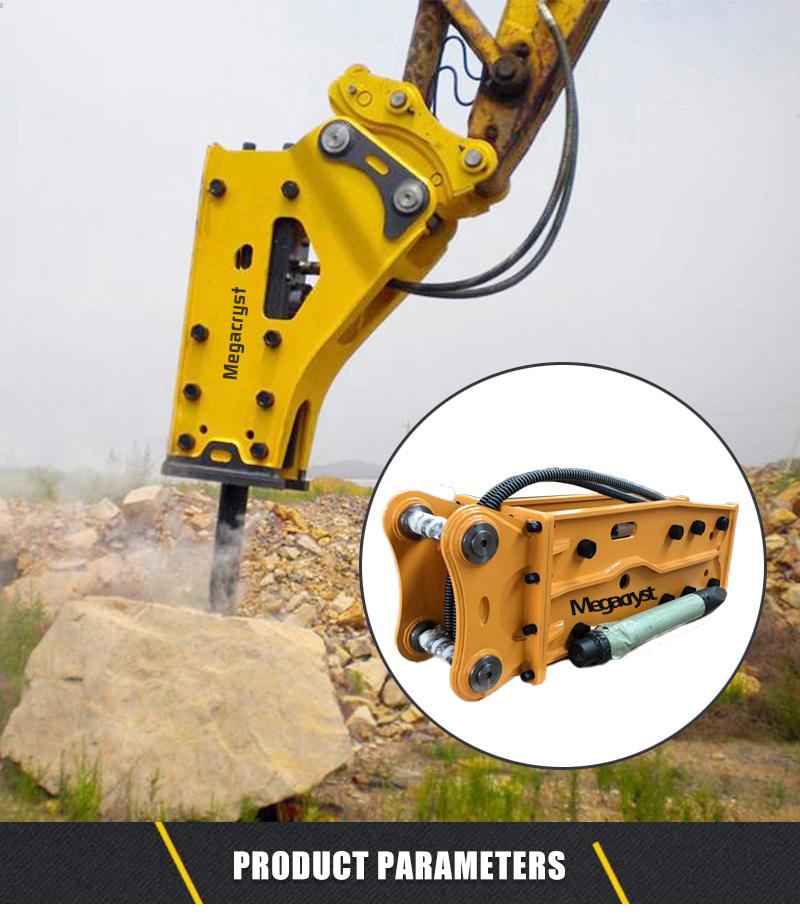

Product Description





Contents	Model	MEG40	MEG45	MEG53	MEG68	MEG75	MEG85	MEG100	MEG125
Body  Weight	Kg      Ibs	53               117	68         150	86       189	151        333	212         467	280          617	471           1037	618      1361
Total weigh(Side/Top/Slience)	kg	70/72/102	92/92/126	155/155/152	258/338/356	332/407/448	557/635/731	753/858/999	1275/1306/1369
Length(Side)	mm   inch	940       37	1053      41.46	1170       46.06	1415       55.71	1480       60.41	1735       68.31	1994      78.5	2285      90
Width (side)	Mm  inch	176     6.93	215       8.46	229        9.02	295    11.61	295     11.61	412      16.22	390    15.35	480     18.9
Operating Pressure	Kg/cm² psl  bar	90-120 1280-1700 88-117	90-120 1280-1700 88-117	90-120 1280-1700 88-117	110-140 1562-1988 108-137	120-150 1704-2130 118-147	130-160 1846-2272 128-157	150-170 2130-2414 147-166	150-170 2130-2414 147-166
Hydraulic flow range	I/min Gal/min	15-25     4-7	20-30     5-8	25-50        6.6-13.2	40-70             10.5-18.5	50-90  13.1-23.6	60-100     15.8-26.3	80-110 21.1-29.1	90-120 23.7-31.7
Impact frequency	bpm	800-1400	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650
Diameter  of hose	mm  inch	12.7     1/2	12.7     1/2	12.7     1/2	12.7     1/2	12.7     1/2	19.05    3/4	19.05    3/4	25.4       1
Diameter  of Tool	mm  inch	40      1.57	45      1.77	53       2.08	68      2.68	75      2.95	85      3.35	100      3.94	125     4.92
Suitable Carrien	ton	0.8-2.5	1.2-3.0	2.5-4.5	4-7	6-9	7-14	10-15	15-18

Contents	Model	MEG135	MEG135F	MEG140	MEG140A	MEG150	MEG155	MEG165	MEG175
Body  Weight	Kg      Ibs	845     1860	858      1888	927      2042	960            2114	1095               2412	1305             2874	1443             3178	1935             4262
Total weigh(Side/Top/Slience)	kg	1653/1847            /1893	1680/1880    /1930	1774/2059       /2011	1809/2094  /2046	2221/2383   /2460	2569/2737  /2960	2752/3157   /2917	3912/4472   /3904
Length(Side)	mm   inch	2367      93.19	2367      93.19	2414      95.04	2414      95.04	2519      99.17	2367      93.19	2816      110.9	3176     125.04
Width (side)	Mm  inch	500    19.68	500    19.68	500    19.68	500    19.68	590    23.23	500    19.68	590    23.23	670    26.38
Operating Pressure	Kg/cm² psl  bar	160-180 2272-2556 157-176	160-180 2272-2556 157-177	160-180 2272-2556 157-178	160-180 2272-2556 157-179	160-180 2272-2556 157-180	160-180 2272-2556 157-176	160-180 2272-2556 157-182	160-180 2272-2556 157-183
Hydraulic flow range	I/min Gal/min	130-150 34.3-39.6	145-180 38.3-47.5	120-180 31.7-47.6	120-180 31.7-47.6	150-190 39.6-50.2	130-150 34.3-39.6	200-260 52.8-68.69	210-290 55.5-76.6
Impact frequency	bpm	400-800	360-460	350-500	350-500	350-700	400-800	250-400	200-350
Diameter  of hose	mm  inch	25.4       1	25.4       1	25.4       1	25.4       1	25.4       1	31.75      1¹/4	31.75      1¹/4	31.75      1¹/4
Diameter  of Tool	mm  inch	135      5.31	135      5.31	140     5.51	140     5.51	150      5.91	155     5.31	165      6.5	175       6.5
Suitable Carrien	ton	18-25	18-25	18-26	18-26	27-35	18-25	30-45	30-45

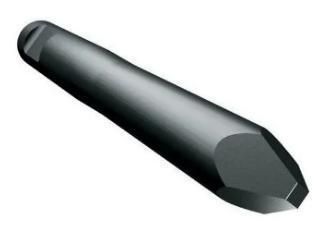

4.Chisel type:


Chisels type	Pictures	Working site
Moil type		Being applicable to construction of roads,bridge and mines

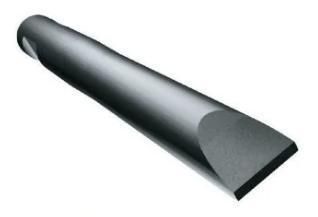

Wedge type		Being applicable to construction of ditches and asphalt

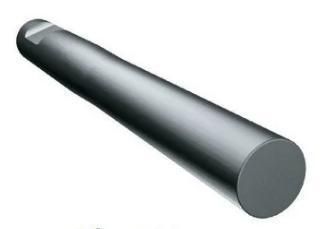

Blunt type		Being applicable to coal mine,quarry and broken stone
Cone type		Being applicable to quarry and asphalt pavements

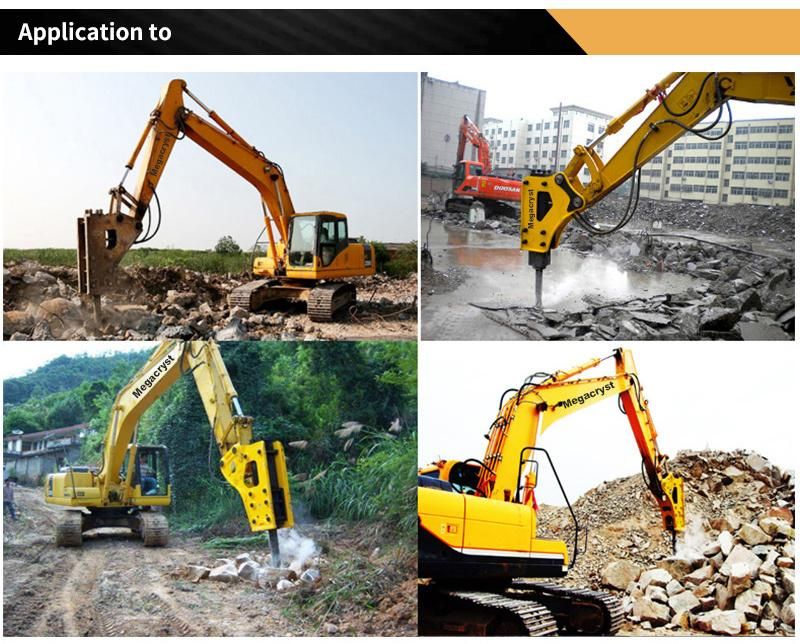

Hydraulic breaker are widely used for construction, demolition, mining, quartering and special sites(underwater project, tunnel project), etc. 2.Advanced technology: A. Heat resistance and abrasion resistance. B. Low oil consumption design. This reduces the oil cylinder volume and lessens the fuel consumption under the condition of guaranteeing oil pressure invariable. C. Made of high strength steel plate (Q345b),Chisel made by 42CrMo, provide very long operation life D.Following Korean Technology and Design, guarantee low breakdown rate 3. Strong and mature "Hydraulic + Nitrogen" impact System 4.Easy control and easy installation make it more convenient for use 5.Hydraulic breaker can be compatible to all brands and models of excavators




Shandong Jingyuan New Materials Technology Co.,Ltd,established in 2000,is mainly engaged in research and development of rubber floor,rubber track and PU binder.After the development of 17 years,the company enjoys good reputation in industry and the products are popular in domestic and foreign markets.In 2011,the company bought a large number of advanced equipments and absorbed a large number of outstanding staff to build a new factory supplying hydraulic hammers and related parts.

We are a top ranked led lighting products exporter, and has customers in over 60 countries throught the Europe, Asia, South America, Latin America and Middle East. We are committed to creating outstanding products backed by friendly, responsible excellent service to delight our esteemed loyal customers around the world.With best service.With your trust and support,the company will become stronger and can meet your demands better.


Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Weifang, Shandong Province,China

Q2: What is the warranty for our lamps?
A2: We have 3 years warranty for our lamps

Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1 .For raw materials; 2. During the half of production; 3.Final test before delivery; 4. Selects inspection of the packaged products

Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.

Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the breaker or package both is available.

Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.

Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.

Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL,Fedex,UPS,EMS; Bigger package by Air shipment; Big package via Vessel.

Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 7-15 days for samples making. The leading time of mass production will depend on the quantity.

Q10. What's the payment method you accept?
A10:  T/T, Western union.
Q11: Can i visit your company?
Welcome to visit our factory and it is our great pleasure
