• Model NO.：TS100-3
• Condition：New
• Color：Yellow
• Engine Model：Lr6a3-23
• Fule Consumption：242g,Kw.H
• Operating Weight(Not Including Ripper)：11360kg
• Blade Dimension ( L Xw)：3240X 878 mm
• Dozing Capacity：8.4m3
• Overall Dimensions(Lxwxh)：4179 X3240 X3160mm
• Number of Track Roller：14PCS ( Total, Each 7PCS)
• Pitch：216mm
• Wide of Shoes：55mm
• Gear：4f,2r
• Transport Package：Nude
• Specification：CE, SGS, Ghost, ISO 9001
• Trademark：YTO
• Origin：Luoyang, China
• HS Code：84291190
• Production Capacity：2500 Unit,Month

Operating weight(not including ripper)11360Ripper weight3900Engine flywheel power81kwGround pressure(without ripper)71.9kPaGround clearance404mmGround contact length2890mmTrack center distance1980mmOverall dimensions(L×W×H) (with single shank ripper)7604×3823×3402(with straight tilting blade)Grade abilityLatitude30 ° Transverse 25°Theory travel speed (km/h)1st gear forward 0-3.91st gear backward 0-4.82nd gear forward 0-6.52nd gear backward 0-8.23rd gear forward 0-10.93rd gear backward 0-13.2Dozing operation rate(moving distance 40m)350m3/hDiesel EngineModelNT855-C280 (Cummins) or C6121ZLG10 (Licensed CAT 3306 diesel engine)Typewater cooled, single line, vertical, four strokes, turbocharged, 6-cylinders, diameter 140mm or 121mm.Rated speed2100 RPMFlywheel power169 kWStart mode24V electric startingTorque converterTorque converter used in TS100-3 bulldozer is power separating hydraulic-mechanic type.Transmission assemblyIt integrates center drive, transmission and speed changing control valve into one component. It can be assembled or disassembled as a assembly or as a part. It is very convenient to service. Transmission is multi-stage planetary gear drive to realize modular assembling and disassembling. The shift can be changed among 1st gear, 2nd gear, 3rd gear forward or reverse rapidly, through multi-functional control valve.Steering and braking clutchSteering clutch and braking clutch are adjustment free, oil-type, and multi-disc clutch. The braking clutch is pressed by spring, separated hydraulic, constant meshed type. Steering clutch is hydraulic pressed, non-constant engaged clutch. The action of steering and braking is combined, operation manually to realize steering slowly, sharply and braking. The braking of entire machine can be realized through the pedal. Parking braking rod is designed to keep the undercarriage system in braking condition when starting the engine and guarantee the machine not to slip on slope when starting the engine.Final driveFinal drive is two-stage planetary reduction gear mechanism. It is mounted at outside of steering and braking clutch. Combined sprocket segment is very convenient for assembling, disassembling and service.Hydraulic system of the machineIt is composed of oil pump, transmission control valve, steering and braking control valve, sequence valve, relief valve at torque converter outlet, filter and lines.Main pumpGear pumpOil flow160L/minWorking pressure3.1MPaRops with air conditioner cabThe cab is hexagonal thin wall box-type structure. Glass is mounted at six sides with wide viewing area. Pulling and pushing glass is installed at back side. Air conditioner is top-mounted with functions of cooling and heating. The structure of Rop is rigid. It can protect the driver efficiently when the bulldozer is in special condition.Implement hydraulic systemImplement hydraulic system can control lifting, lowing and tilting of the blade. It also can control lifting, lowing of the ripper. It mainly consists of oil pump, cylinder, inlet valve group diverter valve group, oil tank line and controlling parts.Main pumpHigh pressure gear pumpOil flow194L/minSystem working pressure18.6MPaLeft and right undercarriage systemThe track is triangle shape. The sprocket is elevated. There are two idlers in front and at rear of the frame and seven track roller. Recoil spring and cylinder adjuster is mounted at the undercarriage. The rear end of undercarriage frame is supported on the pivot. The front end is articulated with the equalizer bar. Choosing different undercarriage system according to different implement. The customer is required can guarantee center gravity of the machine to be at best efficient position. Choosing different width of track shoe can ensure the bulldozer developing its optimum traction efficiency.Maintenance filling capacityFuel tank450LWater tank of cooling system118LCamshaft box of the engine20LBevel gear case150LImplement oil tank100LPivot lubricating tank15LFinal drive15L

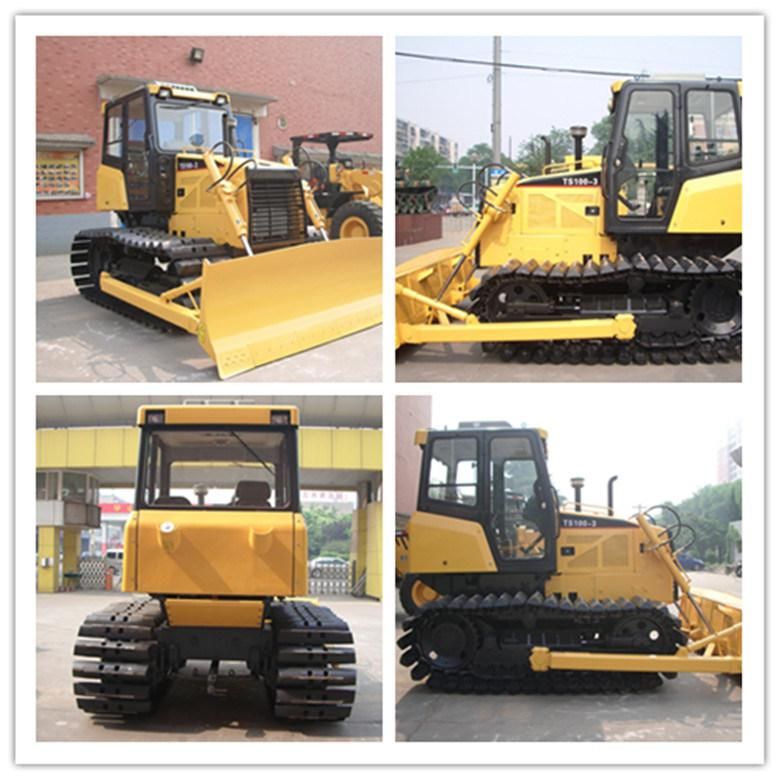

Product Deatiled

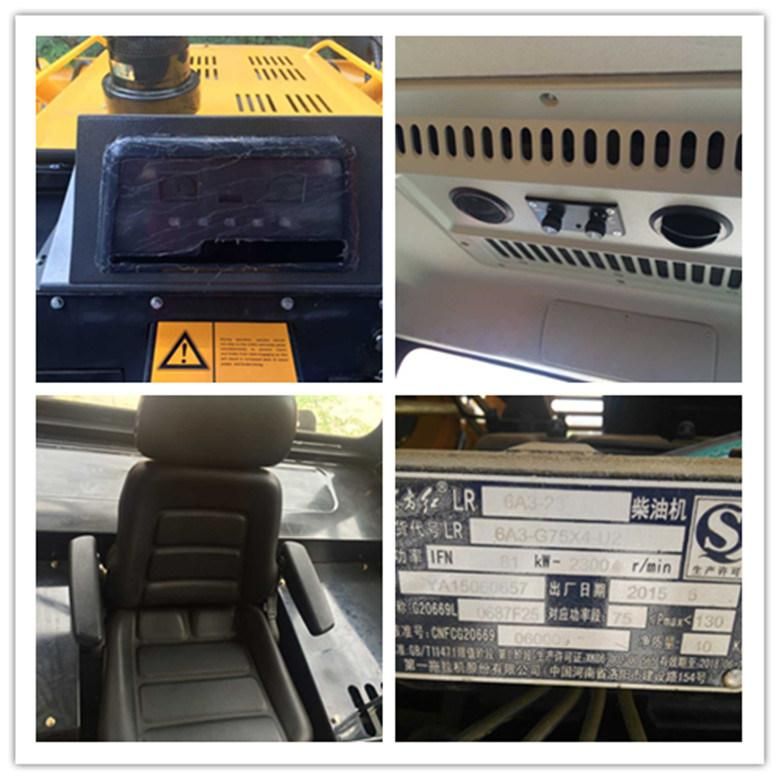

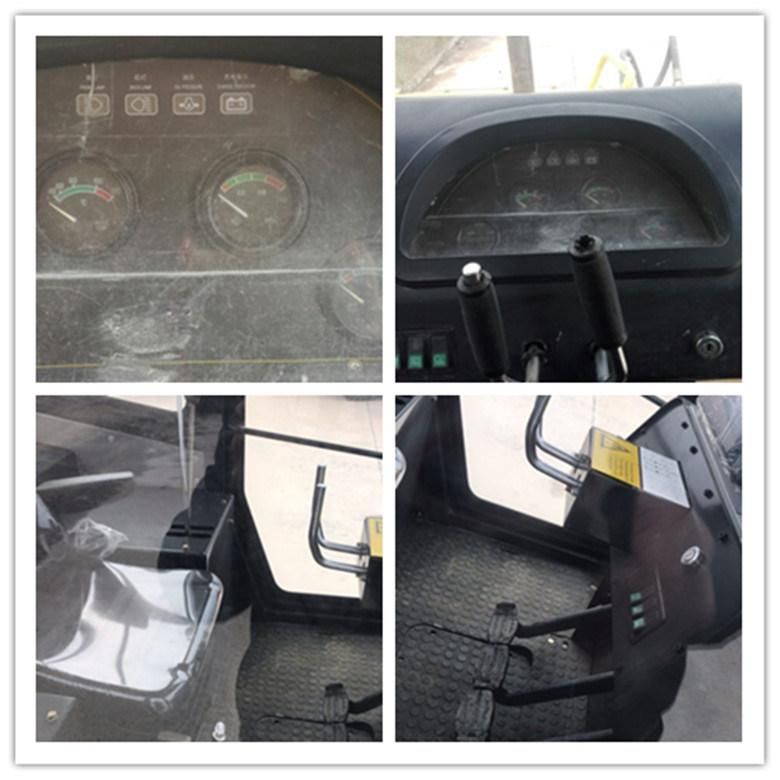

 Key Parts

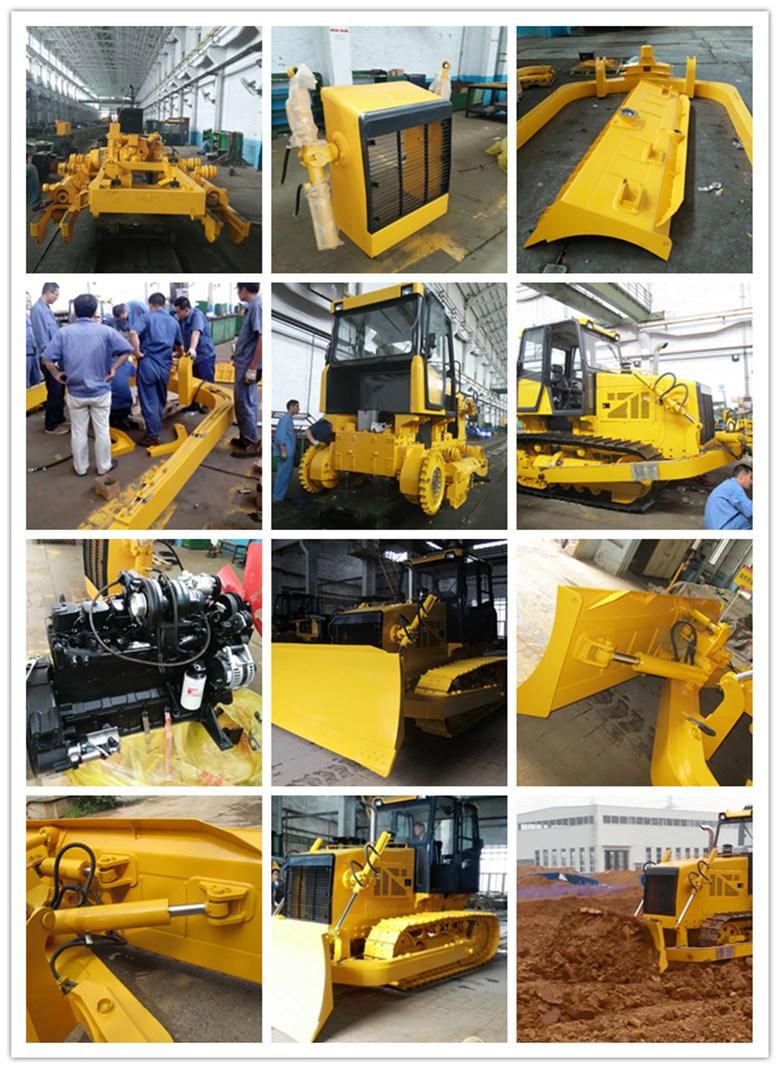

Our Wokshop Photo


 Our Certificaiton
