Hot Sale Everun New Er416t Compact 1.6ton Compact Front End Mini Small Farm Construction Bucket Wheel Loader with New Rops&Fops Cabin and EPA Euro5 Engine
Qingdao Everun Machinery Co., Ltd.- Warranty:1 Year
- Certification:TUV, UL, CE
Base Info
- Model NO.:ER416T
- Condition:New
- Rated Load:1600kg
- Transmission:Hydraulic Torque Converter
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
- Type:Mini Loader
- Optional Engine:Xinchai Euro5; Cummins EPA4
- Engine:Xinchai 50HP
- Bucket Capacity:0.73m3
- Machine Weight:4400kg
- Rated Power:36.8kw
- Video Outgoing-Inspection:Provided
- Power:37 Kw
- Driving Method:4WD
- Engine Brand:Xinchai
- Transport Package:3 Units in a 40" Hq Container
- Specification:5095*1850*2557mm
- Trademark:Everun
- Origin:China
- Package size per unit product:1.00cm * 1.00cm * 1.00cm
- Gross weight per unit product:1.000kg
Description
(4) Fuel Consumption ration 230g/kw.H in Standard working condition
2.0 Transmission System
(1) Type:
Fixed-spindle power shift
(2) Shift gear control oil pressure
1.2-1.5 MPa
(3) Rated speed:
2400(rpm)
3.0 Bucket
(1) Bucket capacity:
0.73m3
(2) Bucket Width:
2000mm
(3) Bucket type:
Heavy-duty bolt on teeth
(4) Max.Breakout Force:
28KN
(5) Max. tractive Force:
33KN
(6) Rated load:
1600kg
(7) Operating Weight
4400kg
4.0 Overall Dimensions
(1) Overall length
(bucket onground)
5267mm
(2) Overall Height
2535mm
(3) Max.Dumping height:
2453mm
(4) Max.Dumping reach:
891mm
(5) Min.base to the ground
275mm
(6) Overall width
1850mm
5.0 Operating Specifications
(1) Steering system:
Articulated frame with hydraulic power steering
(2) Min.turning radius
(outside of wheels):
4451mm
(3) Driving system:
Hydraulic converter
6.0 Brake System
(1) Service Brake
Air-assist hydraulic, disc brake
(2) Parking Brake
Hand operated
7.0 Tyre
23.5/70-15 Agricultural Tires
8.0 Wheelbase
1520mm
9.0 Track
1500mm
MODEL
DESCRIPTION
ER416T
Euro3 Engine (Xinchai) A498BT1 (4 cylinders), New Rops & Fops Cabin, New engine hood, New frame, Luxury Cabin Interior, E-Mark Seat, Adjustable Steering Wheel, 130W Heater, Quick Hitch, 23.5/70-16 Agricultural Tyre, Floating Function,Electrical Joystick, Wheel-reducer Axle, Air Brakes,Backward Imagine, Articulated Floating Oscillating Structure, Disc-Brake System, Hydraulic -pressure Check System, Blinking Lamp without Key and free parts for service.
Optional Equipments:
E4 Lamp
Loading Weighter
LED Working Light
Centralization Lubrication
LED Alarm Light
Quick Hitch
Extra Hydraulic Line
Euro Quick Hitch
Trailer Ball
Trima Quick Hitch
Multi-functions Electric Joystick with 5 buttons
Extra Heater
Multi-functions Electric Joystick with 4 buttons
Extra Oil Cooler
Rear Hydraulic Line
8 Gears Shift
Extra Electric Line
Air Seat(without Air Pump)
Rear Sand Spreader Oil Line + Left Joystick
Crane Valve
3 Point Hitch
Diesel Heater
Air Conditioner
Tyre Chains
Varta Anti-Freeze Battery
Without Cabin with Roller Bar
Loader Damper
Optional Tires & Engines:
14-17.5 Tubeless Tires
Kohler 1903TCR Engine(Tier4)
400/60-15.5 Tires
Yanmar 4TNV94L Engine(Euro3)
33*15.5-16.5 Tires
Cummins QSF2.8 Engine(Tier4)
315/80 R22.5 Tires (need heightened arm)
Yanmar 4TNE98-BQFLC Engine
16/70-20 Tires
Xinchai 3E22 Engine(Euro5)

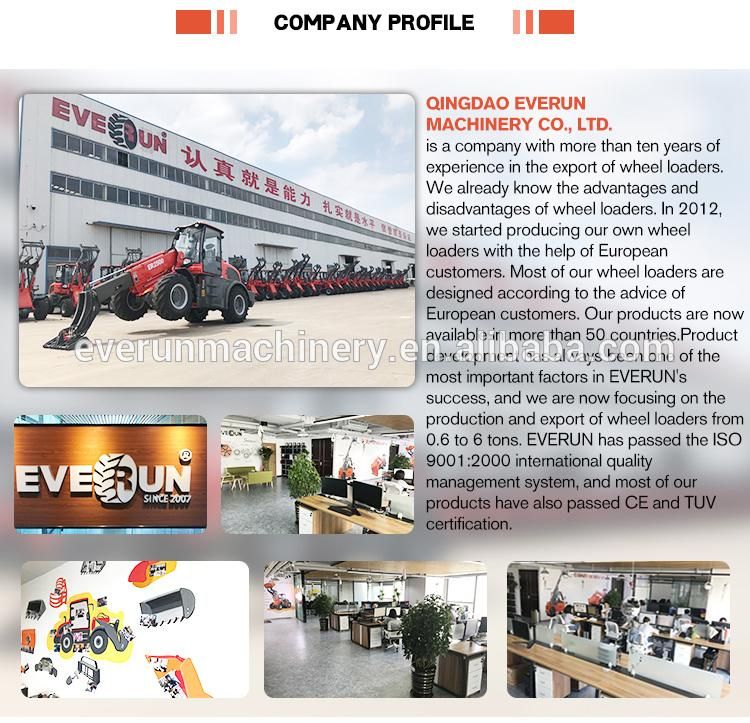

Company Information
Qingdao Everun Machinery Co., Ltd is a company which has more than 10 years wheel loaders exporting experience. All of our wheel loaders are designed on the basis of European customers' suggestion, and All of our products are CE approved. Now Everun wheel loader can be found working in more than 50 countries.
Everun Oversea Branch Company
In order to offer customers a better after-sale service, we establish Everun Europe in Germany and Everun WA in Australia ,which can supply fast spare parts and technical training.
*Everun Advantages
As a leading manufacturer of small wheel loaders and excavators, Everun has made great progress on their sales number in recent years. Our strengths can be concluded in the following 4 aspects:
#1 Price
We sell every machine at a fair price.
As our production increases, we are getting much support from the purchase source of raw material. We leave the maximum profit to customers!
#2 Quality
The quality control is not an empty word in Everun.
Our products are tested and granted CE certificate by TüV Rheinland.
The cabin of our loader meets the European standard for Rops and Fops protection.
We focus on details. By adopting quality imported and top quality domestic spare parts, we stand out of the competition.
As a manufacture, we are at the forefront of technological development. The professional Everun R&D team absorbs the latest technology for the product development and make improvement on the suggestions from our customer's. Our production lines meet the American and European standard,
# 3 Service
Our trained Professional service team offers high quality in-time service in a very friendly way. For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
For European customer, we built Everun Europe in Germany to supply the in-time technical support, and machine trial run and spare parts delivery.

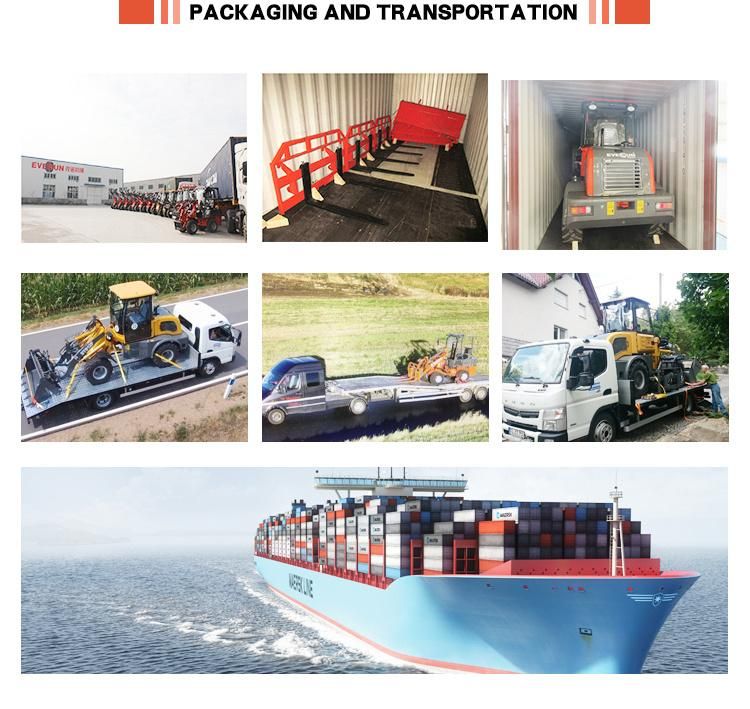

#4 Packing & Transport
Everun Transport packaging team helps our customer to transport their machine in safe and secure way without any damage.
Close to Qingdao port, we have the natural advantage to deliver your cargo safe, on time with competitive freight cost.

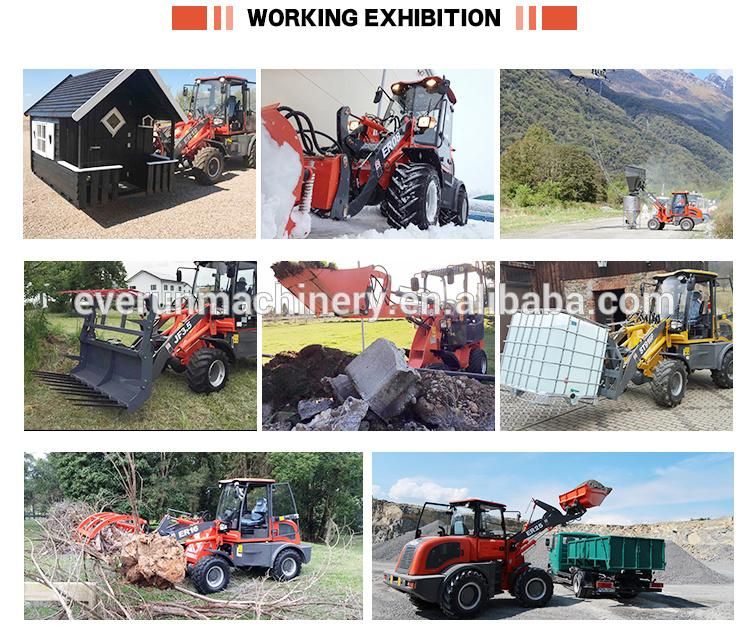

*Everun Machines Working Picture

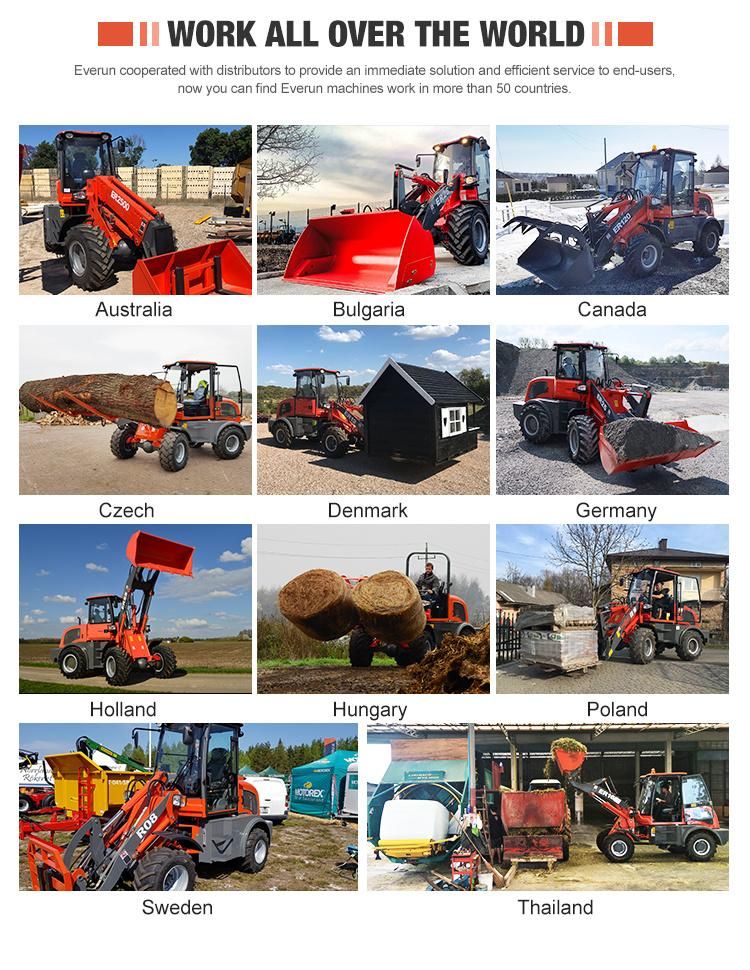

Everun has dealers in Europe, Australia, North America, South America, South Africa, and Everun machines can be seen working in more than 50 countries.
*Everun Certification
1. Everun products are CE approved from TüV,CE number: AM 50257603 0001
2. Everun loader cabin has ROPS&FOPS certification
3. Everun has patent of whole appearance
Q1: Dose the everun machine has their own factory?
A:Yes, we have our own production workshop and experienced engineers in Qingzhou. More products can be developed and improved according to our customers' requirements.
Q2: Dose the everun machine has good service?
A:Yes,of course. We have a professional sale and after-sales service team. We require all the personnel of the service must be within 24 back to all customer inquiries. To minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.We have professional technician to support trouble clearing and maintenance.
Q3: Dose the everun machine has warranty ?
A: Yes, we have one year or 1200 working hours warranty, which comes first.
Q4: What Payment terms would you accept?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q5: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment
Q6: What services would you offer if I buy from you?
A: Our trained Professional service team offers high quality in-time service in a very friendly way. For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
Q7: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
