Rigid 800kg Mini Telescopic Boom Front End Loader with Kubota EPA4 EURO 5 Engine
Rigid Industries Co., Ltd.- After-sales Service：Parts Sending or Shipping
- Warranty：12 Months
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：800kg
- Transmission：Hydraulic
Base Info
- Model NO.：RW908T
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Transport Package：20FT or 40FT Container
- Specification：3, 820*1, 260*2, 310mm
- Origin：China
- HS Code：84295100
- Production Capacity：500 Units,Year
Description
Specifications:Rated Load 800kg Bucket Capacity 0.3m3 Lifting Height of main boom 2,959mm Dumping Height of main boom( dumping angle 45°) 2,051mm Dumping reach of main boom 587mm Max. Loading capacity of main boom 1,000kg Lifting height of small boom 3,526mm Dumping height of small boom (dumping angle 45°) 2618mm Dumping reach of small boom 1,085mm Max. Loading capacity of small boom 600kg Max. Speed(F1/R1) 12km/h Max. Traction force 16.66KN Max. Breakout Force 15KN Digging Depth 65mm Max. Gradeability 25° Max. Turning angle 35° Dimension and weight Overall length (bucket on ground position) 3,820mm Overall width 1,260mm Overall Height 2,310mm Wheel base 1,507mm Tread 890mm Min. Ground clearance 220mm Net weight 2,100kg Engine KUBOTA Engine model D1105-EF02 Type Water cooled Rated Power 18.2kw Rated Speed 3,000r/min Number of cylinders 3 displacement 1.1L Rated fuel consumption ≤230 Transmission Pump Pressure 28MPa Axle bevel gear reduction Main drive reduction ratio 3.75 Driving 4 wheel drive Tire 10.0/75-15.3 Steering System Type All hydraulic steering System Pressure 16 Steering pump type Gear pump Steering diameter 63 Stroke 171 quantity 1 Braking System 1) Foot Brake Type Disc brake Brake drum diameter 300 2) Hand brake (parking brake) Type Drum Brake Drum Diameter 160/120 Working hydraulic system Oil flow 13.8ml/r Working pressure 16Mpa Tilting cylinder diameter & stroke ø80*318 Boom cylinder diameter & stroke ø80*395 Voltage 12V Battery model 6-QW-60B Starter Type Electric
About Us:
RIGID INDUSTRIES CO., LTD is a company who has over 10 years experience in construction machinery industry. We started doing machinery export in 2008. We are located in Dalian, which is a very well-known coastal and harbour city in China.
In machinery industry, We have very much learned about the strengths and weaknesses from different types of Chinese construction machines such as wheel loaders, excavators, skid loaders, forklifts, backhoe loaders, graders as well as related attachments etc. We know the differences of standards and requirements from different markets. Now our products can be found that working and serving in more than 20 countries in the world.
Products' research&development is always the most important factor in RIGID's success and we are specializing in manufacturing and exporting. RIGID INDUSTRIES knows the international standards and requirements of machines, and most of our products have also passed CE, SGS, TUV certificates. Also, our target markets are mainly focus on developed countries such as Australia, New Zealand, North America and Europe.
Moreover, providing excellent after sale services is another significant factor to lead our business successfully and also it is always our first principle in RIGID's culture. We will help our customers to buy and store spare parts in local and also we will ship parts for free for our customers if necessary when some parts are broken during the warranty.
We hope our professional experiences and skills could make our customers' businesses great, prosperous and long last. We look forward to establishing long-term cooperations with our customers in the future.
FAQ:
Q1. What is the leading time of RW908(T) wheel loader?
The leading time is about 30-40 days.
Q2. What is the payment term will you accept?
30% deposit, 70%TT balance payment before the shipping..
Q3. What is the warranty for the RW908(T) wheel loader?
12 months
Q4. What is the MOQ for RW908(T) wheel loader?
MOQ: 3 unit
Q5. What after sale services can you provide?
We can ship some urgent parts to our customers for free through DHL or TNT if they are during the warranty.
They generally take 5-7 working days to our customers' hands.
If some parts are too big or too heavy, we will ship them with machines in the next order for free.
Q6. Can you do OEM for overseas dealers?
Yes, we also can do paint customization for our dealers, but it is only for a 40ft container's order.

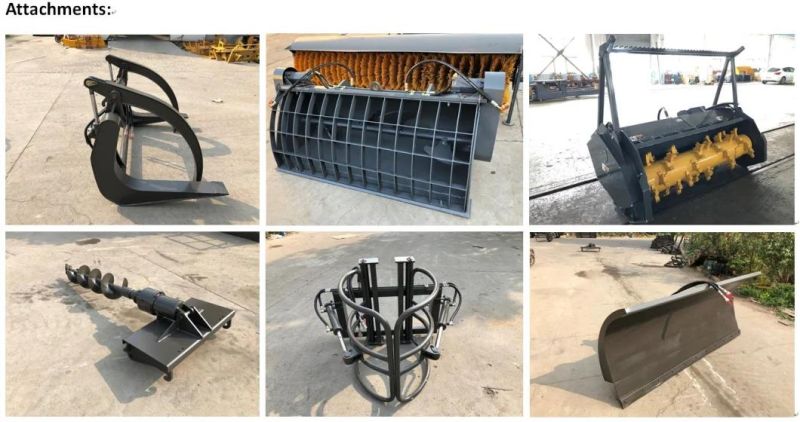

We also can provide other types of machines such as forklifts, graders, backhoe loaders, rollers, bulldozers, dumpers, trailers, tractors and related attachments.
If you have any questions that I can answer or need anything of our machines, we are very happy to do so.
