• Model NO.：LXD320
• Certification：ISO9001: 2000, CE
• Condition：New
• Width of Index Line：50,80,100,120,150,180,200,230,250,300,400,450mm
• Line Thickness Range：1-2.5mm
• Capacity of Paint Tank：100kg
• Marking Shoe：150mm
• Transport Package：Plywood Case
• Specification：1200X850X1160mm, 135kg
• Trademark：ENWEI
• Origin：China
• HS Code：84791090
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. LXD320 Certification ISO9001: 2000, CE Condition New Width of Index Line 50/80/100/120/150/180/200/230/250/300/400/450mm Line Thickness Range 1-2.5mm Capacity of Paint Tank 100kg Marking Shoe 150mm Transport Package Plywood Case Specification 1200X850X1160mm, 135kg Trademark ENWEI Origin China HS Code 84791090 Production Capacity 50000pieces/Year

Product Description

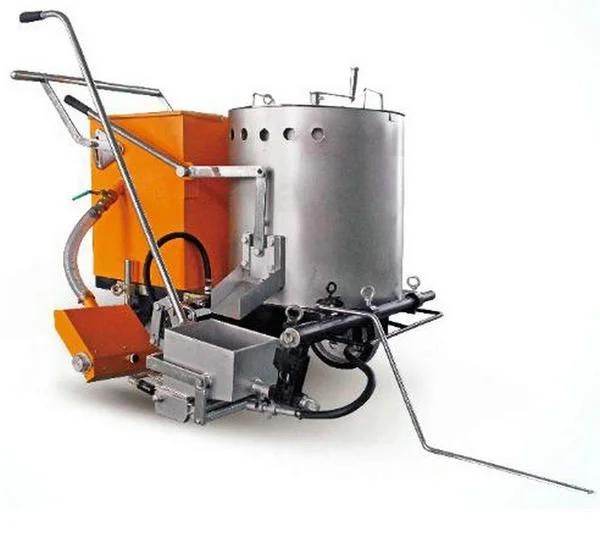

LXD320 Hand Push Thermoplastic Road Marking Machine




1.LXD320 Hand Push Thermoplastic Road Marking Machine is the key equipment used in hot met road line marking construction,it need to be worked with hot melt paint preheater.
2.The marking hopper of this machine is made of high-precision cast iron,which can make the marking line orderliness,uniform thickness and more beautiful.
3.The grounded knife of marking hopper can be applied to different kinds of road.
4.Glass beads automatic spreader equipped with buffer device of speed regulation which has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.




paint tank	double layer stainless steel,capacity of 100kg,equipped with inserted dismountable manumotive stirring device.
capacity of micor glass beads storing box	10kg
micro glass beads dispenser	dispensing automatically,with speed governing shift device.

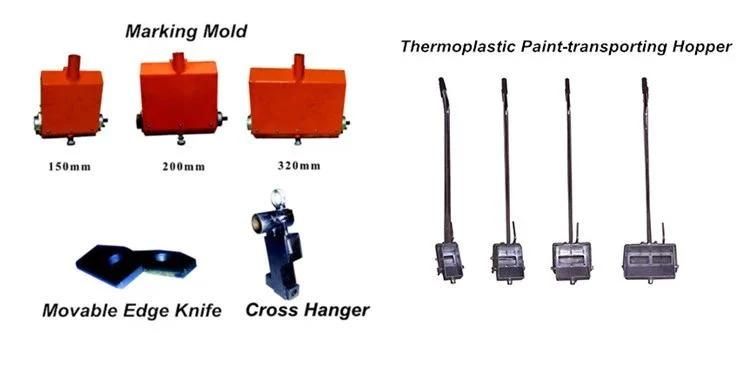

marking shoe	made of plain cast iron material, scraper structure,standard configuration:150mm
grounded knife	made of hard alloy,the range of thickness of road line can be adjusted from 1mm to 2.5mm with eccentric locking collar.
rubber tire	aluminium alloy wheel hub,heat-resistance rubber,rear wheel equipped with localiser to make the machine walk along the straight line
heating method	Liquefied petroleum gas
width of index line	50/80/100/120/150/180/200/230/250/300, you can choose different specification of marking hopper to fit for the situation of construction.
Size and net weight	1200×850×1150mm ,110kg

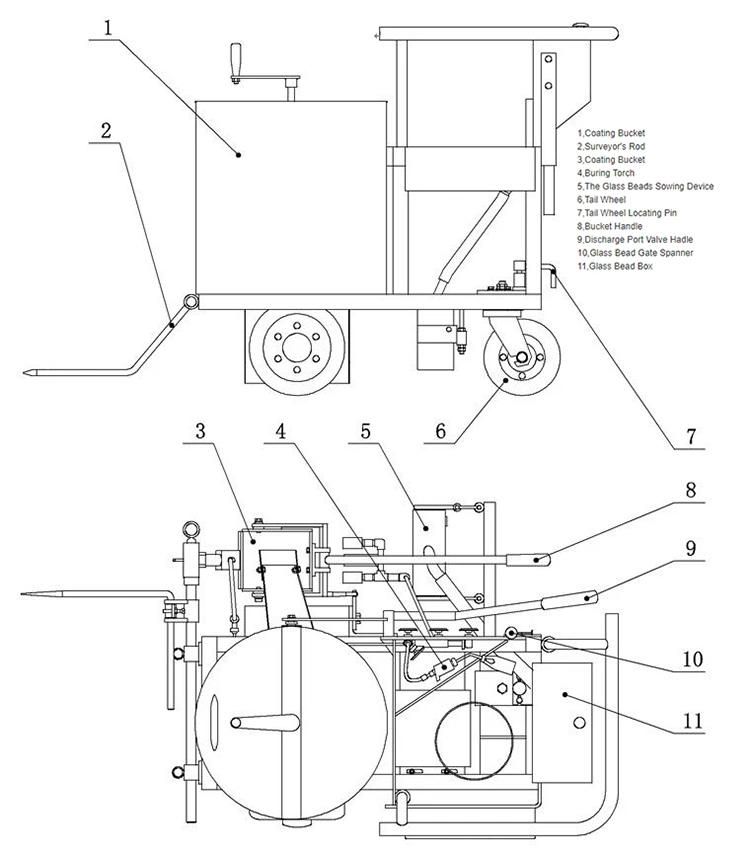

Instructions:

1,Coating Bucket

2,Surveyor's Rod

3,Coating Bucket

4,Buring Torch

5,The Glass Beads Sowing Device

6,Tail Wheel

7,Tail Wheel Locating Pin

8,Bucket Handle

9,Discharge Port Valve Hadle

10,Glass Bead Gate Spanner

11,Glass Bead Box
