• Model NO.：CED260-8
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Machine Weight：26.5ton
• Rated Power/Speed：110kw(380V,50Hz),1480rpm
• Backhoe Bucket Capacity：1.2m3
• Transport Package：Export Package
• Trademark：BONNY
• Origin：China
• HS Code：8429521200
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. CED260-8 Size Medium-Sized Certification ISO9001: 2000 Condition New Machine Weight 26.5ton Rated Power/Speed 110kw(380V/50Hz)/1480rpm Backhoe Bucket Capacity 1.2m3 Transport Package Export Package Trademark BONNY Origin China HS Code 8429521200 Production Capacity 100PCS Per Month

Product Description

Features & Advantages

1. CED260-8 electric hydraulic excavator adopts medium voltage three-phase asynchronous motor, which has the unique advatages of zero emissions & no pollution, low noise, low operation & maintenance cost, good adaptability to high ambient temperature.

2. It is equipped with the world famous brand hydraulic components. The main hydraulic components, such as pumps and valves, adopt international famous brands to ensure the high quality and high reliability of the machine. The hydraulic hose adopts the international famous brand, and its excellent performance guarantees the high reliability of machine.

3. H-type undercarriage with disassembled featured as simple structure and high torsion-resistance, more stable and reliable.H-type undercarriage with disassembled technology is accordance with all standards for road, railway and sea transportation.


Specifications


Item	Unit	Data
Machine weight (Backhoe)	t	26.5
Bucket capacity	m3	1.2
Rated power/speed	kW/rpm	110/1480
Voltage	V	380
Max. flow	L/min	2×235
Max. operation pressure	MPa	32
Cycling time of operation	s	18
Swing speed	rpm	11.3
Travel speed	km/h	3.1/5.5
Max. pulling force	KN	242
Grade ability	%	35° (70%)
Working Data		Backhoe
Max. digging reach	mm	10147
Max. digging depth	mm	6694
Max. digging height	mm	9539
Max. unloading height	mm	6730
Max. digging force of Stick	KN	110
Max. breakout force of Bucket	KN	150

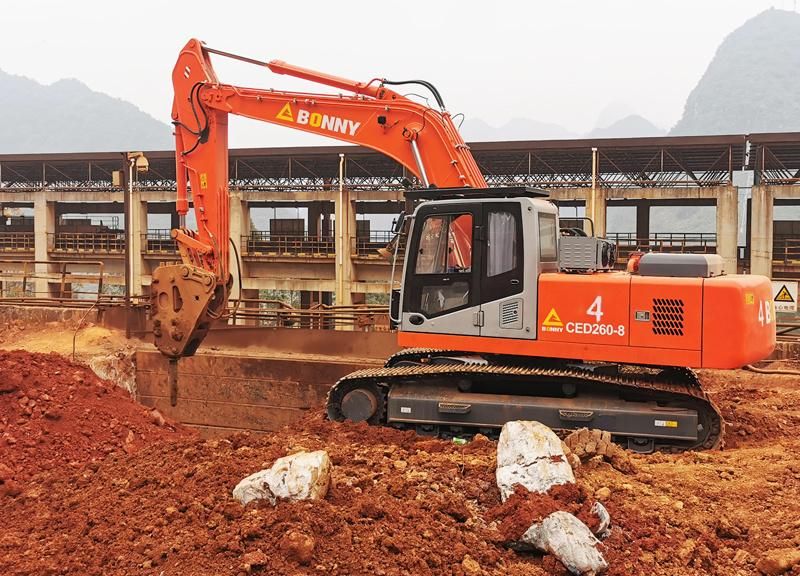

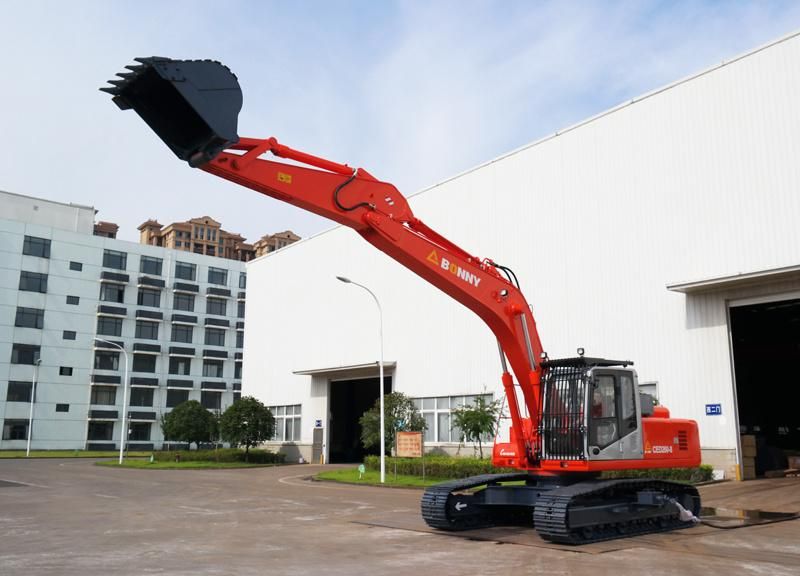

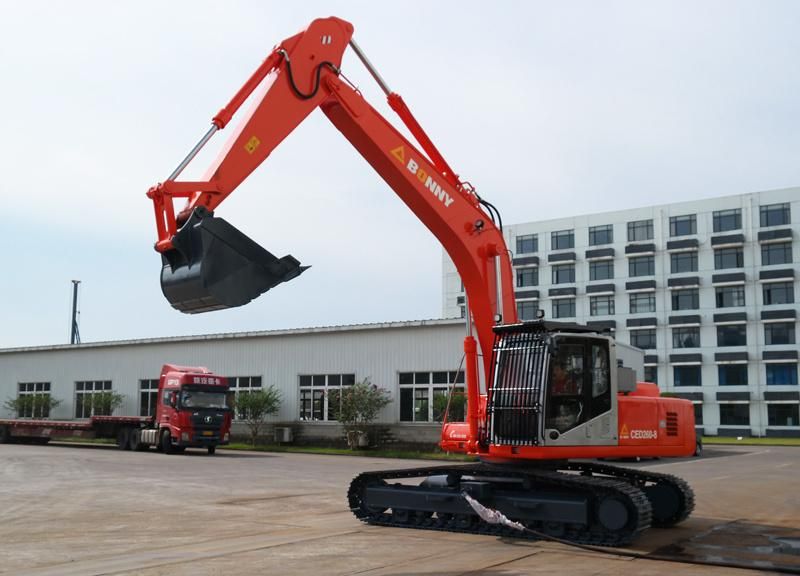

Product Show



Certificate

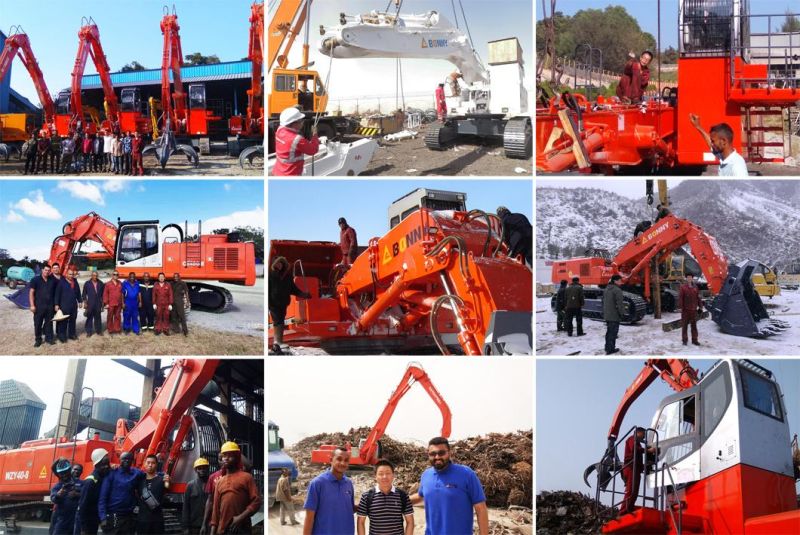

Service on Site

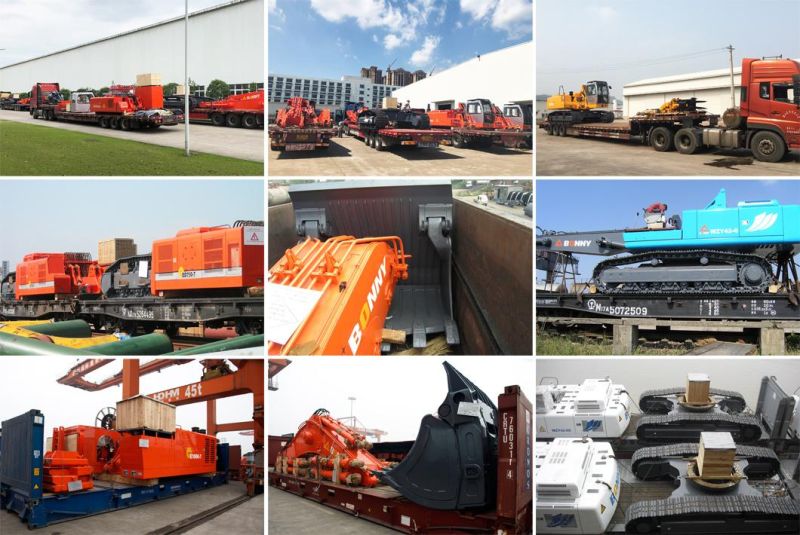

Packing & Shipping



FAQ

1: What about the delivery time?
A: It depends on the type of machine. In general circumstance, it will take more than from 60 days to 90 days to produce the ordered machine after receiving the deposit. But we can reduce to 10 working days if the machine are in stock.

2: Which payment terms can be accepted?
A: Normally our payment term is based on by T/T (30% down payment, 70% before shipment) or irrevocable Letter of Credit at sight. But if you prefer other payment terms please contact us for further information.

3: What is the warranty time?
A: The warranty period shall be 15 months counted from goods arrival in Chinese port, or 1 year (12 months) or 2000 operating hours since handover (after assembling and commissioning) on operation site, whichever comes earlier.

4: How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamin people, working 24/7 to respond clinent inquires and questions all time, most of them can be solved within 12 hours.

5: What kind of logistic service do you supply?
A: We can ship construction machinery by various transportation ways including by road, railway and container. For light spare parts in urgent demand, we can send it by international express service, such as DHL, TNT, UPS, FedEx, or by Air.

6. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
