• Model NO.：ZL20
• Type：Small Loader
• Q/H：Volvo Quick Htich
• Scale：Mini Wheel Loader
• Rated Loading：2200kg
• Tyre Model：Snow Tyre
• Load and Unload Method：Front Discharge
• Engine Power：75kw,82kw
• Transport Package：Container
• Specification：ISO
• Trademark：jieli
• Origin：China
• HS Code：8429510000
• Production Capacity：10set,Week

Performance1rated loading2000kg2Operation weight5800kg3rated bucket capacity1.1-1.3m 34maximum tractive force≥54KN5maximum breakout force≥45.4KN6maximum grade ability307maximum dump height3100mm /3500mm8dump distance752mm9overall dimension (L×W×H)5850×1870×2860mm10minimum turning radius5251mmEngine11modelYTO 4108/WeiChai 4105/Weichai 4108/Yuchai 4105/Cummins12typeVertical, in-line, water cooled, 4-stroke diesel engine13No. of cylinder-bore/stroke4_105×125mm14rated power60kw_2200r/min15maximum torque270N.m16min fuel-consume ratio≤243g/kw.hTransmission system17torque converterYJ _280A18gearbox modeCountershaft power-shift19gear shift2 forward shift  2 reverse shift20maximum speed24km/hDrive axles21main reducing spiralCircular Arc Bevel gear, single stage22decelerating modeSingle stage planetary type23wheel base (mm)2400mm24Track base(mm)1640mm25Mini base to the ground310mmHydraulic system26system working pressure16MPa27boom lifting time4.8s±0.2s28 total time9.2s±0.5s29fuel tank capacity80L30function of leveling automatically yesBrake system31service brake

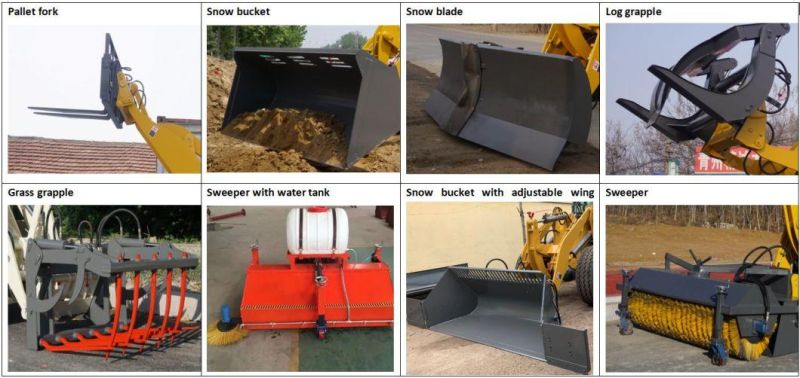

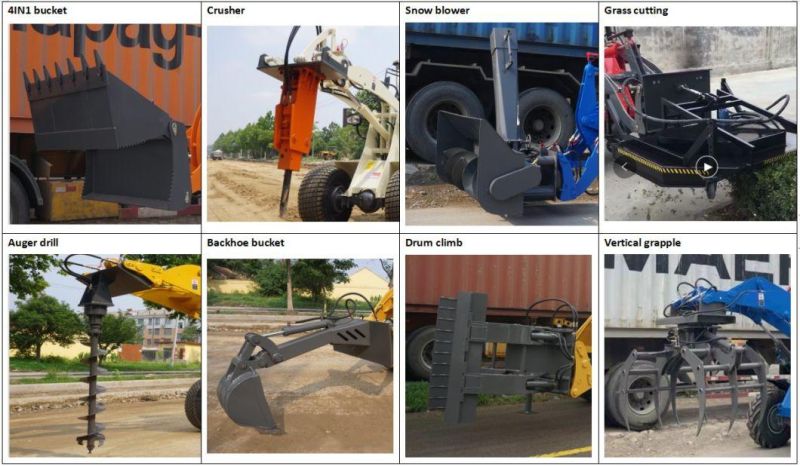

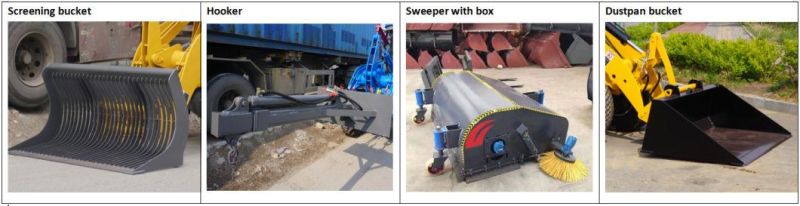

Optional Equipments:                Optional Attachments:
      Tyre Chain                                           4-in-1 Bucket
      Snow Tyre                                            Pallet Fork / Haydraulic Adjustable Pallet Fork
      Air Condition                                      Grapple Forks(Grass / Wood)
      E4 LED Light                                      Grapple Bucket
                                                                 Snow Bucket
                                                                 Hydraulic Snow Blade
                                                                 Sweeper
                                                                 Snow Blower
                                                                 Driller
                                                                 Breaker
                                                                 Sand Spreader
                                                                 Barrel Clamp

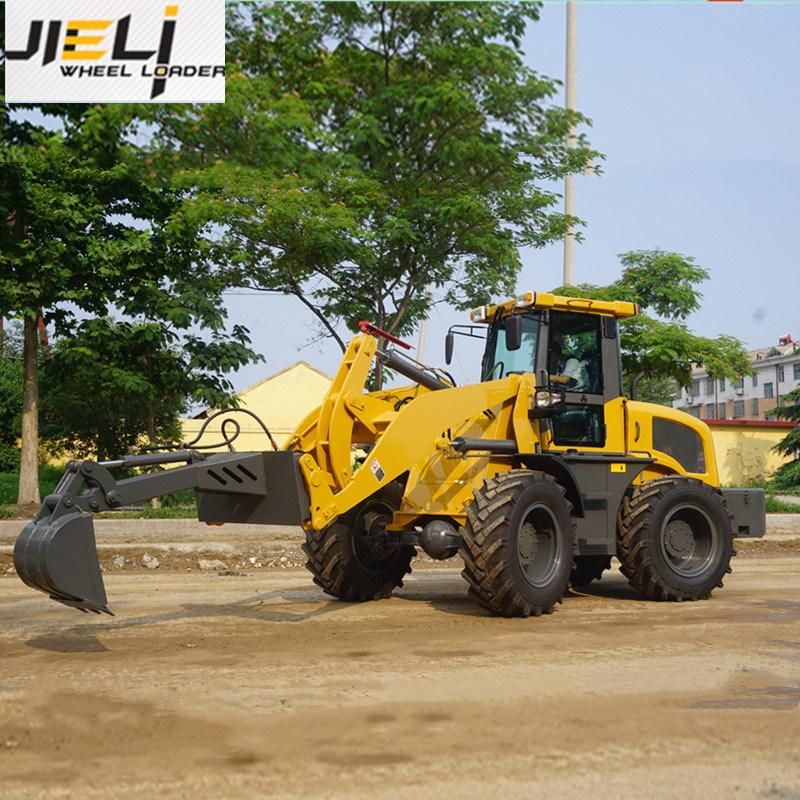

Detailed Photos:



Our Exhibitions:

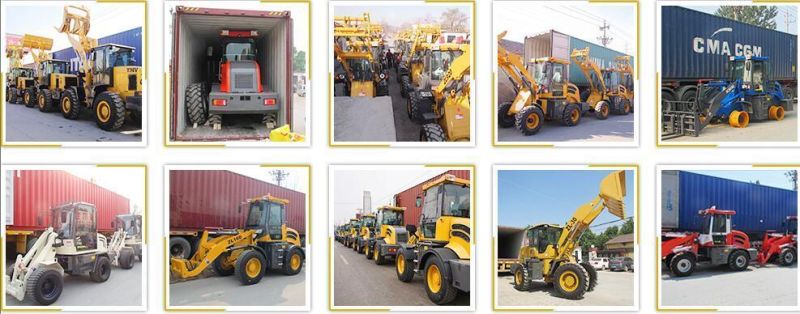

Loading Pictures:

Certification:


The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely.

You are welcome to us have a visit.
--
