• Model NO.：BH-HG
• HS Code：8455229090
• Production Capacity：30 Sets Per Year

Basic Info.

Model NO. BH-HG HS Code 8455229090 Production Capacity 30 Sets Per Year

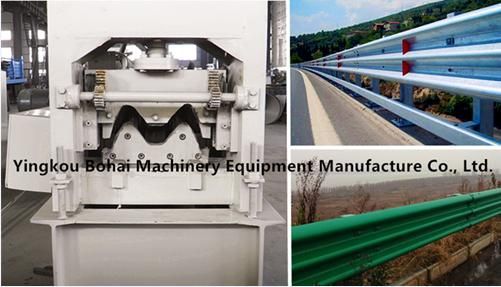

Product Description

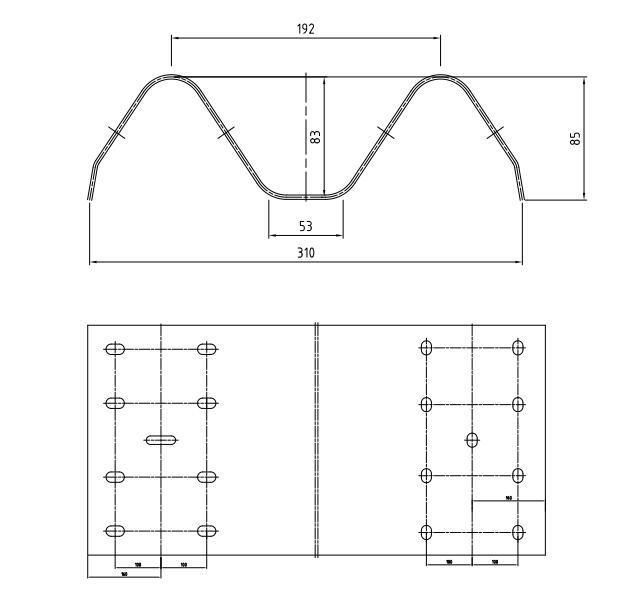

Profile drawing



Main parameter

1.       Specification of rolling material: Width: 480mm; Thickness:3-4mm;        Q235A Galvanized steel sheet.
2.       Working speed: 10 -12m/min
3.       Roller steps: 13 pairs main rollers & 7 pairs flattening rollers
4.       Material of roller: GCr15 bearing steel, quenched, HRC58°-62°
5.       Material of main shaft: superior 45# steel, tempered.
6.       Diameter of main shaft: ¢85 mm
7.       Main motor power: 35 kw
8.       Transmission:double-row chain drive
9.       Structure of forming machine: wallboard
10.     Flattening motor power: 2.2 kw
11.     Hydraulic motor power: 11 kw, Pressure: 20 Mpa
12.     Material of Punching and Cutting mould:Cr12
13.     Cutting blade heat-treated.:HRC58°-62°
14.     Punching and Cutting Way:Adopt hydraulic driving, flat panel punching, cutting after roll forming.
15.     Electric control system: whole machine adopts PLC frequency control, Cut-to-length error≤±2mm
16.     Machine dimension:13500mm×2700mm×1600mm


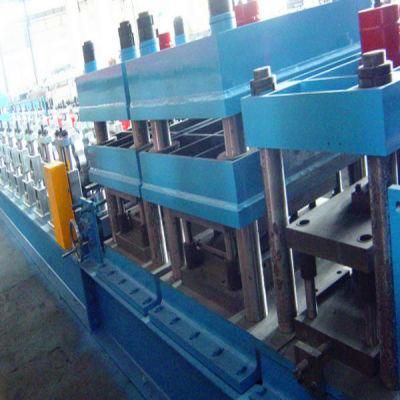

Equipment configuration

Manual Feeding device (3 T capacity), transmission, flattening device, before-punching device (2 sets), main machine and roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc.

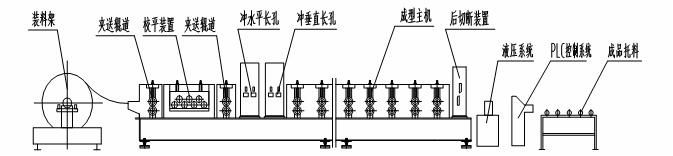

Technological process figure

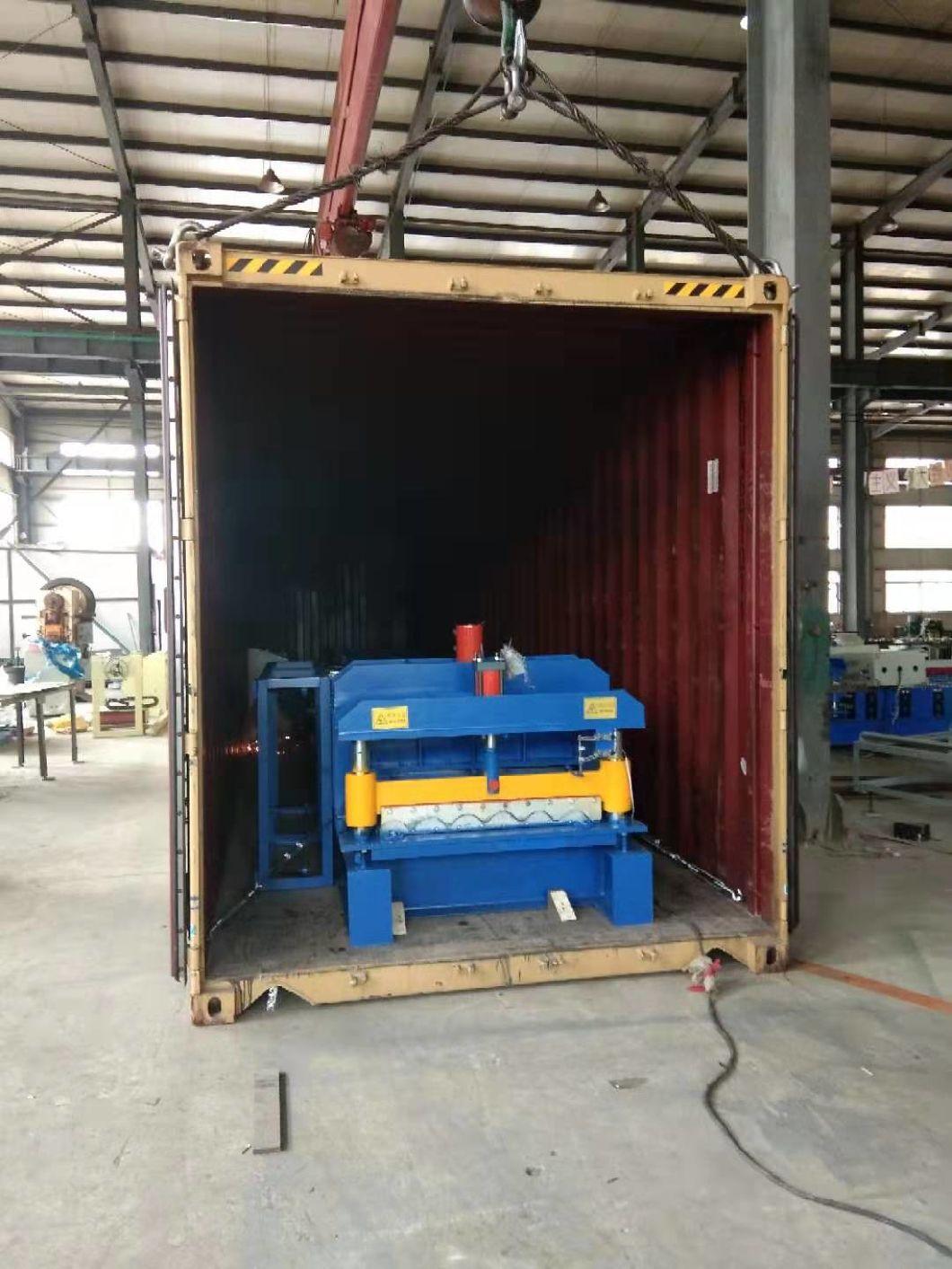

Delivery


Certificate
