• Model NO.：1.0cbm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Operating Weight：4500kg
• Max Total Weight：6900kg
• Max Load Weight：2400kg
• Engine Model：Yn27gbz
• Max Power：55kw
• Max Torque：237nm@2000 R Minute
• Alternator：28V--500wa
• Battery：2*12V--60ah
• Tyre：12-16.5-12pr
• Max Flow：90L Minute
• Transport Package：Nude Package in Container
• Specification：5.6*2.4*2.5 M
• Trademark：LEHMAN
• Origin：China
• HS Code：8705400000
• Production Capacity：500 Sets Month

Basic Info.

Model NO. 1.0cbm Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color White Operating Weight 4500kg Max Total Weight 6900kg Max Load Weight 2400kg Engine Model Yn27gbz Max Power 55kw Max Torque 237nm@2000 R Minute Alternator 28V--500wa Battery 2*12V--60ah Tyre 12-16.5-12pr Max Flow 90LMinute Transport Package Nude Package in Container Specification 5.6*2.4*2.5 M Trademark LEHMAN Origin China HS Code 8705400000 Production Capacity 500 Sets Month

Product Description

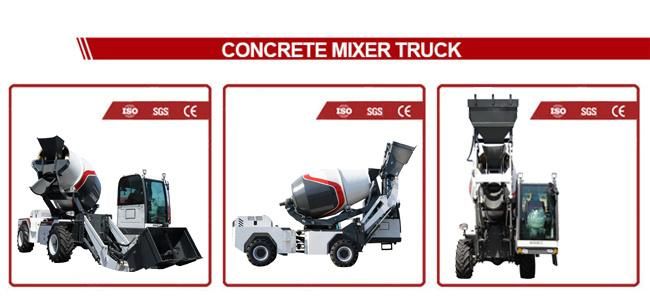

1.0 m³  Concrete Mixer Truck
Product Features

• Italy leading design,automatic feeding mixing system
• Simple and convenient operation
• High efficiency output ,save time and effort,cost saving
• Mixing tanker and loading vehicle combo perfect combination
• Warranty 12 months,perfect after-sales serviceSpecifications:
  Diesel engine
  Model: YN27GBZ
  Total displacement cylinder number: 2700ml--4 cylinder inline
  Injection: Direct injection ,mechanical control
  Cooling system: Water--cooling,Dry air filter
  Max power: 55kw (75 hp)
  Max torque: 237nm@2000 r minute
  Electrical system
  Alternator: 28V--500WA  (18A)
  Battery: 2*12V--60AH (272A)
  Road Lighting System
  Steering System:
  2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels
  4*4 Four-wheel drive
  Hydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed"
  Speed:
  2 forward gears                    2 reverse gears
  The first gear:   0--7kmhour        0--7kmhour
  The second gear: 7--20kmhour       7--20kmhour
  Axle And Tires
  Front axle, steering ,Isuzu Axle,the axle is equipped with a planet reduction gear

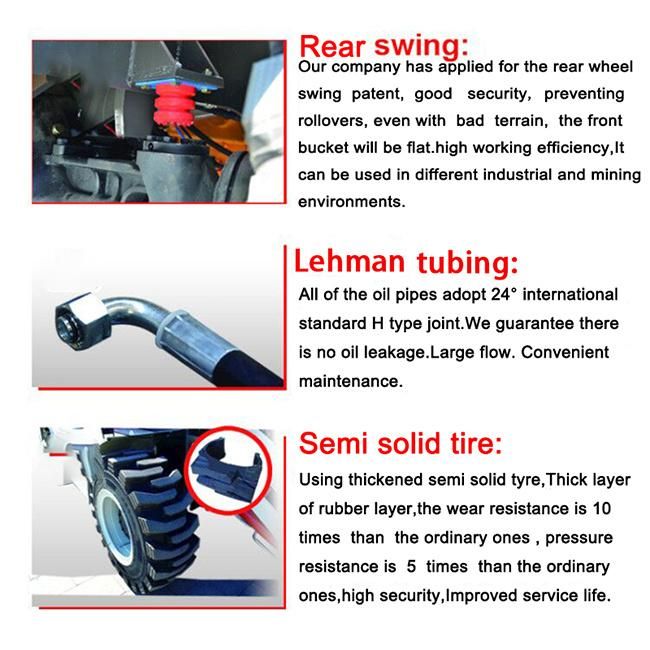

  Rear axle ,Swing (  ± 28° ) , the axle is equipped with a planet reduction gear
  Tyre: ...12-16.5-12PR, max load: 2540kg,450kPa,   RIM:9 75
  Brake
  The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pressure type parking brake, the front axle is equipped with an internal hub.
  Water Supply System
  "Self-priming" 24v large capacity pump,with fast absorption function.
  Max flow:  ............90Lminute
  Total capacity of a water tank: ............175L
  The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water
  Sit on the side of the driver's seat to enable the pump
  Equipped with high pressure pump to flush vehicle
  Mixing And Unloading:
  Double cone cylinder with double spiral stirring screw and middle convex bottom
  Drum geometric capacity: ..........2200L
  Drum rotation speed: ..........15rminute
  Concrete Production: ..........1.0cbmtank
  The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump
  The unload chute is tilted by a manually adjustable handle
  Removable chute can be guaranteed to be unloaded directly through the hopper
  As a standard configuration , 1 chute extension is provided
  Removable chute can be guaranteed to be unloaded directly through the hopper
  As a standard configuration , 2 chute extensions are provided

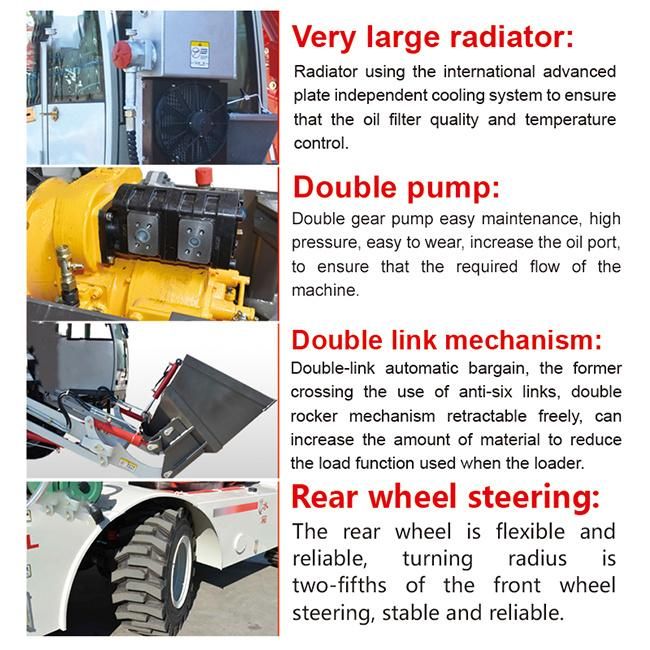

  Equipment Hydraulic System
  Gear Pump: De Hong brand
  Maximum Flow: .......... 2040Lminute
  Maximum Pressure:  ..........16MPa
  3 handle multi-function joystick
  Aluminum heat exchanger for cooling hydraulic oil
  Open oil inlet,hydraulic oil filter can be replaced from outside

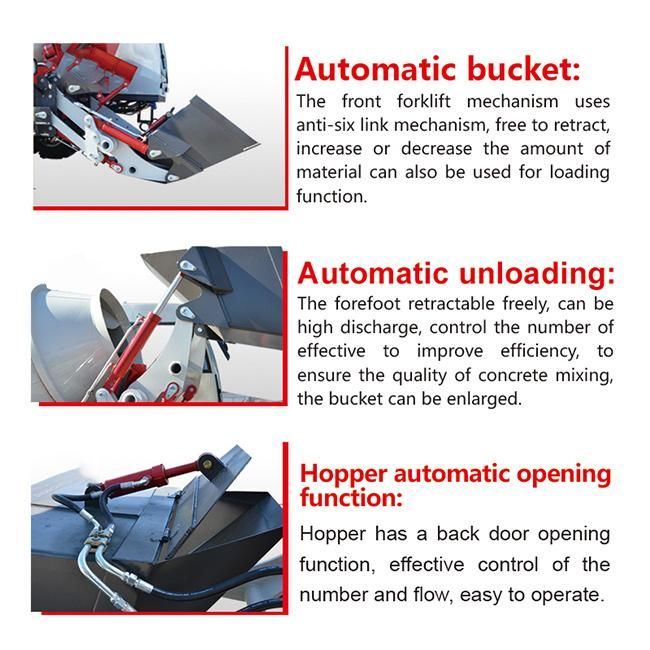

  Load
  The loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function
  Capacity: ..........270L
  Be filled with 5 times
  Operating Room
  Closed operating room with heatingcooling system inclined front window.
  Humanized seat with flexible suspension and height adjustment function
  Maintenance filler
  Fuel tank: ..........110L
  Total capacity of hydraulic system: ..........110L
  Machine oil: ..........16L
  Weight
  Operating weight: ..........4500kg
  Maximum total weight: ............6900kg
  Maximum load weight:..............2400kg
