China Farm Machinery 0.8ton Small Loader Front End Wheel Loader
QINGDAO SATA IMPORT AND EXPORT CO., LTD.- Certification：CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：Wheel loader
- Type：Small Loader
- Scale：Mini Wheel Loader
- Q/H：Quick Htich
- Dumping Height：900mm
- Discharge Height：2800mm
- Loading Capacity：800kg-1000kg
- Engine Rated Power：24kw
- Option Equipment：Fork,Grass Grab,Package Plallet,Snow Pusher
- Product Name：Farm Machinery 0.8ton Small Loader Front Loader
- Transport Package：Nude Package
- Specification：Customized size
- Trademark：SATA
- Origin：Shandong, China
- HS Code：8716400000
- Production Capacity：2000units,Month
Description
Engine modelChangchai 390,Diesel engine In-line,water cooling,4-stroke,Three cylinder Rate power:25KW Rated speed:2200-2600rpm Start:Electronic Transmission Hydraulic torque converter transmission Bucket size 0.5m3 Bucket width 1650mm Bucket type Bucket with teeth Rated loading capacity 800-1000kg(Including attachments) Kerb weight 2400kg Dimension 4750x1500x2550mm Max digging force 32KN Max discharge height 2350mm Max discharge distance 850mm Min turning radius 3890mm Bucket lifting time 4.5s Hydraulic circle time 9s Wheel track 1800mm Min ground clearance 230mm Gradeability 30° Operation system Steering system,hydraulic steering Driving mode Hydraulic system,4WD Control system Hydraulic lever control Brake system 4 wheels drum brake;Hand brake Tires 10.00-16 Wheelbase 2550mm Wheel track 1700mm System pressure 16Mpa Tire pressure 2.5-3.5Mpa Pump type Gear pump Pressure output 96L/min
Optonal attachments:
-Coal bucket
-Rock bucket
-Quick change hitch

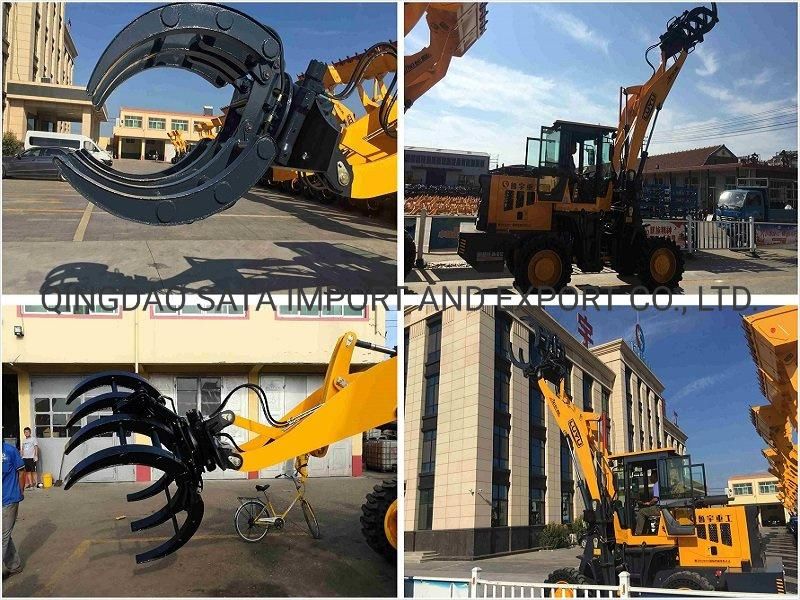

-Wood grapple
-Grass grapple
-Pallet fork
Loading and package:
-One unit per 40HQ container or 2 units in a 40HQ and a 20GP containers
-Disassembling cabin and bucket
-Cabin in a steel frame
-Main body drived into container directly
-Fixed with professional steel ropes

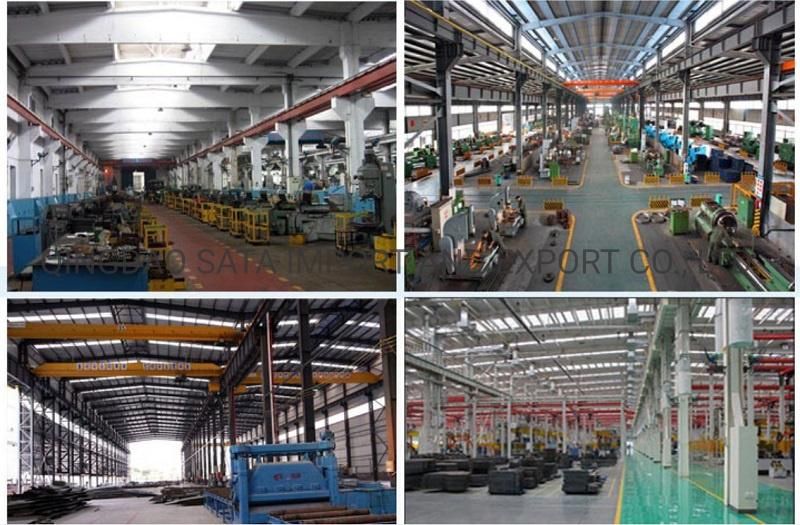

Factory show and Attending Fair:

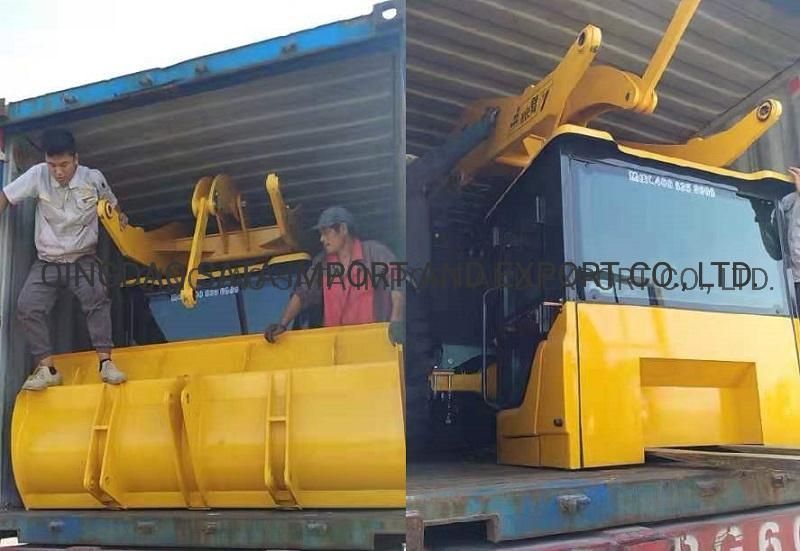

Shipment pictures:
Warranty and servce:
(1) One year warranty for whole machine.
(2) All spare parts are available as we produce most of the parts in our factory.
(3) We can provide technical support via mail, phone, video or sending engineers there.
(4) English operation and maintenance manul and parts list are shipped with the loaders.
