High Speed High Precision Cold Rolled Cr Aluminium Coil Shear Slitter/Decoiler /Recoiler/Machine Steel Coil Slitting Machine Line
Shandong Zetian CNC Machine Tool Co., Ltd.- After-sales Service:Lifelong
- Warranty:12 Mouths
- Type:Slitting Line
- Application:Steel Plate, Coil, Beam, etc
- Certification:CE
- Condition:New
Base Info
- Model NO.:ZSL-3X1850
- Material Thickness:0.3-3.0 mm
- Width:300-1850 mm
- Slitting Quantity:20-35 Strips
- Width Accuracy:0.1mm
- Cutting Burr:3%
- Line Speed:180 M,Min
- Coil Weight:5-25 Tons
- Colour:Customized
- Material:Aluminum Coil, Stainless Steel, Cr, etc.
- Coil ID:508mm, 610mm
- Power:AC 380V, 50Hz
- Protection Level:IP40
- Winding Split Level Floor:1mm
- Transport Package:Seaworthy Packing
- Specification:25m L x10m W
- Trademark:ZeYe
- Origin:China
- HS Code:8460902000
- Production Capacity:70
Description
Basic Info.
Model NO. ZSL-3X1850 Material Thickness 0.3-3.0 mm Width 300-1850 mm Slitting Quantity 20-35 Strips Width Accuracy 0.1mm Cutting Burr 3% Line Speed 180 M/Min Coil Weight 5-25 Tons Colour Customized Material Aluminum Coil, Stainless Steel, Cr, etc. Coil ID 508mm, 610mm Power AC 380V, 50Hz Protection Level IP40 Winding Split Level Floor 1mm Transport Package Seaworthy Packing Specification 25m L x10m W Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 70Product Description
Slitting line ZSL seriesSlitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils.
Application material: cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,
2.Uncoil,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.
Slitting Line Layout
Main Technical Parameters
Model | ZSL-1 | ZSL-2 | ZSL-3 | ZSL-4 |
Material thickness | 0.15-1.0mm | 0.2-2.0 mm | 0.3-3.0 mm | 0.5-4.0 mm |
Material width | 300-1250 mm | 300-1600 mm | 300-1800 mm | 300-2000 mm |
Slitting quantity | 35 | 35 | 35 | 25 |
Width accuracy | ±0.05 mm | ±0.05 mm | ±0.10 mm | ±0.10 mm |
Cutting burr | <3% | <3% | <3% | <3% |
Winding split level floor | <1 mm | <1 mm | <1 mm | <1 mm |
Line speed | 200 m/min | 200 m/min | 180 m/min | 150 m/min |
Coil weight | 10,15 t | 10,15,20 t | 15,20,25 t | 20,25,30 t |
Our advantages
1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.

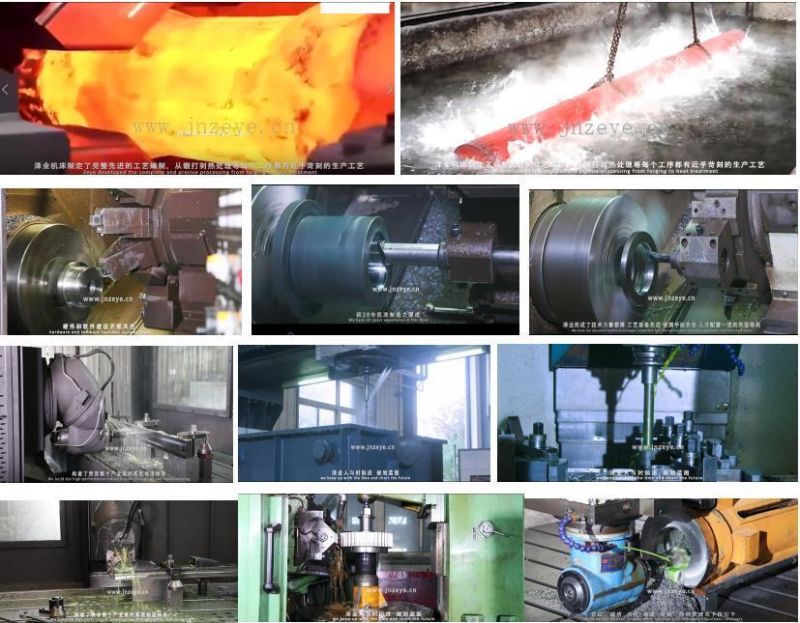

2. Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified and guarantee produce out the high accuracy shear production line.

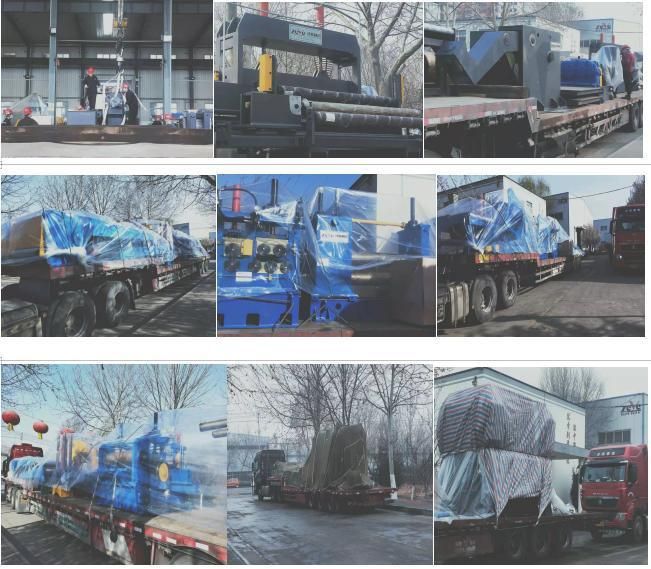

Packing and Delivery
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.
Our Shear Production Lines have been exported to Australia, Mexico, Ukraine, Vietnam, Philipines, Uzbekistam, Algeria, Ethiopia, Thainland, Dubai, Sudan, Brazil, Myanmar, Congo etc. 30 countries and areas.
Company introduction

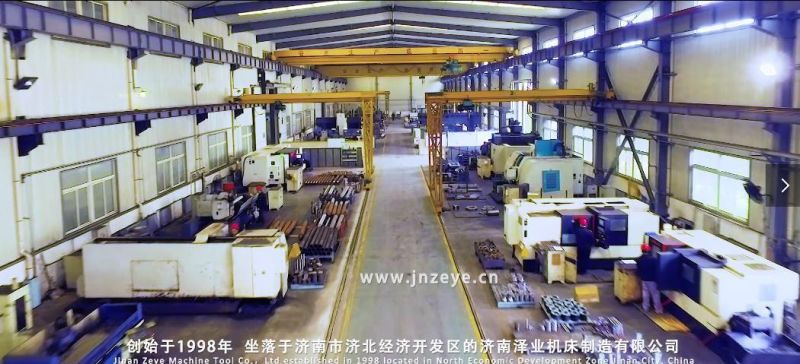

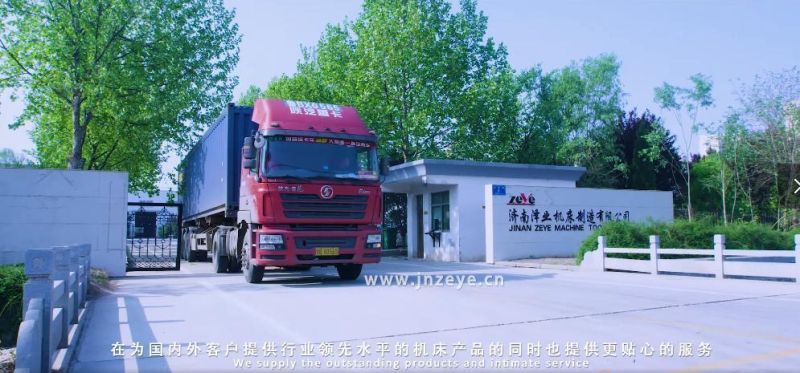

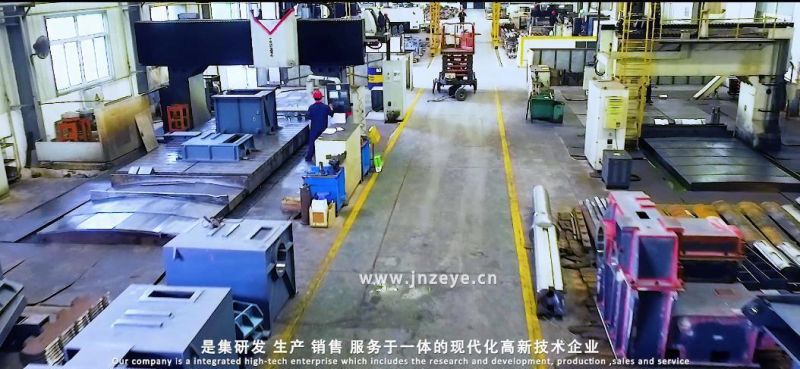

We have two companies, Shandong Zetian CNC Machine Tool Co., Ltd (short for "ZeTian" ) and Jinan ZeYe Machine Tool Co., Ltd ( short for "ZeYe") , ZeTian and ZeYe were founded by Mr.Hu. ZeTian is in charge of handle import and export business, ZeYe is in charge for production, which is located in Jinan city, Shandong Province, China, was founded in 1998.
ZeYe is mainly engaged in developing, manufacturing of Cut to Length Line, Slitting Line, Rotary Shear Line, Moving Shear Line, Slitting and Cut to Length Production Line, Slitting Recoiling or Cut to Length Compound Line and Leveling Machine.
Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. Industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.
We have one professional technical team and after sale service team, we are ready to serve you at any time.
Welcome to visit our factory.
FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
