• Model NO.：EX8010
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Wight：1.0t
• Track Lenght：1090mm
• Ground Clearance：380mm
• Classic Width：896mm
• Track Width：170mm
• Total Length：2550mm
• Total Height：1330mm
• Rated Power：7.5kw
• Engine：Changchai
• Max.Digging Radius：2400mm
• Max.Digging Depth：1400mm
• Max.Digging Height：2490mm
• Max.Dump Height：1750mm
• Transport Package：CBU and SKD
• Specification：3608*990*2375
• Trademark：OEM EUROSTAR
• Origin：China
• HS Code：8429521200
• Production Capacity：10000 PCS Per Year

Standard configurationWeight1.0 T Track length1300 mmGround clearance 380 mmChssis width 970 mmTrack width 180 mmTotal length 2450 mmTotal height 2200 mmBucket capacity0.02 m³Max. digging radius2400 mmMax. digging depth1600 mmMax. digging height 2850 mmMax. dump height 2000 mmRated Power 7.5 KWEngineChangchaiBucket width300mmShipment quantity 40HQ13 Unit/19 UnitOptionalKubota engineKubotaYANMAR engineYANMARguide systemguide systembucket 200mmbucket 300mmbucket 600mmQuick change deviceQuick change devicePlow groovePlow grooveCatchCatchSpiral drillSpiral drillDumping hopper sideDumping hopper side

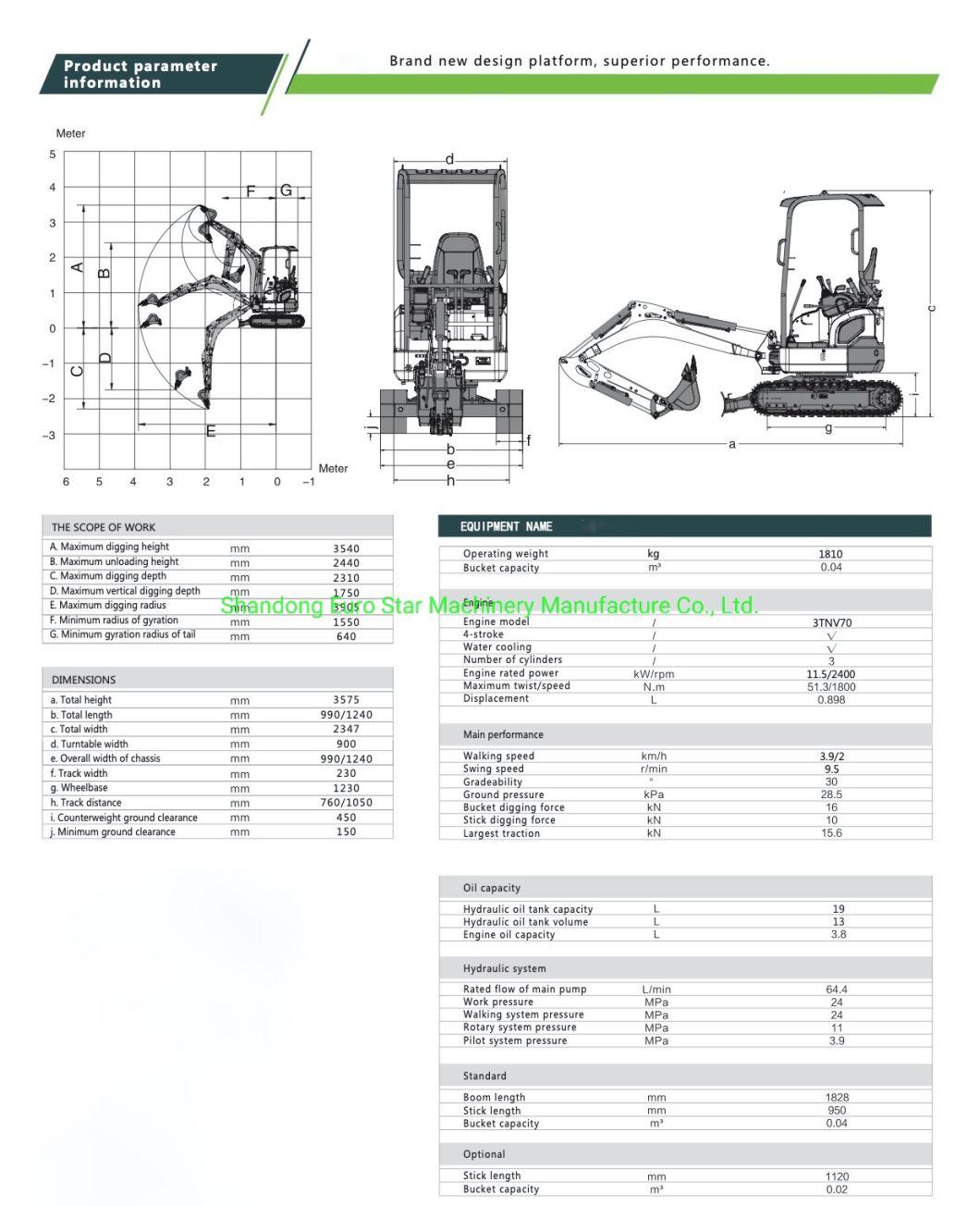

Size parametersTotal Weight1810 kg1810kgStandard bucket capacity0.04 m³0.04 m³Full length during transportation3608 mm3608 mmFull width during transportation990 mm990 mmFull height during transportation2375 mm2375 mmMinimum ground clearance150 mm150 mmGauge760 mm760 mmWheelbase1230 mm1230 mmTotal track length1585 mm1585 mmTrack shoe width230 mm230 mmSupport wheel3 Unit3 Unit   Front radius of gyration1490 mm1490 mmRadius of tail gyration640 mm640 mmJob parametersMaximum digging radius3849 mm3849 mmMaximum digging depth1911 mm1911 mmMaximum digging height3540 mm3540 mmMaximum unloading height2243 mm2243 mmTankFuel tank volume19 L19 LTotal hydraulic oil of hydraulic system21 L21 LHydraulic oil tank volume13 L13 LEngine oil capacity2.5 L2.5LEngineMain performance parameters

 Walking speed3.9 km/h3.9 km/hSwing speed10 r/min10 r/minGradeability30°30°Ground pressure28.5 kpa28.5 kpaBucket digging force8.5 KN8.5 KNBucket rod digging force15.2 KN15.2 KNmain traction force13.5 KN13.5 KNHydraulic systemRated flow of main pump2*17.2+10.8 L/min2*17.2+10.8 L/minWork pressure21.6+18.6 MPa21.6+18.6 MPaWalking system pressure24 MPa24 MPaRotary system pressure11 MPa11 MPaPilot system pressure3.9 MPa3.9 MPaStandard configurationBoom length1830 mm1830 mmLength of bucket rod950 mm950 mmBucket capacity0.04 m³0.04 m³OptionalLength of bucket rod1120 mm1120  mmBucket capacity0.02 m³0.02 m³

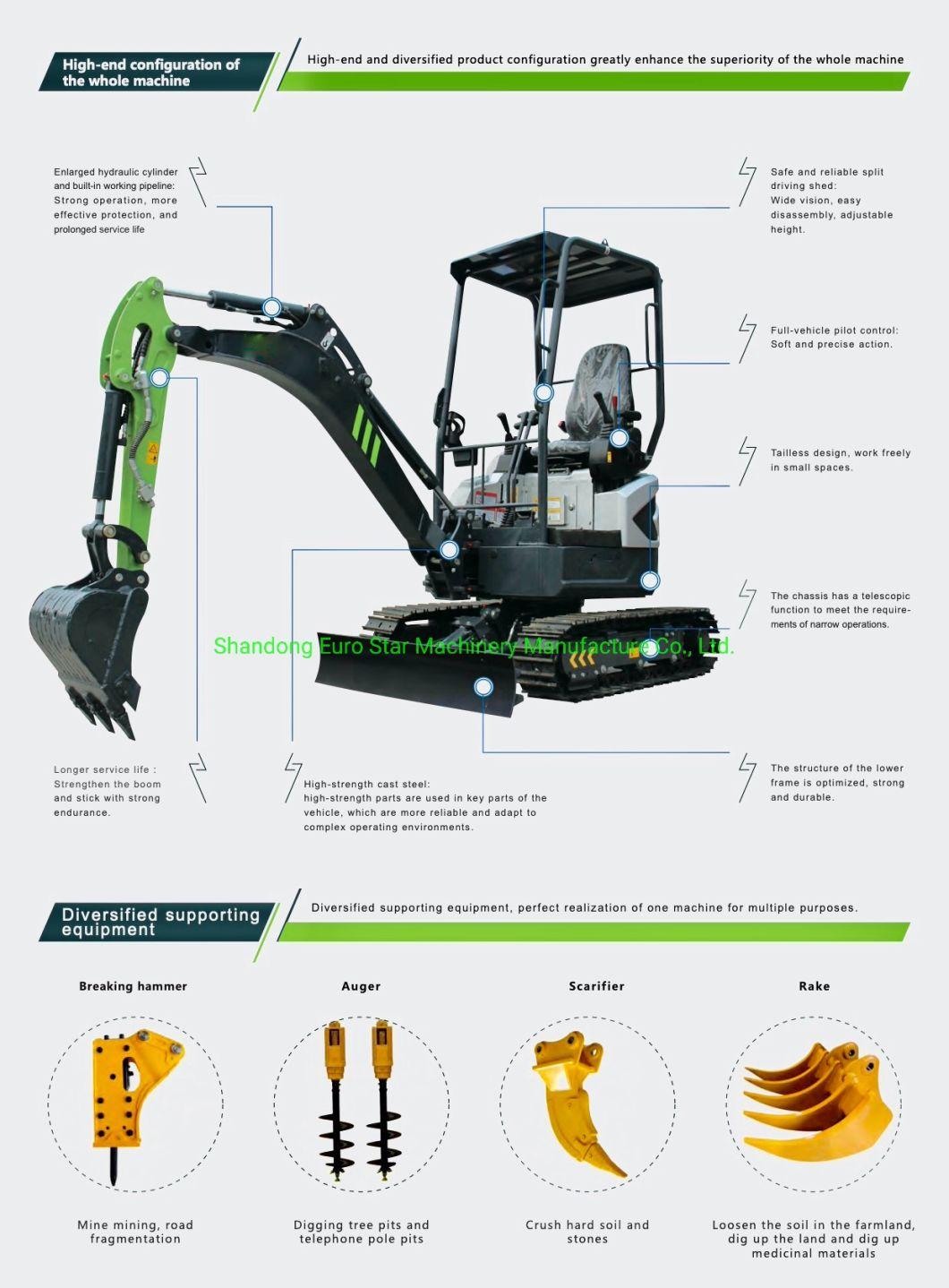

EX1800 Series Metal crawler small excavator product display
EX1800 Series Metal crawler small excavator product display

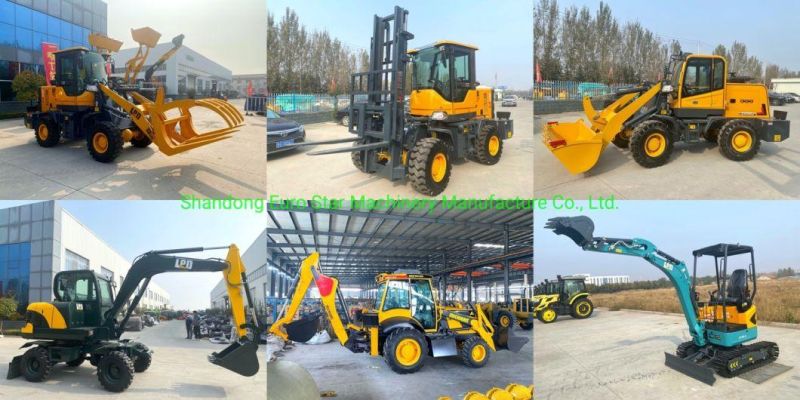

Other construction machinery products

Construction machinery products Packaging and shipping display

Factory introduction
^{Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.}

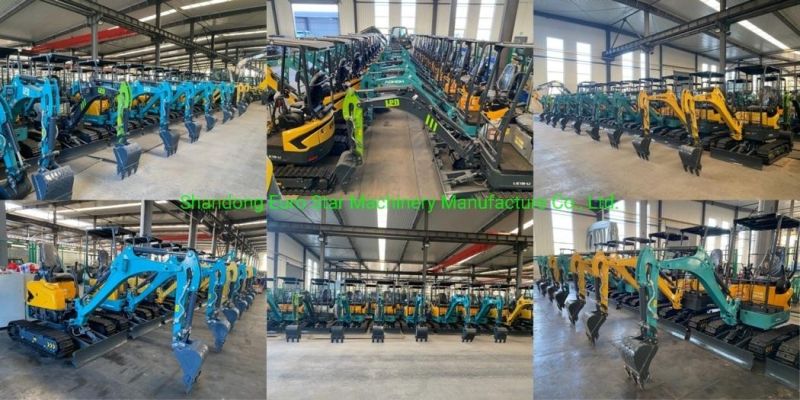

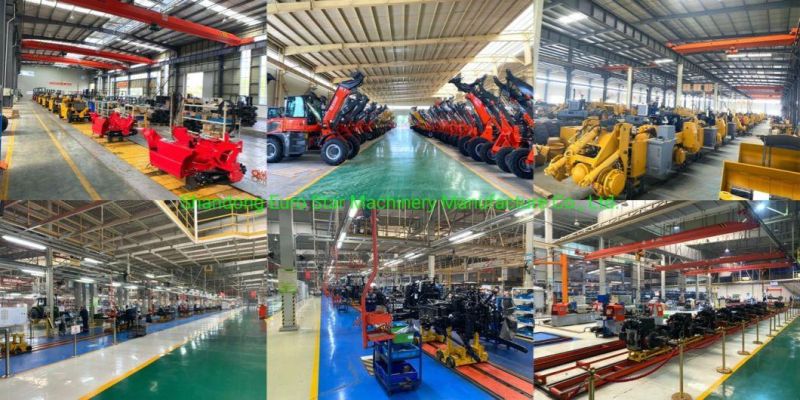

Factory and production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service
_{^{Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified}}

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

_{1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business}
FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?
A: 6-9 units can be in a 20ft container, 13-19 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
