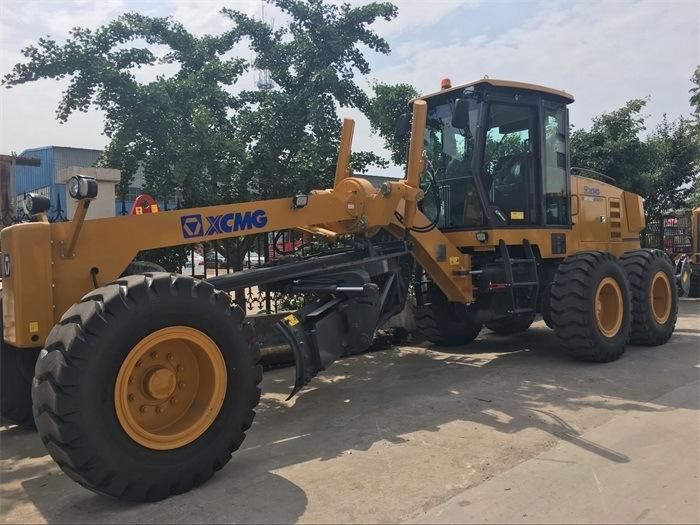

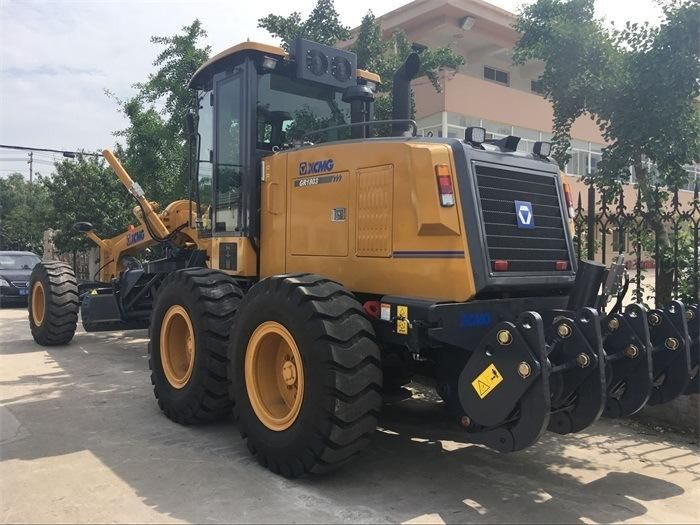

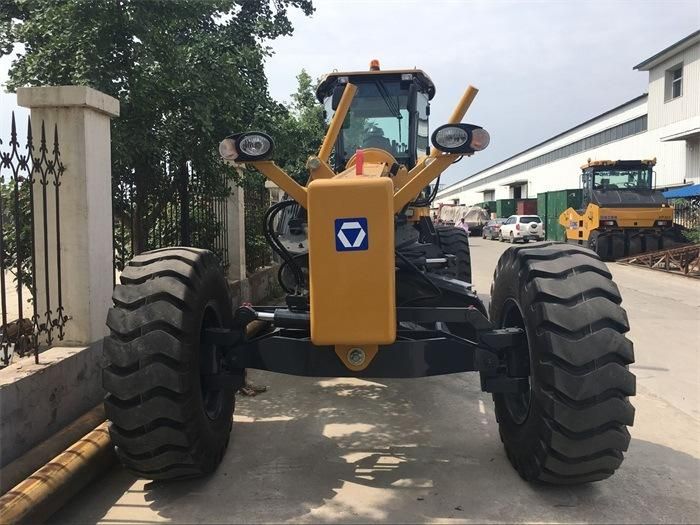

China 190HP Motor Grader Gr180 with Ripper in Stock
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service:Oversea
- Warranty:1 Year
- Certification:TUV, UL, ISO, RoHS, CE
- Condition:New
- Application:Railway, Mine, Farmland, Highway
- Transmission:Hydraulic
Base Info
- Model NO.:GR180
- Walking Mode:Wheeled
- Type:Small Grader
- Engine Model:6bt5.9
- Rated Power/Speed:138,2200kw,Rpm
- Dimension:8015*2380*3050mm
- Operating Weight(Standard):15400kg
- Max. Gradeability:20%
- Travelling Speed ,Forward:5 8 13 20 30 42km,H
- Travelling Speed ,Reverse:5 13 30km,H
- Tractive Force(F=0.75):61.3kn
- Transmission Pressure:1.3~1.8MPa
- Transport Package:Nude Packing
- Specification:CE, ISO
- Trademark:oriemac
- Origin:Xuzhou, China
- HS Code:84292090
- Production Capacity:100 Units,Month
Description
Basic specification
Engine model
CTAA8.3/SC8D190G2B1
Rated power/speed
138kW/2200 140kW/2300rpm
Dimension(LxWxH)
8900×2625×3470mm
Operating weight(Standard)
15400kg
Performance specification
Travelling speed ,forward
5,8,11,19,23,38 km/h
Travelling speed ,reverse
5,11,23 km/h
Tractive force(f=0.75)
84KN
Max. gradeability
20%
Tire inflation pressure
260 kPa
Working hydraulic pressure
16 MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±50°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
15
Frame articulation angle
±27°
Min. turning radius using articulation
7.3m
Biade
Maximum lift above ground
450mm
Maximum depth of cutting
500mm
Maximum blade position angle
90°
Blade cutting angle
28°-70°
Circle reversing rotation
360°
Moldboard width X height
3965×610mm
Features
GR Series Motor Graders are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland, and so on. They are necessary construction machines for national defense engineering, mine construction, town and country roads building, and farmland improvement..
Performance and characteristic
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius, maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox, with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable, with convenient application,and the comfort of driving is improved.
The cab is grand and nice,with wide eyeshot and good sealing.

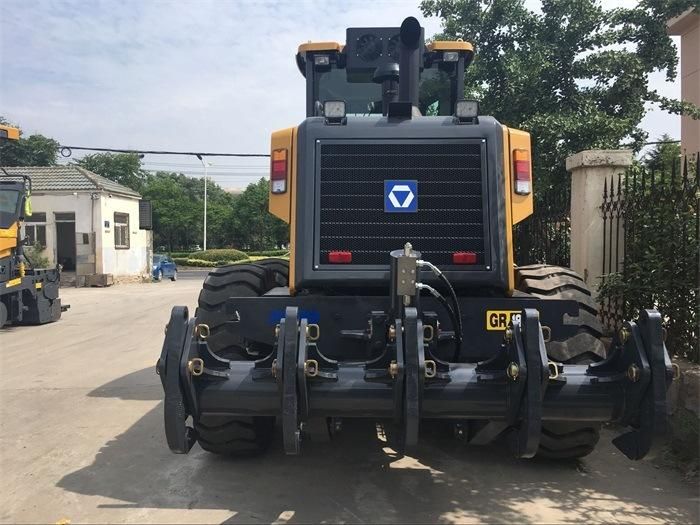

The front bulldozing plate, rear scarification device, front scarification harrow, and automatic leveling device can be added.
