• Model NO.：LT956
• Type：Medium-sized Loader
• Warranty：1 Year , 2000 Working Hours
• Engine：Weichai Wd10g220e23
• Rated Engine Power：162kw
• Bucket Capacity：3m³
• Wheel Base：2870mm
• Operating Weight：16500kg
• Max.Dumping Height：3140mm
• Max.Dumping Reach：1120mm
• Tire Type：23.5-25
• Fuel Tank：230L
• Turning Angle：35°
• Transport Package：Fixed in Container or Nude Packing
• Specification：7600mm*3000mm*3380mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. LT956 Type Medium-sized Loader Warranty 1 Year / 2000 Working Hours Engine Weichai Wd10g220e23 Rated Engine Power 162kw Bucket Capacity 3m³ Wheel Base 2870mm Operating Weight 16500kg Max.Dumping Height 3140mm Max.Dumping Reach 1120mm Tire Type 23.5-25 Fuel Tank 230L Turning Angle 35° Transport Package Fixed in Container or Nude Packing Specification 7600mm*3000mm*3380mm Trademark LTMG Origin China HS Code 8429510000 Production Capacity 2000 Sets/Year

Product Description

LTMG Machinery is a professional loaders manufacturer.
Our loaders and related products has been exported to more than 50 countries and the quality is recognized by our customers.
LTMG construction machine 5 ton wheel loader

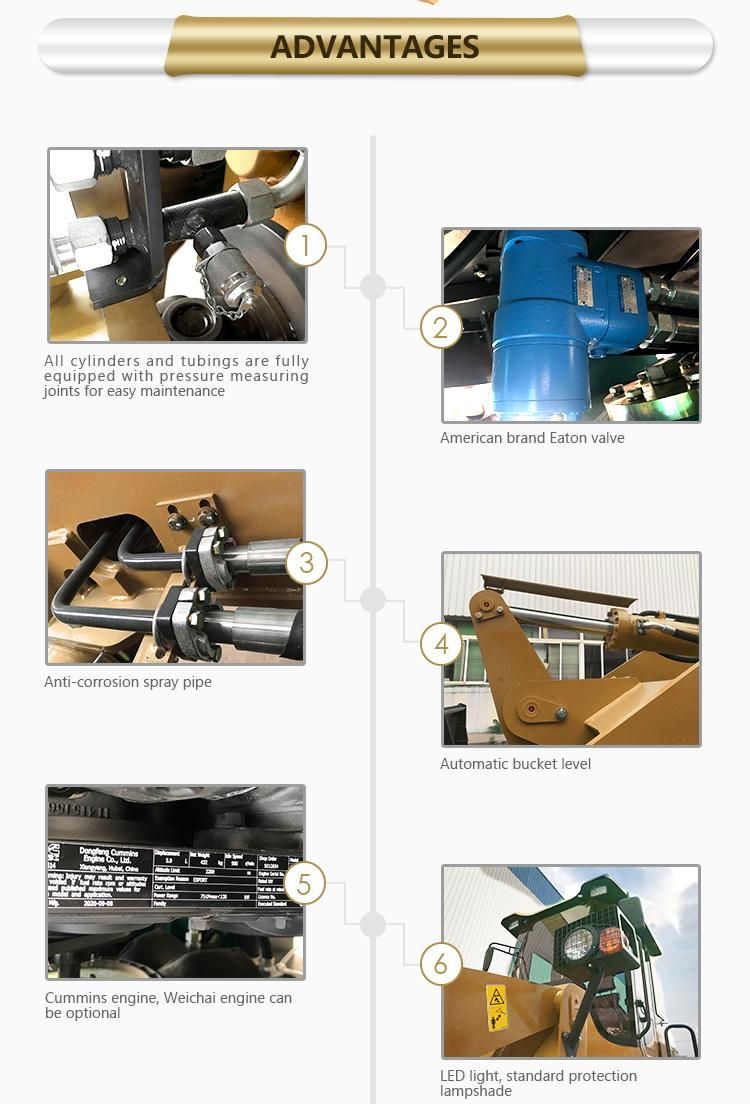

Product Features

Heavier operating weight and longer wheelbase designmake the loader more steady, larger dumping height andshorter action cycling time make the working more efficient.

The single rocker arm Z -form reversal mechanismworking device has large breakout force due to theoptimization design. The pin with dustproof and theexternal grease fttings offer easy maintenance.

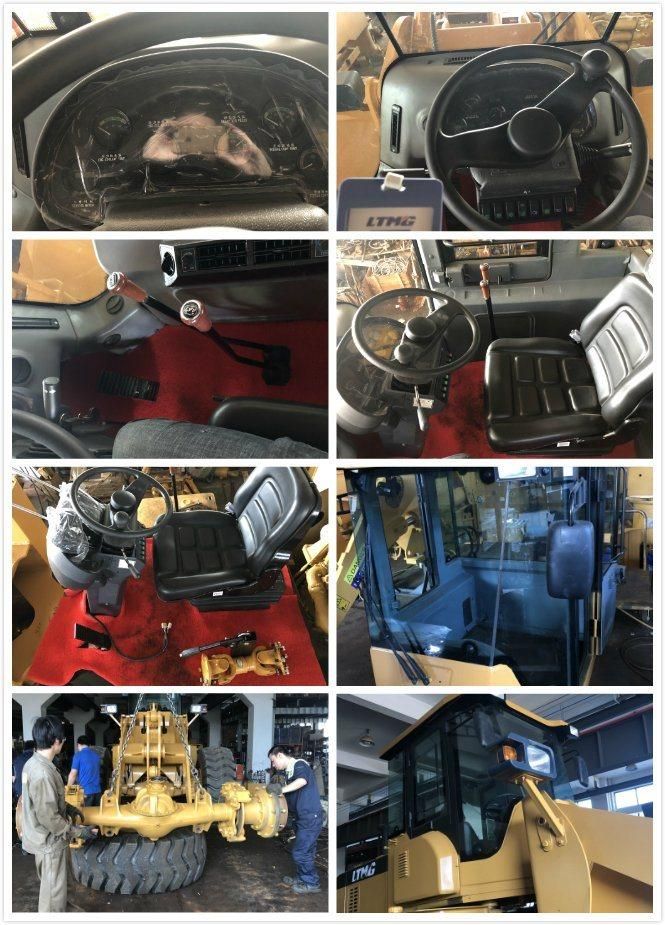

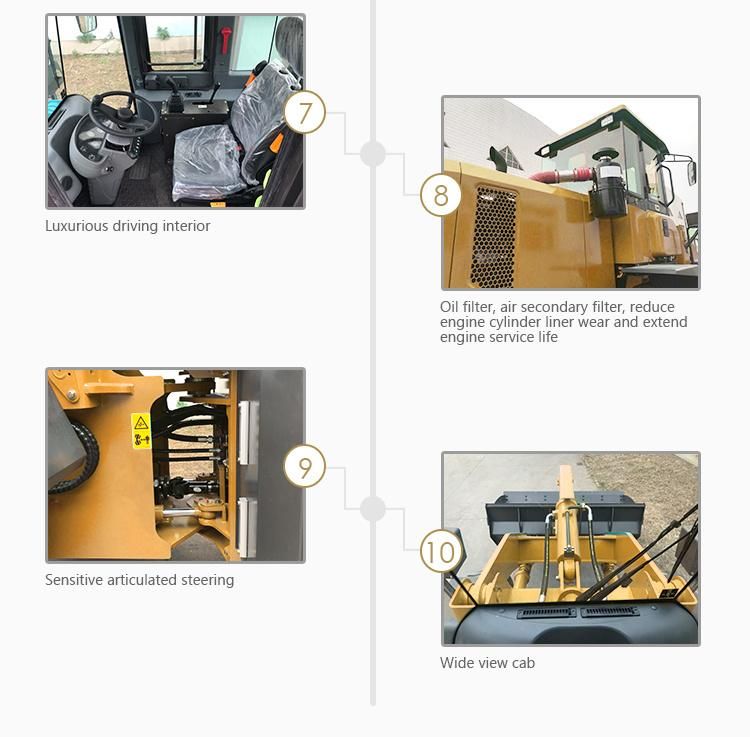

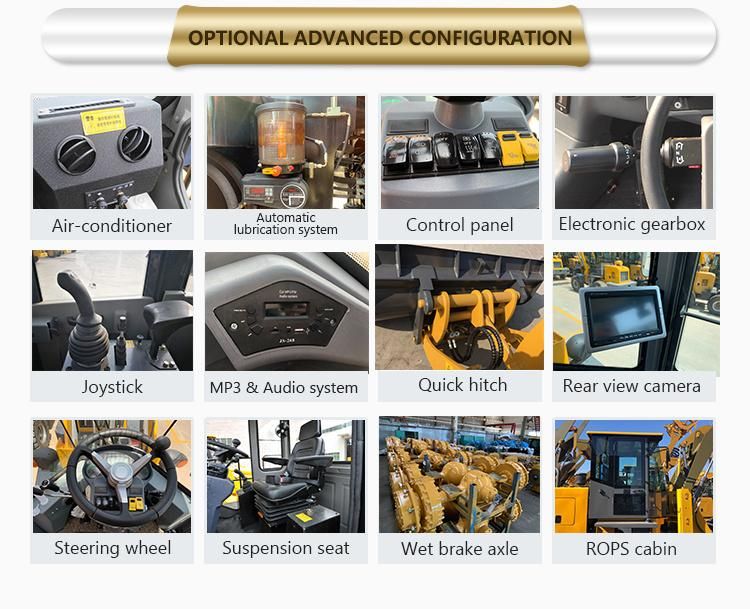

Cab can be dismantled for large space. Noise- -isolationand vibration absorber meet all kinds of operation.The Single-handle pilot control system (Optional),electroniccontrol gearshift, luxury chair ensure the easy andcomfortable operation,

Quick hitch for special needs such as the log grapple, fork,snow blade, grass fork, enlarged bucket etc.

Model	LT956
Operating  weight	16,200kg
Rated load	5,000 kg
Bucket capacity	3m³
Engine model	Weichai WD10G220E23
Rated engine power	162kw
Rated rotate speed	2200 r/min
Max.torque	745.3N.m
Max. traction force	≥185KN
Breakout force	≥200KN
Forward I	0-11.5km/h
Forward II	0-38km/h
Reverse I	0-7.2km/h
Reverse II	0-16km/h
Grade ability	28°
Overall length	7,600mm
Overall width	3,000mm
Overall height	3,380mm
Bucket width	3,000mm
Wheel base	2,870mm
Tread Width	2,250mm
Min.ground clearance	430.mm
Max.dumping height	3,140mm
Max.dumping reach	1,120mm
Transmission	Hangchi ZF
Fuel tank	230L
Hydraulic tank	270L
Raise time	≤6.8s
Total	≤12.5s
Tire type	23.5R25

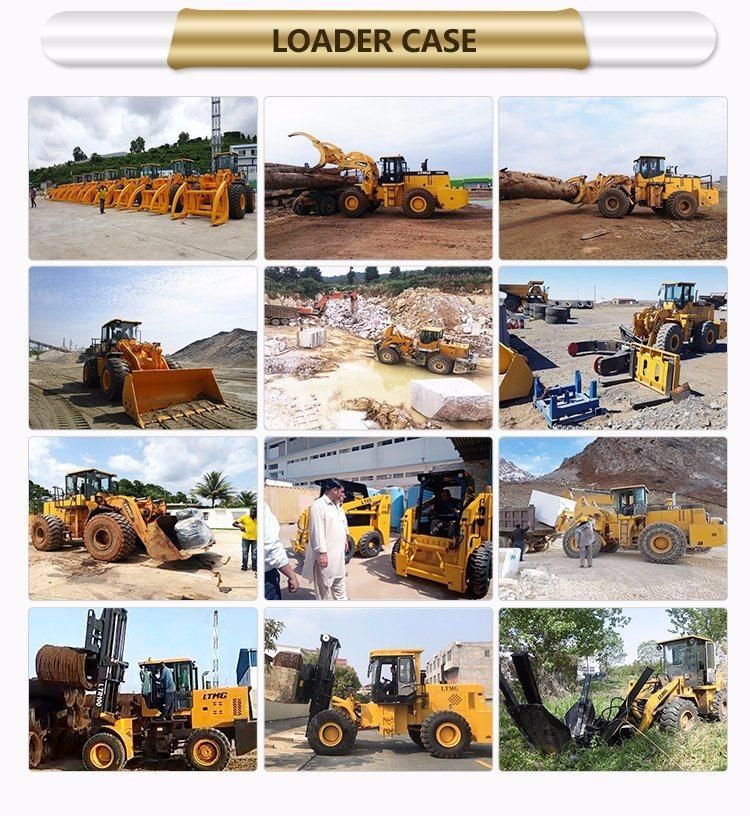

LTMG loaders are widely used in mine, sand field, woods storage yard and so on.

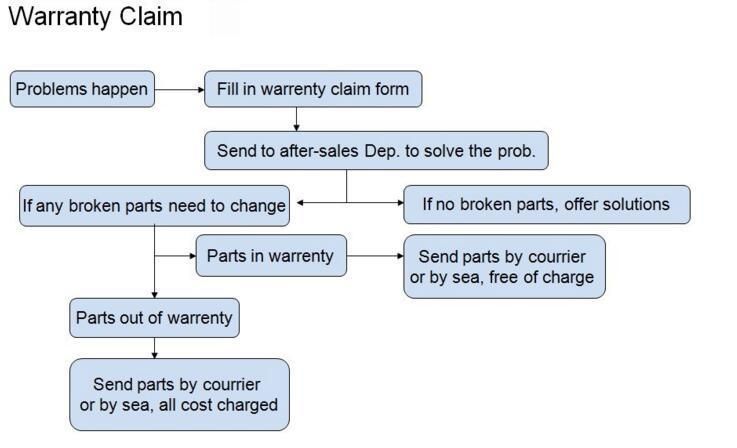

After sales service

LTMG always treat after-sale service more important than sale.

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30days.
