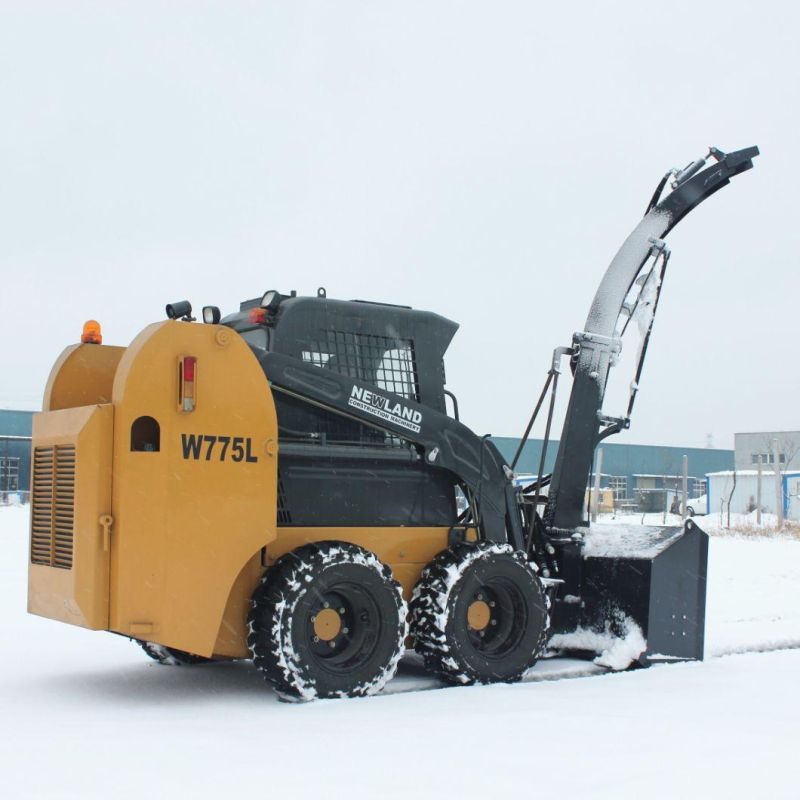

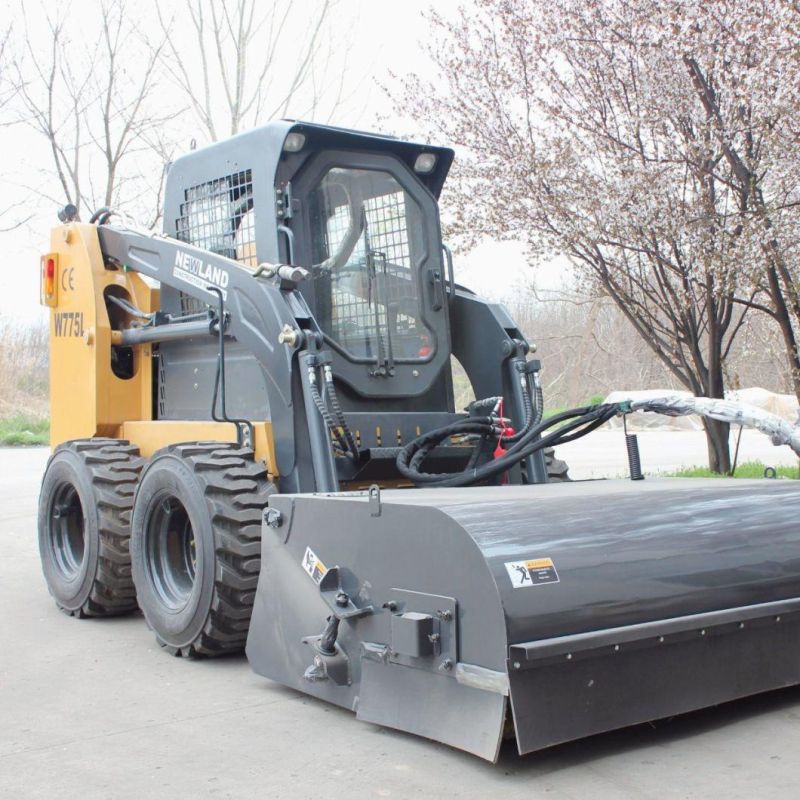

• Model NO.：W775L
• Type：Medium-sized Loader
• Rated Power：75HP
• hydraulic Flow Output：80L,Min
• Unloading Height：2310mm
• Unloading Distance：770mm
• Rated Bucket Capacity：0.5m3
• Transport Package：None
• Specification：3490x1820x2050mm
• Trademark：Newland
• Origin：Xuzhou City
• Production Capacity：500pieces,Year

W775L

Engine model

DEUTZ 498T

Bore x stroke  (mm)

98X105

Rated power (Kw)

74HP

Rotating speed  ( rpm)

2500

Number of cylinders

4

Max. torque (N .m)

245

Displacement ( L)

3.168

Max. Speed(km/h)

12

tire(track)model

12-16.5

Operating load  (kg)

960

Bucket width (mm)

1880

Bucket capacity  (m³)

0.5

Rated flux  (L/min)

75

Fuel tank capacity (L)

80

self weight bucket (kg)

3350

Overall operating height (mm)

4000

Height to bucket hinge pin (mm)

3100

height to top of cab (mm)

2160

Height to bottom of level bucket(mm)

2933

Overall length without bucket(mm)

2750

overall length with bucket(mm)

3490

Rollback of bucket on ground(°)

30

Rollback of bucket at full height(°)

104

Wheelbase(mm)

1085

Ground clearance(mm)

205

Angle of departure(°)

20

Front turning radius without bucket(mm)

1204

Front tuning radius(mm)

2030

Rear tuning radius(mm)

1706

Rear axle to bumper (mm)

1082

Engines: adopting international famous engine brand - perkins engines, which its manufacturer have established a good business relationship with us for many years, to ensure that the machines are capable of working under various environment.

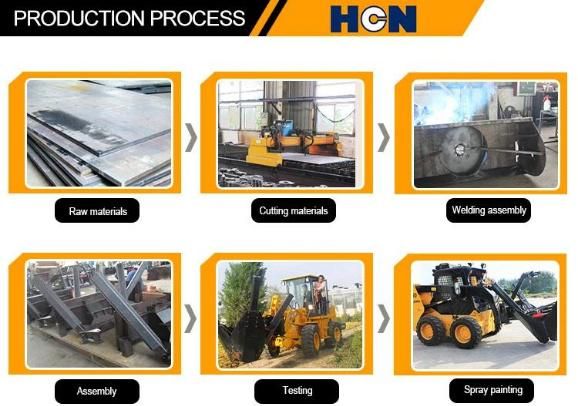

Form: all structural parts are designed and produced by ourselves, possessing aesthetic appearance and durability, which its hydraulic tank, fuel tank and chassis are integrated perfectly in the structure to fully maximize the work performance of the production.

Operation system: the operating system can choose the advanced mechanical control or the pilot control lever. Pilot control lever combining an easy and flexible control for various functions along with various types of instrument parameters can greatly improve degree of comfort for operator.

Leveling system: adopting imported machinery or hydraulic leveling system, which can not only improve the efficiency but also increase the safety factor.

Cab: full closure, big space, objects anti-falling design, anti-turnover design and 360 degree visible design along with seat safety bar can achieve a comfortable work for any physique and a precise control operation. Cab air-conditioning system can be powerful in wide environmental condition (such as scorching weather, bitter winter and excessive dust environment) by virtue of cab enclosure which is inclusive of a roof, rear window and side windows.

Maintenance: open type of the cover, rear cover, and top cover will make the production possible to be inspected in all aspects of production parts including its engine, filter and battery. in the maintenance of Safeway and maintenance without lifting stand-arm, which can efficiently save maintenance time.

HCN is specialized in manufacturing construction attachments for skid steer loader, backhoe, excavator and loader. And HCN can also design and produce skid steer loader, compact loader and wheel loader. Xuzhou HCN Machinery Technology Co., Ltd has also a subsidiary brand named Newland, which is specialized in designing and producing skid steer loader, compact loader and loader.

HCN has the ability of providing clients around the world with good quality products, customized service (such as customized product, techinical analysis, product refit) and competitive price based on strong technical foundation that has been gradually formed during the past 14 years.

HCN company is located in Xuzhou city, Jiangsu Province. Xuzhou city is the capital of China's construction machinery, whose history of machinery manufacturing can be traced back to the year of 1943 (China's first crane truck and road roller). There are more than 300 large, medium and small machinery factories in the city. And Xuzhou city has some international famous manufacturers like Caterpillar, Liebherr, XCMG, Doosan, Global Casting, Kennametal, etc. In this kind of atmosphere in which HCN company immerses, the factory possesses the nearly same level with the top brand factory on product-producing process.
