• Model NO.：SC150,150
• Mast Section Size：650X650X1508mm (or 800X800X1508mm)
• Mast Section Weight：145-180kg (Double Racks)
• Wall-Tie Adjust Length&Qty：2.8-3.2m 1pieces,5 Mast (Can Be Adjusted)
• Main Electrical System：Schneider(Can Be Equipped with PLC Fault Sensor )
• Color：Changed
• Transport Package：Container
• Specification：40HQ
• Trademark：XINGDOU
• Origin：China
• HS Code：84281090
• Production Capacity：3500 Sets,Year

CharacteristicModelRated LoadingLifting SpeedMotor PowerDouble cagesSC200/2002x2000kg33m/min2x(3x11kw) /
2x(3x8.5kw)SC150/1502x1500kg33m/min2x(2x13kw)SC100/1002x1000kg33m/min2x(2x11kw)Single cageSC2002000kg33m/min3x11kw /
3x8.5kwSC1501500kg33m/min2x13kwSC1001000kg33m/min2x11kw
2. Personnel and materialsCharacteristicsModelRated LoadingLifting SpeedMotor PowerDouble cagesLow speedSC200/200D2X2000kg0-40m/min2x(3x11kw) /
2x(3x8.5kw)SC100/100D2x1000kg0-40m/min2x(2x13kw)Mid speedSC200/200Z2x2000kg0-60m/min2x(2x23kw)SC100/100Z2x1000kg0-60m/min2x(2x15kw)Single cageLow speedSC200D2000kg0-40m/min3x11kw /
3x8.5kwSC100D1000kg0-40m/min2x13kwMid speedSC200Z2000kg0-60m/min2x23kwSC100Z1000kg0-60m/min2x15kw
Product Details:
Production process:
Strict material selection-  blanking- inspection - welding-inspection- Blasting - inspection -Baking finished or galvanized- inspection -Finished product

A:Special design for Cage :
1. bottom and roof of Cage adopt  trapezoidal frame
2. Bottom and the roof are full symmetry
3. The plane of symmetry are connected by  Bending plate,  Bending channel and  square pipe which make it  firm, straight and balance in use.
4. The wall around cage can be fixed by Punched  Aluminium plate, Punched zinc plate, steel wire mesh.
5. Surface Treatment: Blasting, Baking finished,Galvanized

 B:About the mast section

1. Steel plates are bented of U-shape to strengthen the mast section.

2. Mast section with galvanized coat or heat spray coat can be chosen.

3. High quality steel plate Q345B bended by special machine: Thickness 4.5mm.

4. Welded steel tube Q345B and seamless steel tube 20# are also available: Ø76*4.5mm or Ø89*4.5mm  (Thickness of 6mm or 8mm is also available).

5. 650*650*1508mm is the most common size fits for clients. Other model of mast section can choose:  450*450*1508mm, 650*900*1508mm,800*800*1508mm

Certificates:
 We own International Certificate and standard CE, ISO9001, SGS, BV of construction hoist.

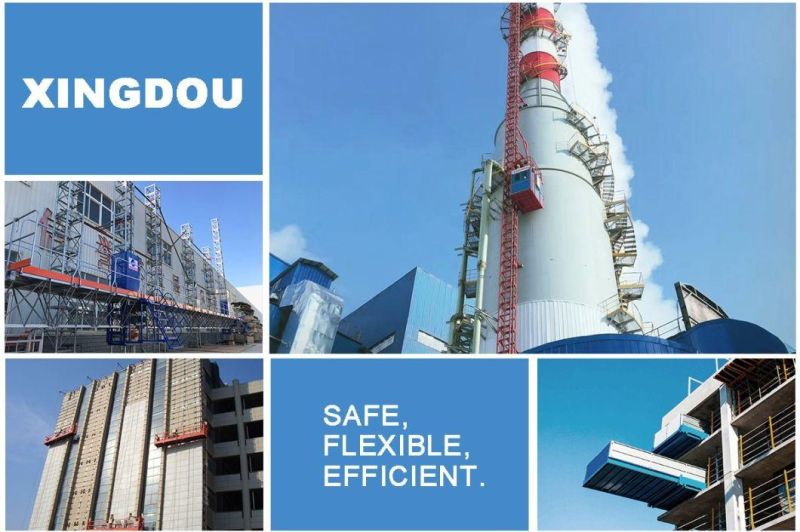

About us:
After nearly 10 years of development, Xingdou already has a sound production and marketing system. Our customers not only radiated to China, but also opened up our markets in the Middle East, Central Asia, South America, Southeast Asia and other regions. Every year, customers from all over the world came to visit and sign orders. Our products have been well received by customers.

We own International Certificate and standard CE, ISO9001, SGS, BV of construction hoist.

After-sale services:

1.Quality Assurance:    Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager.

2.Excellent Package:    We provide standard,strong,protective package for our products to prevent is from outer damage.

3.Quickly Response:    Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry.

Welcome to visit our factory!
