• Model NO.：DH13K
• Engine Power：130HP
• Certification：CE
• Condition：New
• Color：Yellow
• Blade Width：4200mm
• Engine Model：Qsb6.7
• Gross Power：118kw(235HP)@2200rpm
• Max. Torque：760n.M@1500rpm
• Displacement：6.7L
• Track Gauge：1930mm
• Operating Weight：13700kg
• Blade Capacity：3.4m3
• Ground Clearance：360mm
• Max. Lifting Height of Blade：950mm
• Max. Digging Depth of Blade：460mm
• Transport Package：Nude Package
• Specification：6060*4200*3400mm
• Trademark：SHANTUI
• Origin：China
• HS Code：8429119000
• Production Capacity：500sets,Year

Basic Info.

Model NO. DH13K Engine Power 130HP Certification CE Condition New Color Yellow Blade Width 4200mm Engine Model Qsb6.7 Gross Power 118kw(235HP)@2200rpm Max. Torque 760n.M@1500rpm Displacement 6.7L Track Gauge 1930mm Operating Weight 13700kg Blade Capacity 3.4m3 Ground Clearance 360mm Max. Lifting Height of Blade 950mm Max. Digging Depth of Blade 460mm Transport Package Nude Package Specification 6060*4200*3400mm Trademark SHANTUI Origin China HS Code 8429119000 Production Capacity 500sets/Year

Product Description

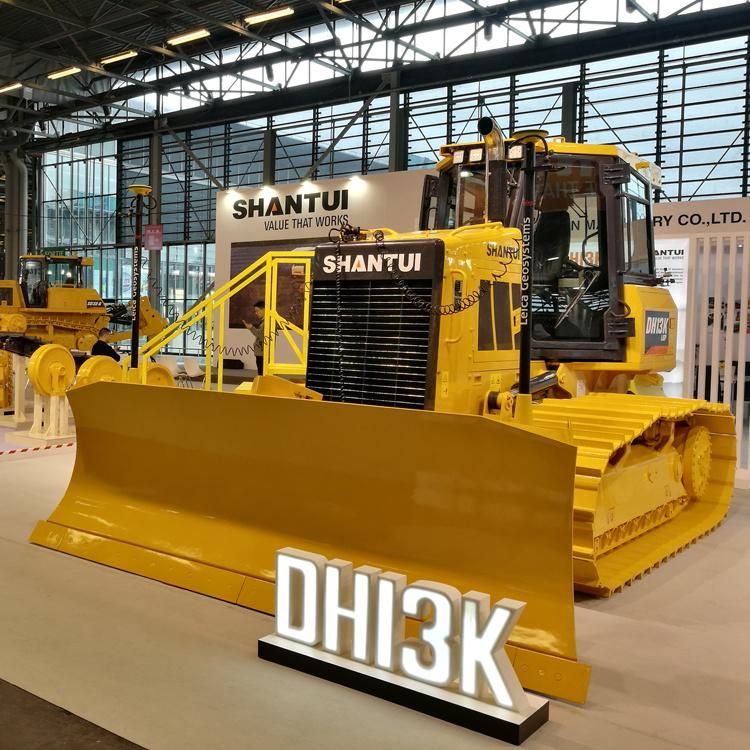

SHANTUI 130HP Full Hydraulic Bulldozer DH13KProduct DescriptionPower System
The installed N67 electronic control engine conforms to the EPA Tier4final/EU Stage IV emission regulation, featuring stronger power and higher energy-saving and environmental friendliness. The after-treatment system adopts FPT's unique HI-SCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.
Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user's choice depending on a load of actual working conditions to realize a reasonable match among power, efficiency, and energy consumption.
Standard mode
It can provide strong power performance and excellent operating control performance for the operator.
Power mode - It can provide stronger power performance to meet your higher needs for heavy-load conditions.
Economic mode
Under medium-load/light-load conditions, it can run the engine at relatively low speed to thus remarkably reduce the fuel consumption. Meanwhile, in event of a power need, it can quickly increase the speed to save the fuel by 5%~20%. The specific condition depends on the application condition.
The air suction type temperature-controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.
Parameters

Parameter name	DH13-K2 XL (Extended version)	DH13-K2 LGP(Low ground pressure version)
Performance parameters
Operating weight (Kg)	14200kg/31306lb (With traction frame)	14800kg/32628lb (With traction frame)
Ground pressure (kPa)	48	36.9
Engine
Engine model	N67	N67
Rated power/rated speed (kW/rpm)	118/2200	118/2200
Overall dimensions
Overall dimensions of machine (mm)	5010*3380*3110	5010*3680*3110
Driving performance
Forward speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Reversing speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Chassis System
Center distance of track (mm)	1930	2150
Width of track shoes (mm)	560	760
Ground length(mm)	2640	2640
Tank capacity
Fuel tank (L)	263	263
Working device
Blade type	Power Angle Tilt	Power Angle Tilt
Digging depth (mm)	460	460
Ripper type	Three-shank ripper	Three-shank ripper
Ripping depth (mm)	500	500

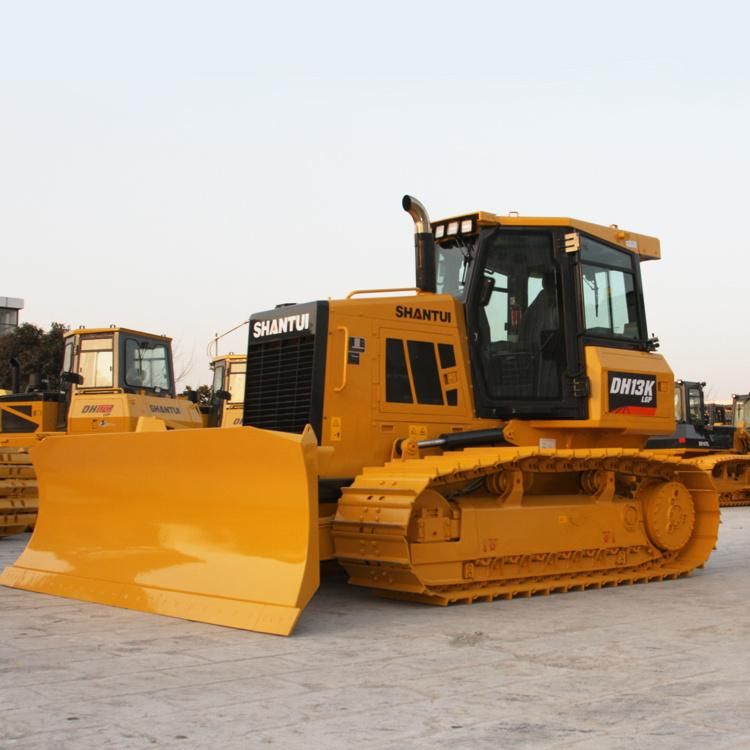

Detailed Photos
