Js500 25m3/H Twin Shaft Concrete Mixers for Sale
Zhengzhou Focus Machinery Co., Ltd.- After-sales Service：Engineers Available to Service Machinery Overseas
- Warranty：12 Months
- Type：Concrete Mixer
- Shotcrete Type：Semi-Dry
- Machining Process：Concrete Mixer
- Structure：Spiral Type
Base Info
- Model NO.：JS500
- Productivity：25m²,h
- Feeding Height：1390mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：All Colors
- Output Capacity：25m3,H Concrete Mixers
- Discharge Height：1.5-4.1m Adjustable
- Mixing Blade：Spiral
- Aggregate Size：80mm
- Material：Manganese Alloy Steel
- Mixer Shaft-End：Multi Layer Sealed
- Gearbox Reducer：Original-Imported Parts
- Greasing System：Automatic
- Matched Plant：Hzs50,60 Concrete Batching Plant
- Weight：4000kg
- Keyword：Concrete Mixers
- Transport Package：Standard Packing for Concrete Mixers
- Specification：3030x2300x2680mm
- Trademark：FOCUS
- Origin：Zhengzhou, Henan
- HS Code：847431000
- Production Capacity：25m3,H
Description
Dimension(LxWxH)
mm3030x2300x2680 4550x2250x2450 4640x2250x2250 5058x2250x2440 3810x2480x1710 4220x2620x1910 4450x3050x2380
Why would our clients choose FOCUS concrete mixers?

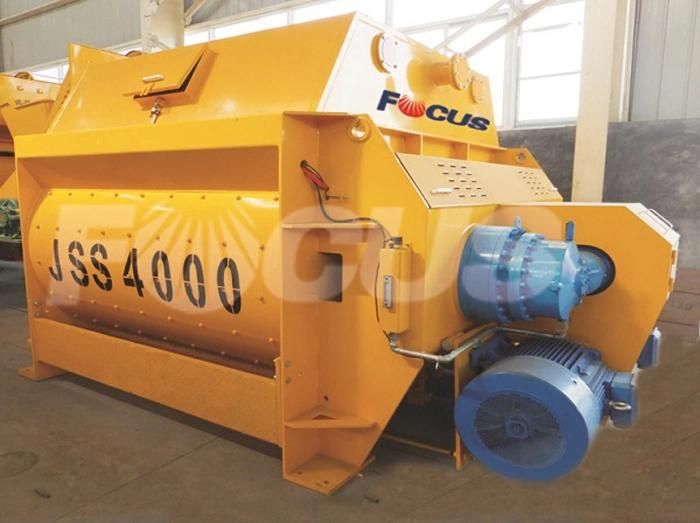

FOCUS JS series of twin-shaft compulsory concrete mixer has the strong mixing ability with uniform mixing and high production output. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts. Shaft seals use multi-sealed structures to effectively prevent the slurry leakage. Lubricating system of the concrete mixer supplies oil to the four shaft-end respectively with four pump cores, without diverter valve in order to avoid unnecessary blocking, saving much less maintenance work.

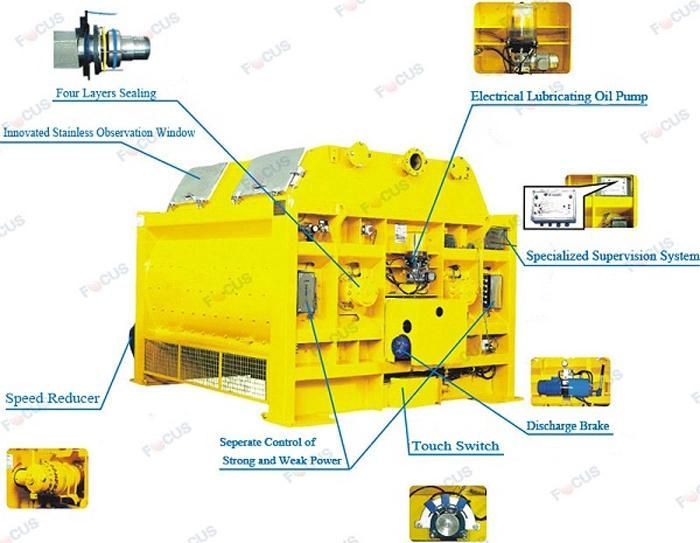

What are the main features of FOCUS concrete mixers?
*Mixer drum
Focus concrete mixers adopt European style, good-looking and wear-resistant.
*Synchronizer
Original imported from Italy to ensure the synchronous running of mixing arms.
*Mixing blades and scale boards
Adopt high-rigidity and high-tenacity wearable cast alloy steel to prolong the service time, which also is optimized torsional and bending strength of our concrete mixer.
*Axle-end seal
Adopt original-imported parts installation to avoid cement and slurry enter in shaft-head so that extending the service life of concrete mixer.
*Observation windows
Full width access hatch allows easy access; includes high security positive disconnect lock.
*Reducer
Reducer and oil sealing system is made by Italian BONFILIOLI, they are designed for FOCUS concrete mixer, features for long service life, lower noise and oil tightness.
*Discharging system
Hydraulic discharging system; Strong driving force, discharging smoothly; Discharging gate of the concrete mixers adopt disassemble structure, easy for reparation, the gate could be opened at each standpoint; A manual lever allows the gate to be opened in case power lost.
*Electric lubricating pump
Supplying oil to four axle-end respectively with four pump cores, without by-pass valve.
*Four-layers sealing technology
The concrete mixer applies reliable axial seal and all sealing parts are easy to be replaced, also suitable for bad work conditions for daily maintenance.

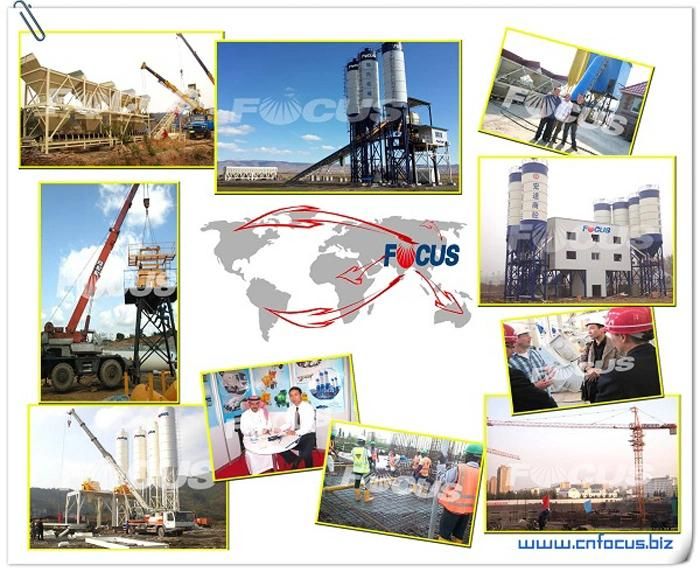

Our concrete mixers have been purchased, installed and operated all over the world:
Our concrete mixers have been delivered to the many different countries with good reputation, it'll be such a great honor if you can join us:
FOCUS Honors:
FOB PRICE: USD4000-5000per set
PORT: QINGDAO, CHINA
Payment term: L/C, TT
Supply ability: 120 sets per month
Delivery time: 10 days

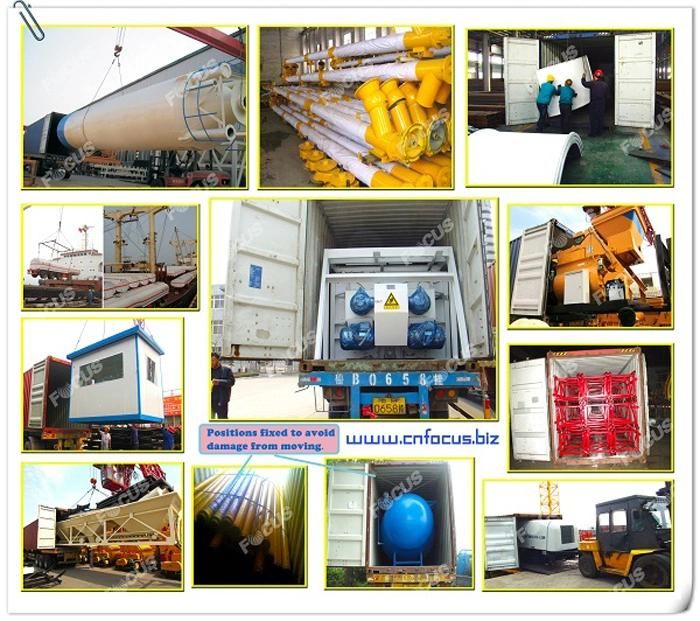

Packaging details: standard packing for international transport of twin-shaft concrete mixer
