Engineering & Construction Machinery

Bangbo Concrete Mixer Machine Drum Type Truck Mounted Pump

HUNAN BANGBO MACHINERY CO., LTD.
  • After-sales Service:Provided
  • Warranty:Provided
  • Type:Concrete Pump
  • Shotcrete Type:Semi-Dry
  • Machining Process:Hydraulic
  • Structure:Cylinder Type

Base Info

  • Model NO.:JBT30C-8008B3
  • Productivity:30m3,H
  • Feeding Height:1080mm
  • Vibrating Amplitude:2.6mm
  • Certification:ISO9001: 2000, CE
  • Condition:New
  • Color:Red
  • Power Type:Diesel
  • Power:62,72 Kw

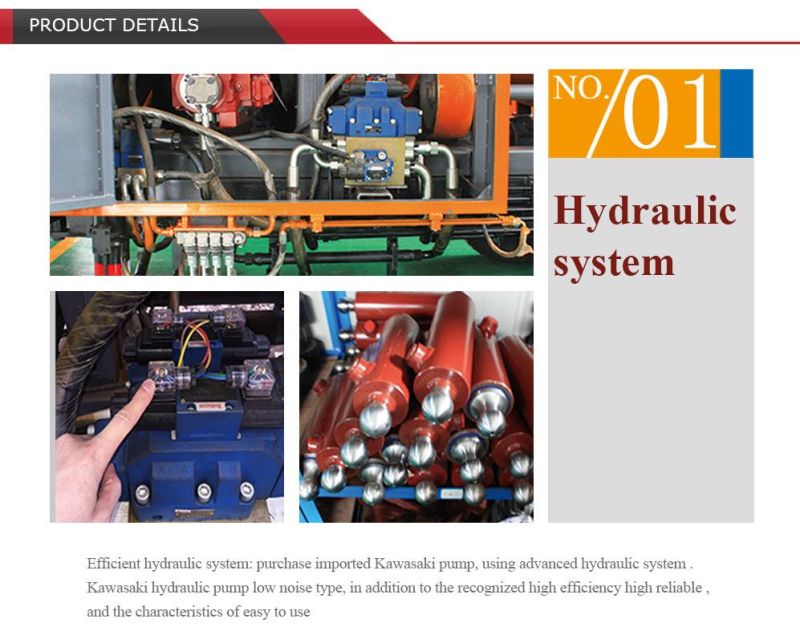

  • Main Hyd. Pump Brand:Kawasaki
  • Max Therotic Output:30m3,H
  • Max Pressure:8 MPa
  • Max. Horizontal Conveying Distance:360-300m
  • Max. Vertical Conveying Distance:70-100m
  • Delivery Cylinder:200mm
  • Oil Tank Capacity:170L
  • Diameter of Drum:1440mm
  • Inner Dia of Delivery Pipe:125mm
  • Lifting Hopper Capacity:450L
  • Drum Mixer Model:Js500
  • Capacity of Discharge:800L
  • Weight:5500kg
  • Transport Package:Container, Roro Ship, Cargo Bulk Ship
  • Specification:5500*2000*3600mm
  • Trademark:BANGBO
  • Origin:China
  • HS Code:8413400000
  • Production Capacity:50 Set,Sets Per Month

Description

QUANTITY IN 20FT CONTAINERSET1

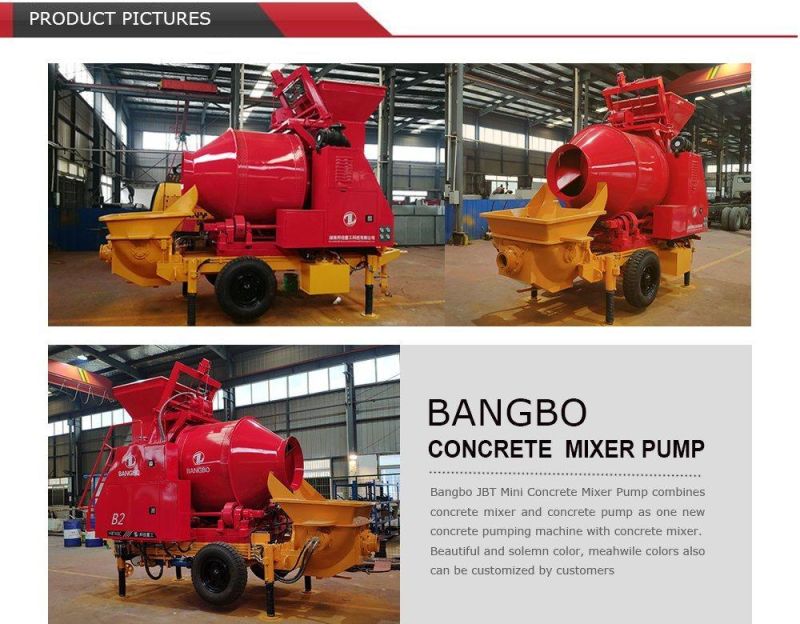

Bangbo Concrete Mixer Machine Drum Type Truck Mounted Pump


According to the Simple operation



With the whole machine could be handle by one person Extremely saving the labor and employee

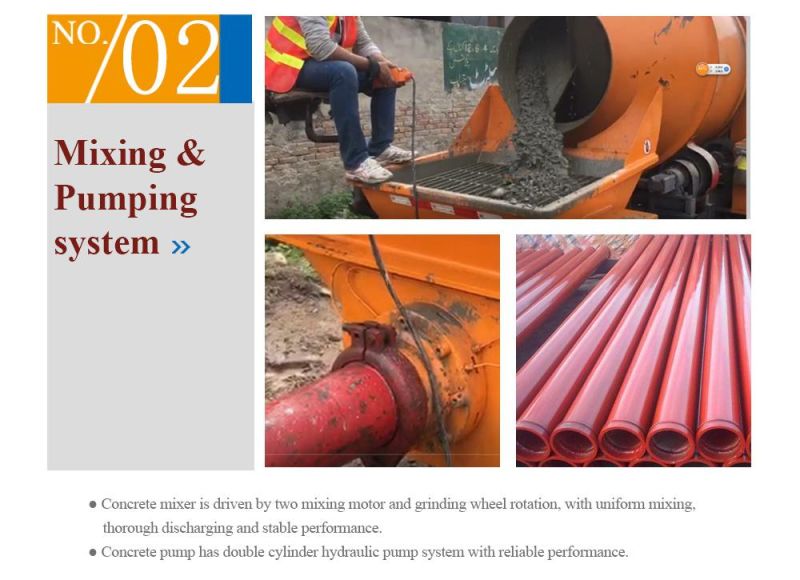

Get benefit from the muti-functional that Integrated  the mixing and pumping by one machine, which its Intelligent muti-function design have solved the large manpower problem in normal construction projects
Low invest and risk,Other concrete pump truck,concrete pump and concrete batching plant was Unnecessarily
More 4-5 times work efficiency, short period of return profit than normal pump,
large particle of all kinds of aggregate like coarse sand, river sand and the red sand can be easily pumped, In view of the scientific ratio of the self-mixing ingredient as known as 4-5 fingers refers to a reasonable ratio.
More Safer; Keep more security by easily pumped 20 floors or more
More efficient: 0.75m3 loading hopper, which its stable structural design and large volume have  obviously improved overall efficiency
More stability: strictly regulate the process and make sure zero- failure rate
More reliable: 70 meters for vertical distance and 300 meters for horizontal distance as high-perform capability



Bangbo Concrete Mixer Machine Drum Type Truck Mounted PumpBangbo Concrete Mixer Machine Drum Type Truck Mounted PumpBangbo Concrete Mixer Machine Drum Type Truck Mounted PumpBangbo Concrete Mixer Machine Drum Type Truck Mounted PumpBangbo Concrete Mixer Machine Drum Type Truck Mounted PumpBangbo Concrete Mixer Machine Drum Type Truck Mounted Pump
  • Bangbo Concrete Mixer Machine Drum Type Truck Mounted Pump

Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products as customers' request.

 Q2:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q3: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q4: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.

Q5: How many types of   bangbo concrete mixer pumps do you have?

A: The motor ,diesel and electric.
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ. If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai ?

 Q6: How long and high is  the pump distance?

A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

 Q7: How to guarantee customers get the goods smoothly after they pay?

A: We joined the trade assurance. you can place the order by trade assurance,and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
