Outdoor Portable Light Plant Machine Mobile Lighting Tower
Fujian Robust Power Co., Ltd.- After-sales Service：Warranty Service
- Warranty：Warranty Service
- Fuel Capacity：1.85L,Hr(15 Litres,Tank)
- Engine Speed：3000rpm,3600rpm
- Power Generation：4.5kw or 5.0kw Continuous (DC)
- Voltage：220, 230, 240V
Base Info
- Model NO.：RPLT-1600
- Light Power：4*400W Metal Halide Lamp,4*160W LED Lamp
- IP Grade：IP54
- Lumen Output：4*25, 000lm,70400lm
- Guarantee：1 Years
- Control System：Digital Control Panel
- Delivery Time：Within 35 Days After Receiving Your Deposit
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：1350*840*2600MM
- Trademark：Robuster Lighting
- Origin：China
- HS Code：9405409000
- Production Capacity：250sets,Month
Description
Basic Info.
Model NO. RPLT-1600 Light Power 4*400W Metal Halide Lamp/4*160W LED Lamp IP Grade IP54 Lumen Output 4*25, 000lm/70400lm Guarantee 1 Years Control System Digital Control Panel Delivery Time Within 35 Days After Receiving Your Deposit Transport Package Plywood Tray/Plywood Cases/Cartons Specification 1350*840*2600MM Trademark Robuster Lighting Origin China HS Code 9405409000 Production Capacity 250sets/MonthProduct Description
Outdoor Portable Light Plant Machine Mobile Lighting Tower
Key Features Include:
Compact and economical
4x400W Metal Halide Lamps
4x160W LED Lamps
4.8m Telescopic, 3 stages mast
Mast with self-locking mechanism
Push Handle
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp/Metal Halide Lamp/Moon Light |
| Power of lights | 4*160W LED lamps 4*400W Metal Halide Lamp 2*1000W Moon Light |
| Lumen Output | 4*19200lm/ 4*25,000lm/2*110,000lm ( total ) |
| Voltage | AC 110V-240V |
| Frequency | 50/60Hz |
| Longevity | 3 years/2000 Hrs/2000 Hrs |
| Waterproof grade | IP54 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Manual mast |
| Mast section | 3-section telescopic |
| Max. height of mast | 4.8meters |
| Mast rotation system | Winch(Mechanical) |
| Engine | |
| Engine model | RP186FA Single cylinder, 4-stroke, air cooled |
| Start system | Electric (Battery start) |
| Engine speed | 3000rmp-3600rmp |
| Rated power | 4.5KW/50HZ, 5KW/60HZ |
| Insulation | H |
| Fuel tank capacity | 22L |
| Fuel consumption | 1.85L/hr |
| Maximum Working Hours | 10H |
| Waterproof grade | IP54 |
| Trailer | |
| Stabiliser Supports | 4*Manual |
| Tire Size | 25cm |
| Brakes | Manual |
| Packing | |
| Net weight | 270 kg |
| Dimention | 1350X840X2600 MM |

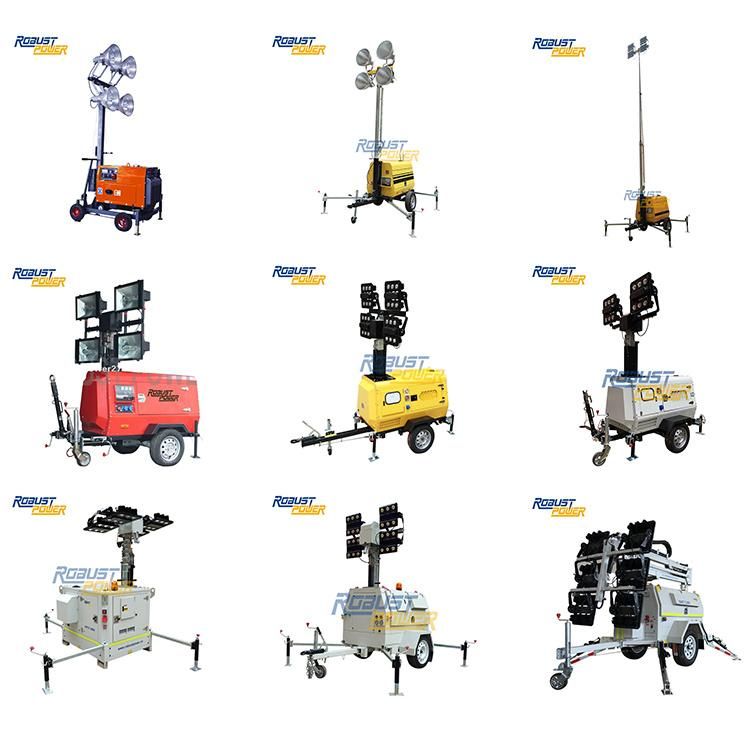

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
Factory Brief Introduction:
Fujian Robust Power Co., Ltd. was established in 2007. During 10 years, with a strong research and development team, strictly quality
control system and high manufacturing capability, as well as in-depth knowledge of customer requirements, we become one of the favorite
suppliers in the market.
Our main products include Mobile Lighting Tower, Generator Set, LED Light. All steps from raw materials to procurement, production,
testing, sales and after-sales service are under a very strict quality monitoring system.

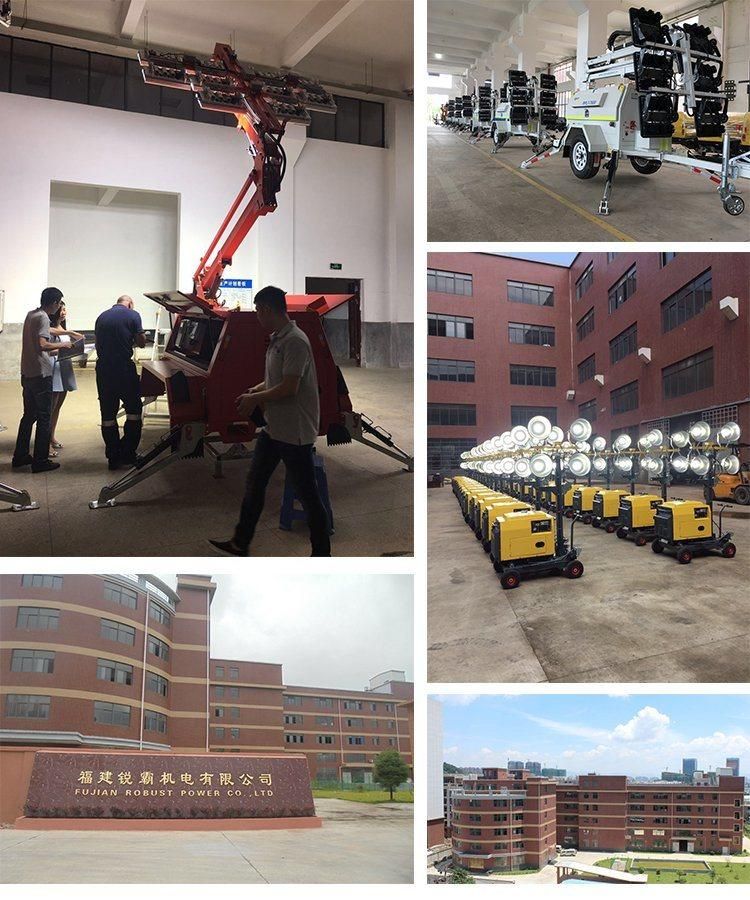

Our Company occupies an area of 23,000 square meters. Have more than 100 staffs. There are 3 advanced production lines in the working
shop.See below what we can offer:
1. Strong R&D team, package, and graphics design.
2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.
Verified on site by world-leading inspection company, TüV Rheinland.
3. 10 QC staff and a line of advanced testing equipment to further ensure quality.
4. Production capacity: 300 unit products per month.

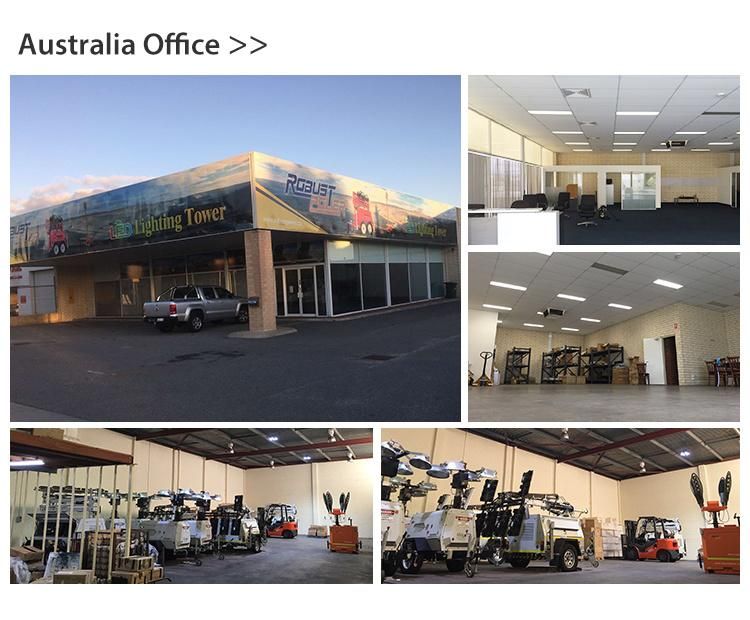

5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.
6. Responses within 12 hours for all your inquiries.
Certifications:
FAQ:
