• Model NO.：ZT
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• Capacity：5.5,H
• Pipe Diameter：50mm
• Pressure：0.2-0.6MPa
• Air Consumption：7-8,Min
• Motor Power：5.5kw
• Transport Package：Wooden Box
• Trademark：ZHONGTUO
• Origin：China
• Production Capacity：50piecces,Month

Basic Info.

Model NO. ZT Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Orange Capacity 5.5/H Pipe Diameter 50mm Pressure 0.2-0.6MPa Air Consumption 7-8/Min Motor Power 5.5kw Transport Package Wooden Box Trademark ZHONGTUO Origin China Production Capacity 50piecces/Month

Product Description

Introduction of Pz-5 dry-mix gunite machine:

Pz-5 dry-mix gunite machine is mainly driven by motor, reducer, rotor assembly, sealing plate, rubber plate, compactor mechanism, hopper seat, mine wheel, vibration hopper, compression mechanism and air Systems and electronic control devices and other components. The motor shaft ends the drive gear shaft and, after decelerating by the gear unit, drives the rotor mounted on the output shaft to rotate. After the gears are decelerated by the gear unit, the rotor mounted on the output shaft is driven to rotate. The transmission gear is lubricated by the lubricating oil in the reducer box and the oil level is measured by the oil injection needle.

Features of Pz-5 dry-mix gunite machine :

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life

parameters:

Model	PZ-5
Jet capacity	5.5/h
Maximum transmission distance	200m
Water-cement ratio	<0.4
The maximum aggregate size	15mm
Feed pipe diameter	φ50mm
Working pressure	0.2-0.6MPa
Air consumption	7-8/min
Drive power	5.5kW(7.5hp)
Voltage level	380V,440V,660V,1140V  50Hz/60Hz
Chassis	chassis can be assembled into a tire type, slippery type, rail wheel type

FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

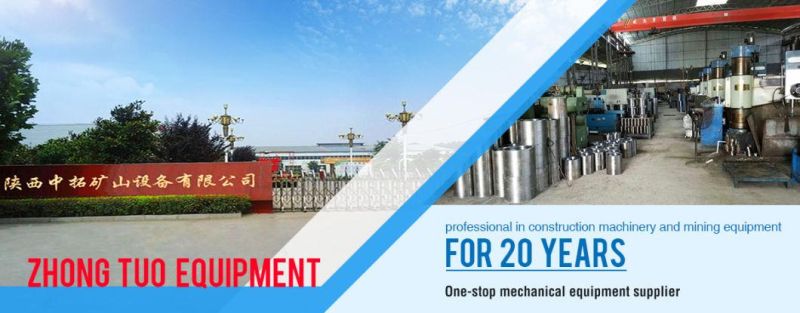

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

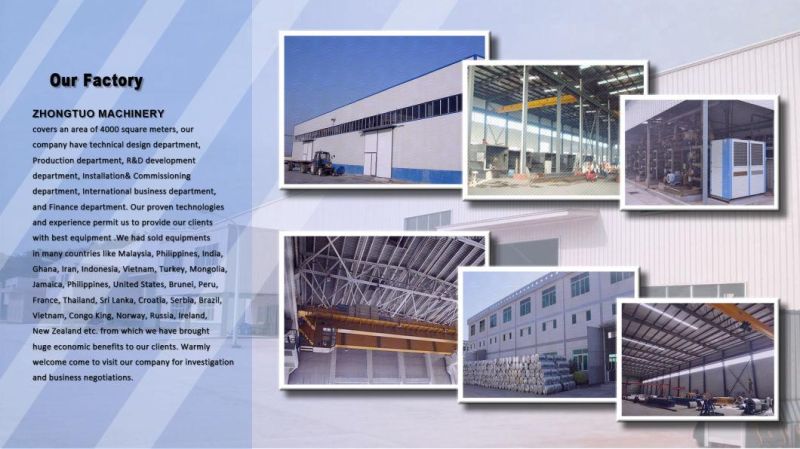

About Our Factory:


About the products:



Packing and Shipping:

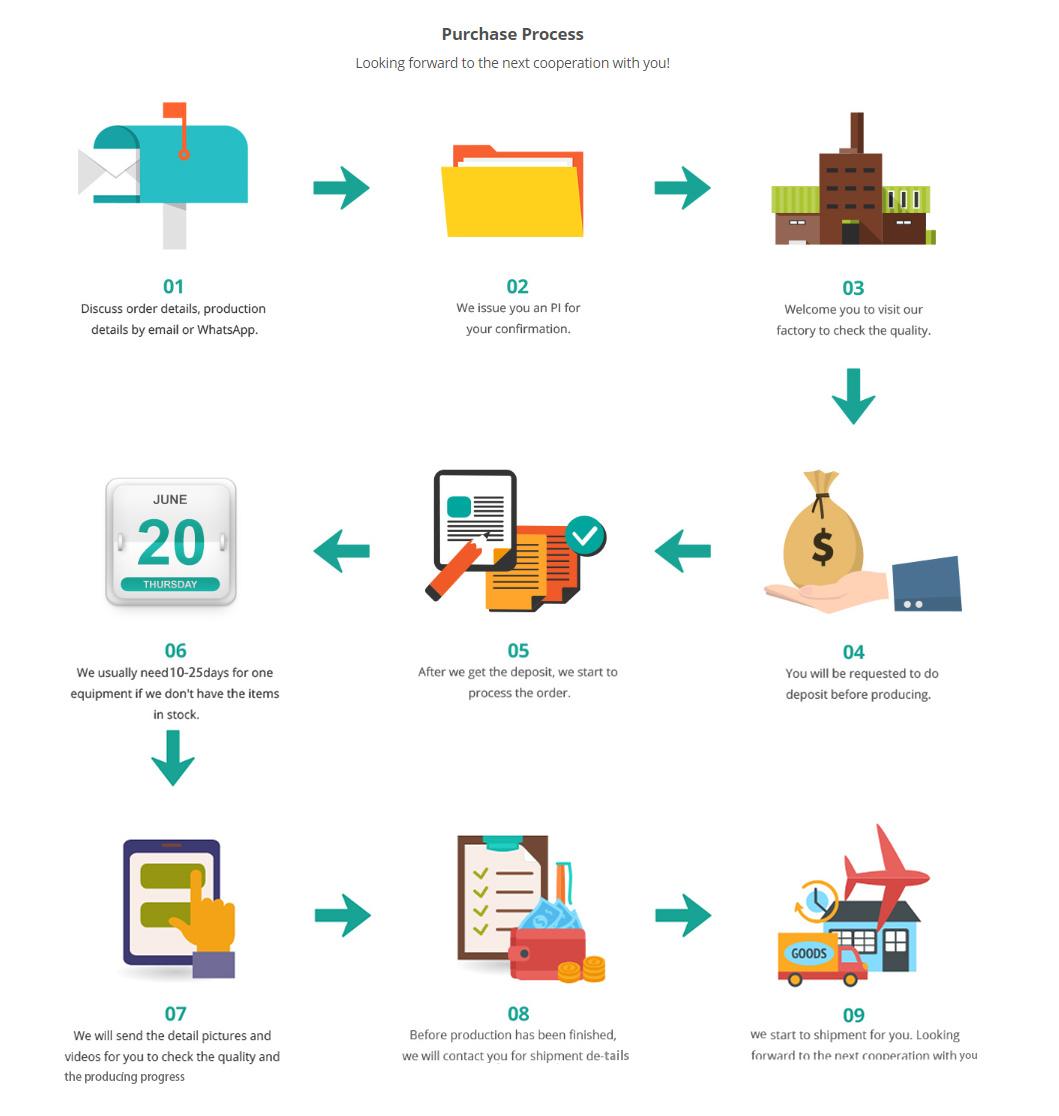

Purchase Process:

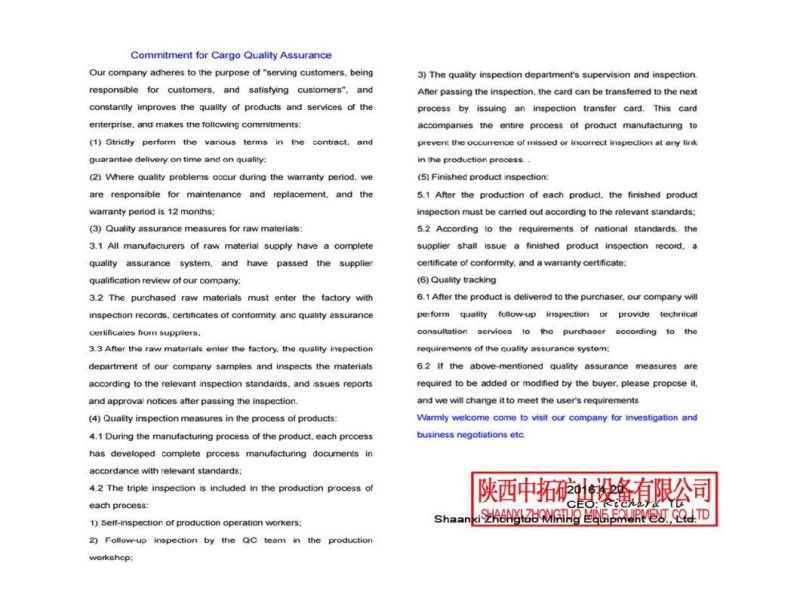

About the Quality:


Others:




Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
