• Model NO.：DCDB1H
• Nominal Pressure：200 Bar
• Nominal Size：15mm
• Nominal Flow Rate：65L,Min
• Solenoid Valve Voltage：DC12V
• Spool Stroke：7+7mm
• Weight：5.9+2.6(N-1)Kg
• Customized Service：Ok
• Transport Package：Packed in Exported Standard
• Specification：5.9+2.6(n-1)kg
• Trademark：Heye & HCHC
• Origin：Anhui, China
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. DCDB1H Nominal Pressure 200 Bar Nominal Size 15mm Nominal Flow Rate 65L/Min Solenoid Valve Voltage DC12V Spool Stroke 7+7mm Weight 5.9+2.6(N-1)Kg Customized Service Ok Transport Package Packed in Exported Standard Specification 5.9+2.6(n-1)kg Trademark Heye & HCHC Origin Anhui, China Production Capacity 5000 PCS/Month

Product Description

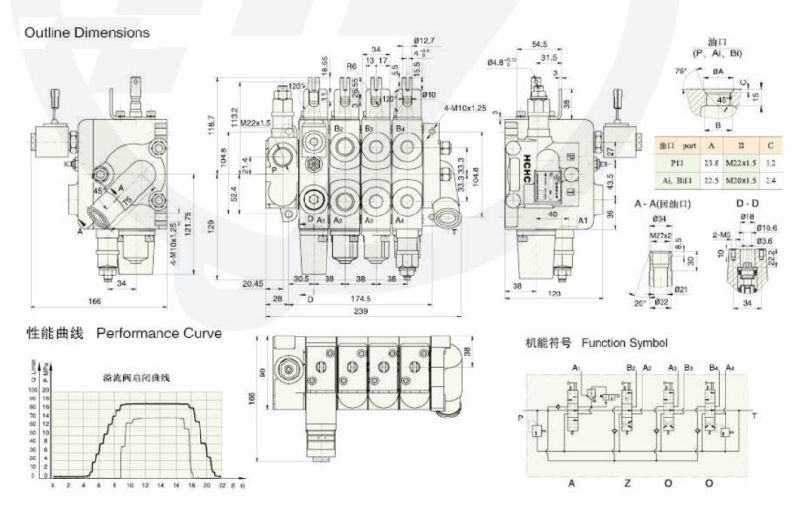

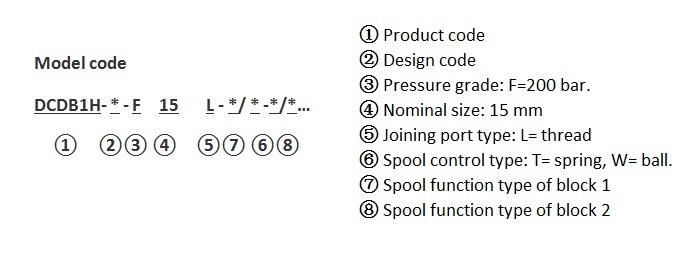

DCDB1H*-F15L Multi-direction valve
Multi-direction valve DCDB1H*-F15L series were widely applied to electric forklift with front position, not only has the function of lifting, tilting, but also increases the solenoid valve of falling protection and manual emergency valve. Featured with full function, high safety, compact structure, advanced and reliable performance, it is used for upgrading the hydraulic system of electric forklift.

Solenoid valve for falling protection: only turn on this solenoid valve, the operation of falling will be effective.
Manual emergency valve: in case of power off or failure of solenoid valve, the machine can be controlled by this manual emergency valve.
Internal check valve: each valve section has an internal check valve to prevent the oil backflow.
Self-lock of valve shaft: Prevent vibration of forklift door frame caused by the negative pressure of tilt cylinder, and when the engine stalls it will lock the tilt cylinder to avoid the malfunction which is possible to result in a safety hazard.
Relief valve: to control the system pressure.
Auxiliary valve: according to the requirement, overload valve and oil filling valve can be added at both ends of valve section.
Structure type: sectional valve, any 1-10 sections may combine upon customer's requirement.
Spool function at neutral position: A, Z, O, Y, etc.

Nominal pressure (bar)	200
Nominal size (mm)	15
Nominal flow  (L/min)	65
Solenoid valve voltage (V)	DC12
Valve shaft stroke (mm)	7+7
Weight (kg)	5.9+2.6(n-1)
