Construction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel Loader

Qingdao Everun Machinery Co., Ltd.
  • Certification：TUV, UL, CE, SGS
  • Condition：New
  • Rated Load：1500kg
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：ER15
  • Type：Small Loader
  • Bucket Capacity：0.6m3
  • Net Weight：3600kg
  • Engine Model：Xinchai498bt Engine
  • Engine Power：36.8kw
  • Lifting Height：3930mm
  • Dumping Reach：980mm
  • Dumping Height：2490mm
  • Working Pressure：17MPa
  • Wheel Base：2265mm
  • Breakout Force：28kn
  • Tyre：20.5,70-16
  • Rated Speed：2400r,Min
  • Fuel Consumption Ration：238g,Kw.H
  • Oil Flow：72L,Min
  • Service Brake：Four Wheel Hydraulic Spread-Shoed Brake
  • Transport Package：3 Units in a 40" High Container
  • Specification：5240mmX1740mmX2600mm
  • Trademark：EVERUN
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：5000 Units Every Year

Description

1.0 Engine Details (1) Model:  Xinchai 498 BT Engine(Euro3 & EPA Engine)(2) Engine Type:  In-line arrangement, water-cooled, four-cycle diesel engine (3) Rated Power:  36.8kw(4) Rated Speed:  2400r/min (5) Fuel consumption ration in Standard working Condition:  238g/kw.H 2.0 Transmission System (1) Type:  Fixed-spindle power shift(2) Shift gear control oil pressure:  1.2-1.5MPa(3) Rated input speed:  2500(rpm) 3.0 Bucket  (1) Bucket Capacity:  0.6m3(2) Bucket Width:  1740mm(3) Bucket Type:  Heavy-duty bolt on teeth(4) Max. Breakout Force: 36.8KN (5) Rated load:  1500kg (6) Operating Weight:  3600kg 4.0 Overall Dimensions (1) Overall Length(bucket on ground):  5240mm (2) Overall Height:   (3) Ground to cab top:  2600mm (4) Dumping Height: 2370mm(5) Min. base to the ground:  275mm(6) Overall width:  1740mm5.0 Operating Specifications  (1) Steering System: Articulated frame with hydraulic power steering(2) Min. Turning Radius: 5200mm(3) Driving System: Hydraulic converter6.0 Brake System (1) Service Brake: Four Wheel Hydraulic Spread-Shoed Brake(2) Parking Brake: Hand operated7.0 Tyre 20.5/70-168.0 Wheelbase 1390mm9.0 Track: 1500mm Standard Equipment For ER15
-Standard Bucket
-Xinchai498 BT Engine(Euro3 & EPA Engine)
-Torque Converter Transmission System
-Rops & Fops Cabin
-Electric Joystick
-Quick Hitch
-Adjustable Steering Wheel
-Comfortable Seat
-Floating Function
-Tipping Cabin
-Cabin Heater
-Engine Heater
-Backward Camera
-20.5/70-16 Tyres
-Parallel Linkage System
-Hydraulic-Pressure Checking System
-Lock for Lifting and Steering Cylinder
-Free Service Spare Parts

Optional Equipment For ER15
-Extra Hydraulic Line
-LED Light
-E4 Lamp
-Tyre Chain
-Three-Point Hitch
-Varta Anti-Freeze Battery
-Air Conditioner
-31*15.5-15 Agricultural Tyres
-33*15.5-16.5 Turf Tyres
-Loading Damper
-Loader Weighter
-Centralized Lubrication System
-5 Functions Electric Joystick
-Kohler 1903TCR Engine(EPA4)
-Cummins QSF2.8 Engine(EPA4)
-Yanmar 4TNV94L Engine(Euro3)
-Different Attachments

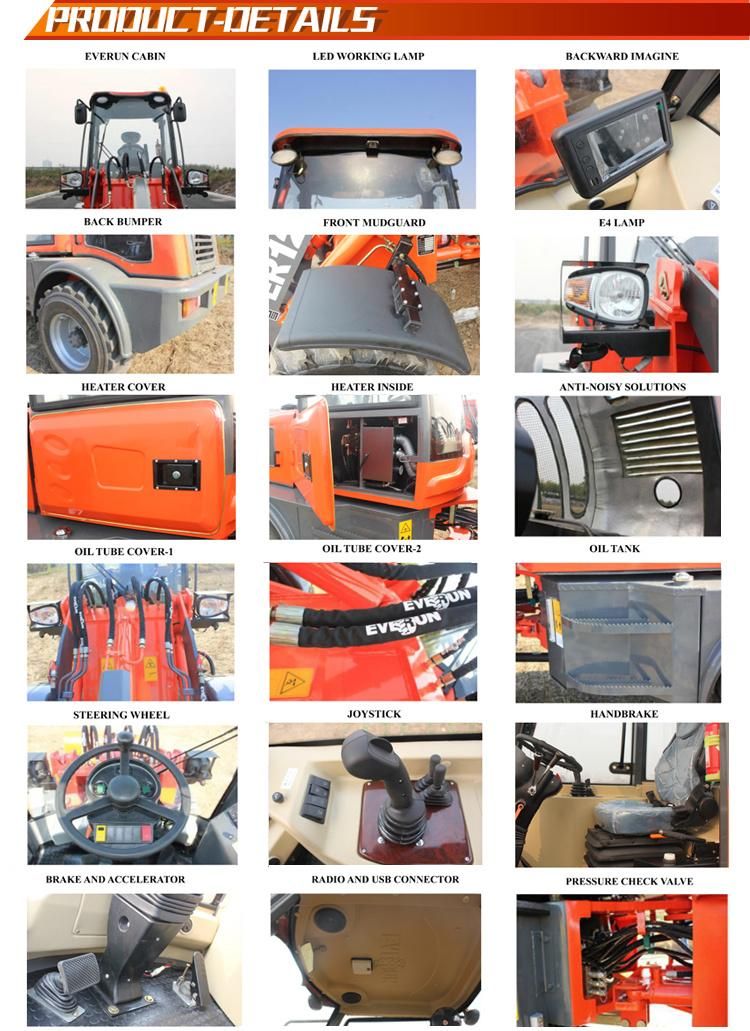

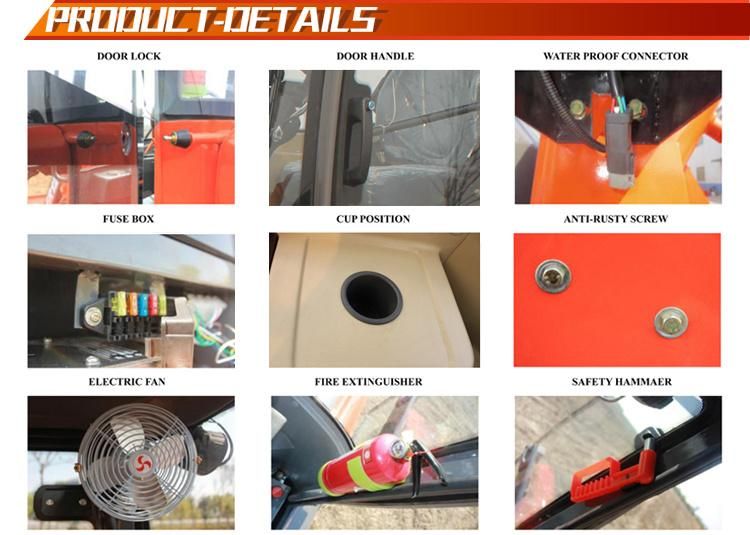

Product Description

Strict Management for details
EVERUN put more time, effort and attention to detials into very machine we make.Construction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel LoaderConstruction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel Loader

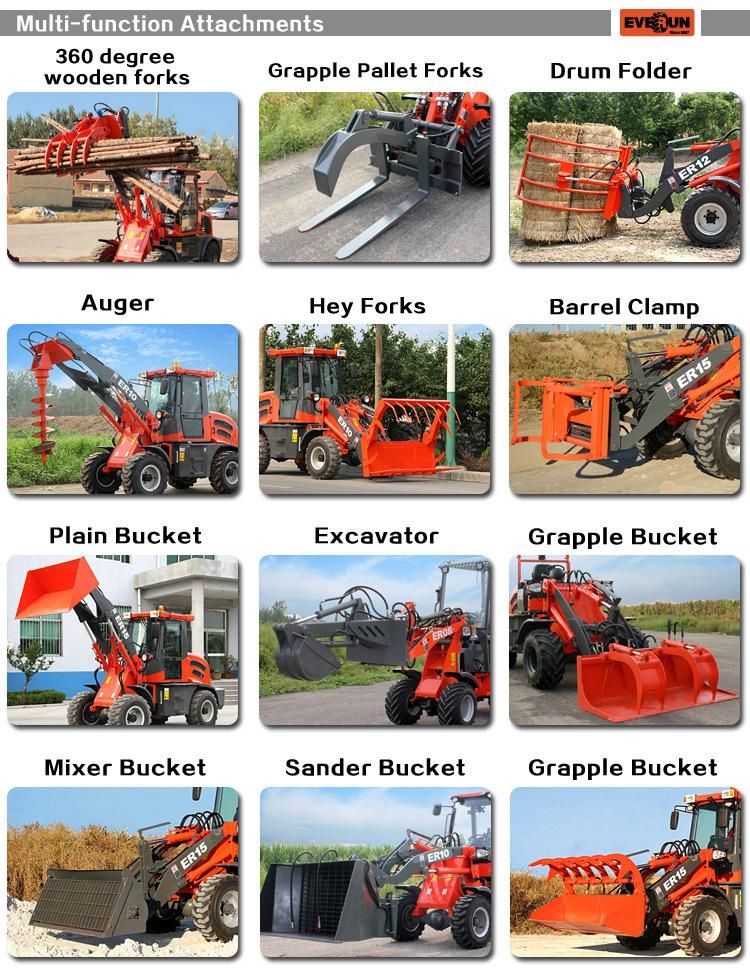

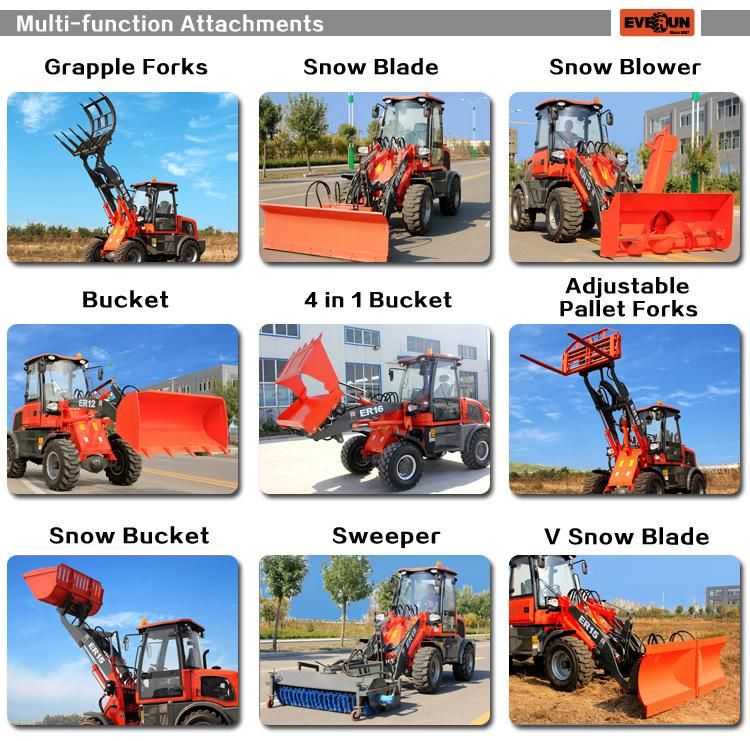

Multi-function Attachments

If our standard euipment cannot match your demand, we can also offer below multi-function attachments to work in different working condition.
More than 30 durable,safe and effective attachments designed especially for EVERUN wheel loaders which can make any job easier.

Construction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel Loader


Construction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel Loader

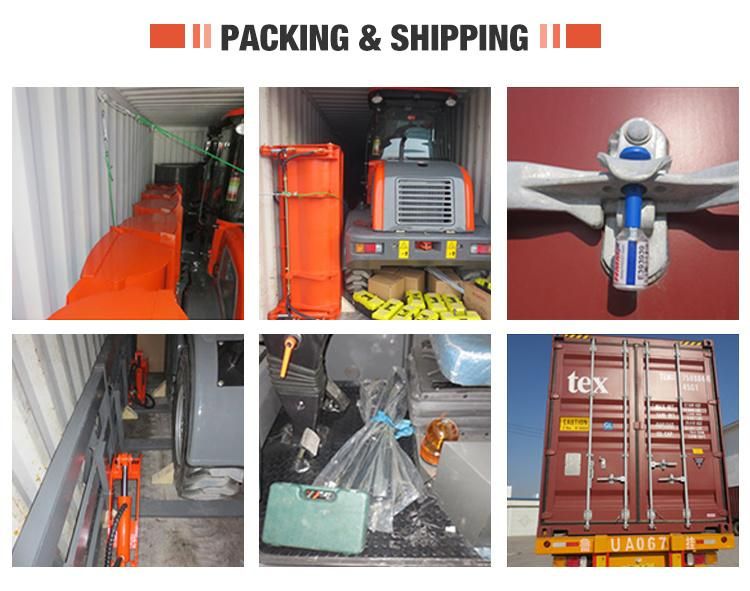

Packaging & Shipping

Construction Machinery Ce Certificated 1.5 Ton Everun Er15 Mini Compact Wheel Loader

FAQ

Q: What is your payment term?
A: L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.

Q: What is your delivery time?
A: Within 35-35days after receving the down payment.

Q: What is your packing details?
A: ER06: 4 UNITS/20GP, 8 UNITS/40HQ

     ER08: 1 UNIT/20GP, 3 UNITS/40HQ

     ER10: 1 UNIT/20GP, 3 UNITS/40HQ

     ER12: 1 UNIT/20GP, 3 UNITS/40HQ

     ER15: 1 UNIT/20GP, 3 UNITS/40HQ

     ER16: 1 UNIT/20GP, 3 UNITS/40HQ

     ER20: 1 UNIT/20GP, 2 UNITS/40HQ

     ER25: 1 UNIT/20GP, 2 UNITS/40HQ

Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.

Q: If products have some quality problem, how would you deal with?
A: We have one year or 1200 working hour warranty for EVERUN wheel loadr, and gurantee you can receive the spare parts within 5 working days. In order to make good service for our European customers, we have set up a warehouse for spare parts in Germany, which could guarantee European customer a better after-service.
