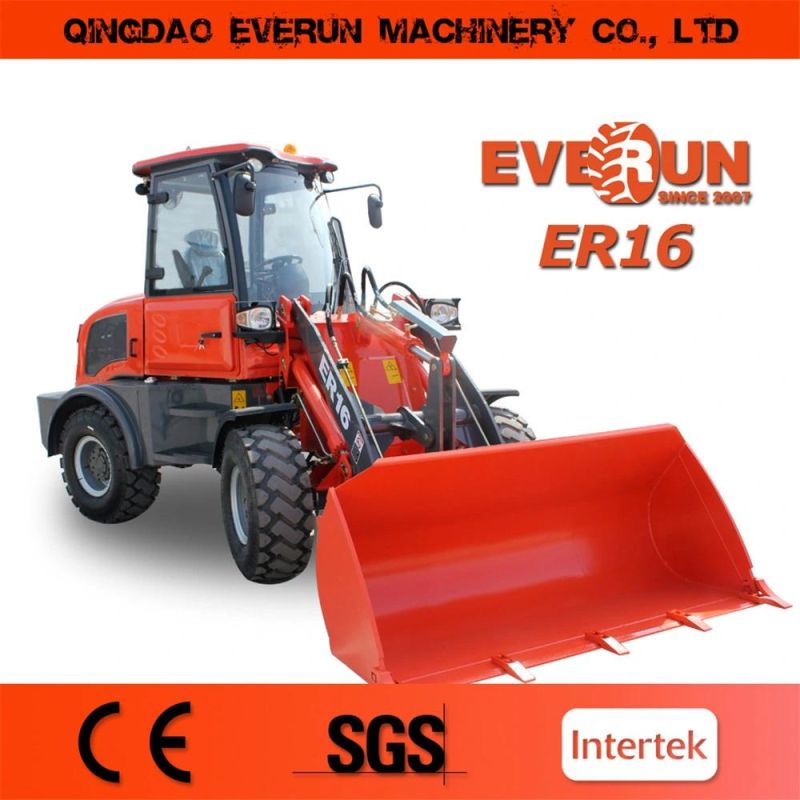

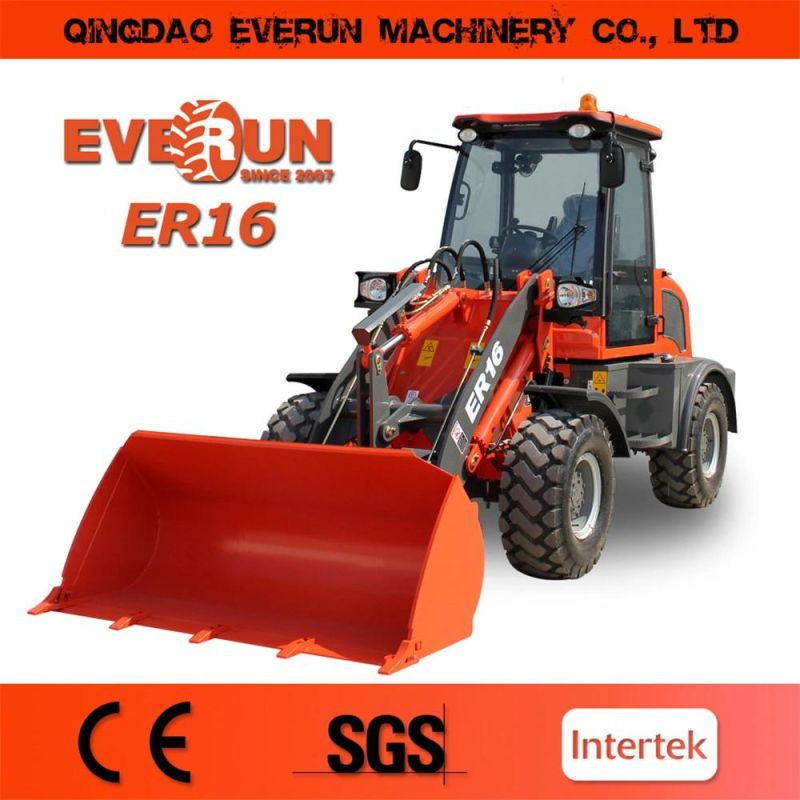

Earth-Moving Ce Approved Machine Everun Brand 1.6ton Er16 Mini Wheel Loader

Qingdao Everun Machinery Co., Ltd.
  • Model：Xinchai498 Engine(Euroiii and EPA Certificate)
  • Rated Power：37kw
  • Bucket Capacity：0.8m3
  • Bucket Width：1800mm
  • Rated Load：1600kg
  • Tyre：20.5,70-16

Base Info

  • Model NO.：1.6ton - ER16
  • Operating Weight：4100kg
  • Overall Length (Bucket on Ground)：4750mm
  • Ground to Cab Top：2500mm
  • Color：According to Buyers
  • Transport Package：3 Units in 1*40 Hq Container
  • Specification：CE SGS TUV
  • Trademark：EVERUN
  • Origin：Shandong
  • HS Code：8429510000
  • Production Capacity：3000 Unit,Year

Description


Earth-Moving Ce Approved Machine Everun Brand 1.6ton Er16 Mini Wheel LoaderEarth-Moving Ce Approved Machine Everun Brand 1.6ton Er16 Mini Wheel LoaderSPECIFICATIONS:
1.0 Engine details:
(1) Model: Xinchai 498BT(Euroiii and EPA Standard)(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine(3) Rated Power: 37KW(4) Rated Speed: 2400 r/min (rpm)(5) Fuel Consumption ratio in standard working condition: 230g/kw.h2.0 Transmission System(1) Type: Fixed-spindle Power shift(2) Shift gear control oil pressure: 1.2~1.5MPa(3) Rated input speed: 2500 (rpm)3.0 Bucket(1) Bucket Capacity: 0.8 m3 (2) Bucket width: 2000mm(3) Bucket type: Heavy-duty bolt on teeth(4) Max. Breakout Force: 36.8KN (5) Rated Load: 1600kg(6) Operating Weight: 4100kg4.0 Overall Dimensions(1) Overall Length (Bucket on ground position): 5300mm(2) Overall Height(a) Ground to Cab Top: 2750mm(b) Dumping Height: 2700mm(c) Min. Base to the Ground: 260mm(3) Overall Width: 1800mm5.0 Operating Specifications(1) Steering System: Articulated Frame with hydraulic power steering(2) Min Turning Radius: 4500mm(3) Driving System: Hydraulic converter6.0 Brake System(1) Service Brake: Four Wheel Hydraulic spread-shoed brake(2) Parking Brake: Hand operated7.0 Tyre(1) Model: 20.5/70-16 Wider Tyre8.0 Wheelbase: 2100mm9.0 Track: 1500mm
