• Model NO.：FKWJ-2
• Type：Medium-sized Loader
• Rated Capacity：4 Tons
• Engine：Germany Deutz
• Torque Converter：American Dana
• Shift Transmission：American Dana
• Service：Free Parts for One Year
• After-Sales Serive：Supply Free Maintenance
• Warranty：12 Month
• Transport Package：40gp Container
• Specification：bucket volume: 2 cbm (2.6 yd)
• Trademark：FOCOR
• Origin：China
• HS Code：84293090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. FKWJ-2 Type Medium-sized Loader Rated Capacity 4 Tons Engine Germany Deutz Torque Converter American Dana Shift Transmission American Dana Service Free Parts for One Year After-Sales Serive Supply Free Maintenance Warranty 12 Month Transport Package 40gp Container Specification bucket volume: 2 cbm (2.6 yd) Trademark FOCOR Origin China HS Code 84293090 Production Capacity 200 Sets/Month

Product Description

FKWJ-2 Diesel underground loader

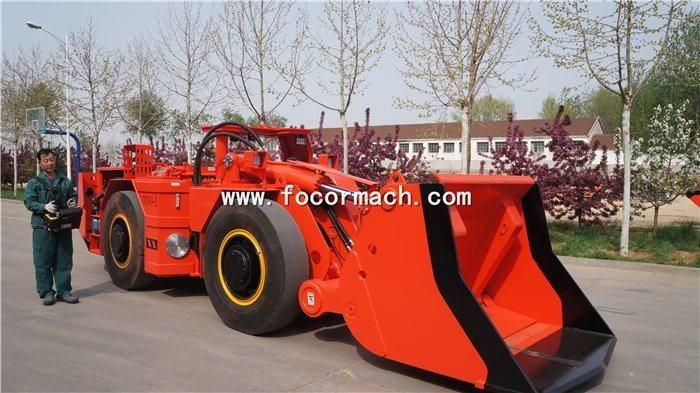

Underground Mining Loader with Remote Control

1. Main Configurations:

Diesel Engine:	Brand:   Germany DEUTZ Rated Power:  84KW/2300rpm
Shift Transmission:	Brand   American DANA Model:  R32421 Shift:   power shift (4 shifts) forward+backward, with Emergency brake
Torque Converter:	Brand:    American DANA Model:    C272 Type:     Single stage two components, with hydraulic pump drive.
Drive Axle Type:	Brand: China Type:  Rigid planetary transmission axle, with NON-SPIN & anti-slip differential
Hydraulic pumps and valves	Brand: American Parker
Braking System:	Type:     Working brake, Stop brake Description:  Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake
Hydraulic system	(1)Working system: American Parker work pump, American Parker working valve (2)Steering system: American Parker steering pump, American Parker steering valve (3)Braking system: American Parker brake pump, American Mike filling liquid, American Mike brake valve (4)Oil filling system: American Dana refueling pump, Williams acceleration valve, acceleration cylinder.
Lubrication system	Centralized lubrication system
Driver cabin	Side view, with reinforced steel panel.
Bucket	Type:  Ejector bucket Material: Manganese steel



2. Technical Parameters:

General Parameters	Rated capacity                       4000 kg                      Length                                    7060mm Width                                     1840mm Height(cabin)                         1960 mm Bucket volume                        2 m³ Lifting height                           3800 mm Discharging height                  1745 mm Min. Discharging distance        740 mm Discharging angle                    40° Wheelbase                               2540mm Min. Ground clearance:            250mm Departure angle:                      15° Steering angle:                      left/right 42° Min. Turning radius:               inner 4255 mm Min. Turning radius:               outer 6500 mm Rear axle swing:                    ±6° - ±8°
Loader weight and bridge load	Scooptram weight                    12500 kg Load weight                              16500 kg
Traveling performance	1 shift forward/backward           3.8 km/h 2 shift forward/backward           7.8 km/h 3 shift forward/backward           12.5km/h 4 shift forward/backward           20 km/h Gradeability                              15%  (load) Max. Traction:                           120KN Max. Shovel:                             100KN

Remarks: We can choose different parts according to different condition of the underground mining or requirement from our customers, we will make the best proposal with reasonable price.
Pls contact us if you need the detailed specification and quotation.

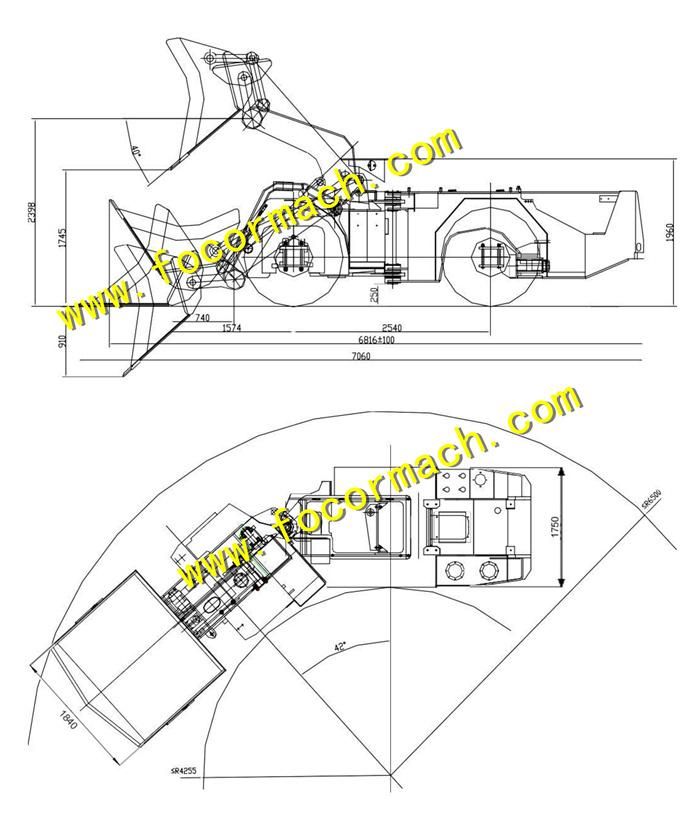

3. General Dimensions:

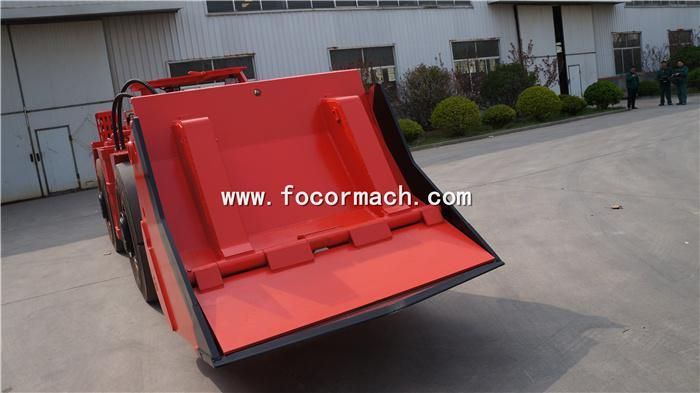

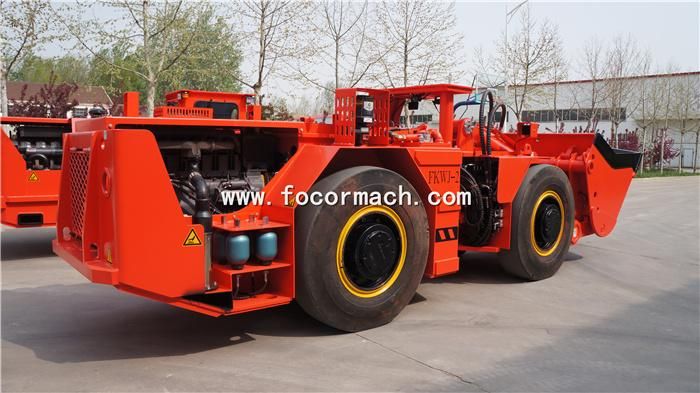

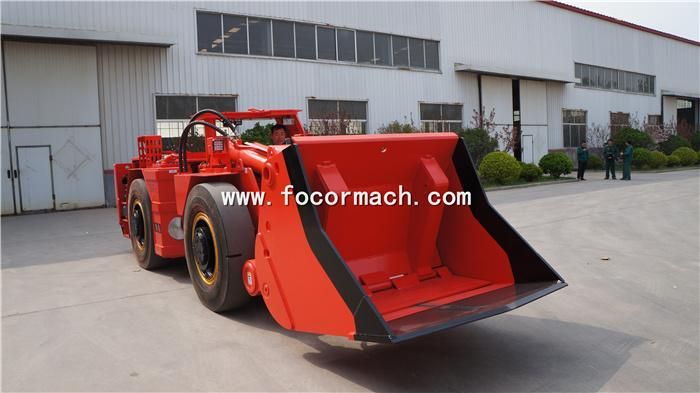

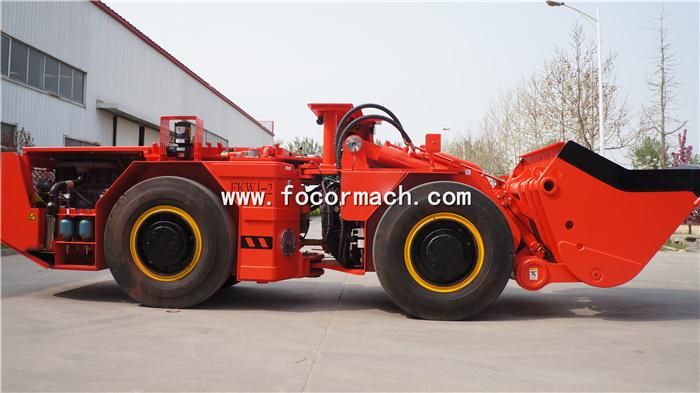

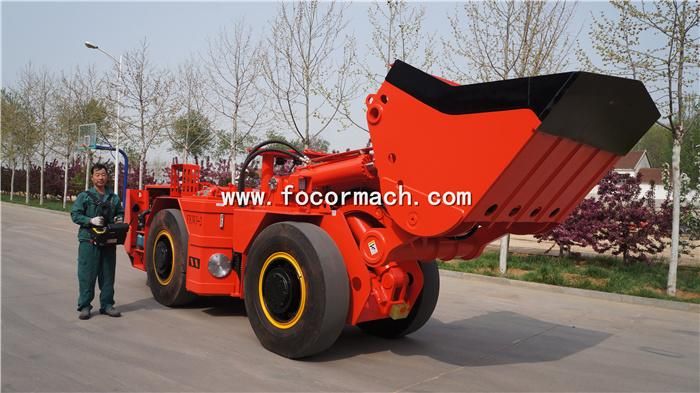

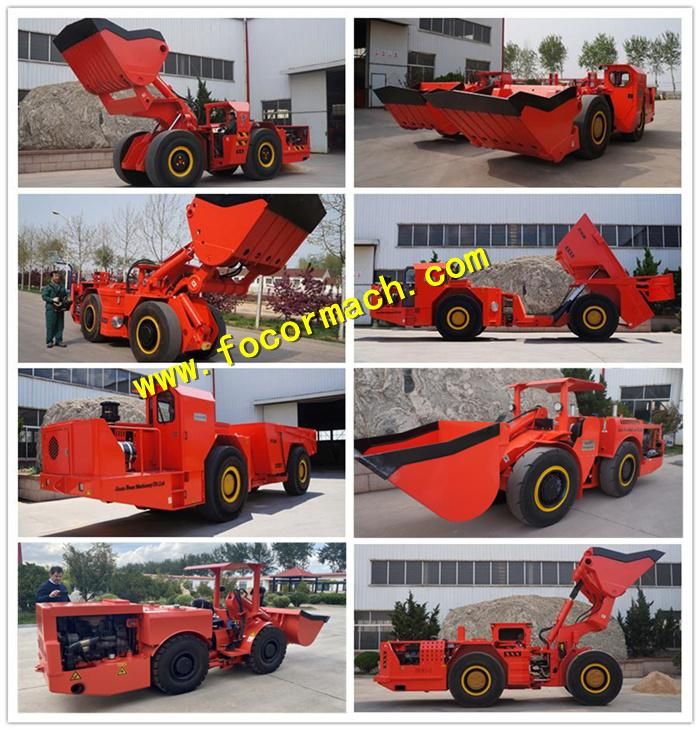

4. Pictures for show:
